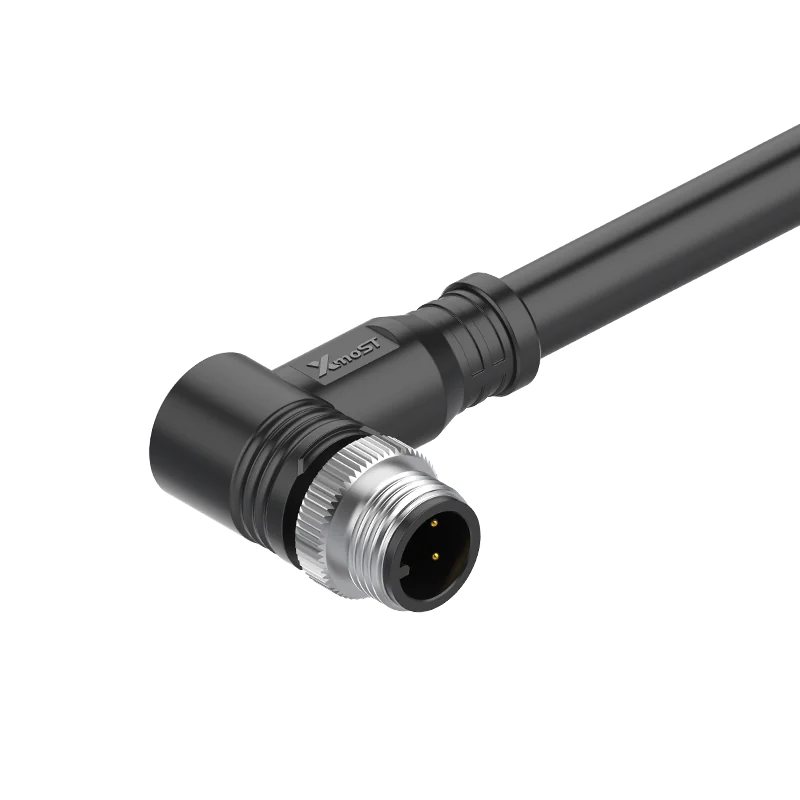

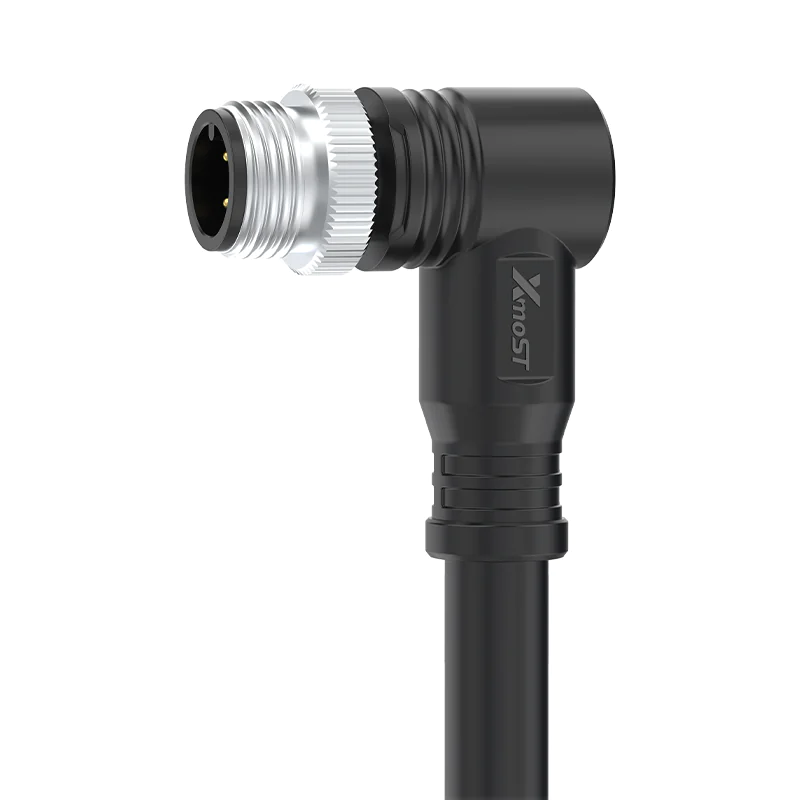

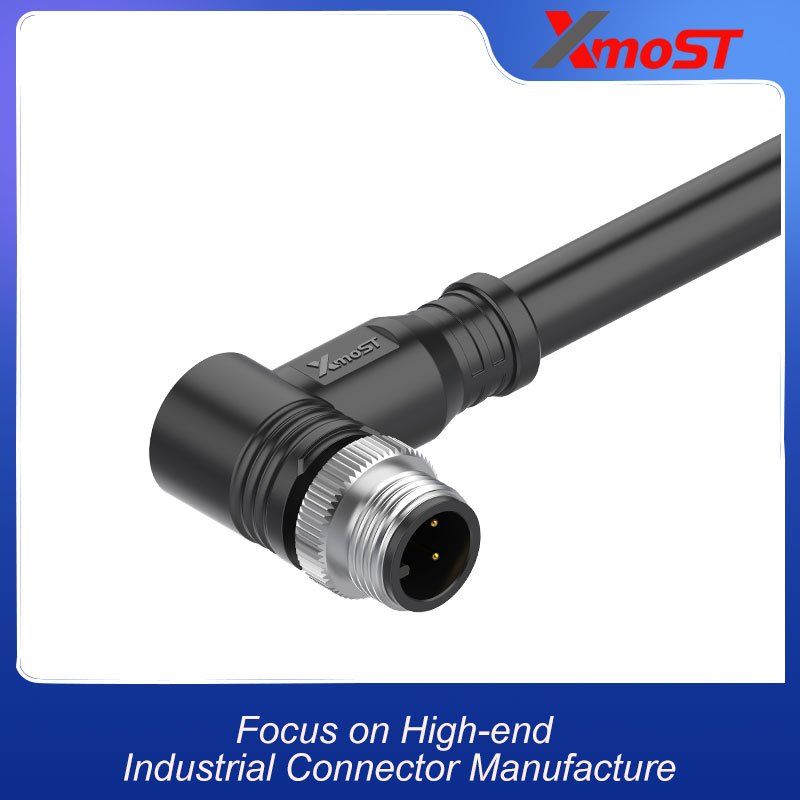

M12 Connector A-Code 4Pin Male Right Angle Molded Single-Ended Cable, Unshielded, IP68

  • Category: M12
  • Pin Count: 4Pin
  • Standard: IEC 61076-2-101
  • Rated Current: 4A
  • Rated Voltage: 250V
  • Insulation Resistance: ≥100MΩ
  • Contact Resistance: ≤5mΩ
  • Shielding Performance: Non-Shielded
  • Locking Method: M12×1.0 Screw Lock
  • Screw Torque: Recommended: 0.4Nm, Maximum: 0.8Nm
  • Termination Method: Soldering
  • Static Operating Temperature: -40°C ~ +80°C
  • Dynamic Operating Temperature: -25°C ~ +80°C
  • Wire Gauge Range: 0.34mm²
  • Ingress Protection: IP67 / IP68
  • Pollution Degree: 3
Category: Tag: Brand:

M12 A-Code 4Pin male right angle molded single-ended cable connector. Unshielded, IP68 waterproof (submersible), rated 250V 4A. L-shaped design for tight spaces. Pre-molded overmolded construction, single-ended with flying leads. Brass nickel-plated nut, gold-plated contacts. Operating temperature -25°C to +85°C. Ideal for industrial automation, sensors, actuators, and factory equipment. Suitable for bulk factory procurement. Request a quote for volume pricing.Insulator Material: PA66+GF / TPU+GF

  • Screw / Nut Material: Brass with Nickel Plating (Brass Ni) / Zinc Alloy with Nickel Plating
  • Pin Material: Phosphor Bronze with Gold Plating / Brass with Gold Plating
  • Sealing Material: FKM / Silicone / Epoxy
  • Outer Housing Material: PVC / TPU
