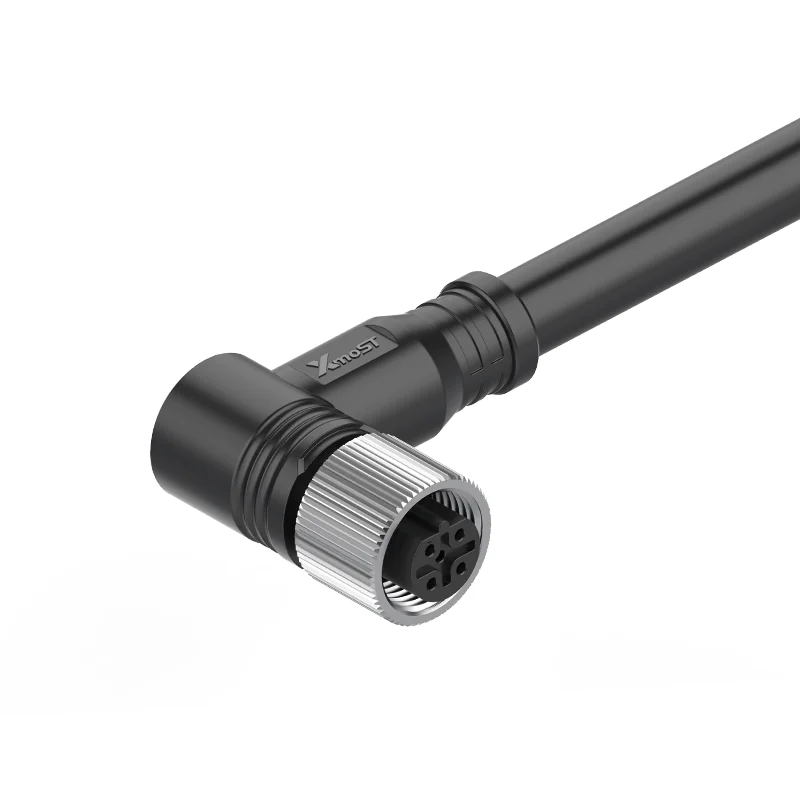

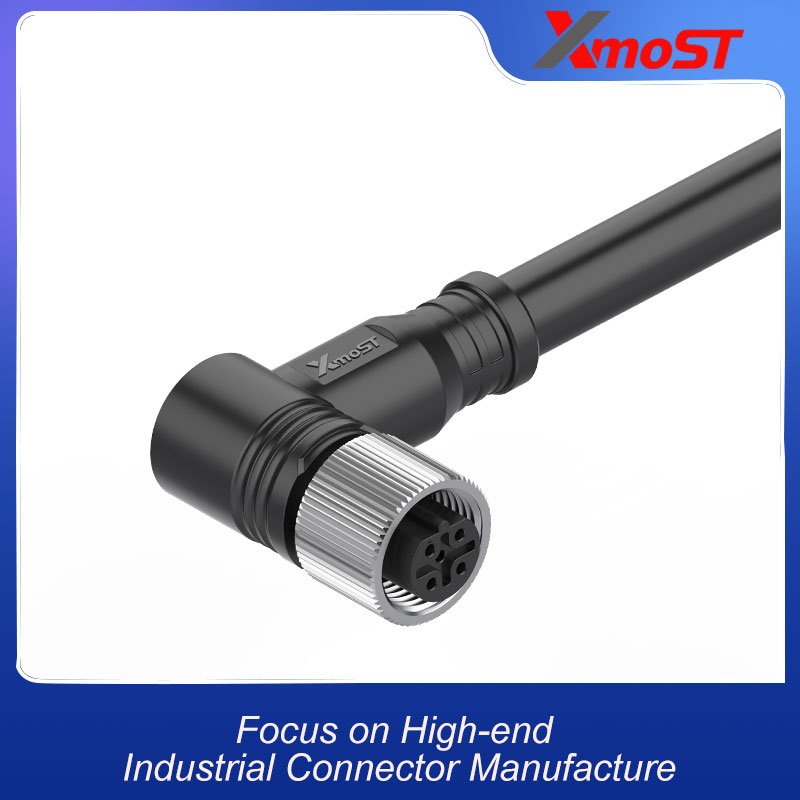

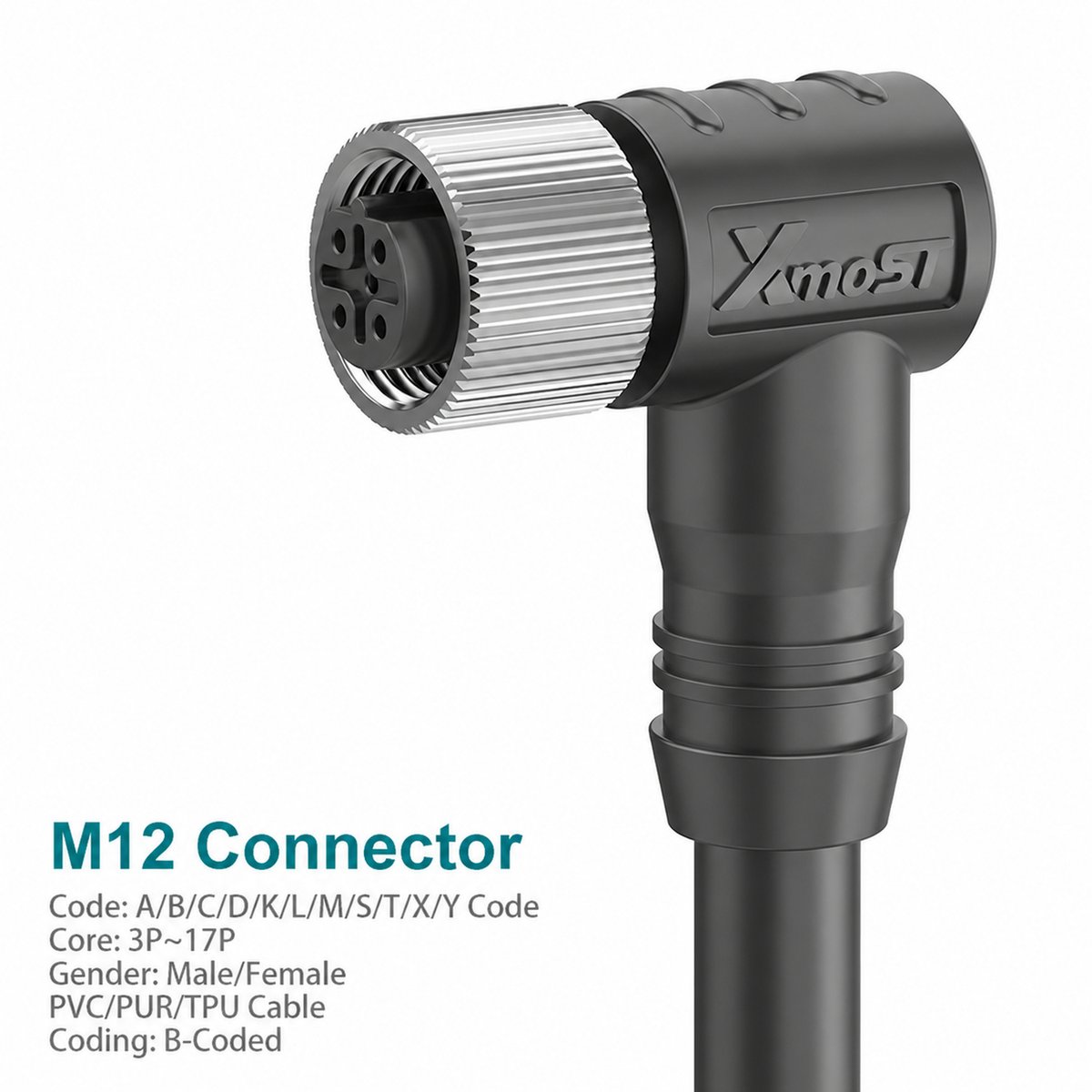

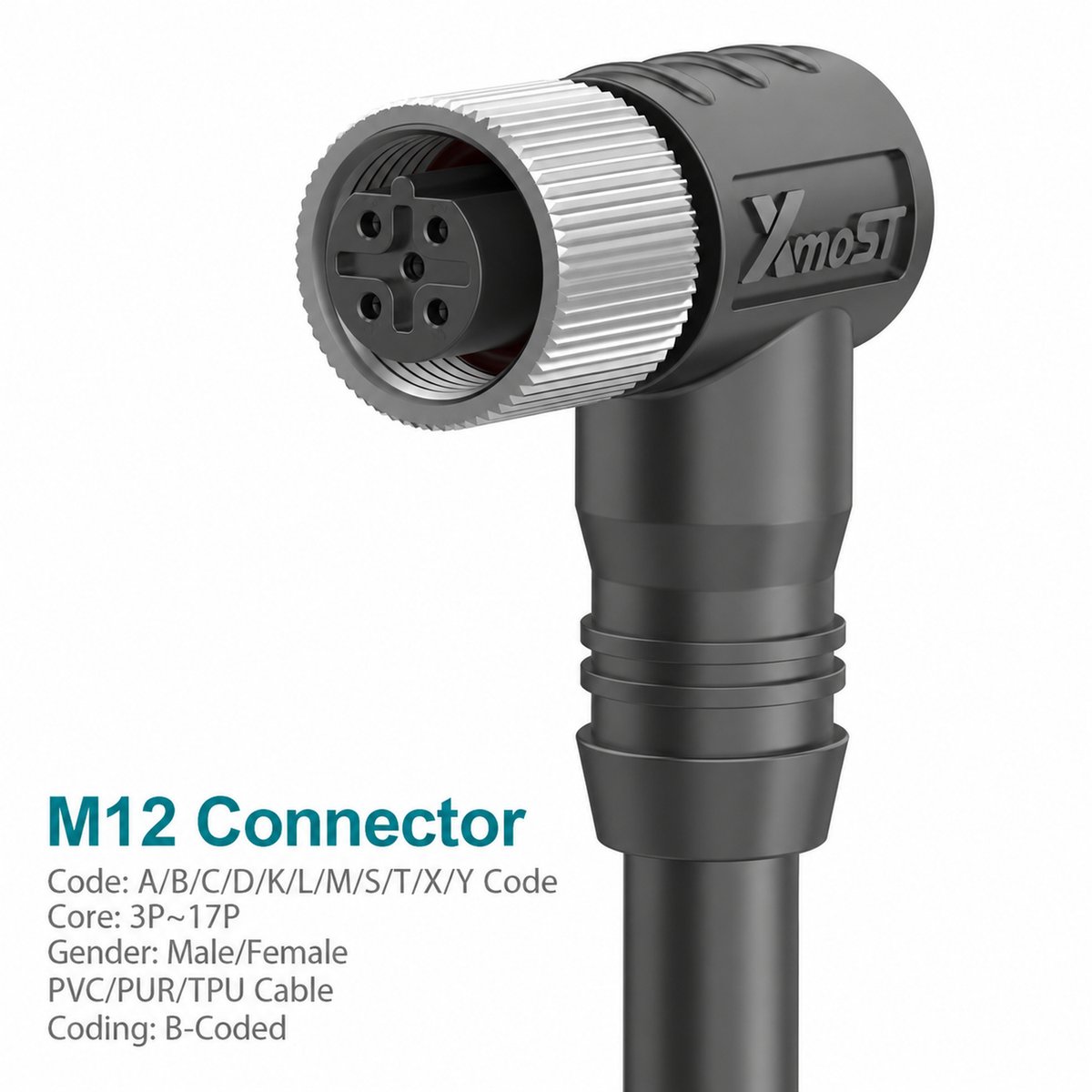

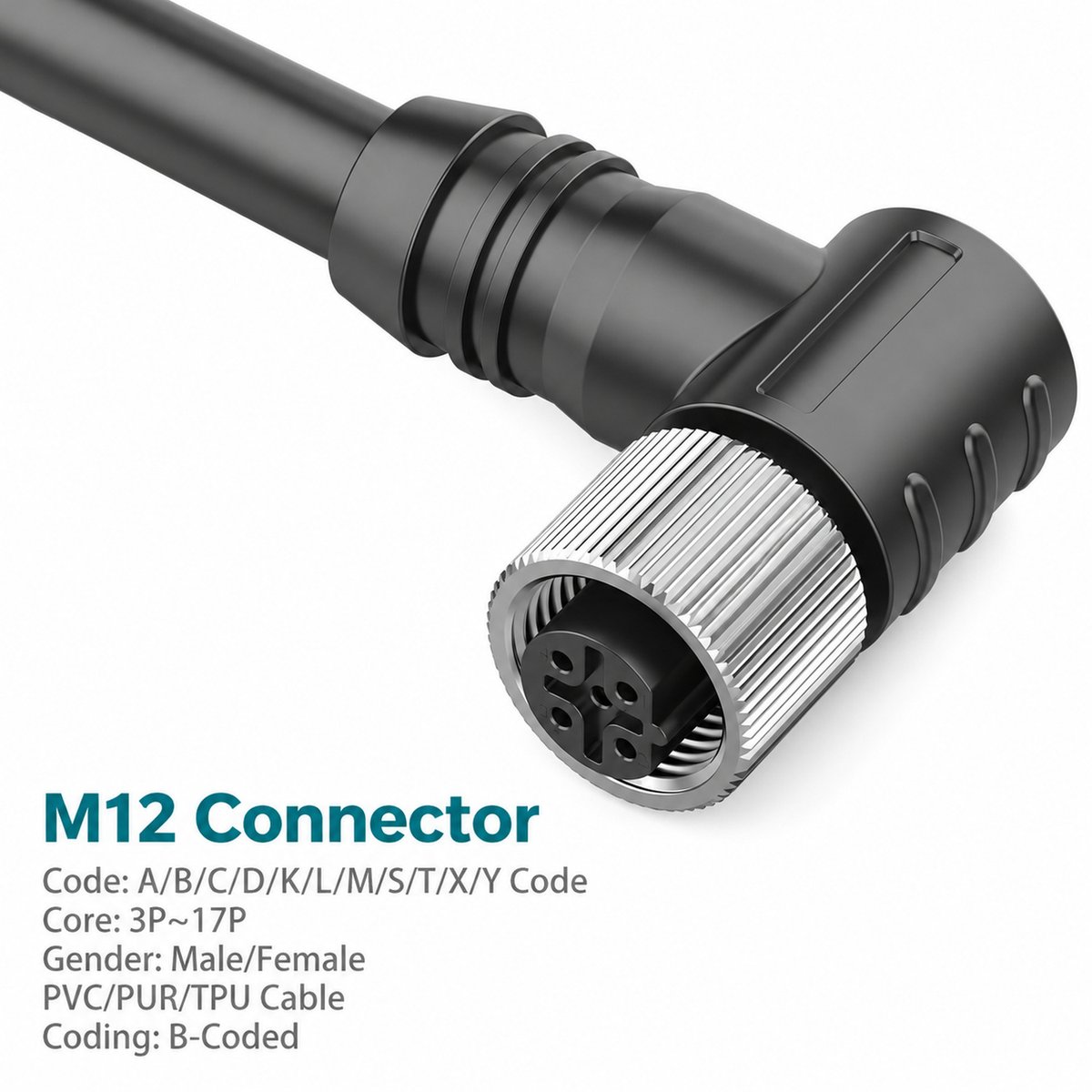

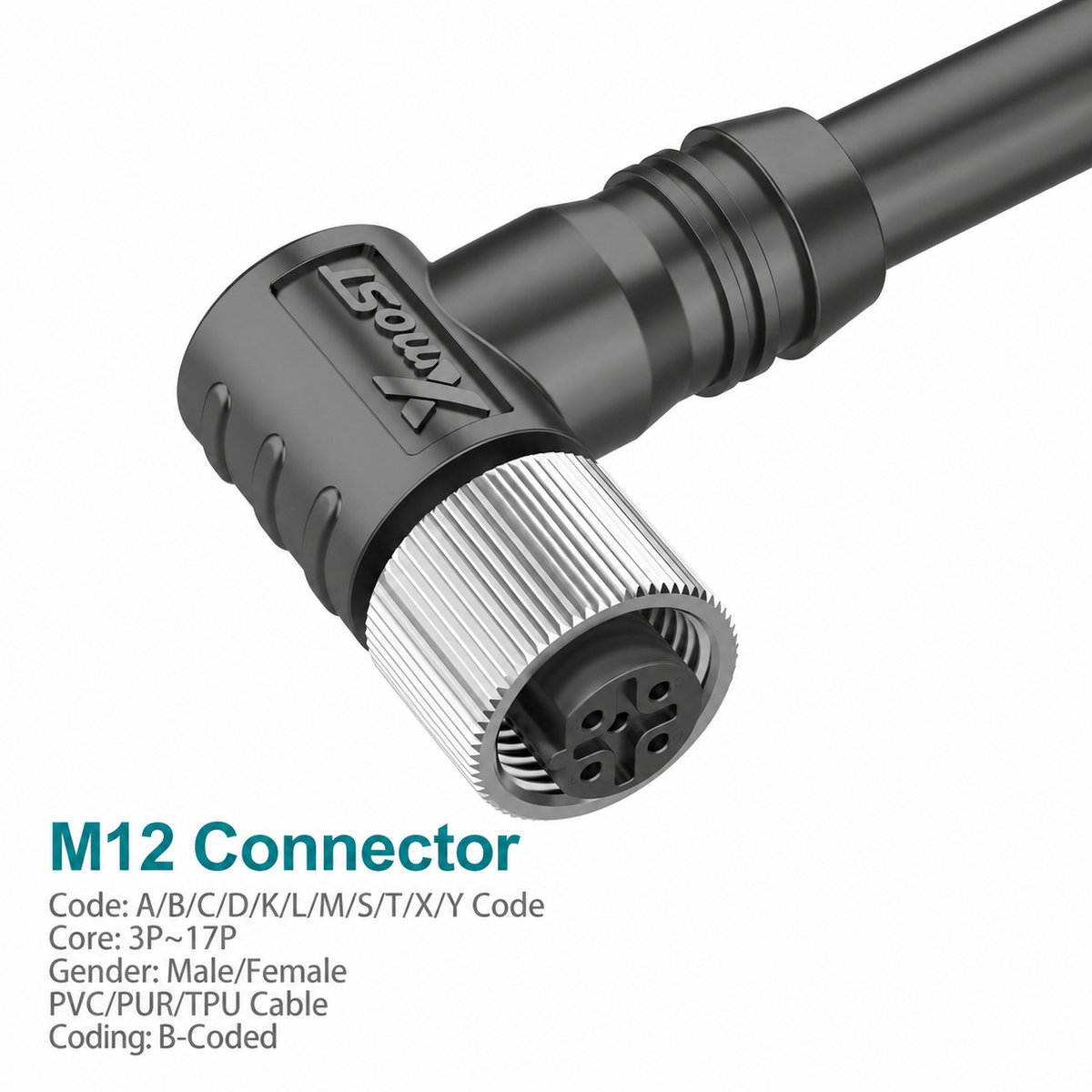

Xmost M12 B-coded female 90° cable connector provides a shielded fieldbus connection for compatible PROFIBUS equipment. Its right-angle molded design directs the cable perpendicular to the mating axis, accommodating layouts where a straight cable exit is impractical.
This single-ended M12 PROFIBUS cable assembly features a 5-pin female interface and M12 × 1.0 screw locking. The catalog lists electrical ratings of 4 A and 60 V, with a wire size of 0.34 mm² / AWG22.
PVC and PUR cable options are listed in 1 m, 3 m and 5 m lengths.
Key Features
- 90° right-angle cable exit for routing close to equipment.
- 5-pin M12 B-coded female interface for compatible PROFIBUS connections.
- Shielded, single-ended molded cable assembly.
- 4 A rated current and 60 V rated voltage.
- M12 × 1.0 screw locking.
- 0.34 mm² / AWG22 wire size.
- PVC or PUR cable options, with 1 m, 3 m and 5 m catalog lengths.
Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Horizontal span shown | 31.4 |
| Horizontal molded section | 18 |
| Vertical span shown | 36.3 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.4 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |

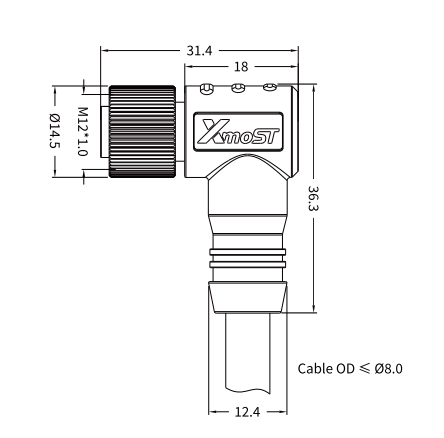

Dimensions correspond to the marked spans in the right-angle female connector drawing. Cable length is specified separately.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | B-coded |
| Contact Gender | Female |
| Contact Count | 5-pin |
| Connector Orientation | 90° Right-angle |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Shielded |
| Application Listed | PROFIBUS |
| Standard Listed | IEC 61076-2-101 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Wire Size | 0.34 mm² / AWG22 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
Applications
Suggested applications for this M12 B-coded female right-angle PROFIBUS connector include:
- PROFIBUS equipment: Fieldbus connections to compatible B-coded male ports.
- Industrial automation systems: Communication wiring between compatible field devices and network modules.
- Compact machine layouts: Installations where adjacent components restrict a straight cable exit.
- Equipment panel interfaces: PROFIBUS cable routing alongside the panel through a 90° connection.
Match the connector pin assignment and cable requirements to the PROFIBUS equipment.
Selection and Ordering
Specify the cable jacket and cable length. Select the corresponding right-angle female part number from the catalog ordering table.
Check the B-coded 5-pin mating interface and cable-routing clearance. Follow the female connector’s front-view wiring diagram and maintain the specified shield connection during installation.
