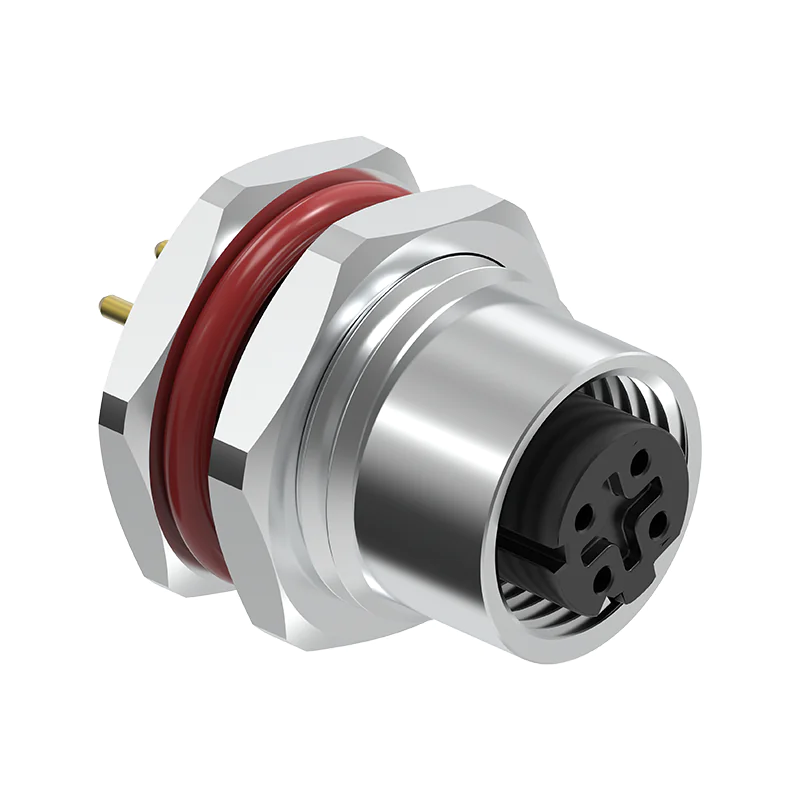

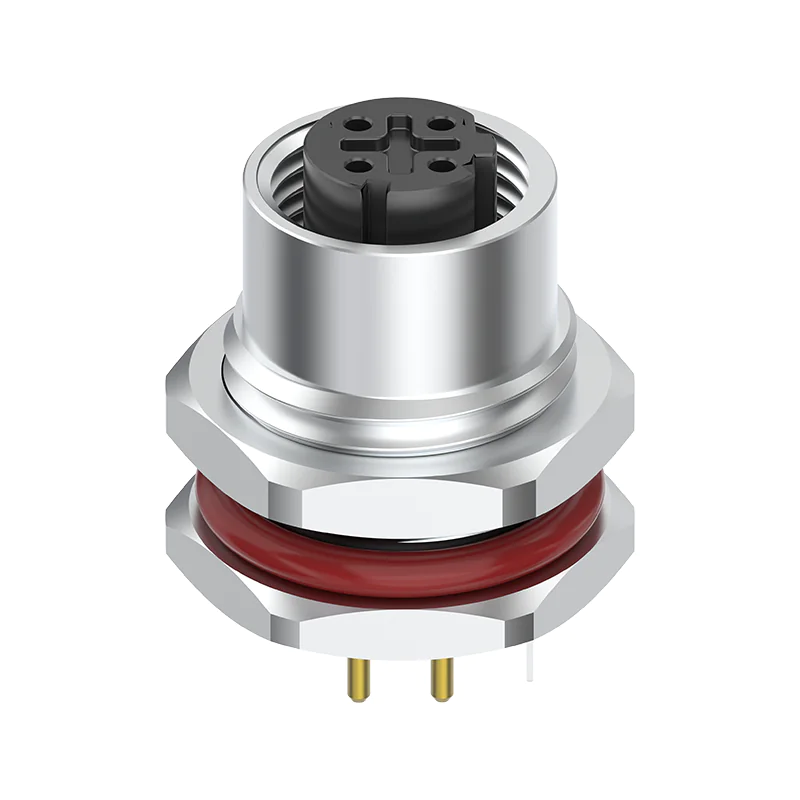

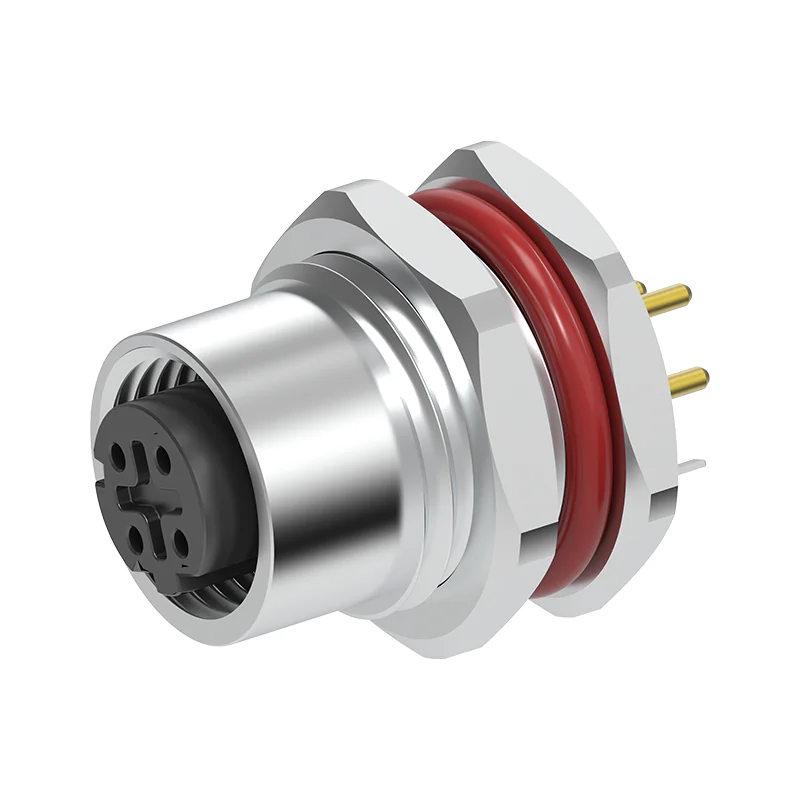

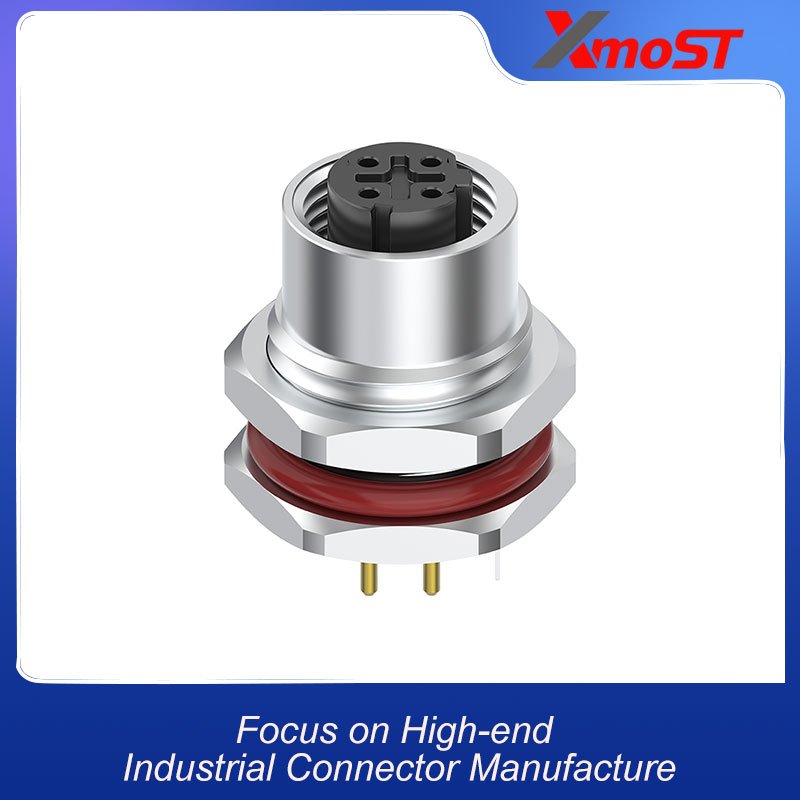

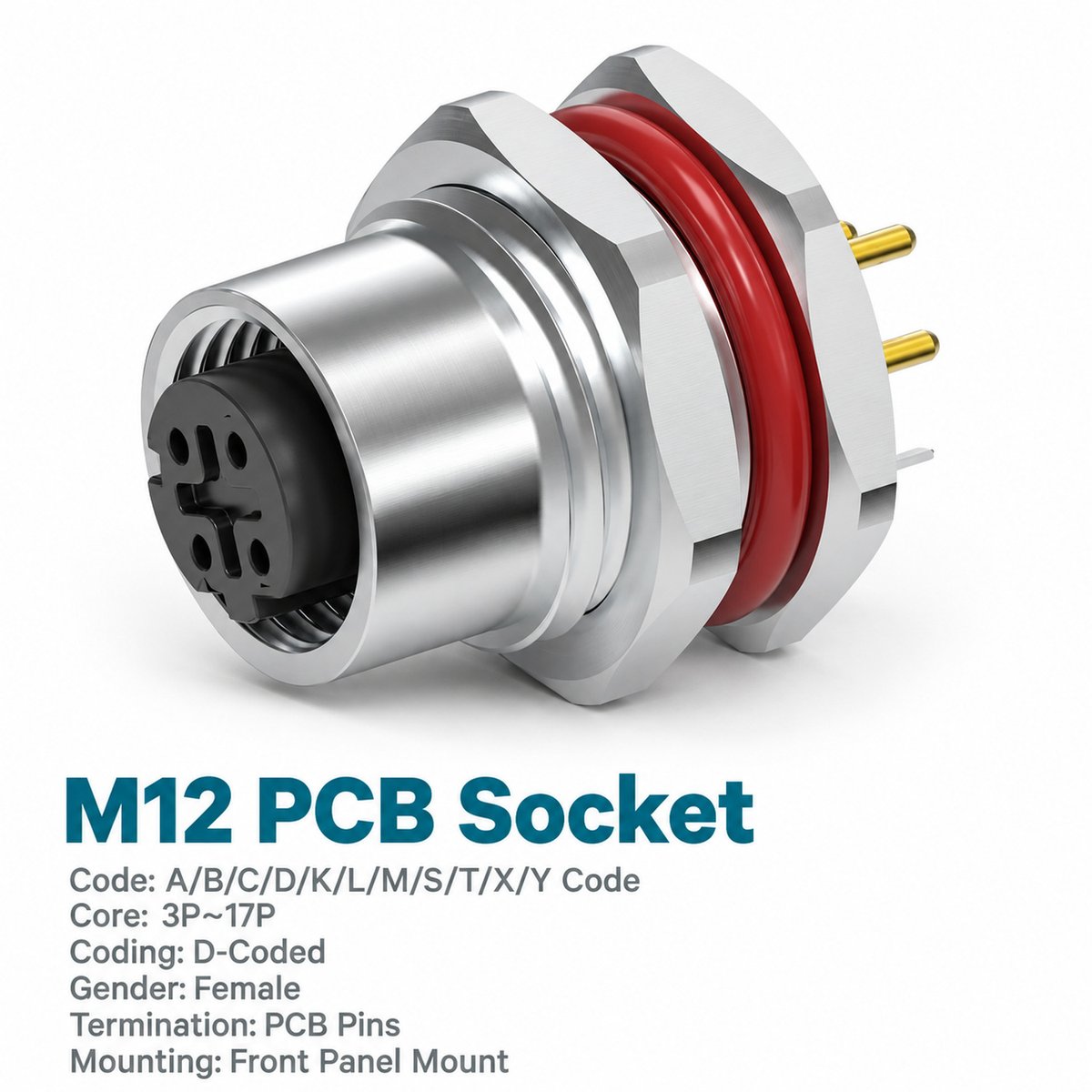

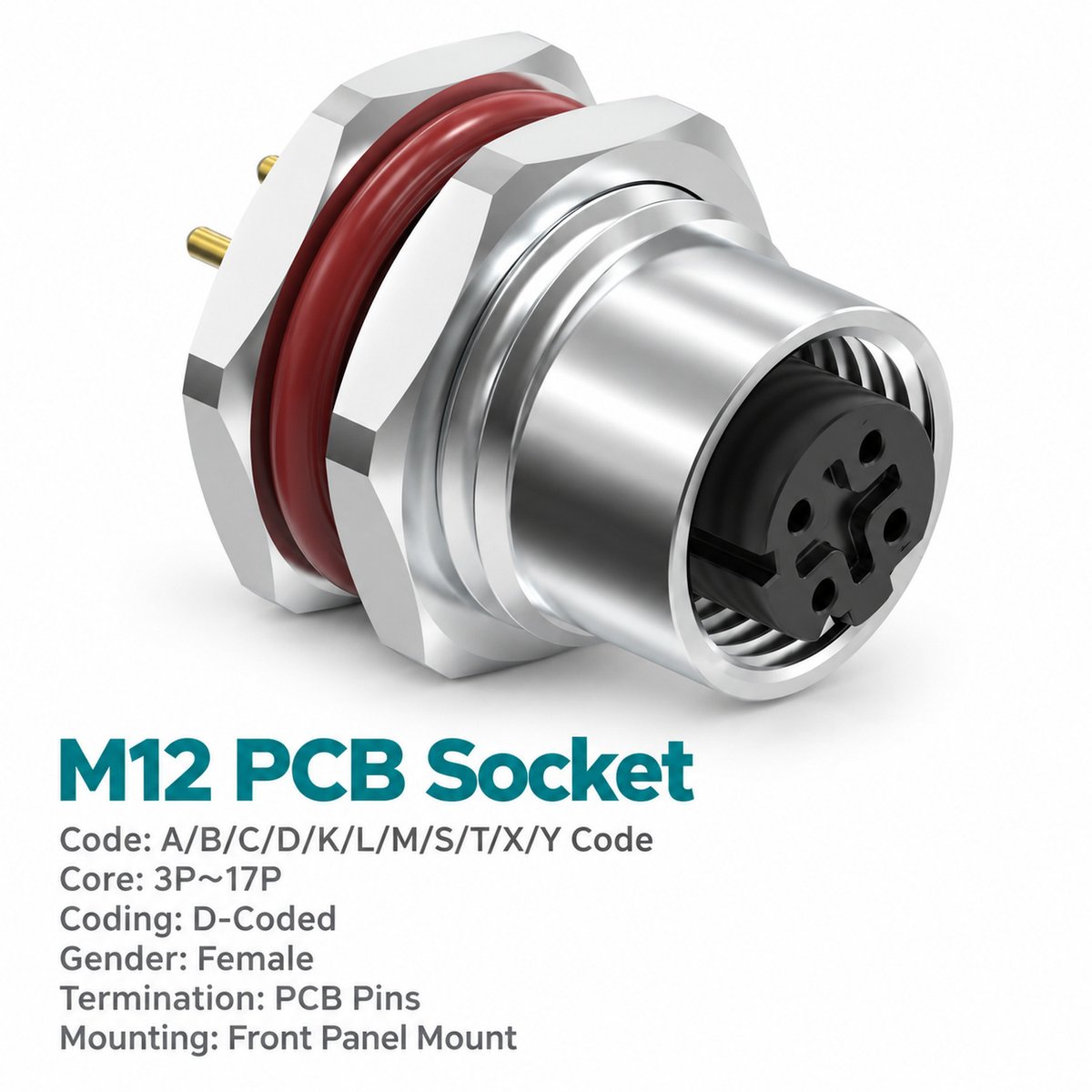

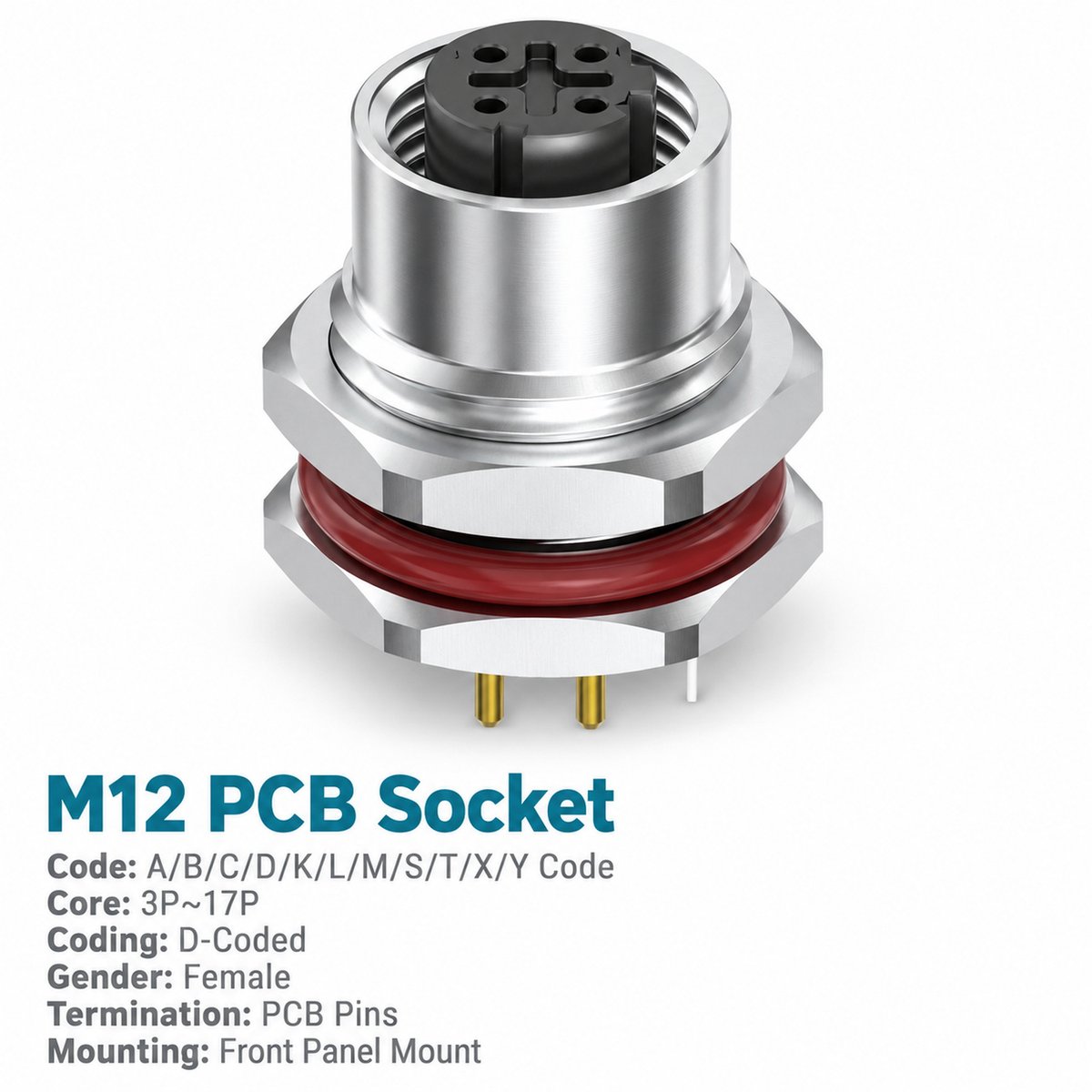

Xmost M12 D-coded female front mount PCB socket provides a detachable network cable interface for PROFINET devices and industrial Ethernet equipment. Its 4-pin female connection accepts a compatible M12 D-coded male cable connector, while straight rear contacts connect to the internal circuit board through dip soldering.
The front fastened construction combines panel mounting with direct PCB termination. PG9 and M16 × 1.5 mounting threads accommodate different enclosure designs, with the illustrated PG9 outline defining the socket’s body dimensions and rear contact projection.
Grounded and ungrounded constructions are listed alongside shielded and unshielded options. Specify grounding and shielding separately to match the equipment’s network interface design.
Key Features
- 4-pin female D-coded interface: Accepts compatible M12 D-coded male Ethernet cable connectors.
- PROFINET / Ethernet application: Provides a panel connection for industrial communication equipment.
- Front fastened mounting: Integrates the network socket into the equipment enclosure.
- Straight PCB contacts: Supports board insertion and dip soldering behind the panel.
- Two panel mounting threads: PG9 or M16 × 1.5.
- Grounding and shielding choices: Grounded/ungrounded and shielded/unshielded options.
Product Dimensions
[Insert the female front mount outline drawing and corresponding panel cut-out drawing from page 11.]

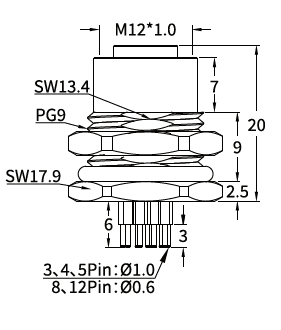

Illustrated PG9 Front Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section | 7 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter, 4-pin version | Ø1.0 |
Needle Arrangement (Front View)
[Insert the D-coded 4-pin female needle arrangement diagram from page 11.]
The diagram shows the female mating-face view with contacts numbered 1–4. Match the arrangement to the external male connector and follow the equipment wiring specification for Ethernet signal assignments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 D-coded female front mount PCB socket |
| Application type | PROFINET / Industrial Ethernet |
| Mounting | Front fastened |
| Contact count | 4 pins |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Grounding options | Grounded / ungrounded |
| Shielding options | Shielded / unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Wire gauge listed in catalogue | 0.34 mm² / AWG22 |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- PROFINET I/O modules: Connects external network cables to internal communication electronics.
- Industrial Ethernet devices: Provides a female M12 panel interface with direct PCB termination.
- Automation controllers: Integrates a detachable Ethernet cable connection into the control housing.
- Machine communication panels: Suits front fastened assemblies with straight board contacts.
Selection and Ordering
| Grounding Option | PG9 Mounting | M16 × 1.5 Mounting |
|---|---|---|
| Ungrounded | 1M1207DF04HP9P | 1M1207DF04H16P |
| Grounded | 1M1207DF04HP9PS | 1M1207DF04H16PS |
Specify the required shielded or unshielded construction when requesting a quotation.
Example enquiry: M12 D-coded female front mount PCB Ethernet socket, 4-pin, PG9 mounting, grounded construction, shielded version.
