Product Overview

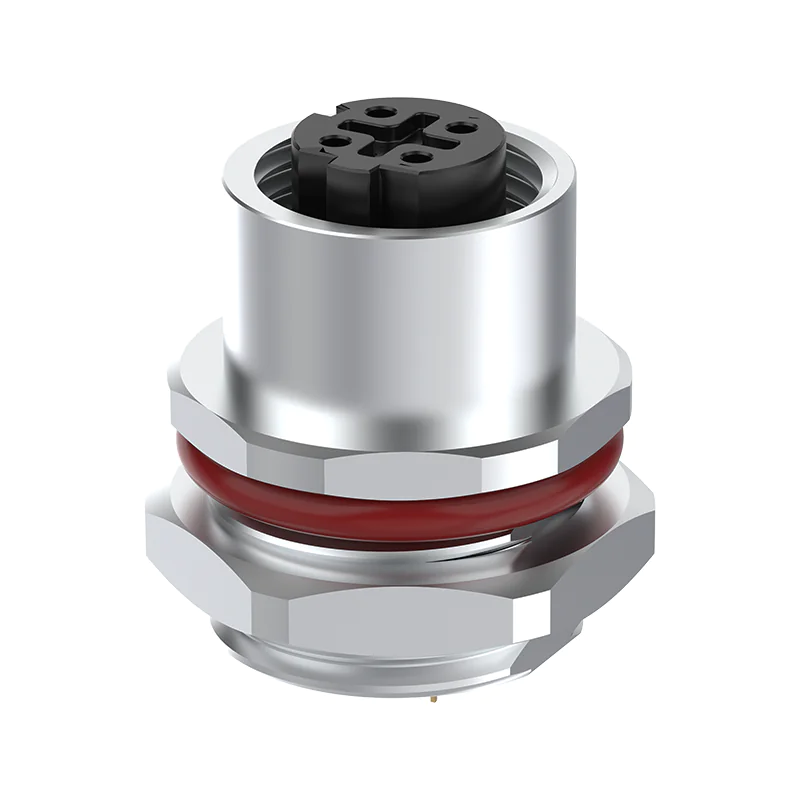

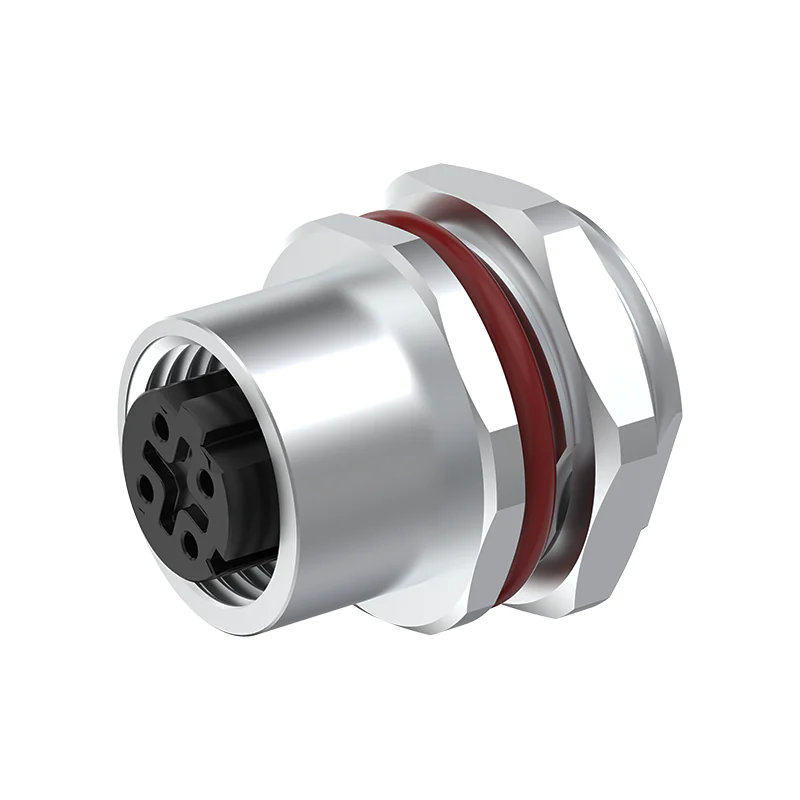

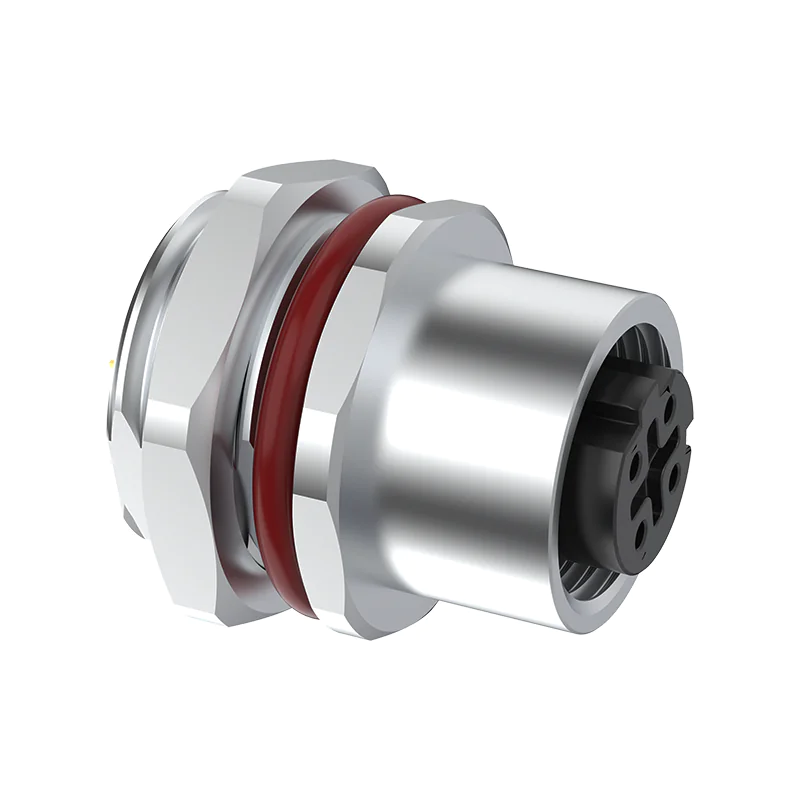

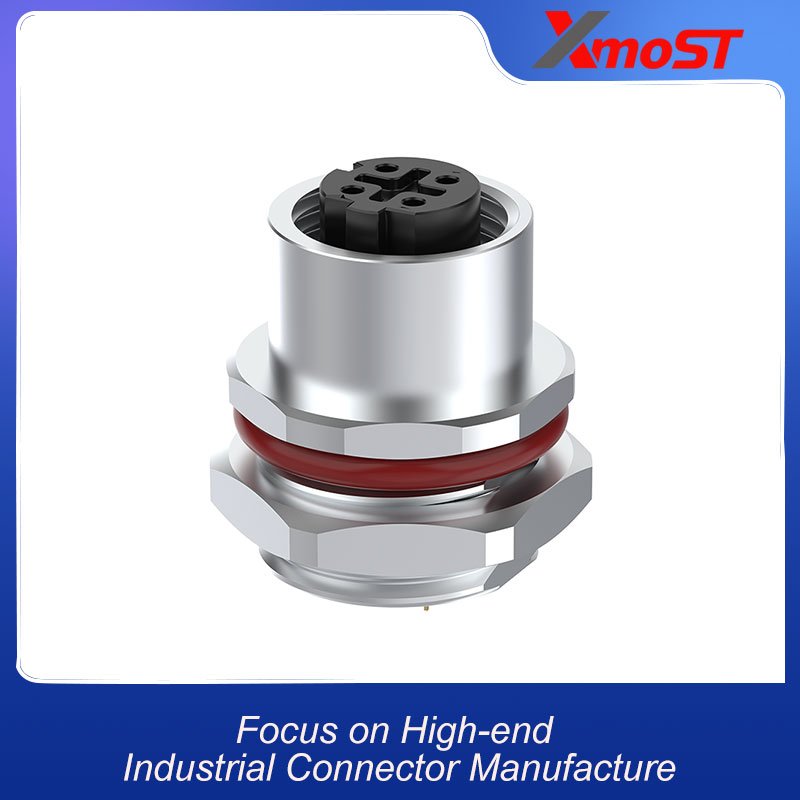

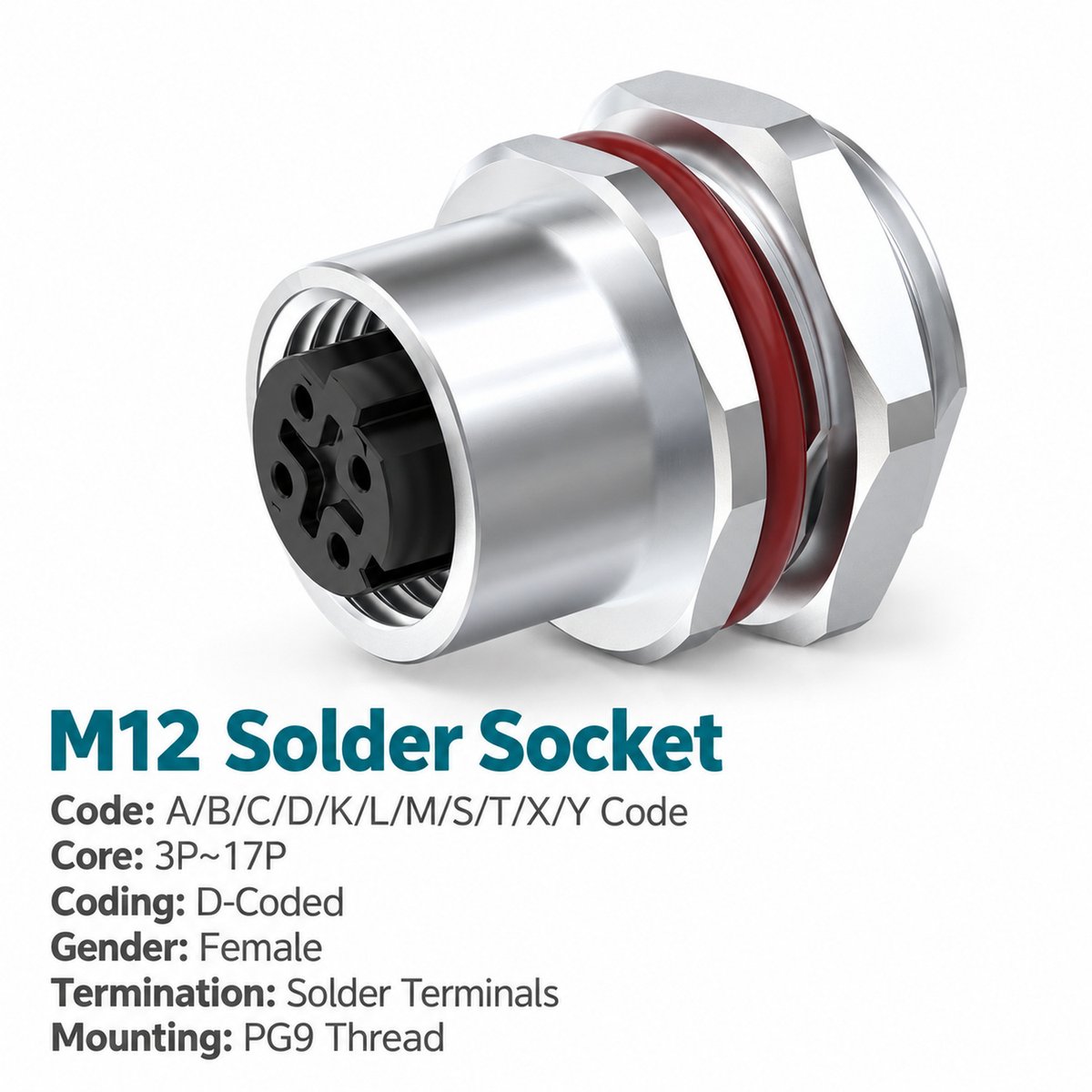

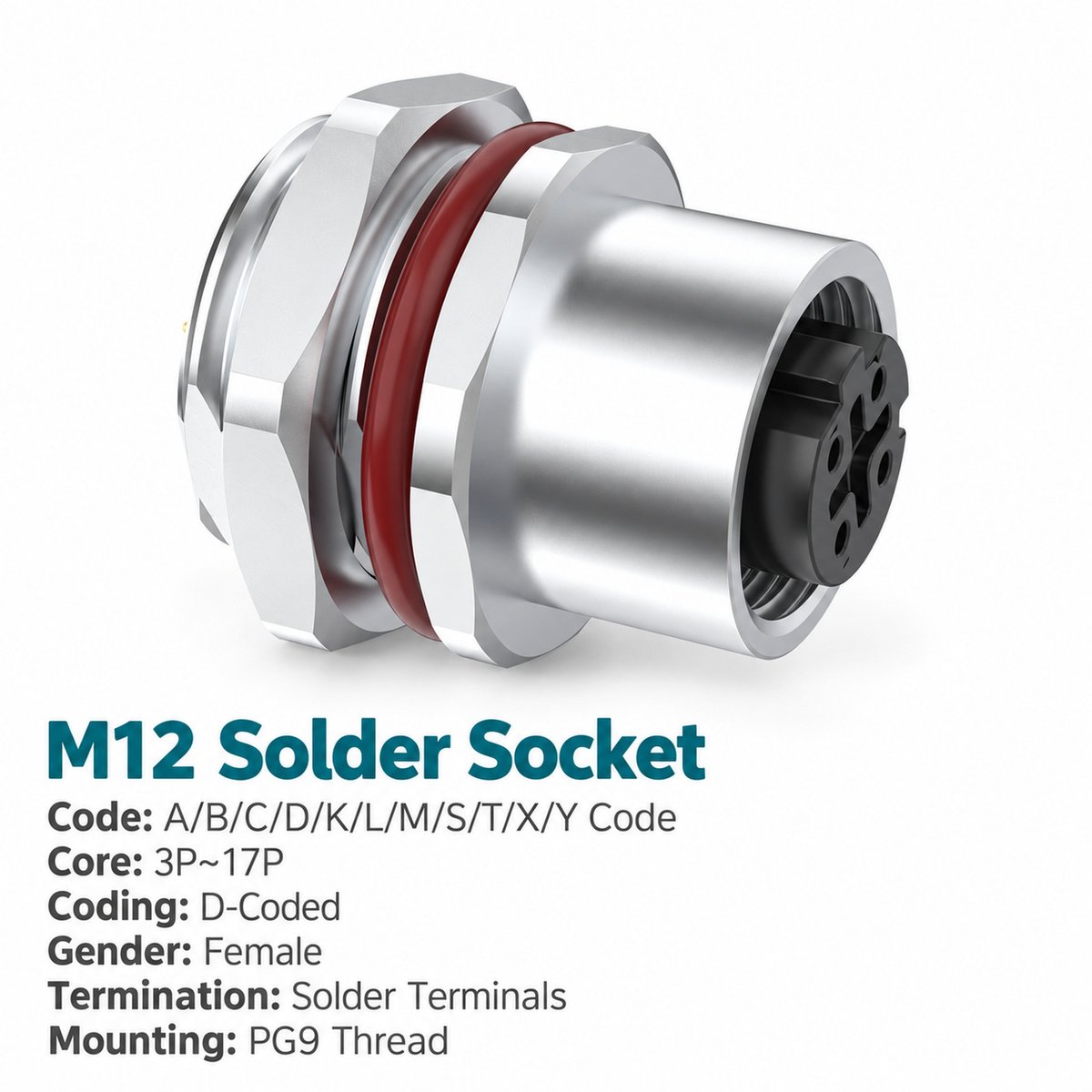

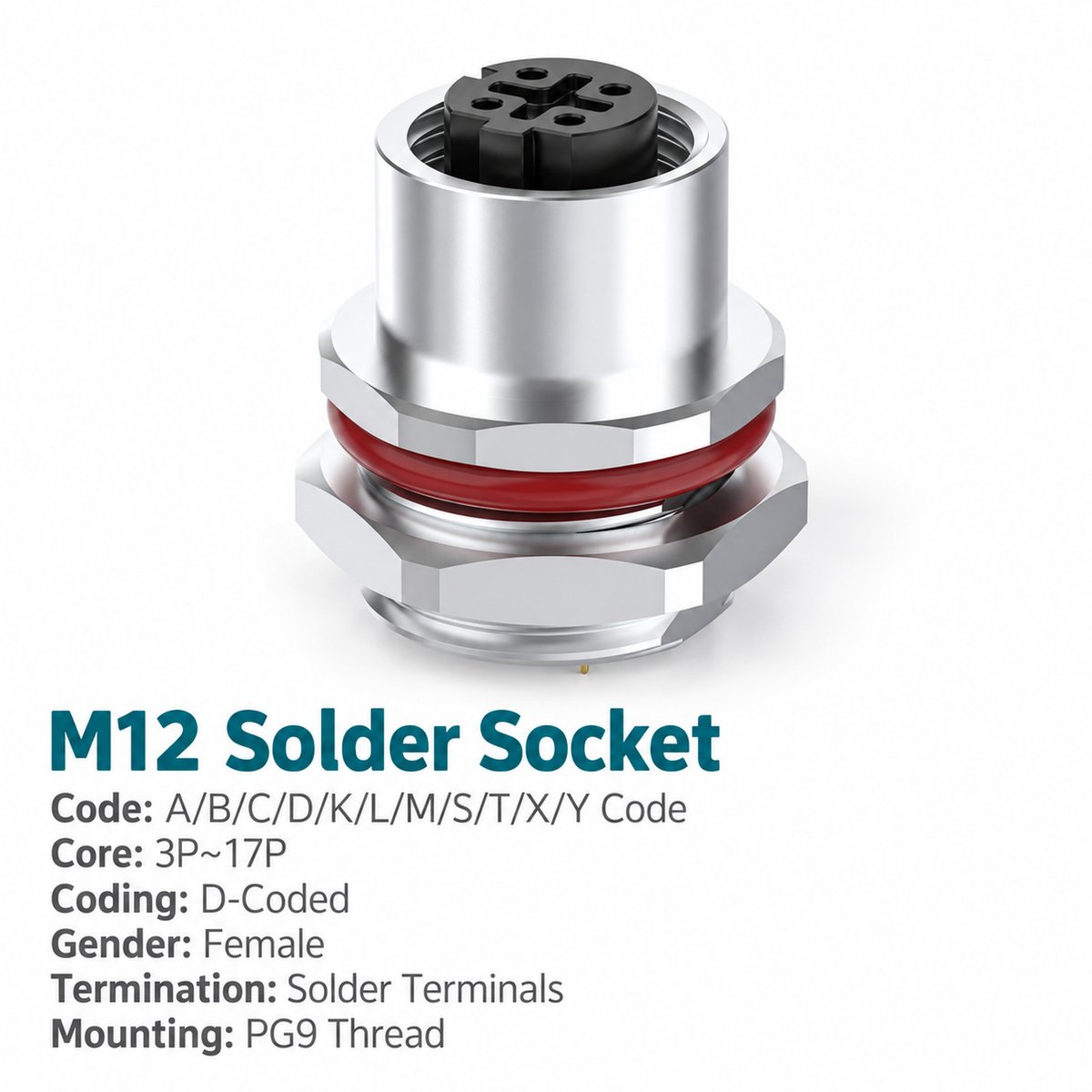

The Xmost M12 D-coded female rear mount socket provides an external threaded cable connection with solder termination inside the equipment housing. Its rear fastened construction suits panels designed to accommodate rear mounting hardware and internal harness access.
This M12 female panel mount connector offers unwired and pre-wired versions. Choose customer solder termination during assembly or a supplied lead length matched to the internal connection point. PG9 and M16 × 1.5 mounting options support different panel designs.
For industrial Ethernet or PROFINET-related installations, check the complete connection against the equipment’s network and shielding requirements. The catalogue specifies this socket as unshielded.
Key Features
- Rear fastened construction: For equipment panels designed around a rear mount receptacle.
- Female D-coded interface: Four contacts for a compatible M12 D-coded male cable connector.
- Solder wiring connection: For termination to the internal equipment harness.
- Lead length selection: Unwired, 0.1 m, 0.3 m and 0.5 m versions listed.
- PG9 or M16 mounting: Two panel thread options.
- Threaded mating connection: M12 × 1.0 coupling interface.
- Unshielded design: As specified for this catalogue product.
- Installation drawing included: Shows body dimensions and panel cut-out guidance.
Product Dimensions
[Insert the rear mount female socket dimension drawing and corresponding panel cut-out here.]

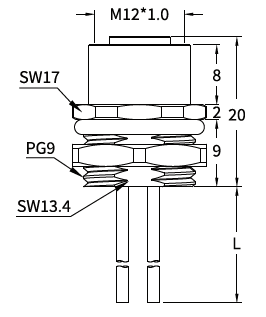

Dimensions for the Illustrated PG9 Version
| Drawing Item | Dimension / Specification |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Upper axial section shown | 8 |
| Flange thickness shown | 2 |
| Lower axial section shown | 9 |
| Overall body length shown, excluding leads | 20 |
| Lead length | L, according to ordered version |
| Unit | mm |
Allow space for rear fastening hardware and lead routing. Prepare the panel opening using the drawing for the ordered mounting thread.
Needle Arrangement (Front View)
[Insert the D-coded 4-pin female needle arrangement screenshot from page 8 here.]
Contact positions are shown from the mating face. Use the female diagram when identifying terminals and checking the connection to the external male cable.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Product type | M12 D-coded female rear mount socket |
| Contact count | 4 pins |
| Mounting method | Rear fastened |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-101 |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | PG9 / M16 × 1.5 |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Wire size listed | 0.34 mm² / AWG22 |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
This M12 D-coded rear mount female connector can be considered for:
- Network equipment housings: Connecting external D-coded cables to internal wiring.
- Control enclosures with rear mounting access: Accommodating fastening hardware behind the panel.
- Industrial Ethernet assemblies: Providing a detachable four-contact equipment interface.
- PROFINET-related device panels: Subject to complete network wiring requirements.
- Pre-wired machine harnesses: Routing socket leads to an internal connection point.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot from page 8 here.]
| Contact | Colour Arrangement 1 | Colour Arrangement 2 |
|---|---|---|
| Pin 1 | Yellow — YE | White/orange — WH/OR |
| Pin 2 | White — WH | White/green — WH/GN |
| Pin 3 | Orange — OR | Orange — OR |
| Pin 4 | Blue — BU | Green — GN |
The specification page shows both arrangements without identifying their corresponding versions. Confirm the required wiring option and follow the supplied assignment during assembly.
Ordering Information
| Wiring Option | PG9 Mounting | M16 × 1.5 Mounting |
|---|---|---|
| Unwired | 1M1208DF04HP9W00 | 1M1208DF04H16W00 |
| 0.1 m leads | 1M1208DF04HP9W10 | 1M1208DF04H16W10 |
| 0.3 m leads | 1M1208DF04HP9W30 | 1M1208DF04H16W30 |
| 0.5 m leads | 1M1208DF04HP9W50 | 1M1208DF04H16W50 |
Confirm the rear mount version, panel thread, lead length and wire colour arrangement when ordering.
