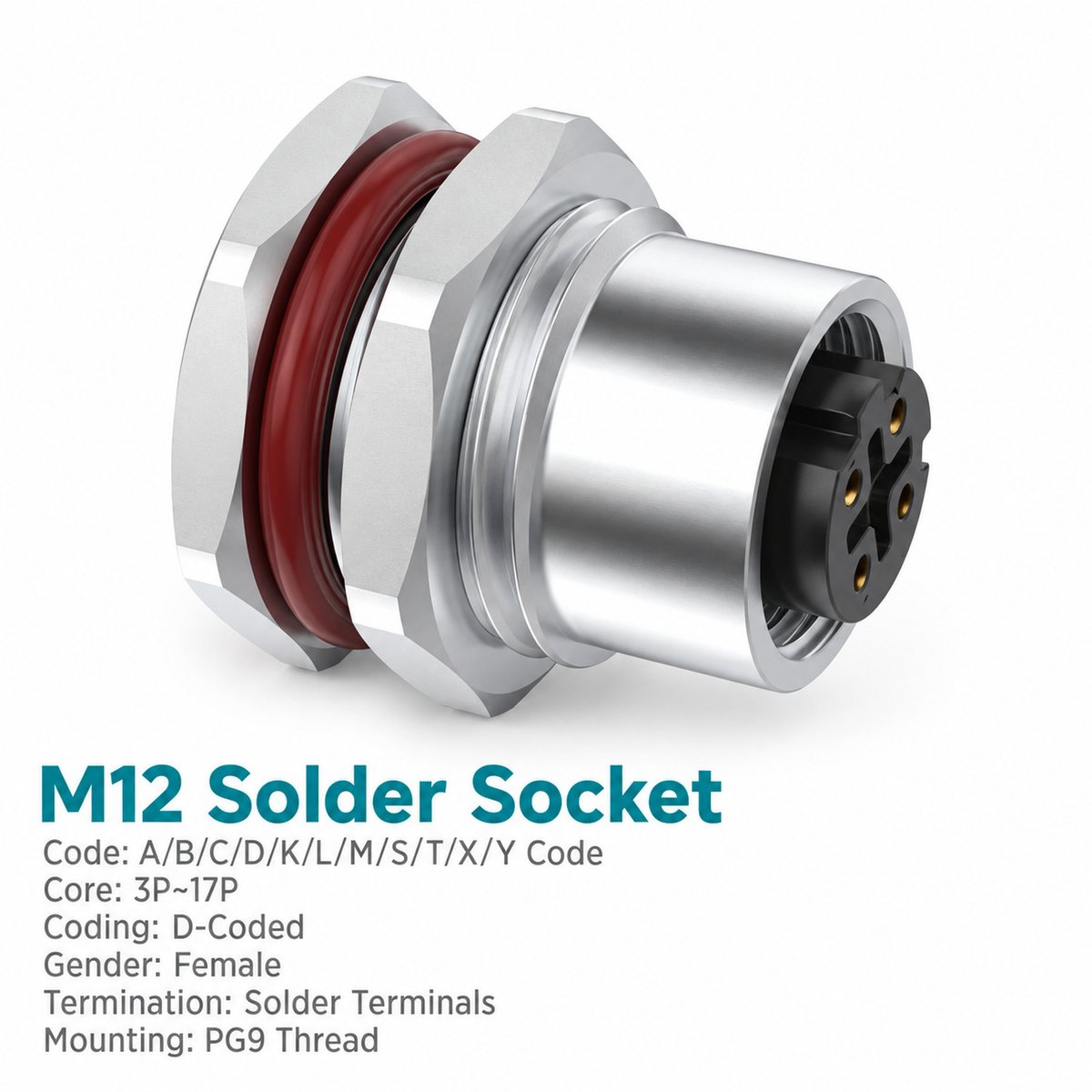

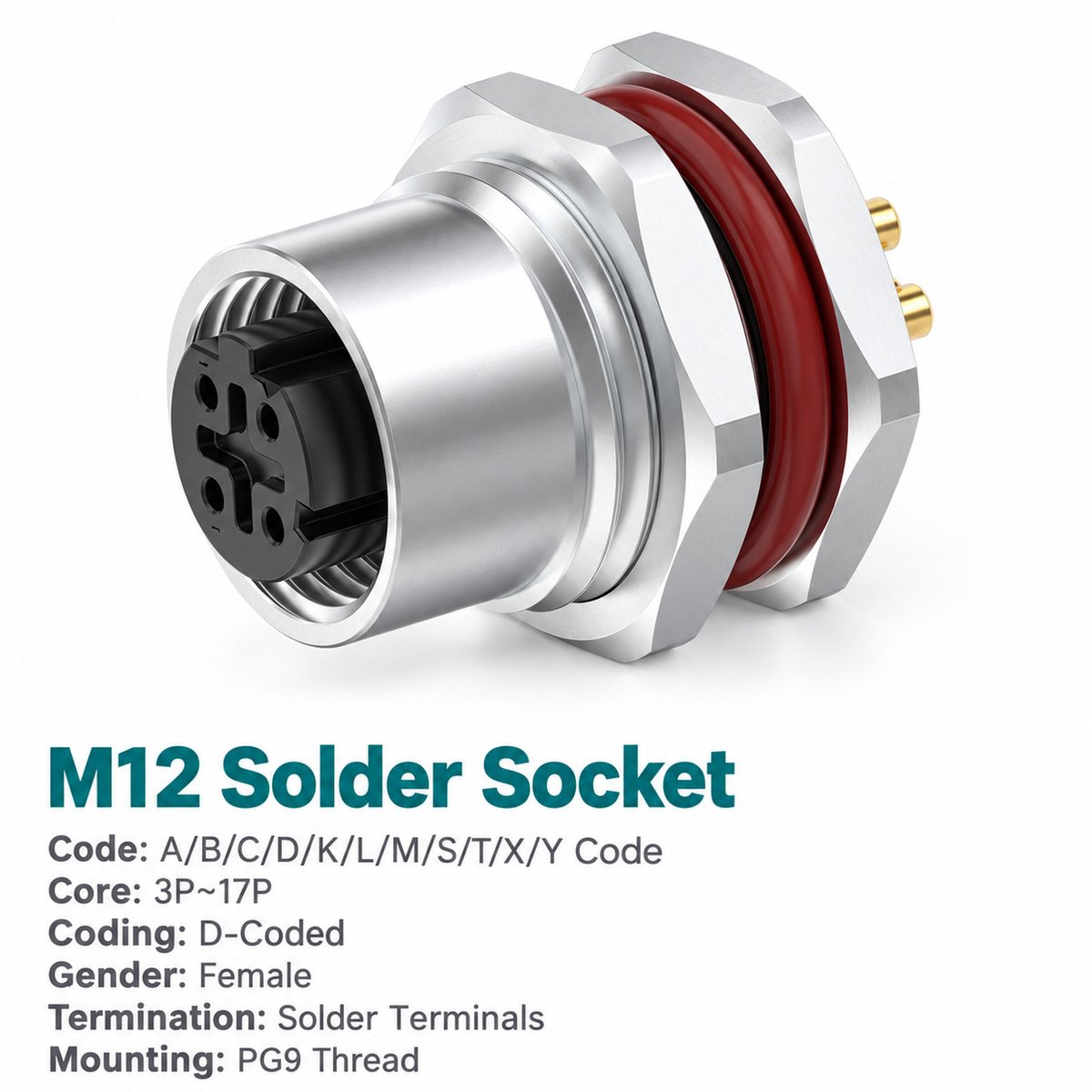

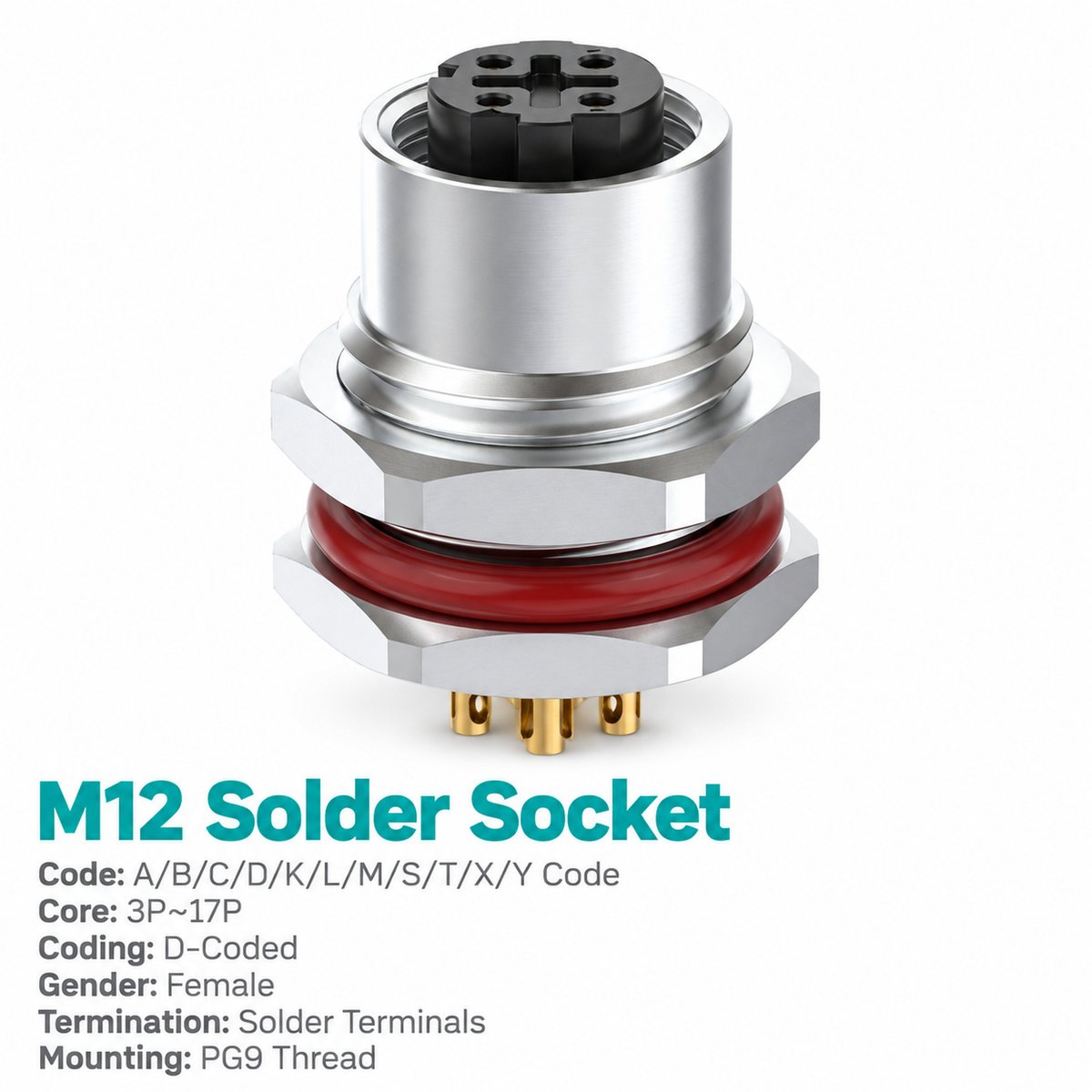

M12 D-coded female front mount socket provides the equipment-side interface for a compatible M12 D-coded male cable connector. It mounts to the panel, with solder terminals or pre-wired leads connecting to the internal harness.
Select the front fastened version when it matches the enclosure’s mounting design. The unwired socket allows termination during assembly, while pre-wired versions provide 0.1 m, 0.3 m or 0.5 m leads for routing to an internal connection point.
The catalogue identifies this D-coded series for industrial Ethernet and PROFINET applications. Confirm that the complete wiring assembly, including its shielding arrangement, meets the intended network requirements.
Key Features
- 4-pin D-coded female interface: Connects to a compatible M12 D-coded male connector.
- Front fastened mounting: For panels designed around a front mount receptacle.
- Solder termination: Supports internal wire connection during equipment assembly.
- Unwired or pre-wired: Choose customer termination or supplied leads.
- Three listed lead lengths: 0.1 m, 0.3 m and 0.5 m.
- PG9 or M16 × 1.5 mounting: Match the mounting thread to the panel opening.
- Rated 4 A / 250 V: Electrical ratings listed in the catalogue.
- Unshielded construction: As specified for this product version.
Product Dimensions
[Insert the front mount female socket drawing and panel cut-out drawing here.]

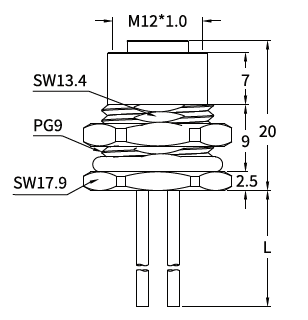

Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Overall body length shown, excluding leads | 20 |
| Upper axial section shown | 7 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Lead length | L; according to ordered version |
The mating thread connects to the external cable connector. The panel mounting thread secures the socket to the enclosure. Use the corresponding cut-out drawing for the selected mounting version.
Needle Arrangement (Front View)
[Insert the D-coded 4-pin female contact arrangement screenshot from page 8 here.]
The diagram shows the mating-face view. Follow the female contact numbers when identifying solder terminals and checking the pre-wired lead assignment. Confirm that the external male connector has the matching D-coded arrangement.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 D-coded female front mount socket |
| Mounting | Front fastened |
| Contact count | 4 pins |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-101 |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Wire size listed | 0.34 mm² / AWG22 |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
This M12 D-coded front mount female connector can be considered for:
- Industrial Ethernet equipment panels: Connecting external cables to internal equipment wiring.
- Automation control enclosures: Receiving compatible D-coded male cable connectors.
- PROFINET-related equipment: Where the complete assembly meets the network requirements.
- Pre-wired machine assemblies: Routing socket leads to an internal harness connection.
Select the connector according to the panel design, contact assignment and complete network wiring requirements.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot from page 8 here.]
The catalogue shows two wire colour arrangements:
| Contact | Colour Arrangement 1 | Colour Arrangement 2 |
|---|---|---|
| Pin 1 | Yellow — YE | White/orange — WH/OR |
| Pin 2 | White — WH | White/green — WH/GN |
| Pin 3 | Orange — OR | Orange — OR |
| Pin 4 | Blue — BU | Green — GN |
Confirm the required colour arrangement when ordering. The catalogue does not identify which version uses each arrangement. Follow the confirmed wiring specification during assembly.
Ordering Information
| Wiring Option | PG9 Mounting | M16 × 1.5 Mounting |
|---|---|---|
| Unwired | 1M1207DF04HP9W00 | 1M1207DF04H16W00 |
| 0.1 m leads | 1M1207DF04HP9W10 | 1M1207DF04H16W10 |
| 0.3 m leads | 1M1207DF04HP9W30 | 1M1207DF04H16W30 |
| 0.5 m leads | 1M1207DF04HP9W50 | 1M1207DF04H16W50 |
Example enquiry: M12 D-coded female front mount socket, 4-pin, PG9 mounting, solder termination, 0.3 m pre-wired leads. Please confirm the supplied wire colour arrangement.
