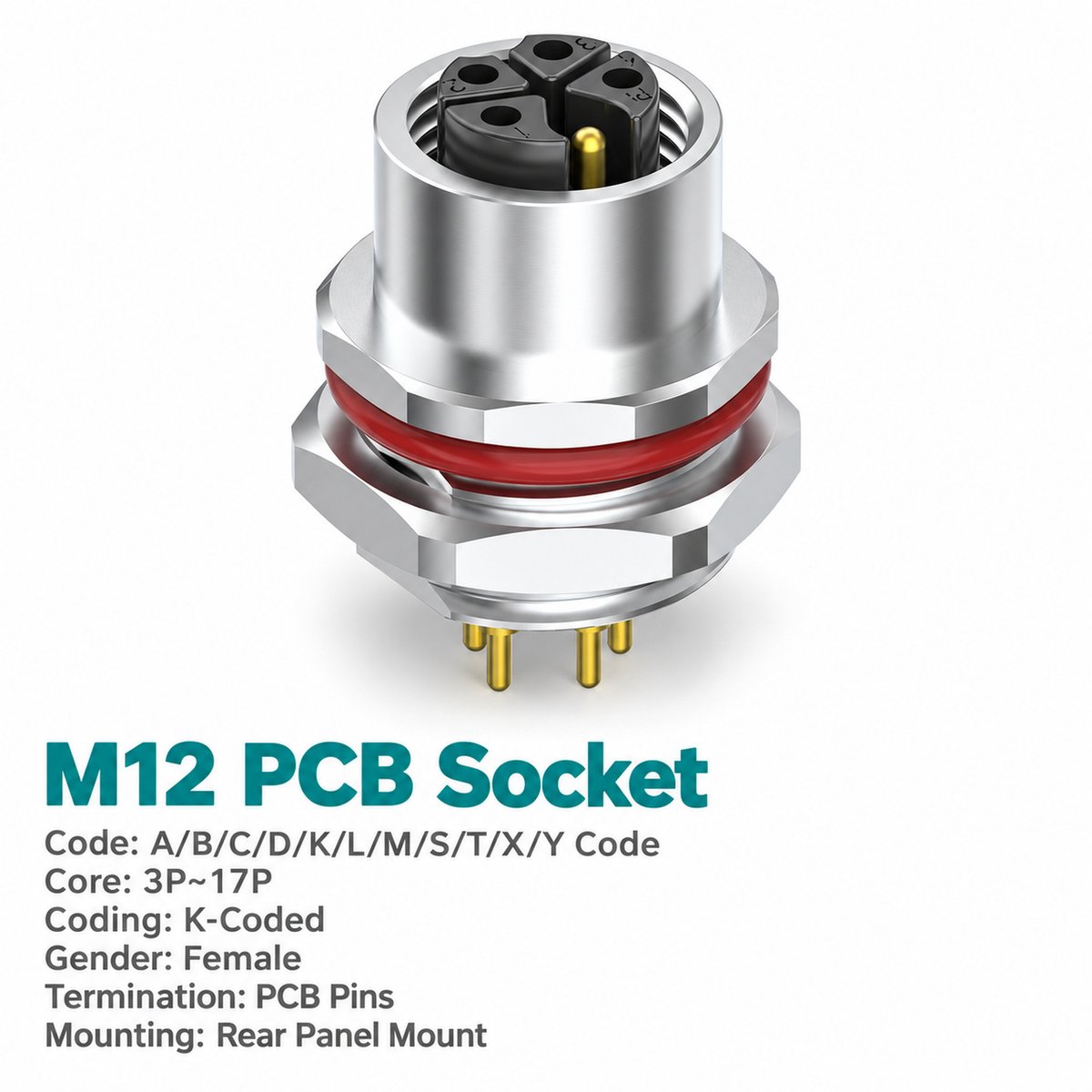

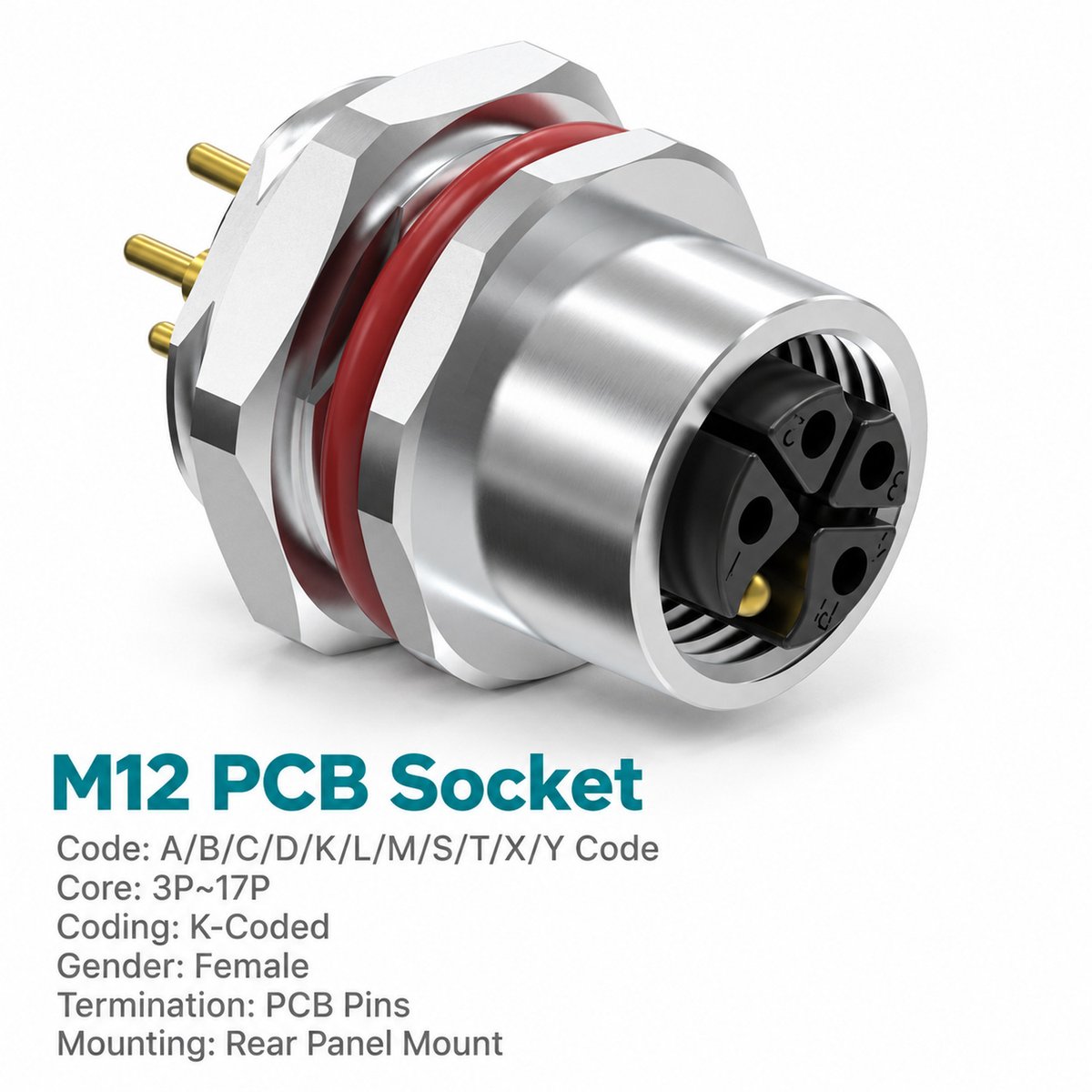

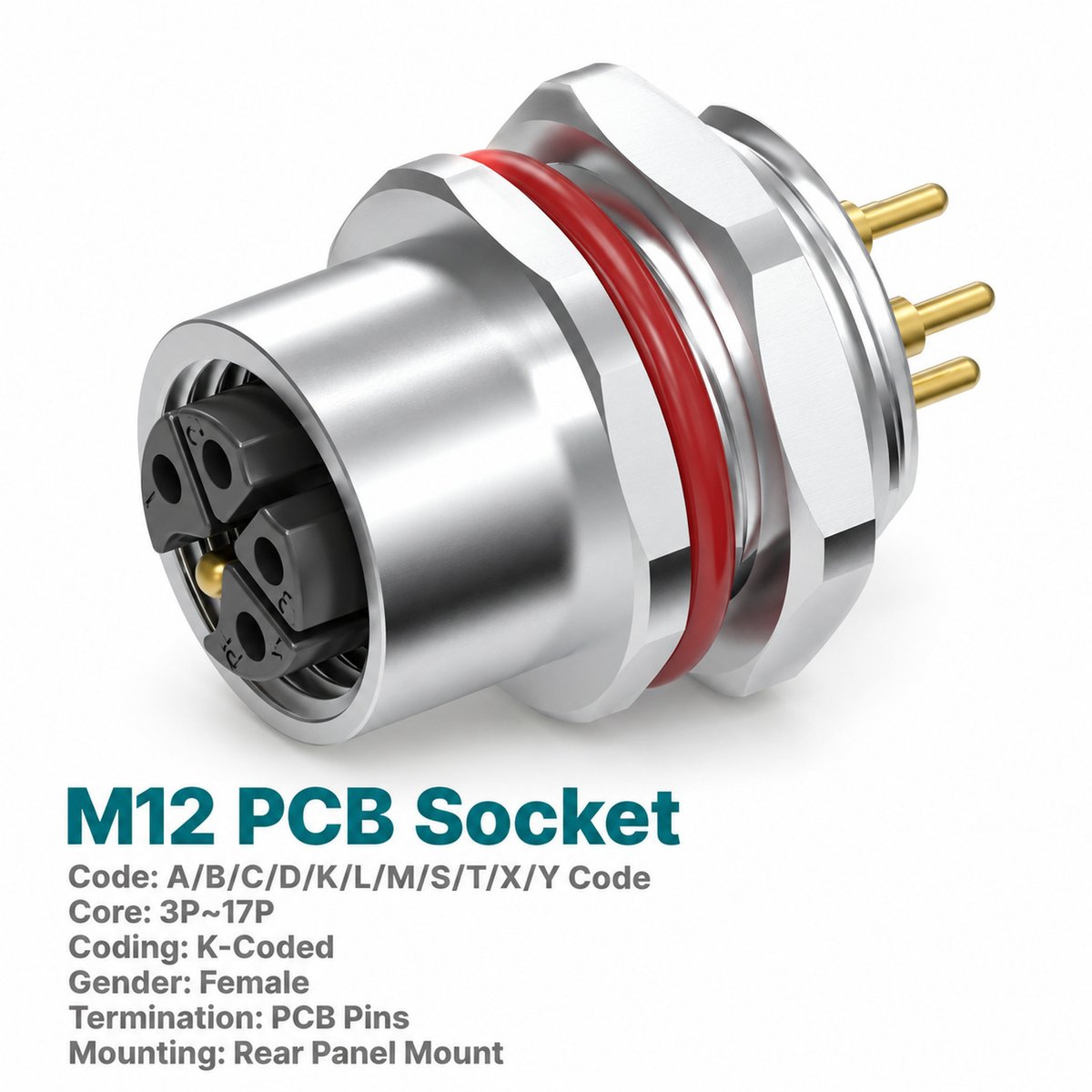

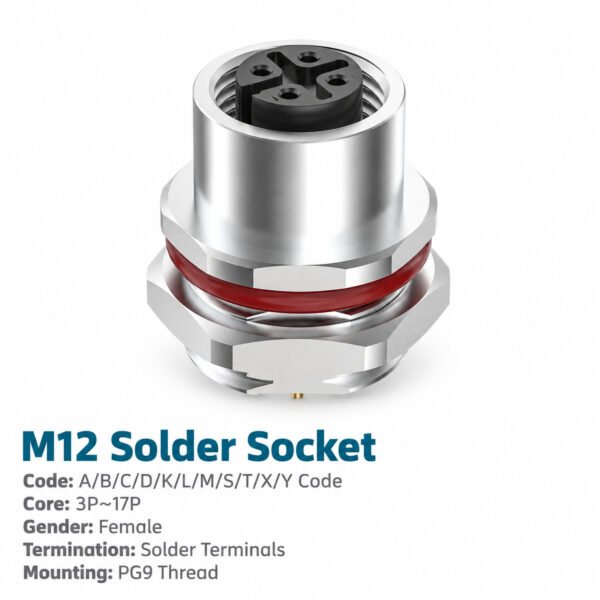

Xmost M12 K-coded female rear mount PCB socket connects an external AC power cable to the circuit board inside industrial equipment. Its female interface receives a compatible K-coded male cable connector, while straight insertion contacts provide PCB dip-solder termination.
Designed for rear fastened installation, this M12 panel mount power socket suits enclosures with a defined panel-to-board position. The rear mount outline should be used to check mounting clearance and circuit-board placement.
Three configurations include protective earth: 2+PE, 3+PE and 4+PE. Each carries catalogue ratings of 16 A and 630 V, with PG9 or M16 × 1.5 mounting available.
Key Features
- Rear fastened construction: For housings designed around a rear mount panel power socket.
- Female M12 K-coded interface: Mates with compatible male AC power cable connectors.
- 16 A / 630 V ratings: Listed for all three contact arrangements.
- Protective earth included: Two, three or four circuit contacts plus PE.
- Direct PCB termination: Straight contacts support board insertion and dip soldering.
- Two panel thread options: PG9 or M16 × 1.5, in unshielded construction.
Product Dimensions
[Insert the female rear mount outline drawing and corresponding panel cut-out drawing from page 17.]

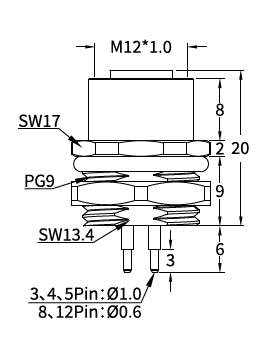

Illustrated PG9 Rear Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section | 8 |
| Flange section | 2 |
| Lower axial section | 9 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 3 / 4 / 5-pin versions | Ø1.0 |
Needle Arrangement (Front View)
[Insert the K-coded female needle arrangement diagrams for 3-pin (2+PE), 4-pin (3+PE) and 5-pin (4+PE) from page 17.]
The diagrams show the female connector from the mating face. Identify the numbered contacts and PE position using the selected arrangement, then follow the equipment schematic for circuit connections.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 K-coded female rear mount PCB AC power socket |
| Mounting | Rear fastened |
| Contact arrangements | 2+PE / 3+PE / 4+PE |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-111 |
| Rated current | 16 A |
| Rated voltage | 630 V |
| Shielding | Unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- PCB-based AC power equipment: Links external power cables to internal board circuits.
- Machine control housings: Provides a rear fastened M12 power connection at the enclosure.
- Industrial automation modules: Integrates a power interface with protective earth.
- Modular equipment assemblies: Supports detachable power cables with internal PCB termination.
Selection and Ordering
| Contact Arrangement | PG9 Mounting | M16 × 1.5 Mounting |
|---|---|---|
| 3-pin — 2+PE | 1M1208KF2EHP9P | 1M1208KF2EH16P |
| 4-pin — 3+PE | 1M1208KF3EHP9P | 1M1208KF3EH16P |
| 5-pin — 4+PE | 1M1208KF4EHP9P | 1M1208KF4EH16P |
Example enquiry: M12 K-coded female rear mount PCB power socket, 4-pin (3+PE), 16 A, 630 V AC, M16 × 1.5 mounting, part number 1M1208KF3EH16P.
