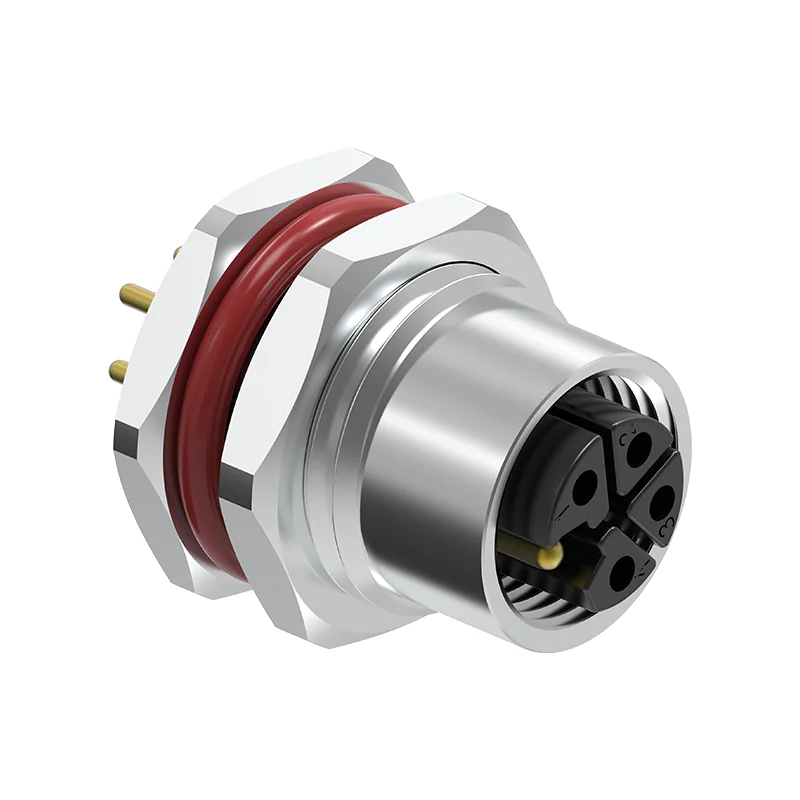

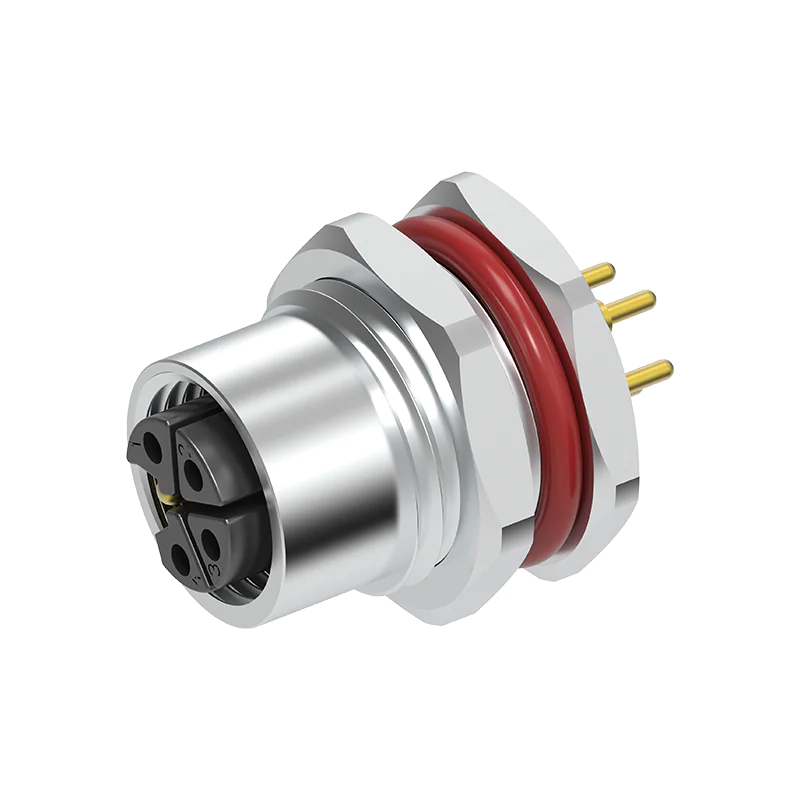

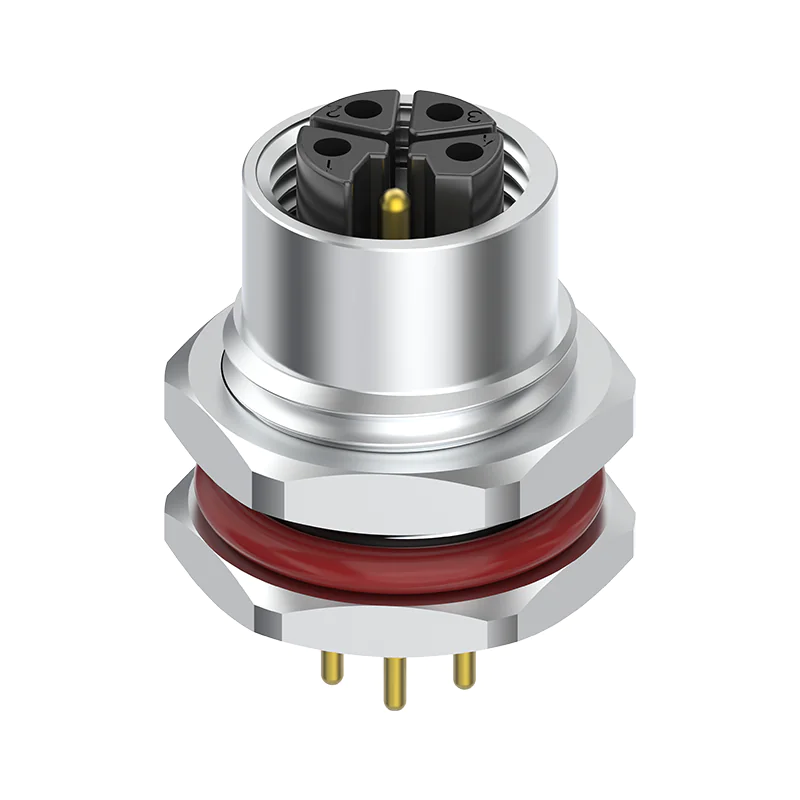

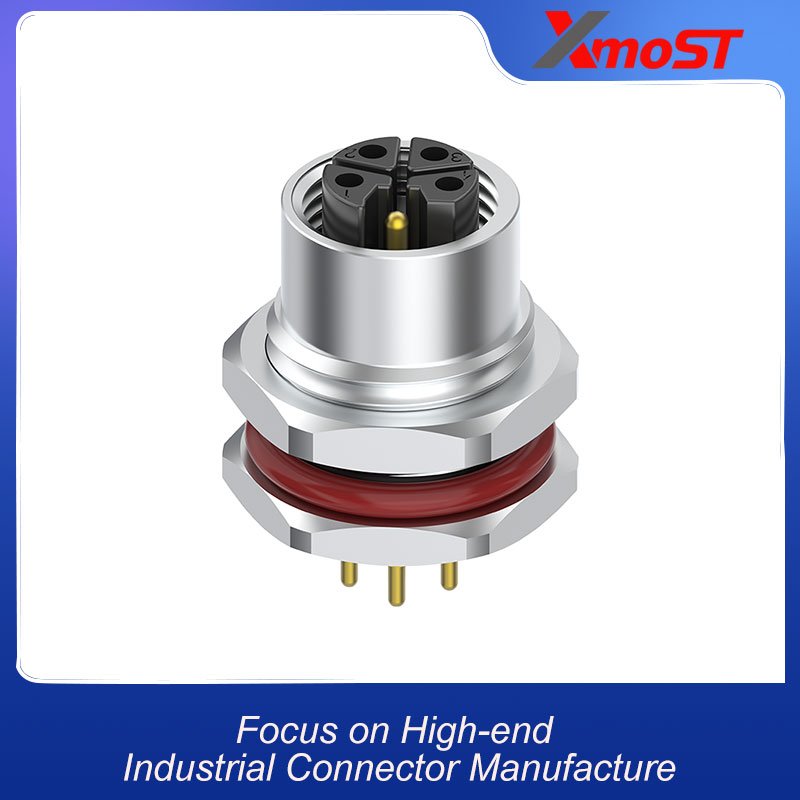

M12 L-Code female front panel socket compliant with IEC 61076-2-111. Rated 63V / 16A DC for power transmission. Straight PCB dip soldering contacts. IP67 waterproof when locked. Front panel mount with M12x1.0mm screw locking. Brass nickel-plated nut, phosphor bronze gold-plated pins. Insulation resistance ≥100MΩ, contact resistance ≤5mΩ. Operating temperature -25°C to +80°C (dynamic) / -40°C to +80°C (static). Ideal for DC power distribution, field distribution boxes, I/O systems, and industrial automation requiring compact high-current power connection.
| Pin count | 3Pin(2+E) | 3Pin | 4Pin(3+E) | 4Pin | 5Pin(4+E) |
| Operating standard | IEC 61076-2-111 | ||||
| Rated current | 16A | ||||
| Rated voltage | 63V | ||||
| Insulation resistance | ≥100MΩ | ||||
| Contact resistance | ≤5mΩ | ||||
| Shielding performance | Non-Shielded | ||||
| Locking method | M12x1.0mm screw | ||||
| Screw torque | Recommend：0.4Nm；Max：0.8Nm | ||||
| Wiring method | Soldering；Crimping | ||||
| Operating temperature | -25℃ ~ +80℃ Dynamic -40℃ ~ +80℃ Static | ||||
| Wire gauge range | 2.5mm²(AWG14) | ||||
| Ip rating | IP67/IP68/IP69K | ||||
| Pollution degree | 3 | ||||
| Insulator material | PA66+GF/TPU+GF | ||||
| Screw/nut material | Brass Ni/Zinc Alloy Ni | ||||
| Pin material | Phosphor Bronze Au/Brass Au | ||||
| Sealing material | FKM/Silicon/epoxy | ||||
