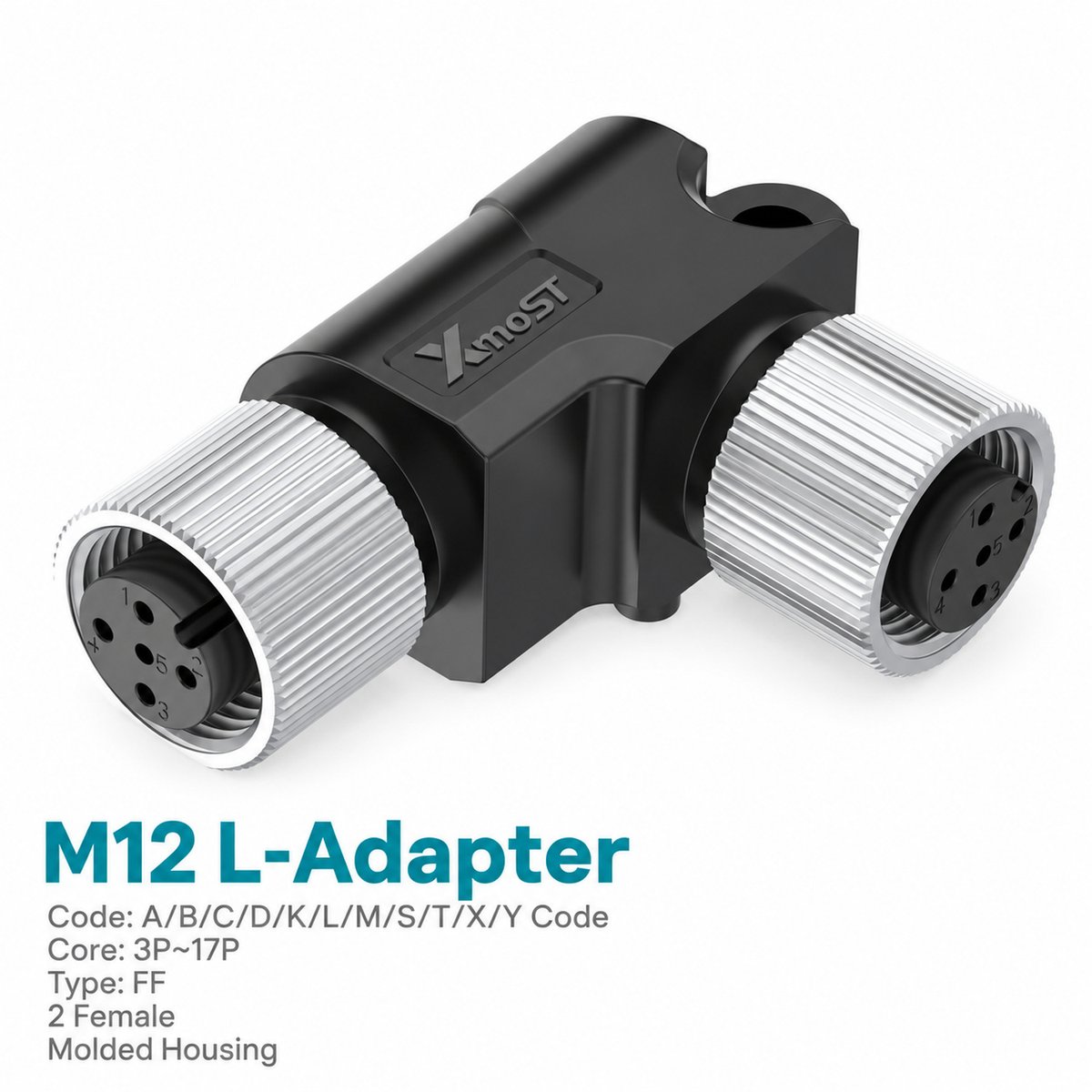

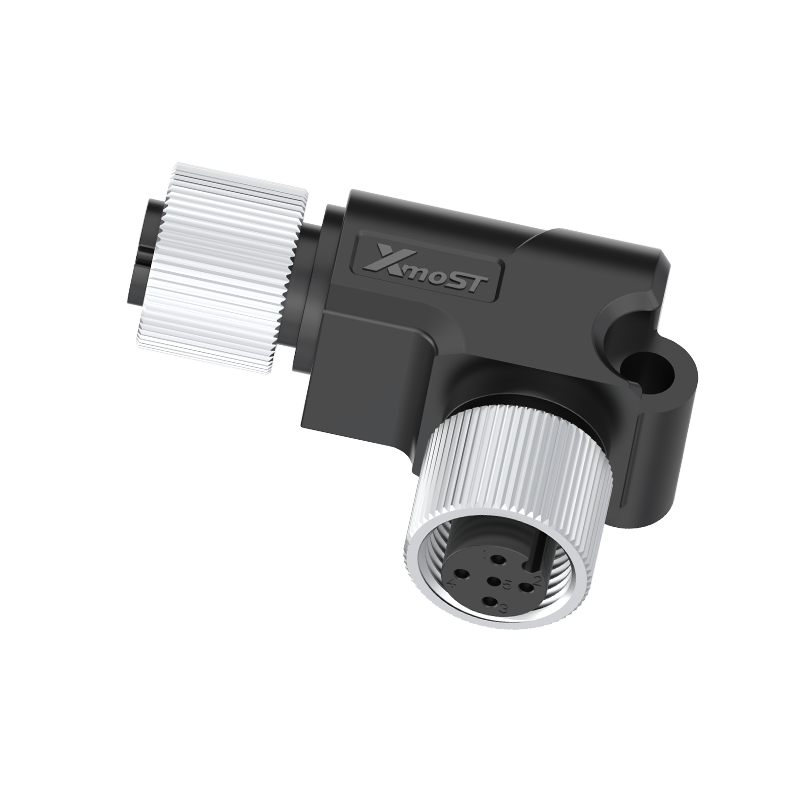

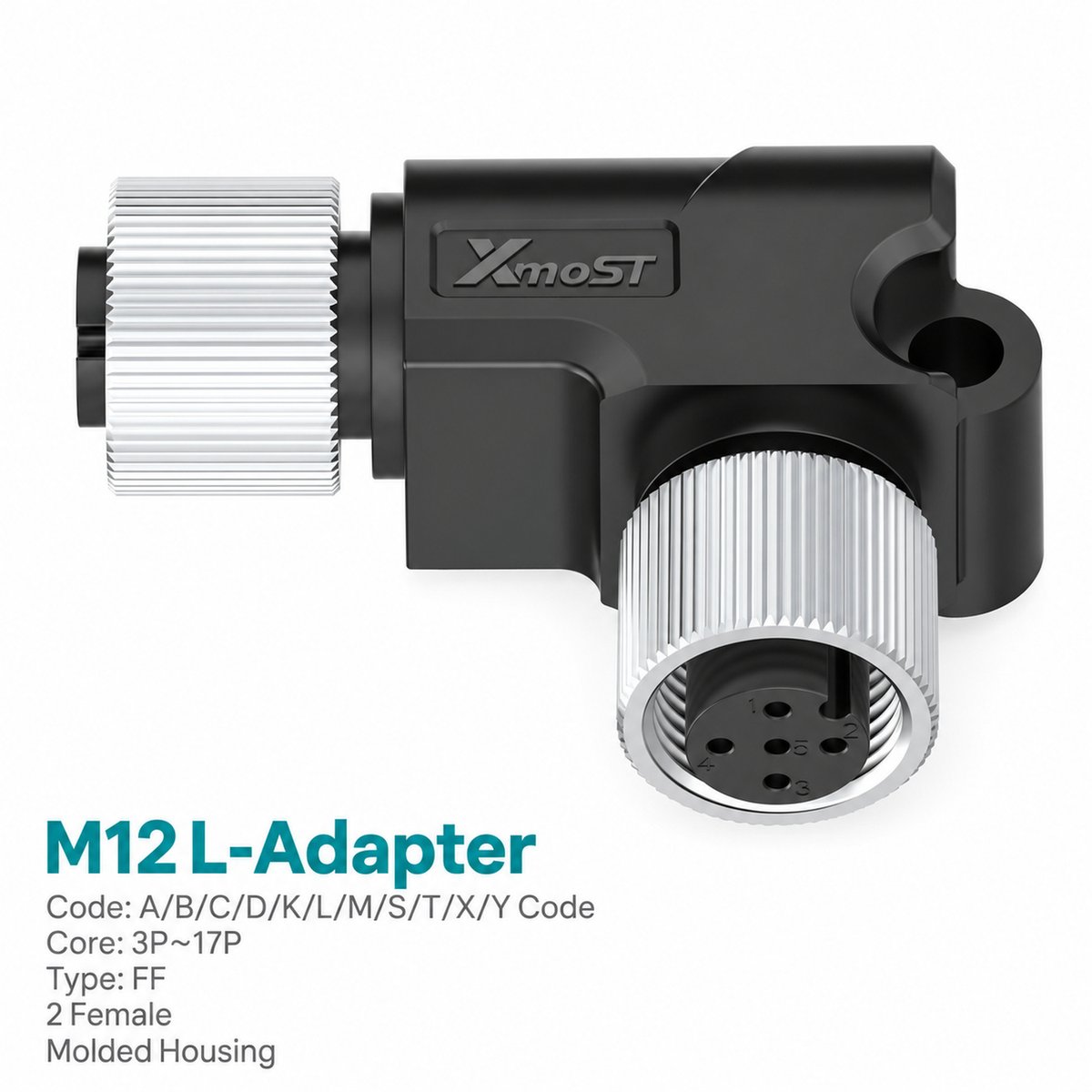

M12 L-Shape Female-to-Female Right-Angle Connector Adapter

Xmost M12 L-shape female-to-female adapter provides a 90° connection between compatible M12 male interfaces. This compact FF connector features screw-locking connections, an integrated mounting eye and pin-to-pin wiring. A-, B- and D-coded configurations are available, with shielding depending on the selected coding.

  • Brand: Xmost
  • Connector Size: M12
  • Product Type: L-shape connector adapter
  • Interface Type: FF — Female / Female
  • Connector Orientation: 90° Right-angle
  • Coding Options: A-coded / B-coded / D-coded
  • Contact Configurations: 3-pin / 4-pin / 5-pin / 8-pin, depending on coding
  • Shielding: A/B-coded unshielded; D-coded shielded
  • Mating Thread: M12 × 1.0
  • Standard Listed: IEC 61076-2-101
Categories: , , Tag: Brand:

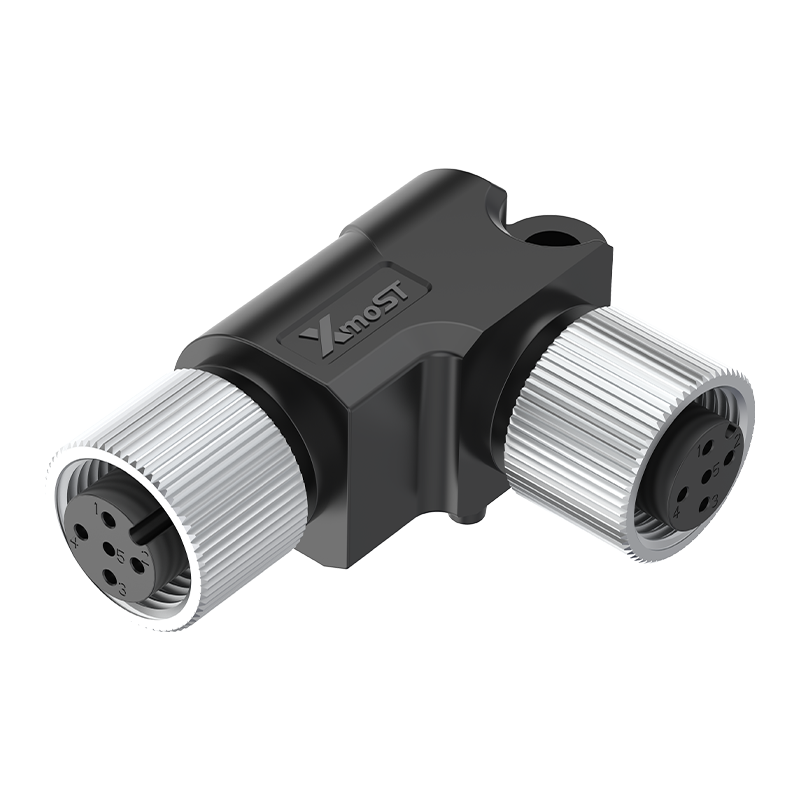

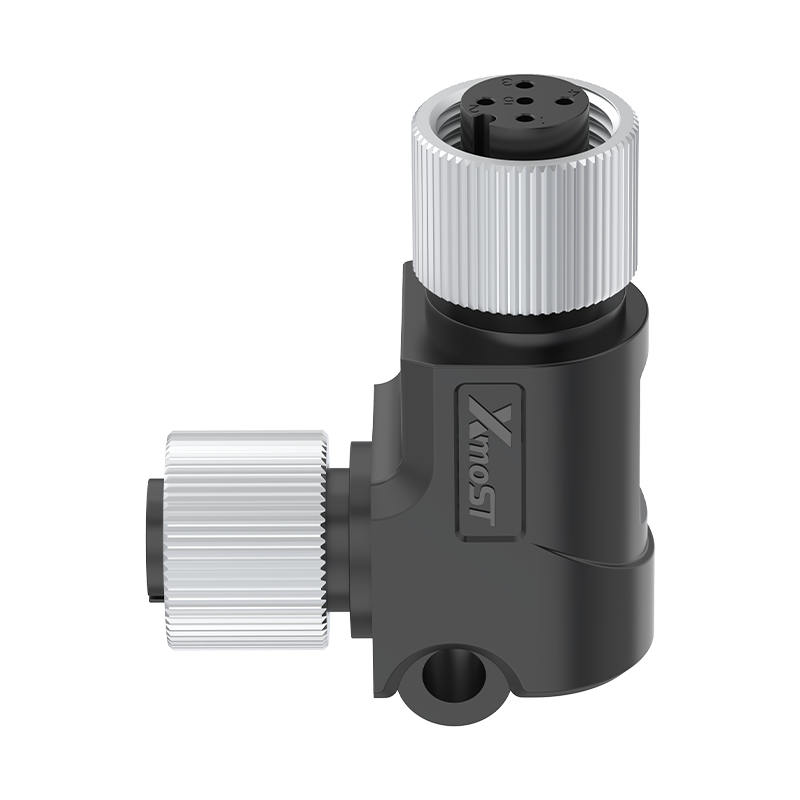

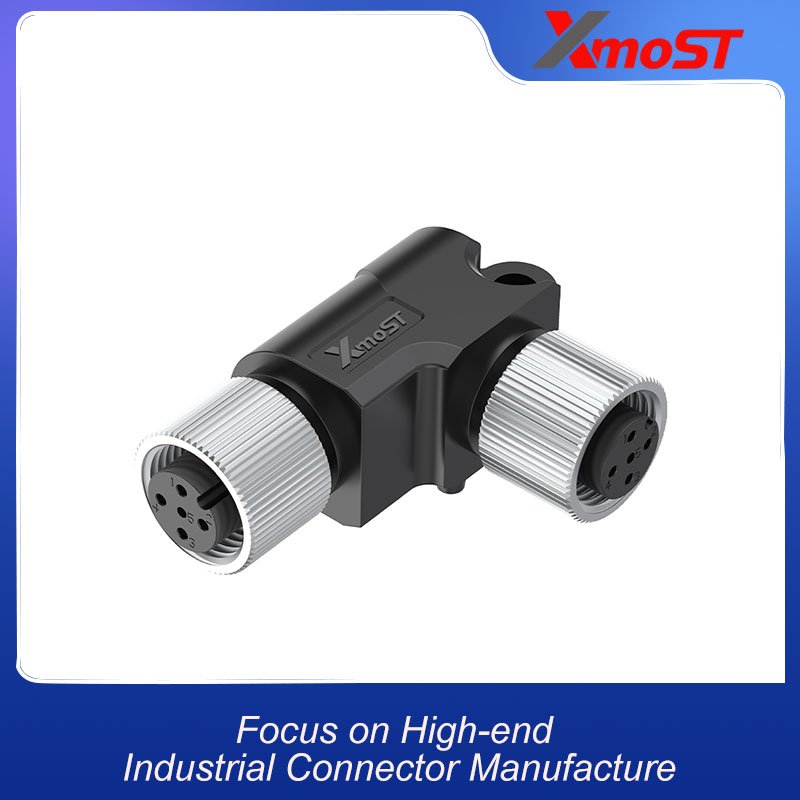

Xmost M12 L-shape female-to-female connector adapter joins two compatible M12 male interfaces at a 90° angle. Its compact right-angle housing changes the connection direction, supporting equipment layouts where an inline connection is impractical.

Both female interfaces use M12 × 1.0 screw locking. An integrated mounting eye provides a fixing point for securing the adapter to equipment.

This M12 right-angle adapter is available in A-, B- and D-coded configurations. A- and B-coded versions are unshielded, while the D-coded version is shielded. The catalog wiring diagrams show corresponding numbered contacts connected pin-to-pin between the two female interfaces.

2. Key Features

  • Two female M12 interfaces arranged at a 90° angle.
  • Compact L-shaped connector housing.
  • A-, B- and D-coded options.
  • 3-, 4-, 5- and 8-pin configurations, depending on coding.
  • M12 × 1.0 screw-locking connections.
  • Pin-to-pin wiring as shown in the catalog diagrams.
  • Integrated mounting eye with a Ø4.2 mm hole.
  • Unshielded A-/B-coded versions and a shielded D-coded version.

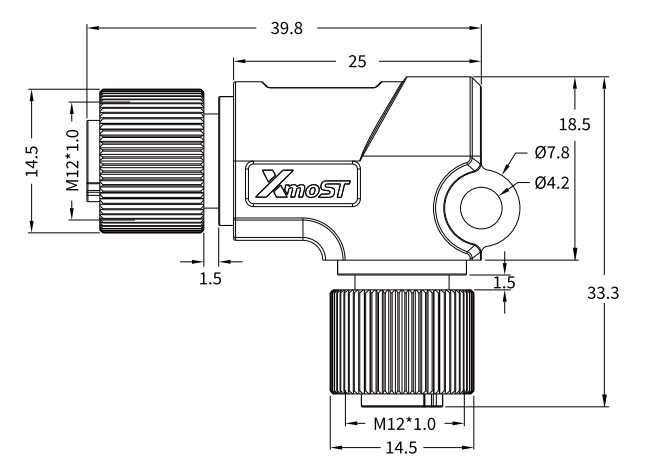

3. Product Dimensions

M12 L-Shape Female-to-Female Right-Angle Connector Adapter

Dimensions (mm)

Dimension Value
Overall horizontal span shown 39.8
Overall vertical span shown 33.3
Upper body horizontal span 25
Upper body vertical span 18.5
Coupling diameter Ø14.5
Mounting hole diameter Ø4.2
Mounting eye outside diameter Ø7.8
End spacing marked, each interface 1.5
Mating thread M12 × 1.0

Dimensions correspond to the marked spans in the catalog drawing.

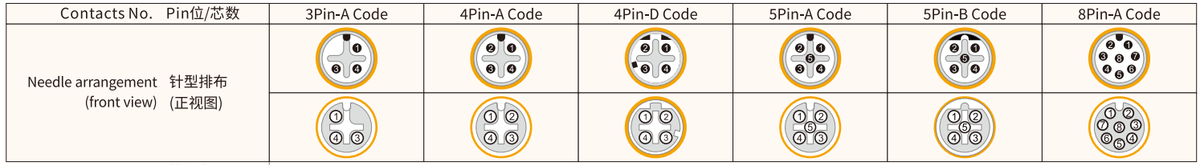

Needle Arrangement (Front View)

M12 L-Shape Female-to-Female Right-Angle Connector Adapter 1

The pin arrangement diagrams show the connector mating faces viewed from the front. Select the female diagram corresponding to the adapter’s coding and contact count.

Coding Contact Count
A-coded 3-pin
A-coded 4-pin
D-coded 4-pin
A-coded 5-pin
B-coded 5-pin
A-coded 8-pin

Both interfaces are female. Use the contact numbering and key position to identify each connection.

Product Specifications

Electrical Ratings by Configuration

Coding Contact Count Rated Current Rated Voltage Shielding
A-coded 3-pin 4 A 250 V Unshielded
A-coded 4-pin 4 A 250 V Unshielded
D-coded 4-pin 4 A 250 V Shielded
A-coded 5-pin 4 A 60 V Unshielded
B-coded 5-pin 4 A 60 V Unshielded
A-coded 8-pin 0.5A 50V Unshielded

General Specifications

Parameter Specification
Brand Xmost
Connector Size M12
Product Type L-shape right-angle adapter
Contact Gender Female / Female
Connector Orientation 90°
Standard Listed IEC 61076-2-101
Locking Method M12 × 1.0 screw locking
Wiring Arrangement Corresponding contacts connected pin-to-pin
Insulation Resistance ≥ 100 MΩ
Contact Resistance ≤ 5 mΩ
Recommended Tightening Torque 0.4 N·m
Maximum Tightening Torque 0.8 N·m
Dynamic Operating Temperature −25 °C to +80 °C
Static Operating Temperature −40 °C to +80 °C
Protection Ratings Listed IP67 / IP68
Pollution Degree 3
Insulator Material Options PA66 + GF / TPU + GF

Applications

Suggested applications for this M12 L-shape female-to-female adapter include:

  • Sensor and actuator wiring: Right-angle connections using compatible A-coded interfaces.
  • Fieldbus equipment: Connections using matching B-coded interfaces and pin assignments.
  • Industrial Ethernet equipment: Connections using compatible D-coded interfaces.
  • Compact machine layouts: Installations requiring a change in connector direction.
  • Secured equipment connections: Installations where the mounting eye can hold the adapter in position.

Match the coding, electrical ratings, pin assignment and shielding arrangement to the connected equipment.

Wiring Diagram

The catalog diagrams show corresponding numbered contacts connected between the two female interfaces.

Female Pin 1 connects to Female Pin 1, Female Pin 2 connects to Female Pin 2, and the same numbered connection continues through the remaining contacts of the selected version.

Use the wiring diagram matching the 3-, 4-, 5- or 8-pin adapter.

Selection and Ordering

Coding Contact Count Catalog Part Number
A-coded 3-pin 1M1233AH03FF
A-coded 4-pin 1M1233AH04FF
D-coded 4-pin 1M1233DH04FFS
A-coded 5-pin 1M1233AH05FF
B-coded 5-pin 1M1233BH05FF
A-coded 8-pin 1M1233AH08FF

Select the adapter according to coding, contact count, shielding and electrical requirements. Check the mating interfaces and installation clearance before ordering.
