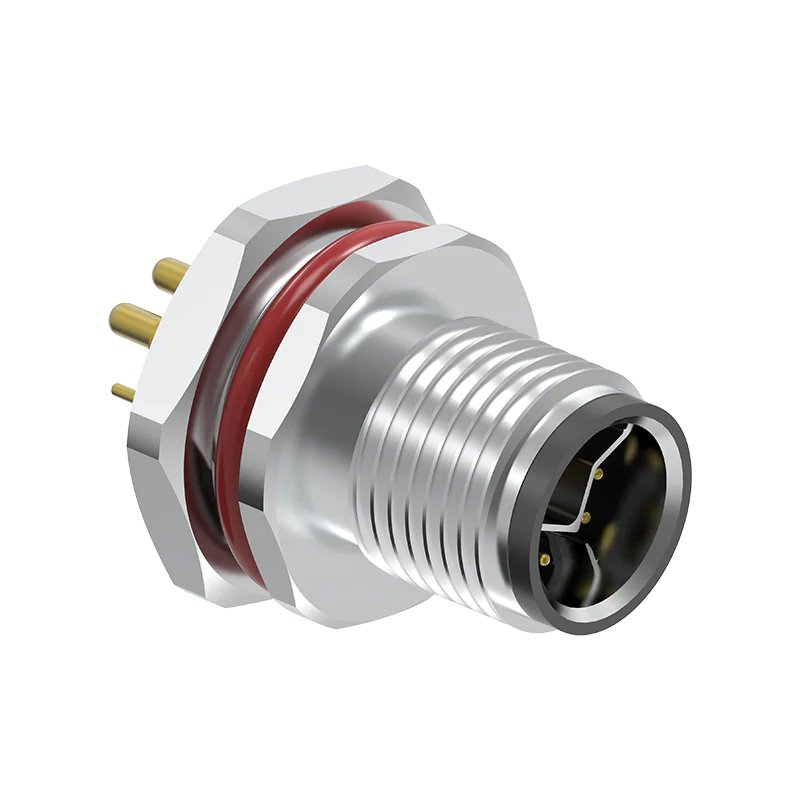

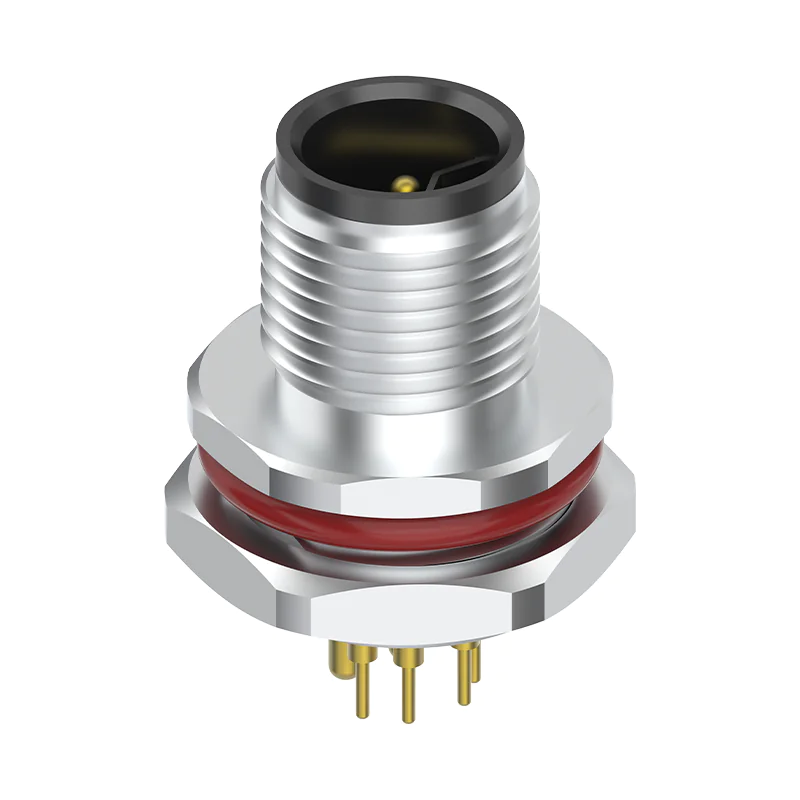

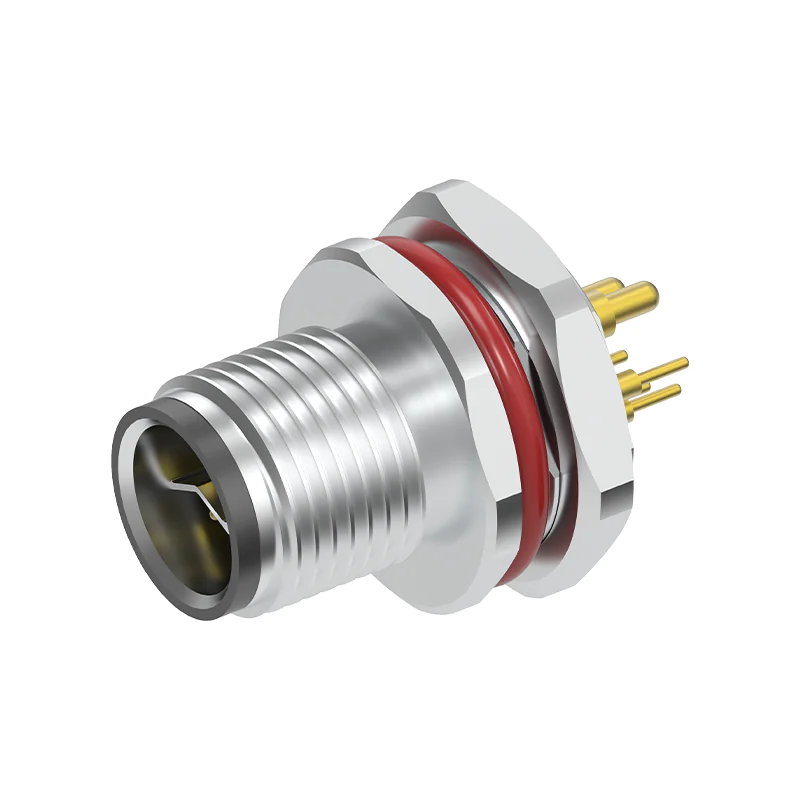

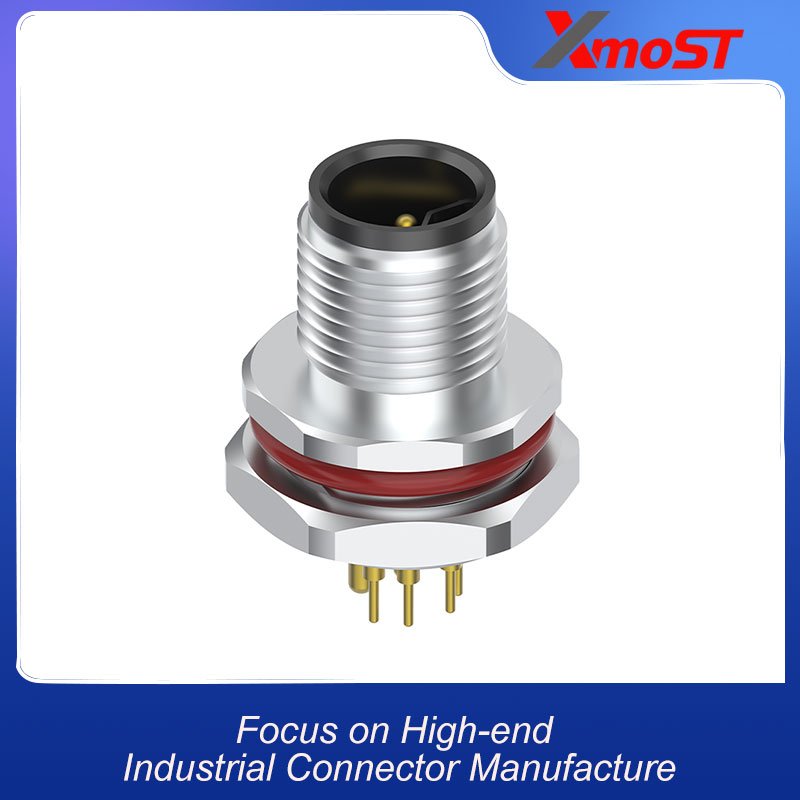

M12 Y-Code 6Pin male rear panel mount socket with PCB dip soldering contacts, compliant with IEC 61076-2-113. Hybrid design combines power and signal in one connector: Power: 12A/50V DC, Signal: 0.5A (Ethernet CAT5e). Shielded for EMI protection. Rear mounting for clean front panel appearance. M12x1.0mm screw locking (recommended torque 0.4Nm, max 0.8Nm), brass nickel-plated nut, phosphor bronze gold-plated pins. Insulation resistance ≥100MΩ, contact resistance ≤5mΩ. Operating temperature -25°C to +80°C (dynamic) / -40°C to +80°C (static). Ideal for vision systems, PLCs, I/O boxes, industrial Ethernet, and field distribution requiring space-saving hybrid connection. IP67/IP68/IP69K waterproof for harsh environments.
| Pin count | Y3(4+2Pin) | Y4(4+4Pin) |
| Operating standard | IEC61076-2-113 | |
| Rated current | Power:12A;Signal:0.5A | Power:6A;Signal:0.5A |
| Rated voltage | 50V AC,60V DC | |
| Insulation resistance | ≥100MΩ | |
| Contact resistance | ≤5mΩ | |
| Shielding performance | Shielded | |
| Locking method | M12x1.0mm screw | |
| Screw torque | Recommend：0.4Nm；Max：0.8Nm | |
| Wiring method | PCB Dip Soldering | |
| Operating temperature | -25℃ ~ +80℃ Dynamic -40℃ ~ +80℃ Static | |
| Ip rating | IP67,IP68,IP69K | |
| Pollution degree | 3 | |
| Insulator material | PA66+GF/TPU+GF | |
| Screw/nut material | Brass Ni/Zinc Alloy Ni | |
| Pin material | Phosphor Bronze Au/Brass Au | |
| Sealing material | FKM/Silicon/epoxy | |
