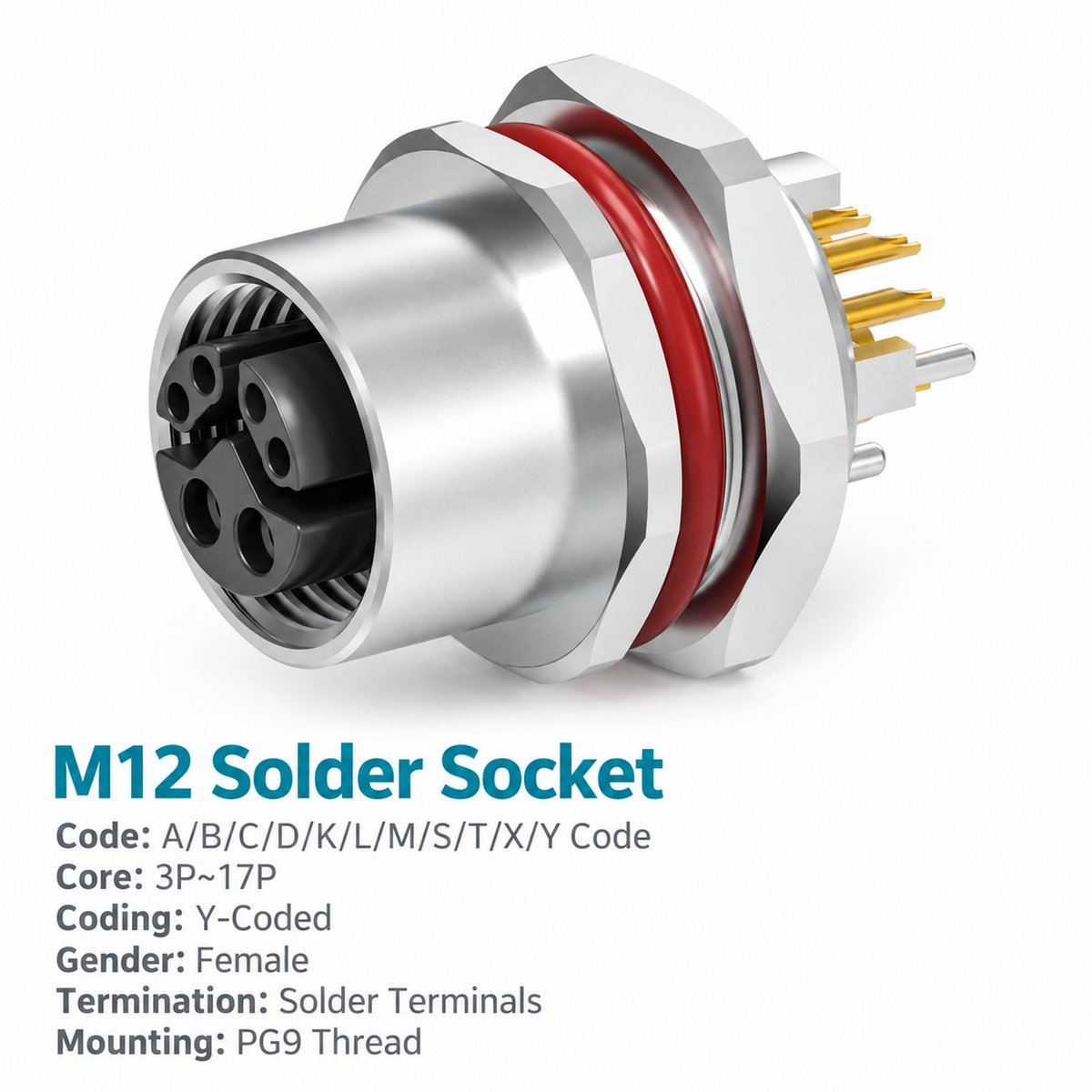

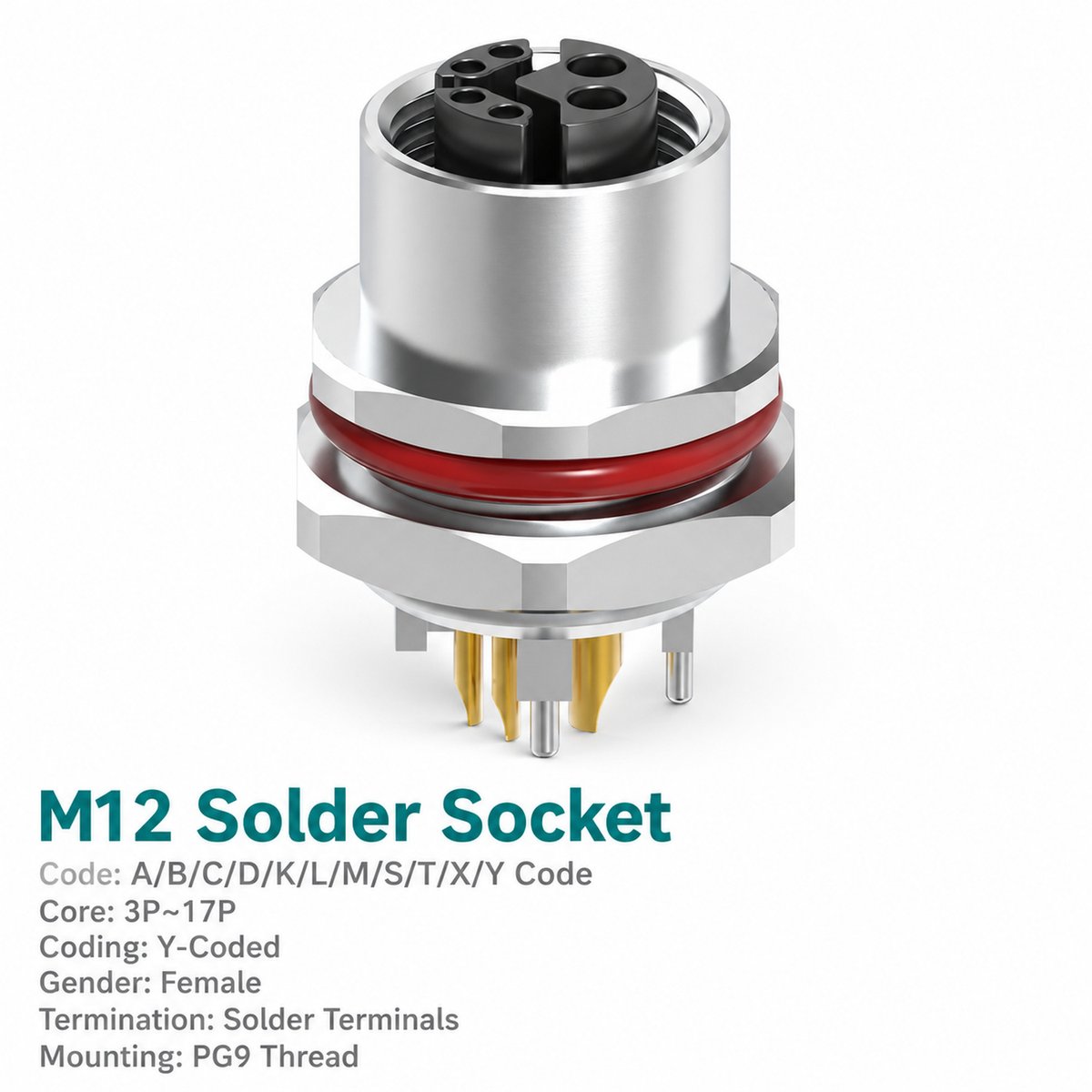

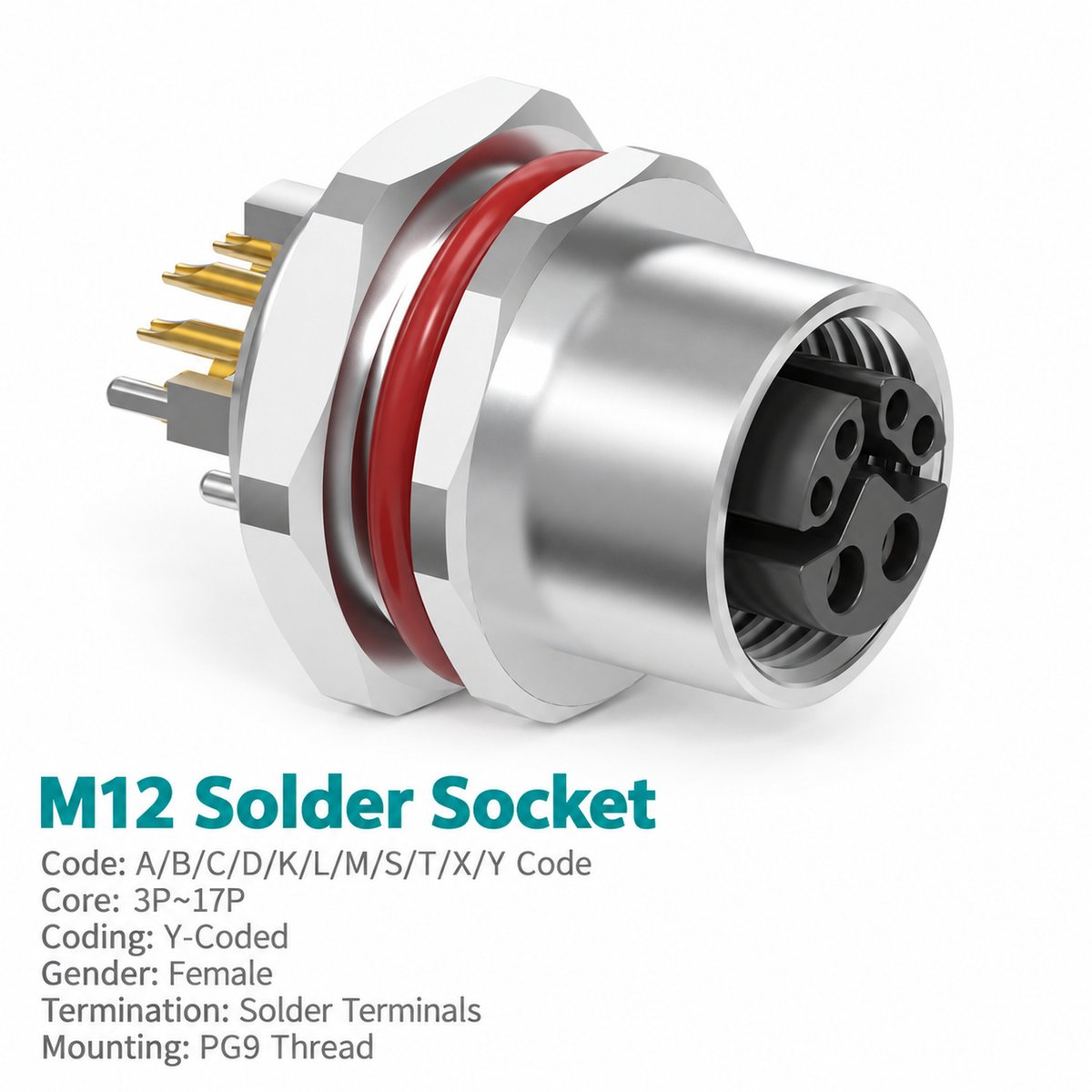

M12 Y-coded female rear mount socket connects an external male hybrid cable connector to internal signal and power wiring. Choose the rear fastened version when the enclosure provides mounting access and clearance for the rear hardware.
Select Y3 for four signal contacts and two power contacts, or Y4 for four signal contacts and four power contacts. Y3 power contacts are rated 12 A, while Y4 power contacts are rated 6 A. Both configurations list a 0.5 A signal-contact rating.
The unwired M12 hybrid solder socket supports termination during equipment assembly. The 0.3 m pre-wired version provides leads for routing to internal connection points. Match the configuration and mounting thread to the equipment design.
Key Features
- Rear fastened installation: For housings designed around a rear mount receptacle.
- Hybrid Ethernet and power interface: Combines separate signal and power contacts in one connector.
- Female Y-coded connection: Mates with a compatible Y3 or Y4 male connector.
- Y3 option: Six total contacts, with a 12 A power-contact rating.
- Y4 option: Eight total contacts, with a 6 A power-contact rating.
- Solder wiring connection: Available unwired or with 0.3 m leads.
- Two mounting threads: PG9 and M16 × 1.5 versions.
- Unshielded construction: As listed on the specification page.
Product Dimensions
[Insert the rear mount female socket drawing and panel cut-out drawing here.]

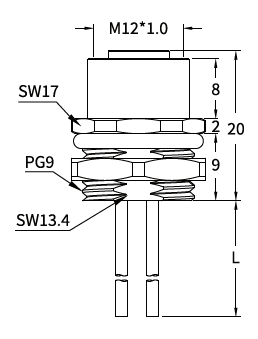

Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Overall body length shown, excluding leads | 20 |
| Upper axial section shown | 8 |
| Flange thickness shown | 2 |
| Lower axial section shown | 9 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Lead length | L; according to ordered version |
Allow space for rear fastening hardware and lead routing. Prepare the panel opening using the drawing for the selected mounting thread.
Needle Arrangement (Front View)
[Insert the Y3 and Y4 female contact arrangement screenshot from page 25 here.]
| Configuration | Signal Contacts | Power Contacts | Total Contacts |
|---|---|---|---|
| Y3 | 4 | 2 | 6 |
| Y4 | 4 | 4 | 8 |
The diagrams are viewed from the mating face. Verify the contact arrangement against the external male connector and internal wiring schematic.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 Y-coded female rear mount hybrid socket |
| Mounting | Rear fastened |
| Function | Ethernet signal and power |
| Termination | Solder |
| Wiring options | Unwired / 0.3 m pre-wired leads |
| Standard listed | IEC 61076-2-113 |
| Rated voltage | 50 V AC / 60 V DC |
| Shielding listed | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Ratings and Wire Sizes by Configuration
| Parameter | Y3 | Y4 |
|---|---|---|
| Contact arrangement | 4 signal + 2 power | 4 signal + 4 power |
| Power-contact rated current | 12 A | 6 A |
| Signal-contact rated current | 0.5 A | 0.5 A |
| Power wire size listed | 2 × 1.5 mm² / AWG16 | 4 × 0.5 mm² / AWG20 |
| Signal wire size listed | 4 × 0.14 mm² / AWG26 | 4 × 0.14 mm² / AWG26 |
Choose the configuration using both conductor count and current rating.
Applications
This M12 Y-coded rear mount female socket can be considered for:
- Industrial Ethernet equipment housings: Connecting external hybrid cables to internal signal and power wiring.
- Control enclosures with rear mounting access: Accommodating fastening hardware behind the panel.
- Pre-wired equipment assemblies: Routing leads to separate internal connection points.
- Modular automation equipment: Providing a detachable hybrid connection at the housing.
Check network requirements, power loading and shielding needs as part of the complete equipment design.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot from page 25 here.]
| Pin | Y3 Wire Colour | Y4 Wire Colour |
|---|---|---|
| 1 | White/orange — WH/OR | White/orange — WH/OR |
| 2 | Orange — OR | Orange — OR |
| 3 | White/green — WH/GN | White/green — WH/GN |
| 4 | Green — GN | Green — GN |
| 5 | Blue — BU | Blue — BU |
| 6 | White — WH | White — WH |
| 7 | — | Brown — BN |
| 8 | — | Black — BK |
“—” means the contact is not present. Use the numbered contact diagram and equipment schematic when assigning signal connections and power polarity.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | Y3 / Y4 |
| Mounting style | Rear mount |
| Panel mounting thread | PG9 / M16 × 1.5 |
| Termination | Solder |
| Wiring | Unwired / 0.3 m pre-wired |
| Custom requirements | Specify wire type or lead length |
Example enquiry: M12 Y-coded female rear mount hybrid socket, Y4, M16 × 1.5 mounting, solder termination, unwired.
