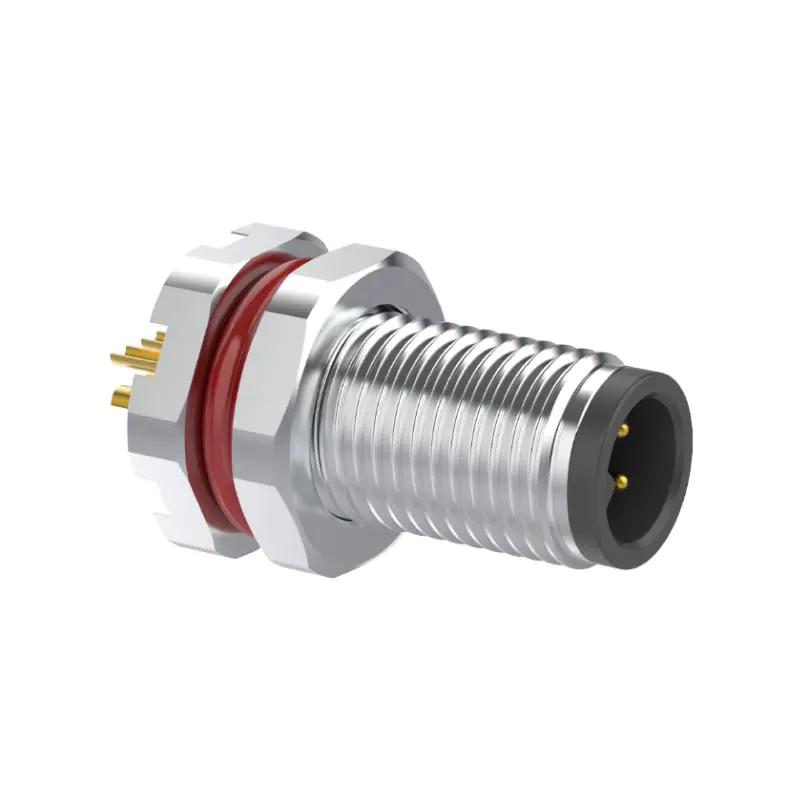

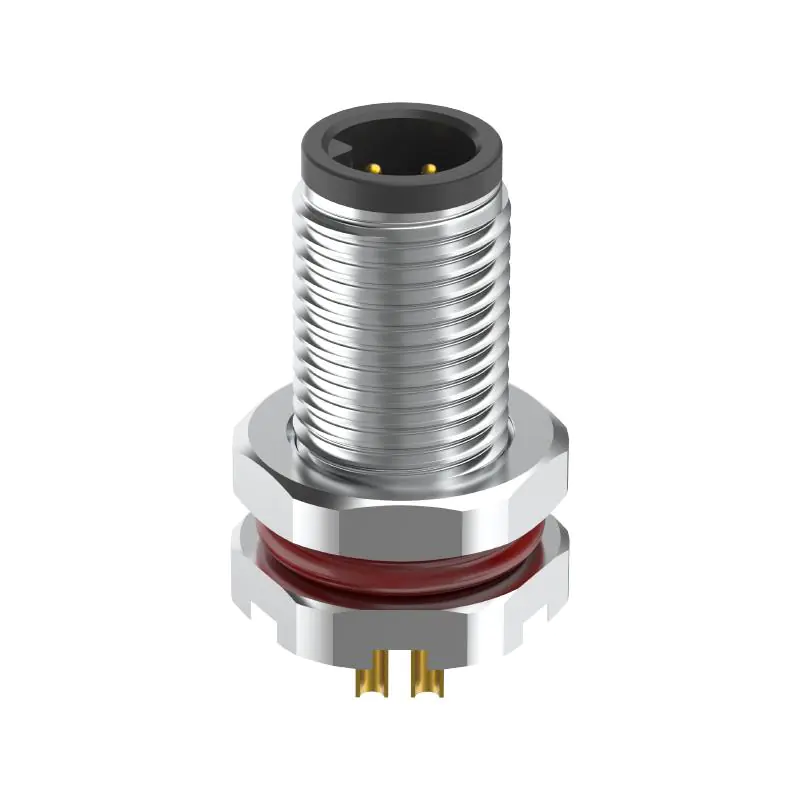

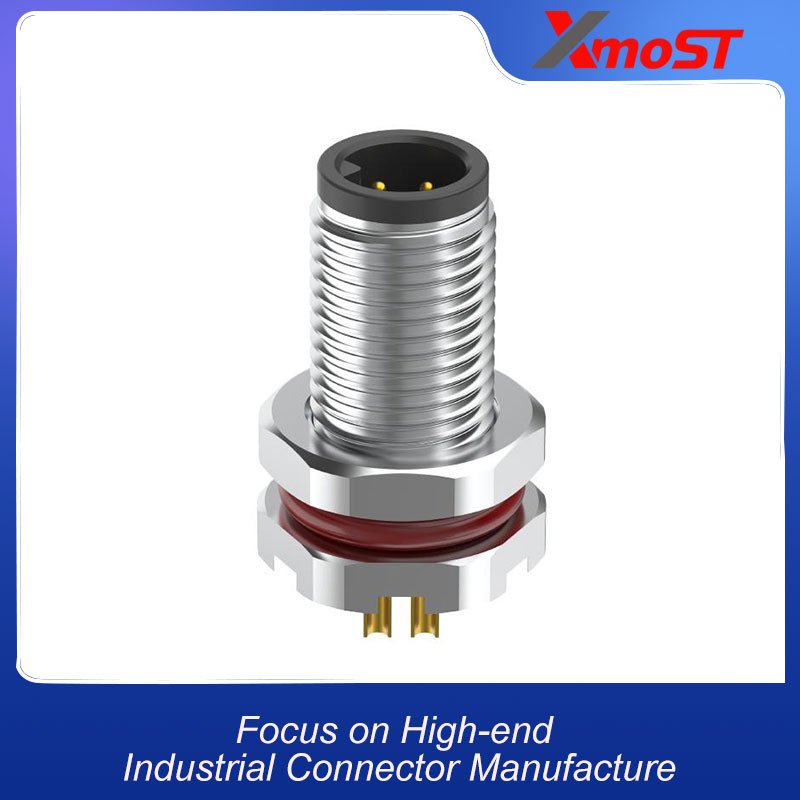

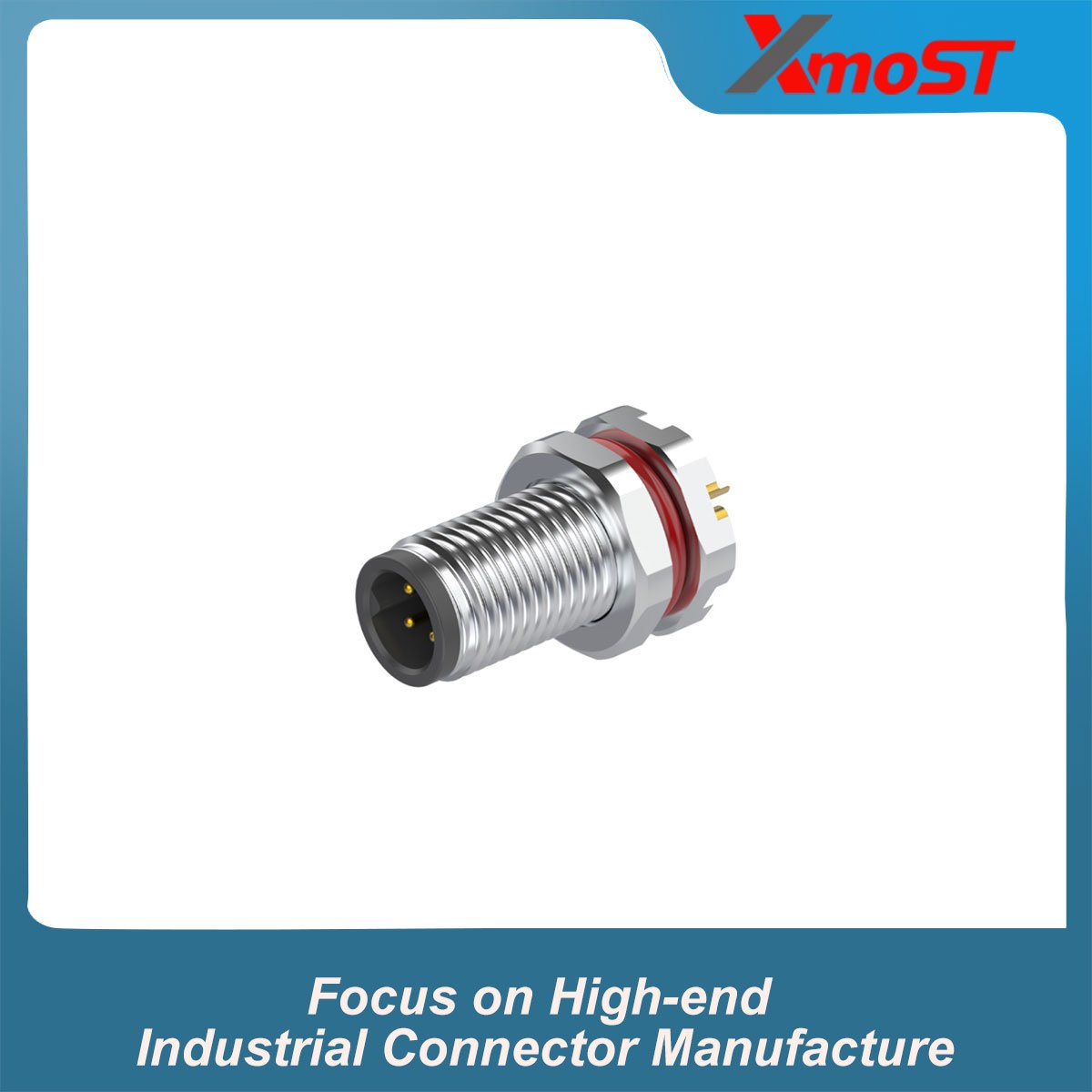

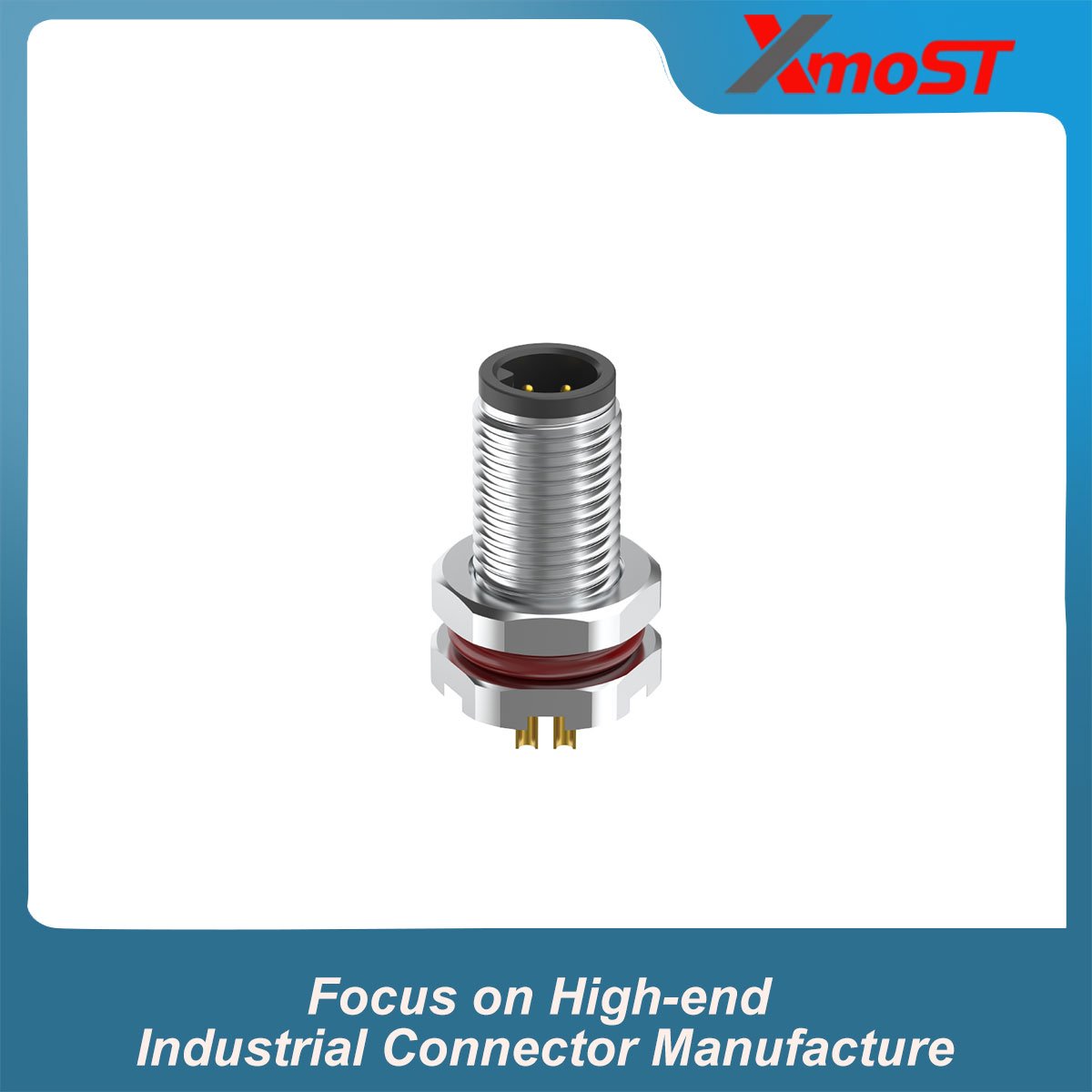

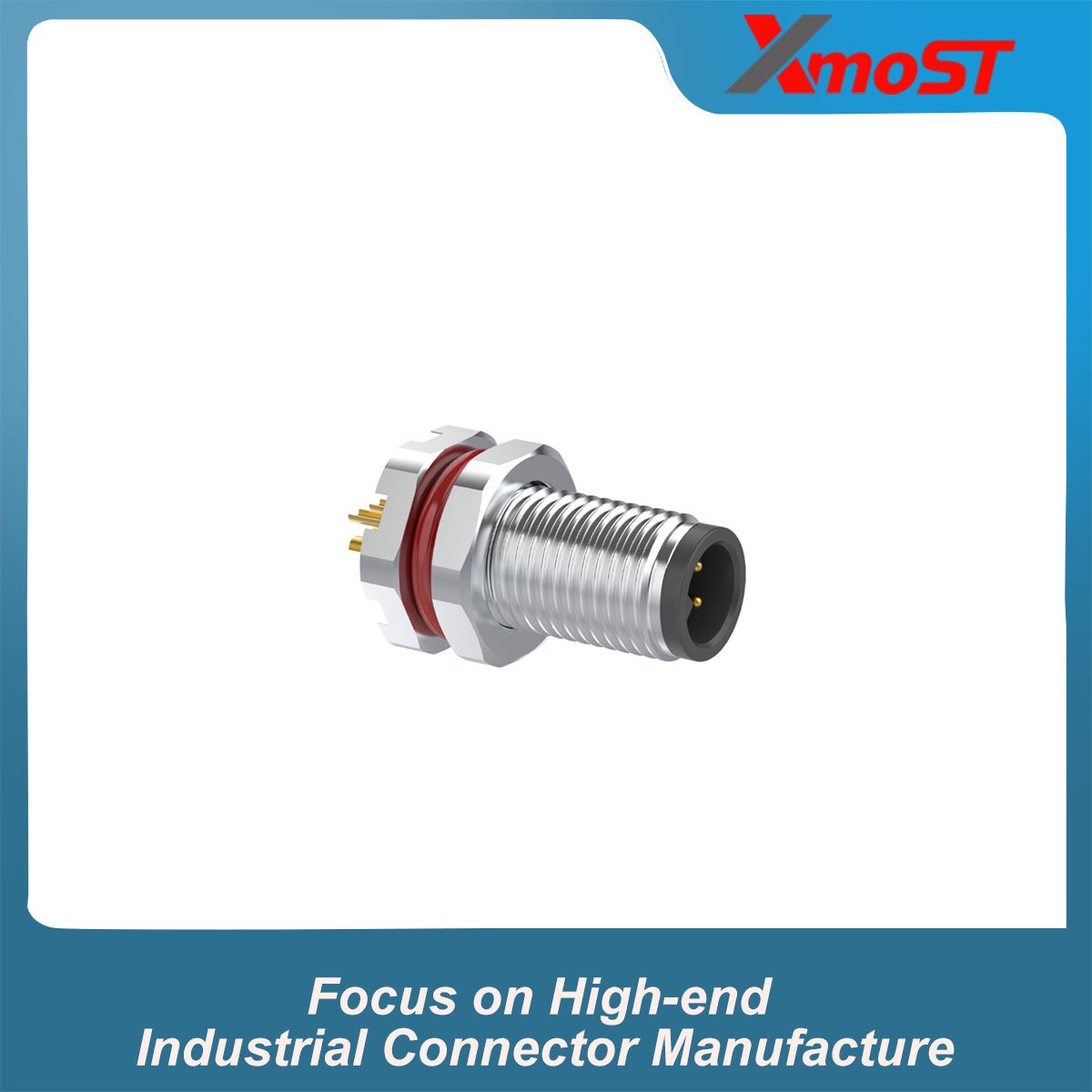

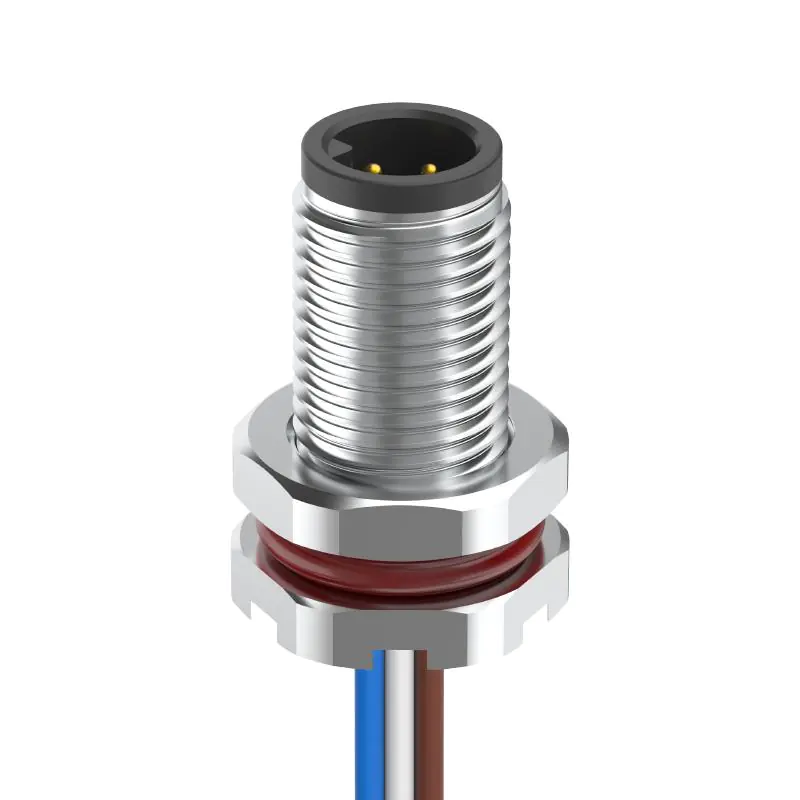

M5 A-Code 3Pin Male Front-Locking Socket, Solder

M5 Connector A-Code 3Pin Male Straight Front-Locking Socket, Solder, IP67

M5 A-Code 3-Pin Male Straight Front-Locking Socket with solder termination, M5 × 0.5 screw locking and IP67 protection. Designed for compact panel-mounted connections in industrial automation, sensors, control equipment and industrial electronics.

Category: M5
Standard: IEC 61076-2-105
Connector Type: Male Pin
Coding: A Code
Shape: Straight
Number of Cores: 3 / 4
Shielding: Non-Shielded
Ingress Protection: IP67
Pollution Degree: 3
Rated Current: 1A
Rated Voltage: 60V

M5 A-Code 3-Pin Male Straight Front-Locking Socket is a compact circular connector designed for reliable panel-mounted connections in space-constrained industrial equipment. It features a 3-pin A-Code male contact configuration, straight socket design, front-locking mounting, and solder termination.

The connector uses an M5 × 0.5 screw-locking interface and provides IP67 protection when properly mated. Its compact M5 construction makes it suitable for industrial automation, sensors, control equipment, and other applications requiring reliable panel connectivity.

Key Features & Advantages

3-Pin A-Code Male Configuration
Straight Front-Locking Socket
Solder Termination
M5 × 0.5 Screw Locking
IP67 Protection
Compact M5 Circular Design
Multiple Material Options

Technical Specifications

Parameter	Specification
Connector Series	M5
Coding	A-Code
Contact Configuration	3 Pin
Connector Type	Male Straight Front-Locking Socket
Operating Standard	IEC 61076-2-105
Rated Current	1 A
Rated Voltage	60 V
Rated Impulse Voltage	500 V
Insulation Resistance	100 MΩ
Contact Resistance	≤5 mΩ
Shielding Performance	Non-Shielded
Locking Method	M5 × 0.5 Screw Lock
Recommended Screw Torque	0.1 Nm
Maximum Screw Torque	0.15 Nm
Wiring Method	Soldering
Operating Temperature	-40°C to +80°C Static / -25°C to +80°C Dynamic
Protection Rating	IP67
Pollution Degree	3
Insulator Material	PA66 + GF / TPU + GF
Screw / Nut Material	Nickel-Plated Brass
Pin Material	Gold-Plated Phosphor Bronze / Gold-Plated Brass
Sealing Material	FKM / Silicone / Epoxy

Contact Configuration

3-Pin A-Code Male

The 3-pin A-Code male contact arrangement follows the configuration shown in the technical drawing. The front-locking socket design provides a panel-mounted male interface with solder termination for compact M5 connection applications.

Dimensions

The M5 A-Code 3-Pin Male Straight Front-Locking Socket features a compact circular design for space-constrained panel installations. Detailed dimensions, mounting configuration, and contact arrangement are shown in the product drawing.
