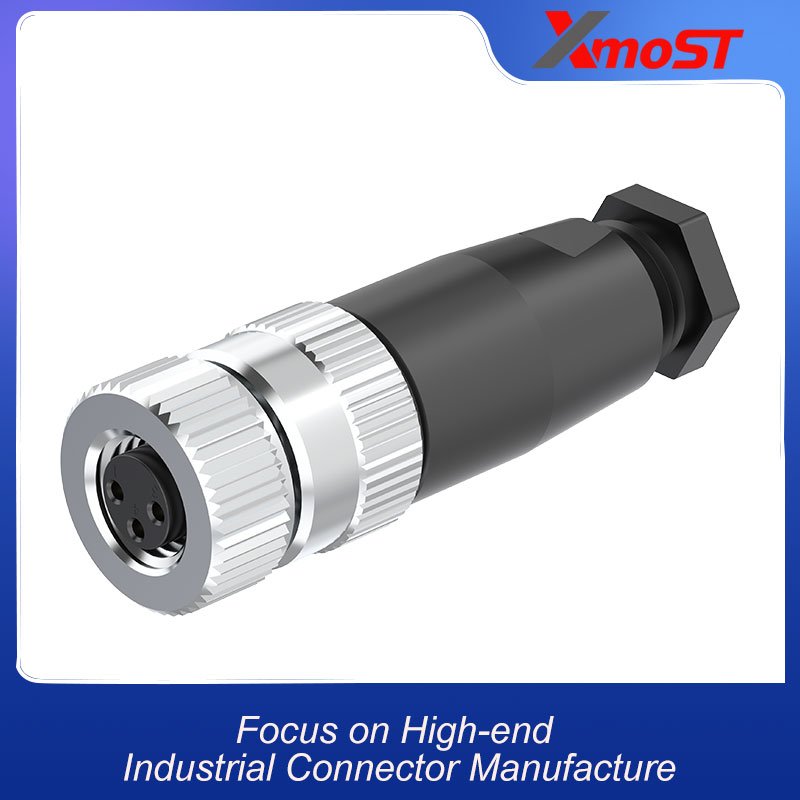

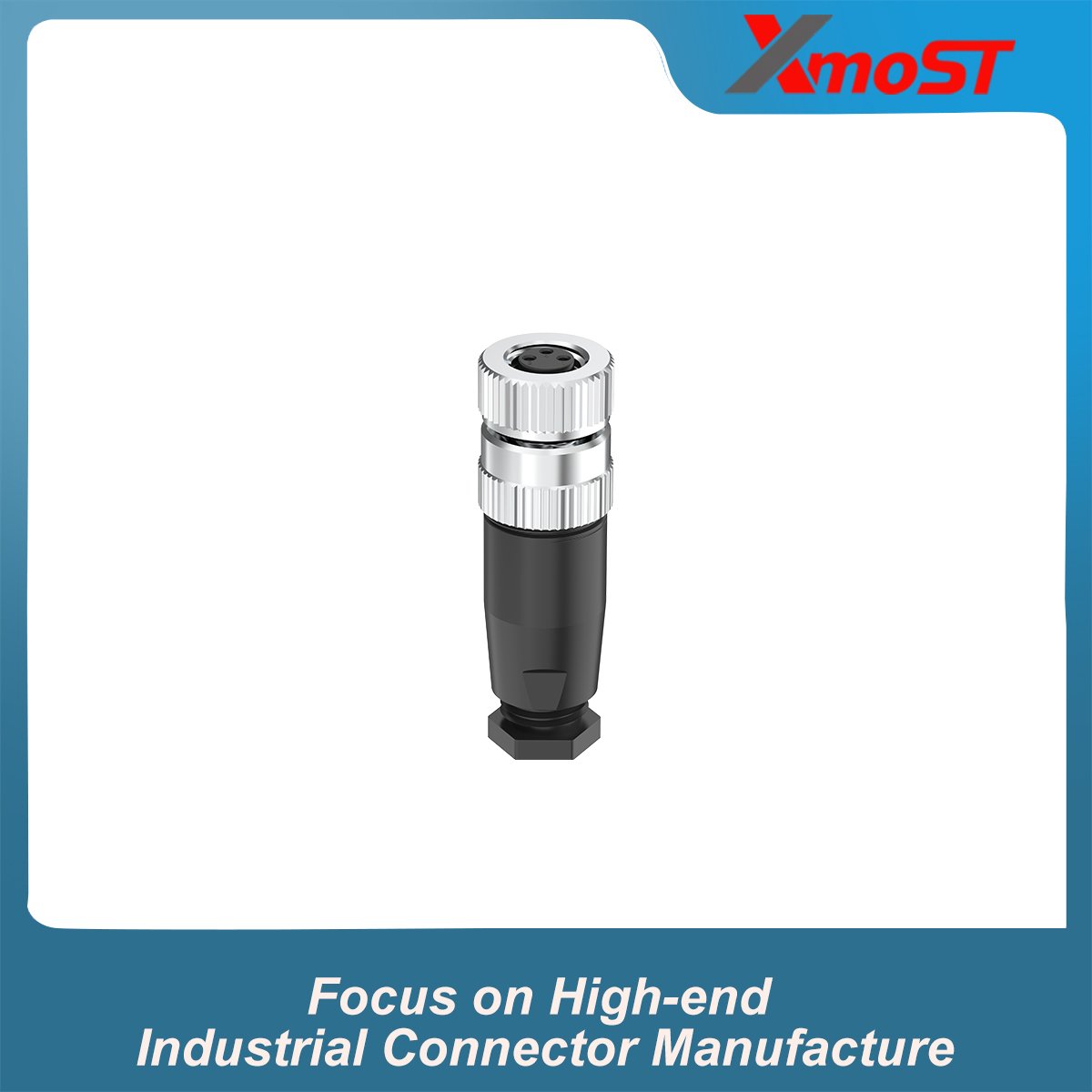

M8 A&B-Code 3-Pin Female Plastic Straight Assembled Connector is a compact M8 socket designed for solder-type cable termination. Its straight configuration provides an inline cable entry, while the assembled construction allows the connector to be wired for custom cable assemblies.
Available in A-Code and B-Code configurations, this 3-pin M8 female connector uses an M8 × 1.0 screw locking system. The A-Code version is rated at 3 A / 60 V, while the B-Code version is rated at 3 A / 30 V.
The plastic housing provides a lightweight construction for industrial wiring applications. With a non-shielded design, Ø3.5–5 mm cable compatibility, and IP67 protection, this M8 3-Pin Female Connector is suitable for custom cable assemblies, sensors, control equipment, and industrial machinery.
Key Features
- M8 A&B-Code 3-Pin Female Connector
- Straight assembled configuration
- Plastic housing
- Solder-type termination
- M8 × 1.0 screw locking
- Non-shielded construction
- A-Code / B-Code options
- Ø3.5–5 mm cable compatibility
- IP67 protection
Dimensions

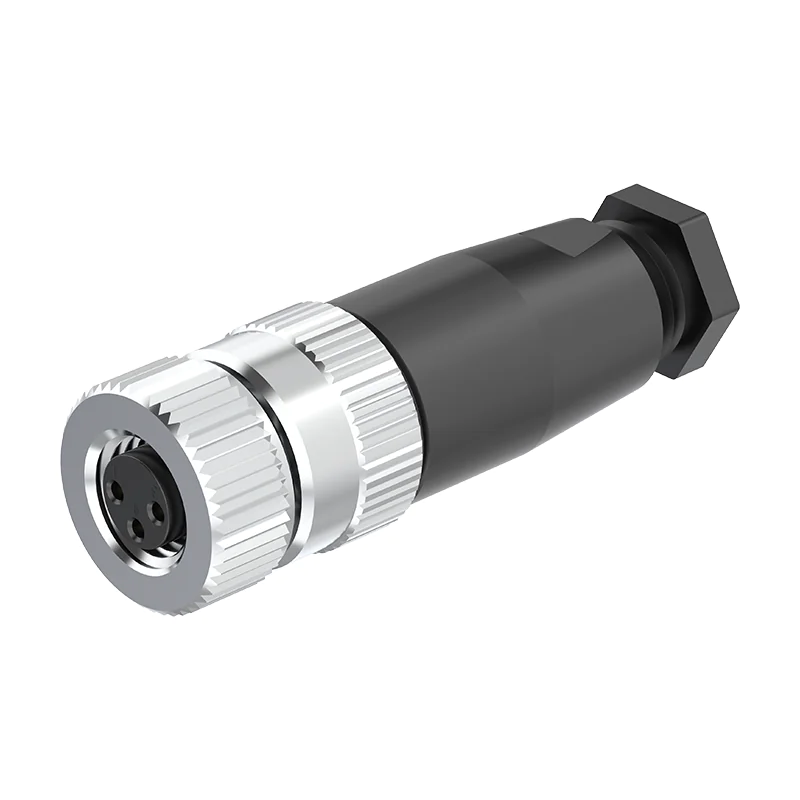

Connector features a straight plastic housing with an M8 × 1.0 threaded coupling and a cable entry for Ø3.5–5 mm cable.Please refer to the dimensional drawing for detailed connector and assembly dimensions.

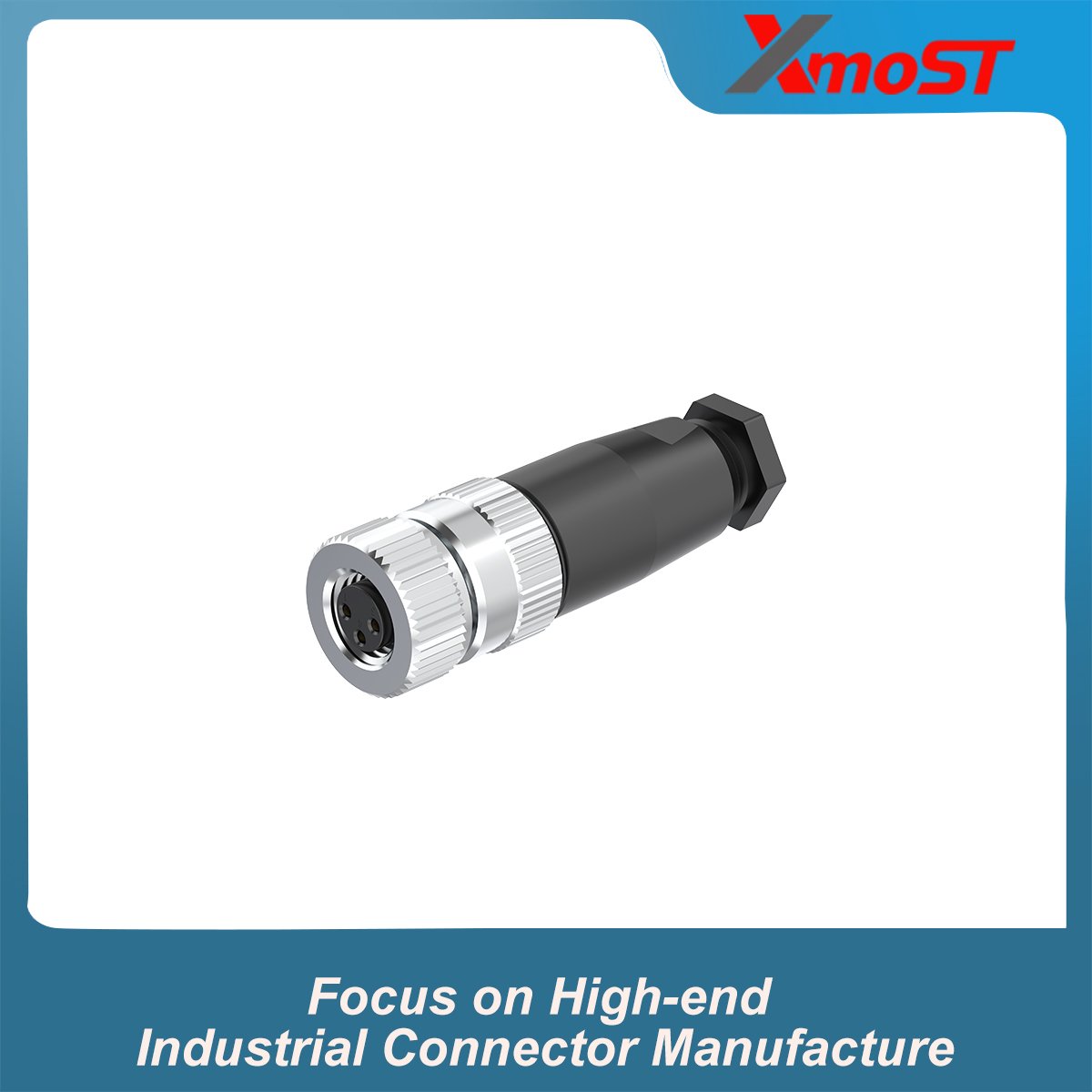

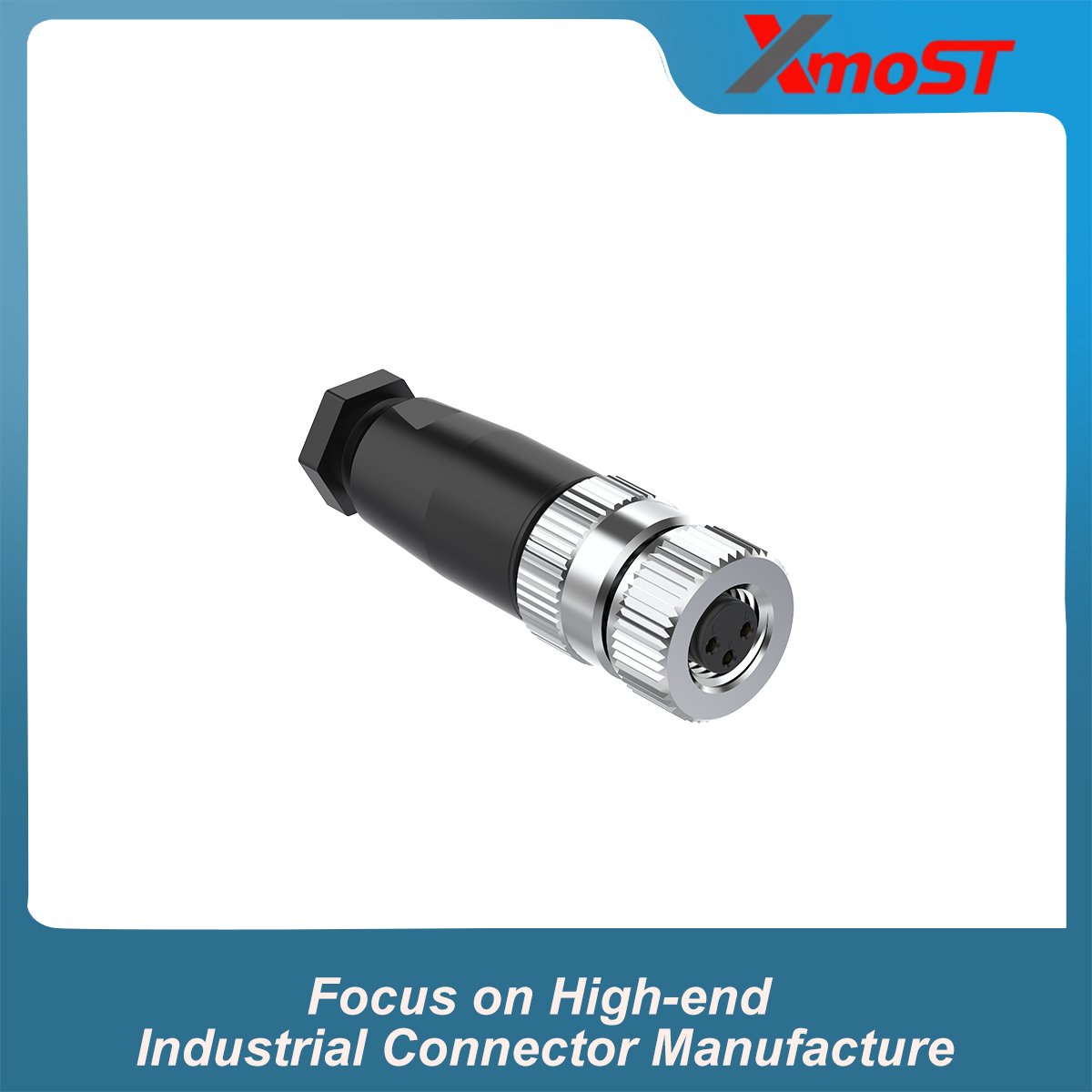

Female Contact Configuration

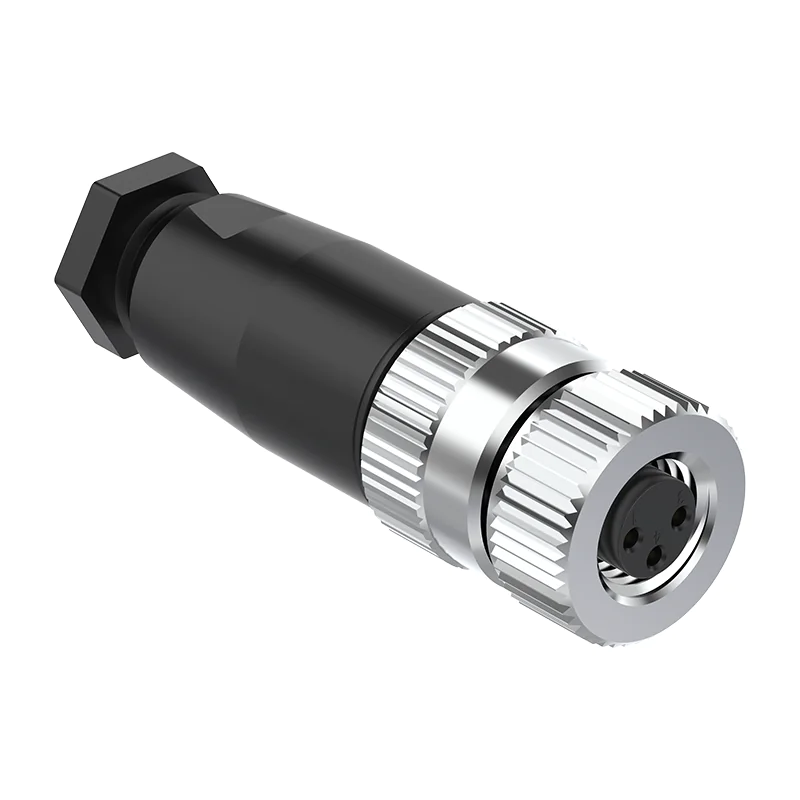

3-pin female M8 interface provides the socket-side connection for a compatible male connector. The straight configuration keeps the cable entry aligned with the mating axis, making it suitable for conventional cable routing and assembled wiring.
A-Code and B-Code versions use their corresponding coding configurations for compatible M8 mating connections.
Solder-Type Assembly
M8 female assembled connector uses solder termination to connect the cable conductors to the contacts. The assembled construction allows the connector to be prepared as part of a custom cable assembly rather than using a permanently molded cable.
Connector accommodates Ø3.5–5 mm cable and uses a 0.25 mm² (AWG24) wire specification.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code / B-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Female Straight Assembled Connector |
| Housing Type | Plastic |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V (A-Code) / 30 V (B-Code) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wire Screw Torque | 0.1 Nm |
| Cable Gland Torque | 0.4–0.8 Nm |
| Wiring Method | Soldering |
| Wire Gauge Range | 0.25 mm² (AWG24) |
| Wire Size | Ø3.5–5 mm |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Measurement Equipment
- Factory Equipment
- Industrial Machinery
- Custom Cable Assemblies
M8 A-Code / B-Code 3-Pin Female Connector is suitable for industrial wiring and custom cable assemblies requiring a compact, non-shielded female M8 interface with solder termination.
