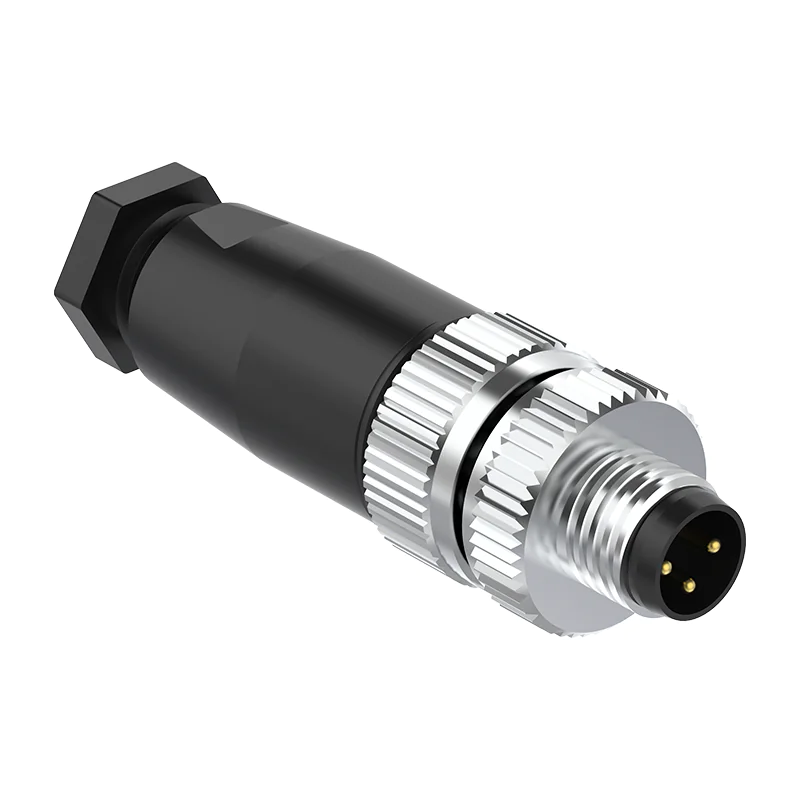

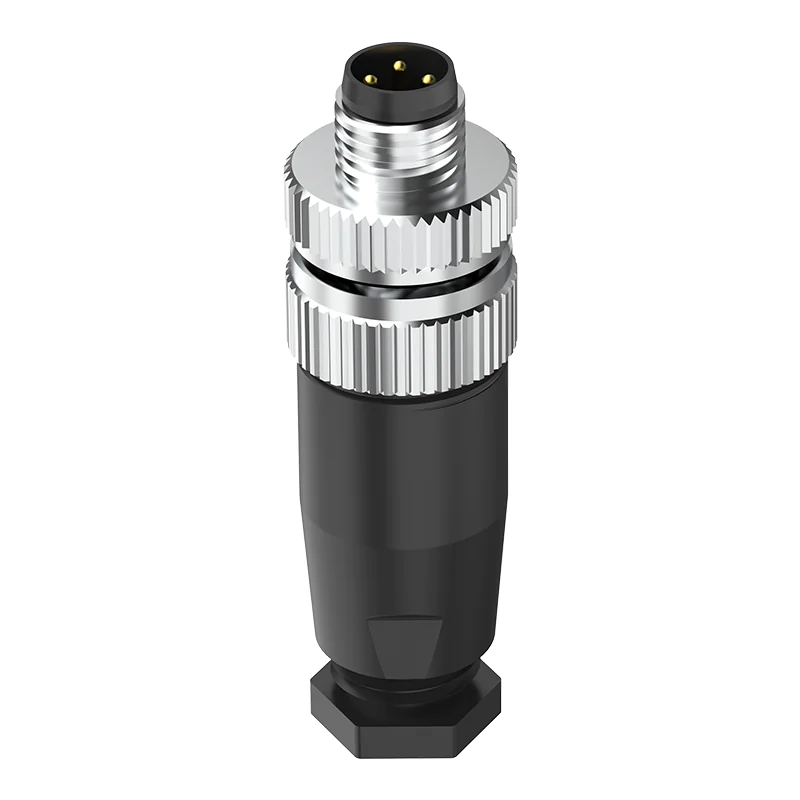

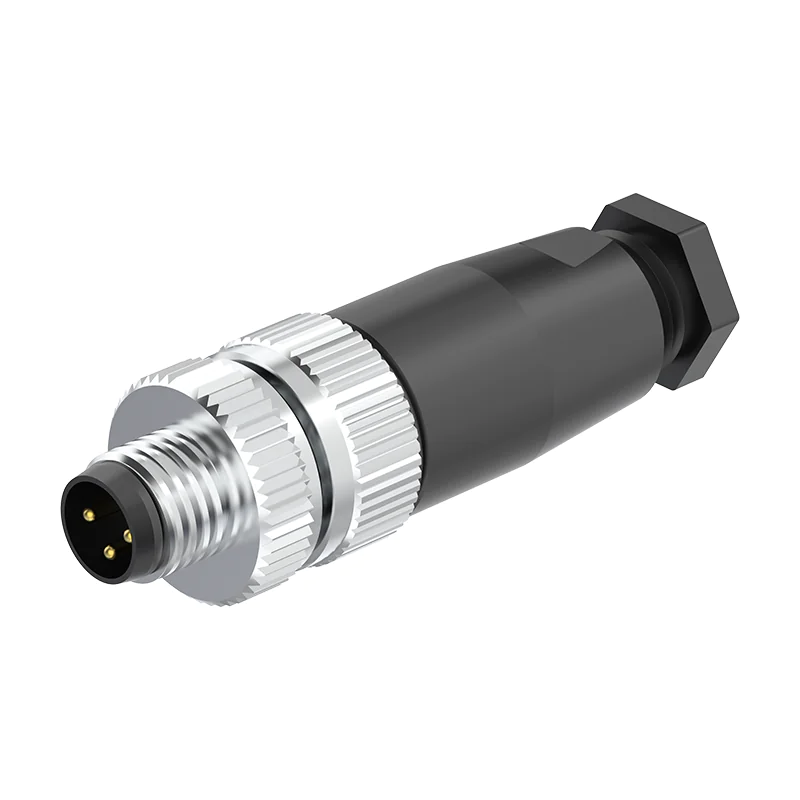

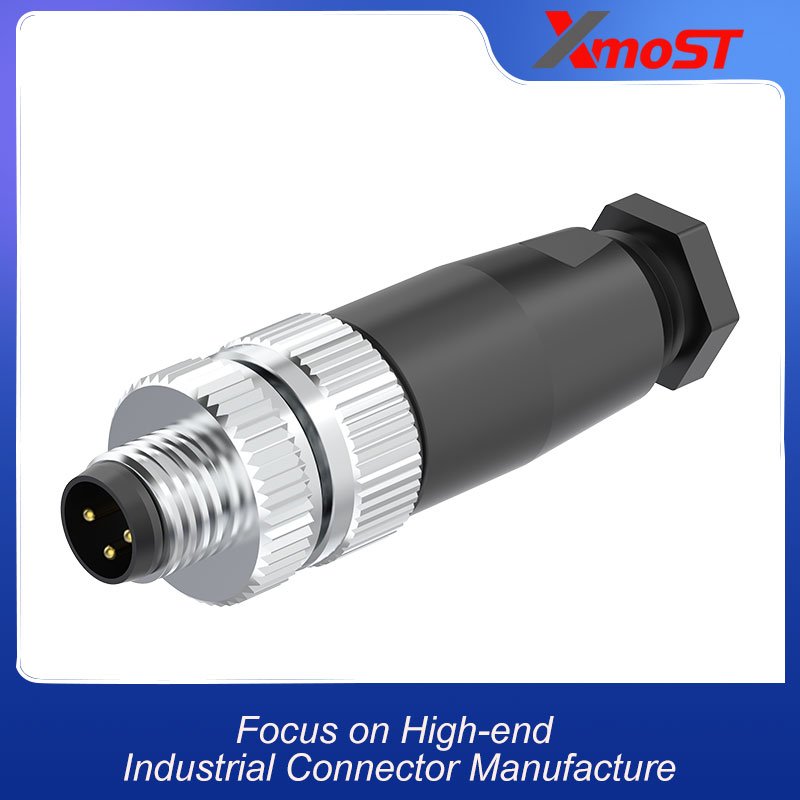

M8 B‑Code plastic plug is a 3Pin male straight connector with screw terminal M8 plug, designed for easy field assembly without special tools. This IP67 industrial automation connector is ideal for sensors, robots, and equipment control. The M8 field attachable plug supports wire gauges 0.14 mm² to 0.25 mm² (AWG26‑24) and cable diameter φ3.5‑5 mm. Non‑shielded, rated 60 V / 3 A. Screw locking M8×1.0. Compliant with IEC 61076‑2‑104. Housing: PA+GF. Operating temperature -40 °C to +80 °C.
- Pollution Degree: 3
- Insulation Material: PA+GF / TPU+GF
- Screw/Nut Material: Nickel-Plated Brass / Nickel-Plated Zinc Alloy
- Pin Material: Gold-Plated Phosphor Bronze / Gold-Plated Brass
- Sealing Material: FKM / Silicone / Epoxy
- Housing Material: PA+GF
