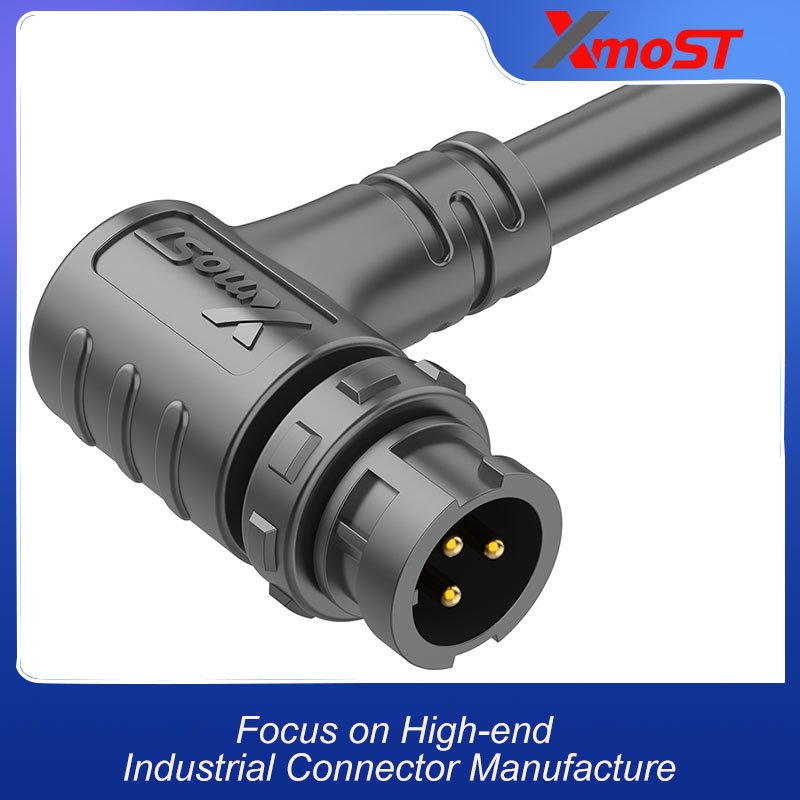

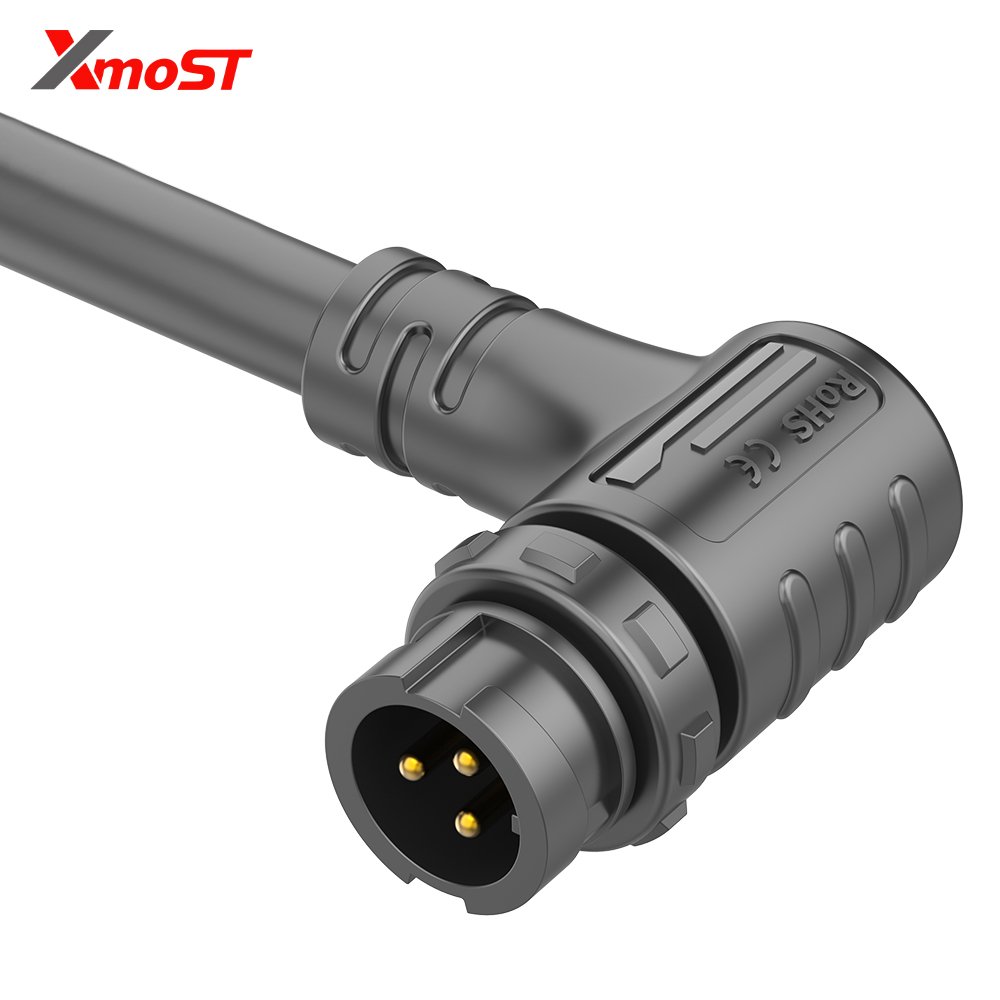

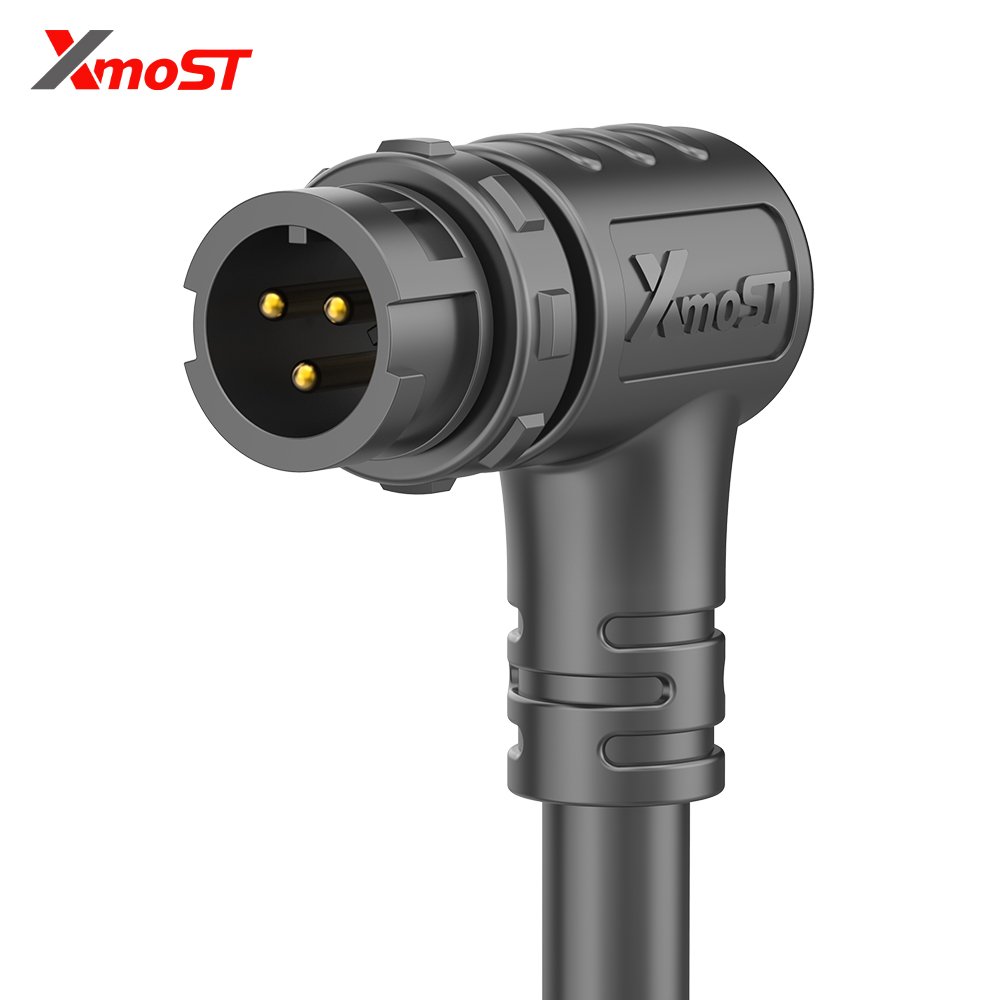

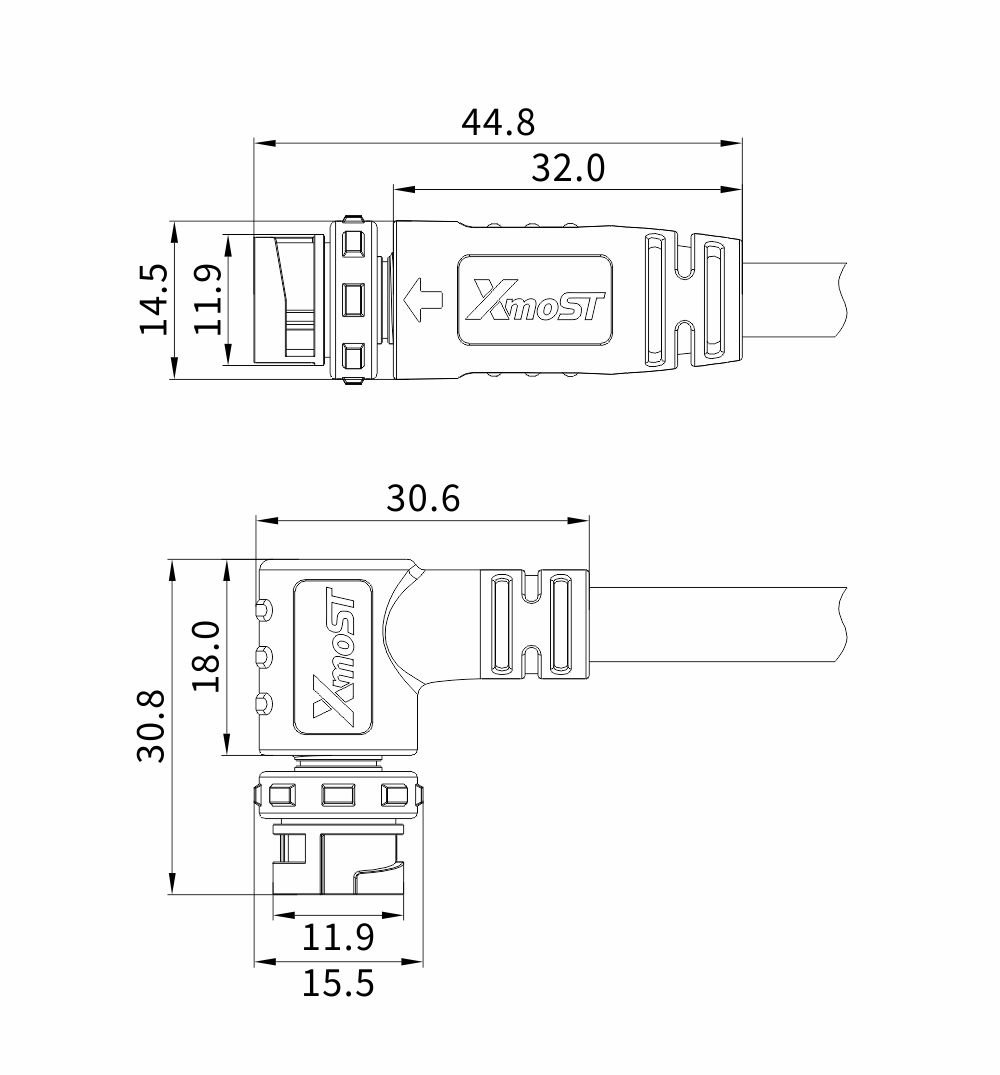

90° Right Angle Molded Inline Socket – Space-Saving Cable-to-Cable Connection – This M12 male circular connector features a 90° right angle molded inline socket design, enabling cable routing parallel to the connection axis. Perfect for cable-to-cable connections in tight spaces where straight inline sockets cannot fit – robotic arms, cable harnesses, and confined automation cells.
Quick-Lock Coupling – Tool-Free Push-and-Click Mating – The quick-lock system enables instant mating without special tools – simply push to connect, pull to release. Audible click confirms secure engagement. Rated for 3,000+ mating cycles, ideal for applications requiring frequent connections and disconnections in factory automation.
IP67 Waterproof Protection for Harsh Environments – This M12 connector is rated IP67 waterproof and dust-tight, withstanding moisture, dirt, oil, and washdown conditions. The rugged PA66 nylon overmold resists corrosion and mechanical stress, ensuring reliable performance in outdoor sensors, washdown areas, and demanding industrial equipment.

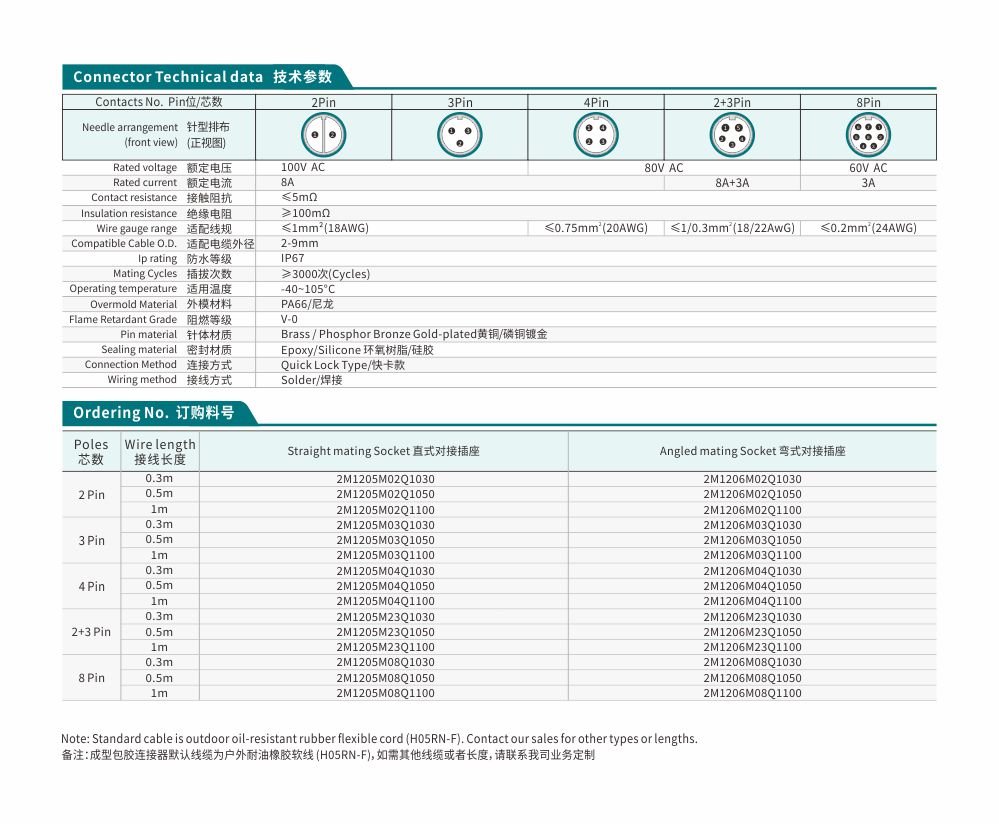

Gold-Plated Contacts – Low & Stable Contact Resistance – Precision brass/phosphor bronze contacts with gold plating deliver contact resistance ≤5mΩ and insulation resistance ≥100MΩ, ensuring consistent signal integrity. Supports ≤0.75mm² (20 AWG) wire with cable O.D. 2-9mm. Solder termination for permanent, low-loss connections.
Lightweight PA66 Construction – V-0 Flame Retardant – Manufactured from high-performance PA66 nylon with UL94 V-0 flame retardant rating. Offers significant weight savings over metal connectors while providing excellent corrosion resistance, chemical resistance, and long-term durability in demanding industrial environments.
