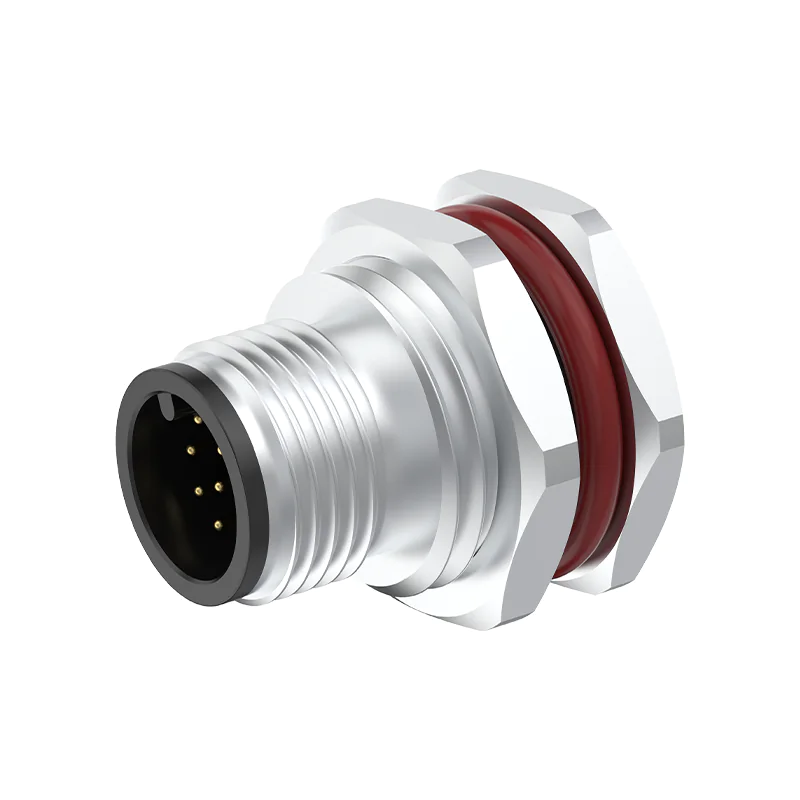

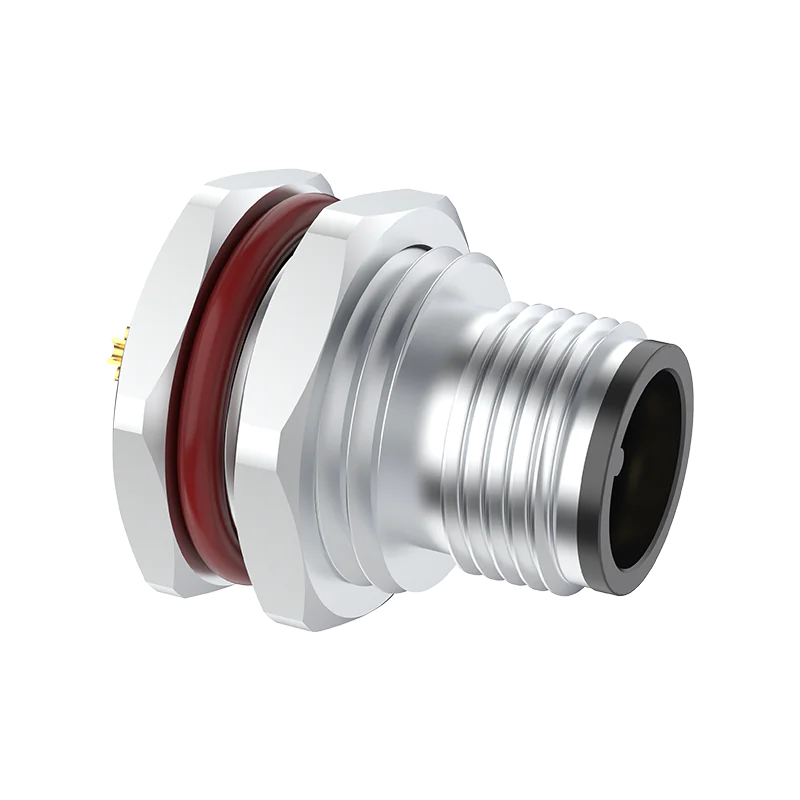

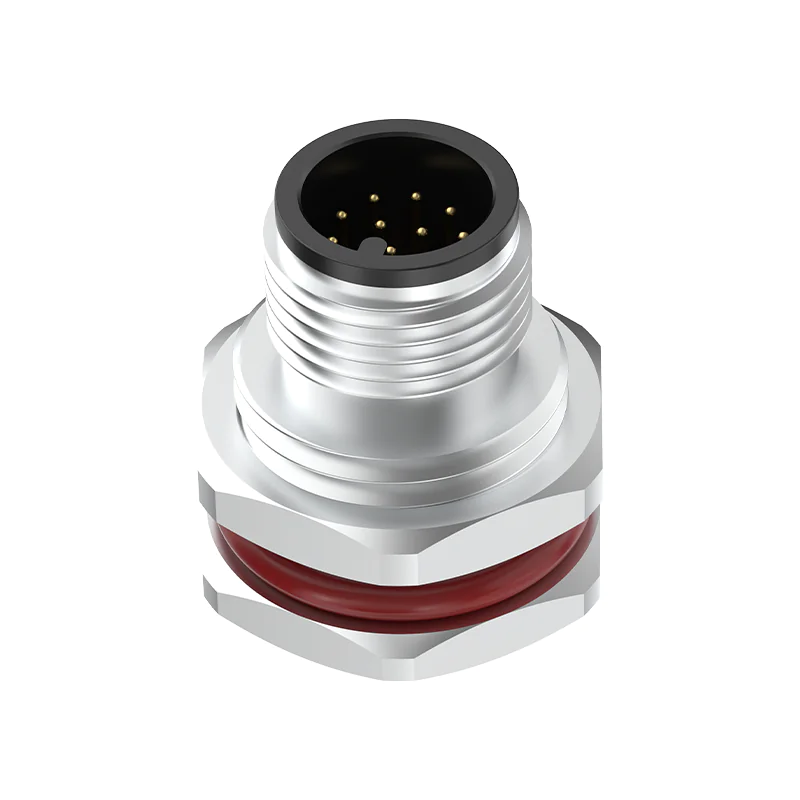

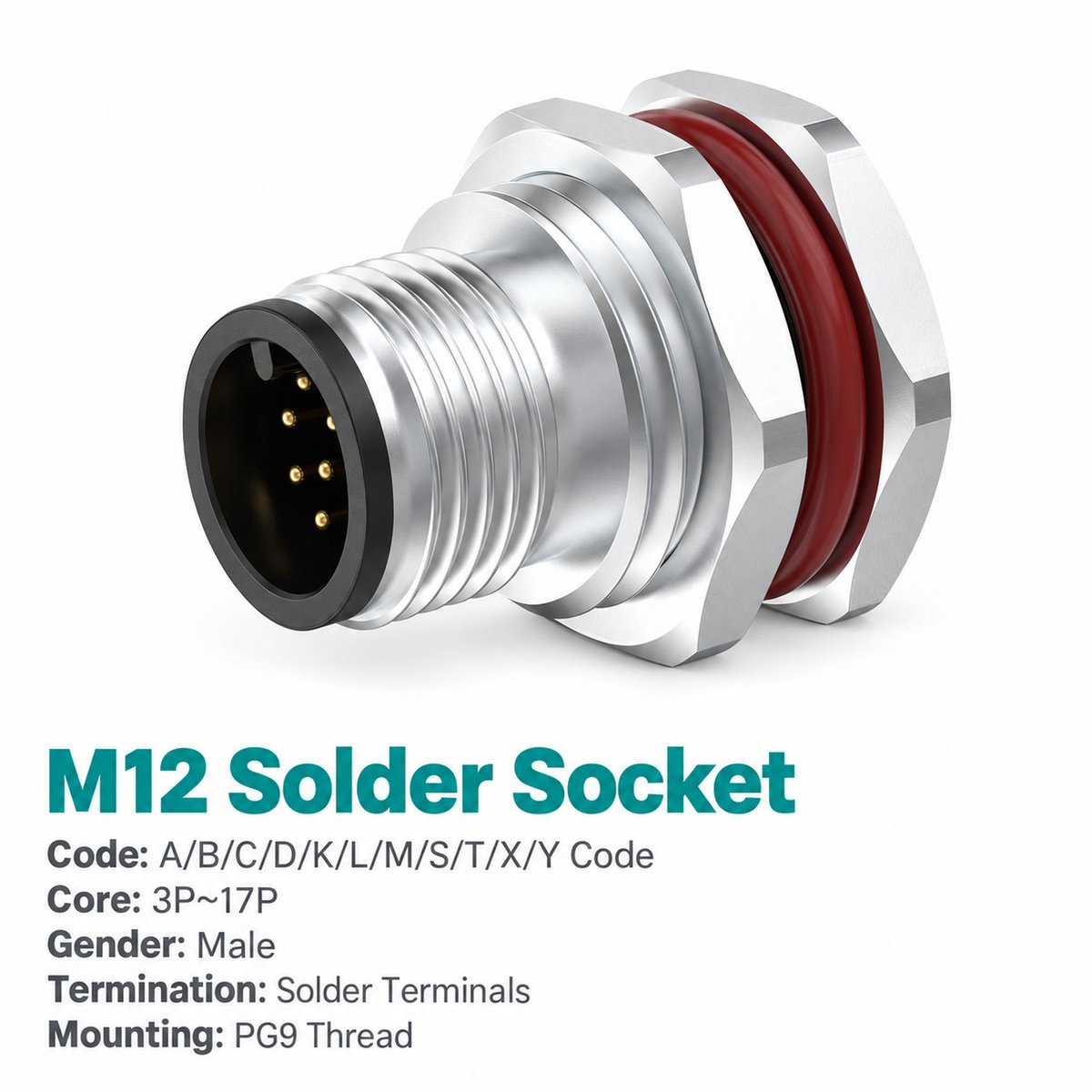

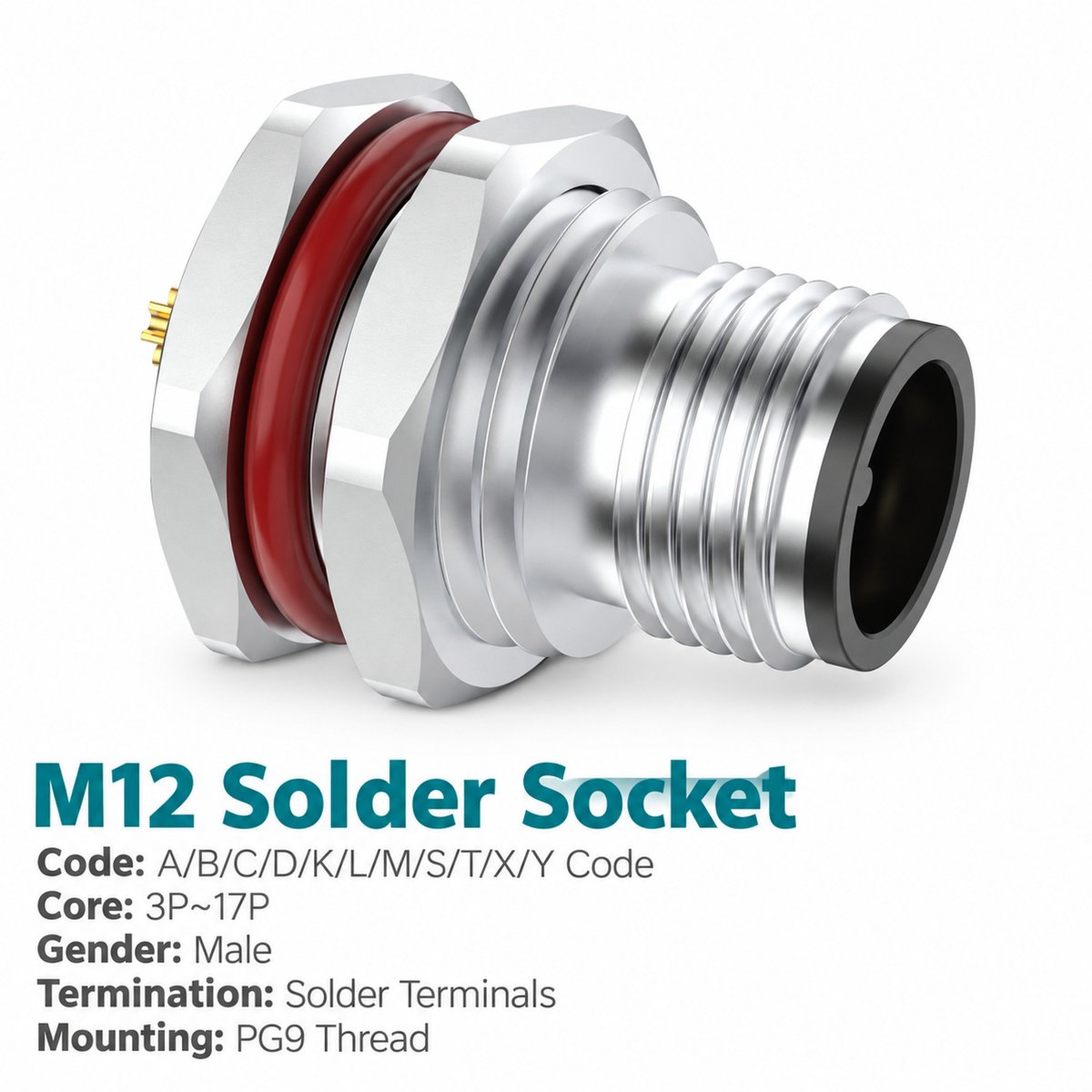

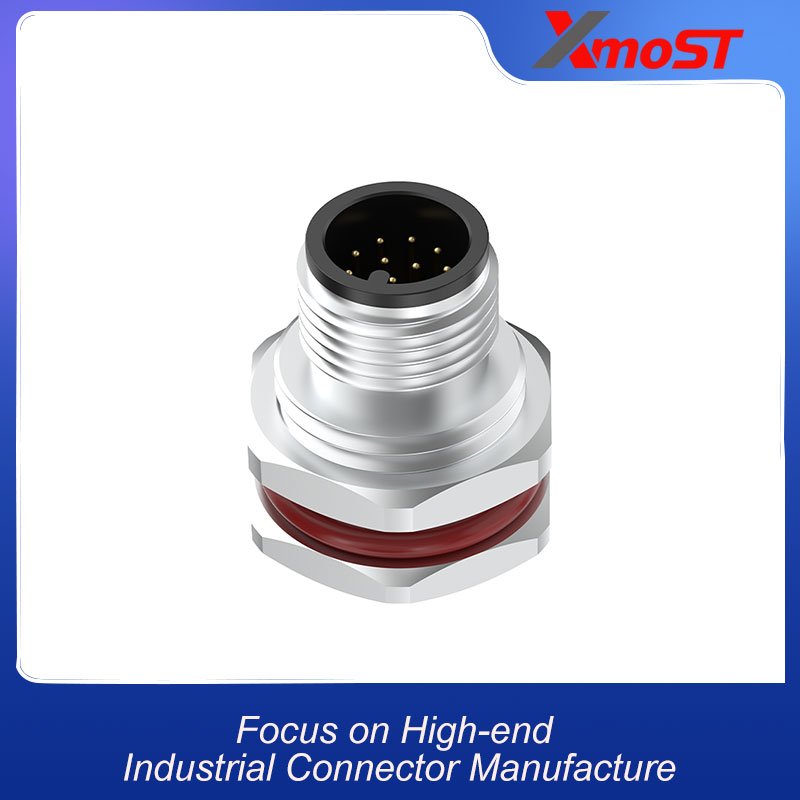

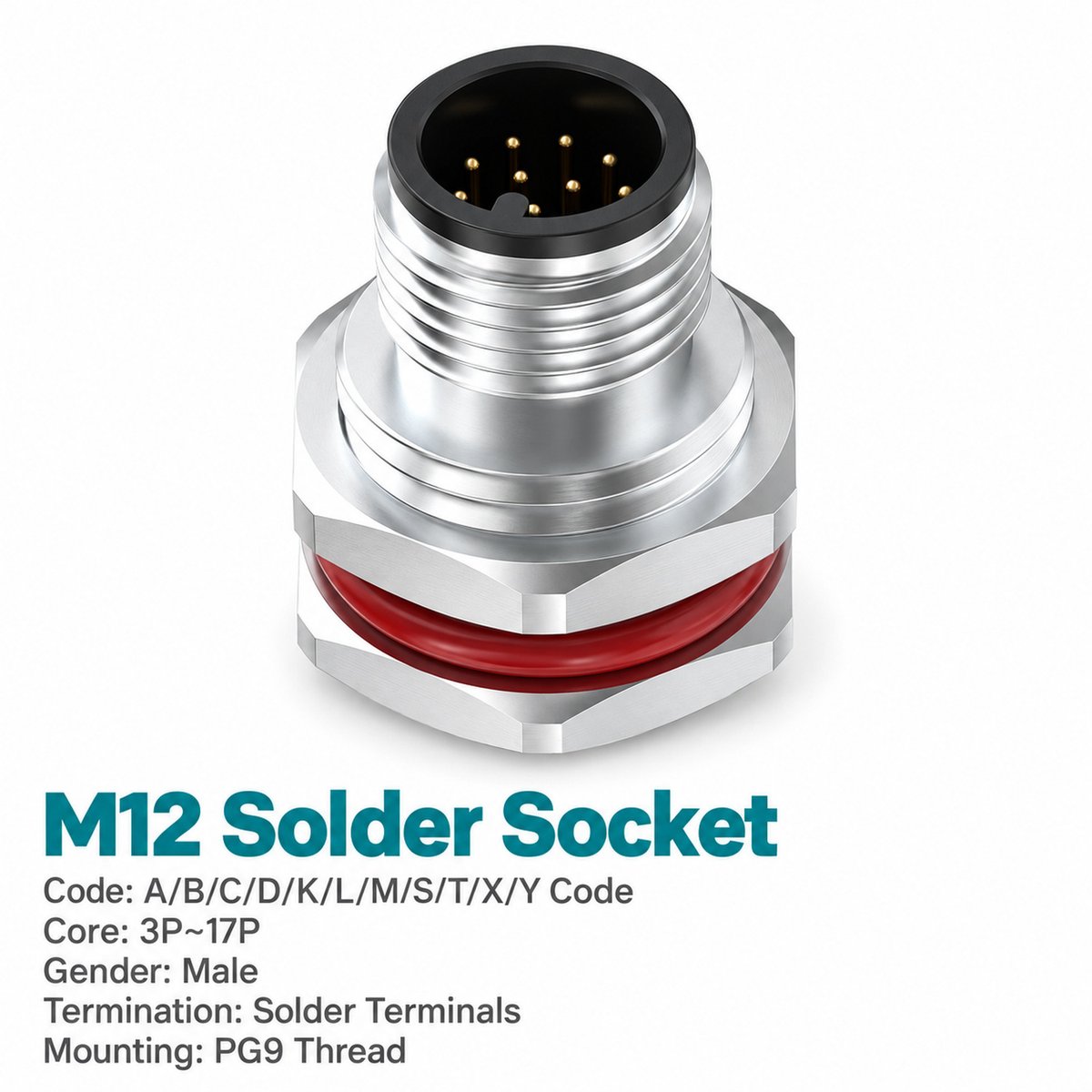

M12 A-coded male front mount socket provides the equipment-side connection for a compatible M12 A-coded female cable connector. It mounts to the panel, with solder terminals or pre-wired leads connecting to the internal circuit.
Select the front fastened version when it matches the enclosure’s mounting design. The unwired socket allows wires to be soldered during assembly, while the 0.3 m pre-wired version provides leads for routing to an internal terminal or harness connection.
Six contact counts are available. Current, voltage and wire size vary by configuration, so select this M12 male solder socket by both the required conductor count and the electrical ratings.
Key Features
- A-coded male interface: Connects to compatible sensor, actuator and equipment cable connectors.
- Front fastened mounting: Select according to the equipment panel drawing.
- Six contact options: 3, 4, 5, 8, 12 and 17 pins.
- Solder termination: Supports internal wire connection during assembly.
- Unwired or pre-wired: Choose customer termination or supplied 0.3 m leads.
- Three panel mounting threads: M12 × 1.0, PG9 and M16 × 1.5.
- Configuration-specific ratings: Check current and voltage for the selected pin count.
- Unshielded construction: As specified for this catalogue version.
Product Dimensions
[Insert the front mount male socket drawing and panel cut-out drawing here.]

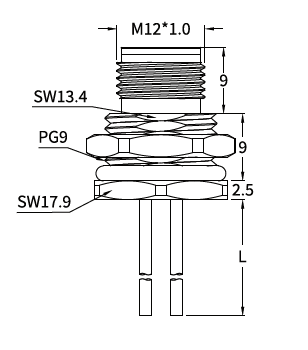

Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Upper axial section shown | 9 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Lead length | L; according to ordered version |
The mating thread connects to the external cable connector. The panel mounting thread secures the socket to the enclosure. Use the cut-out drawing for the selected mounting version.
Needle Arrangement (Front View)
[Insert the A-coded male contact arrangement screenshot showing 3, 4, 5, 8, 12 and 17 pins.]
The diagrams show the mating-face view. Match the selected contact count and numbered arrangement to the external female connector and equipment schematic.
The 3-pin version uses contact positions 1, 3 and 4.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 A-coded male front mount socket |
| Mounting | Front fastened |
| Termination | Solder |
| Wiring options | Unwired / 0.3 m pre-wired leads |
| Standard listed | IEC 61076-2-101 |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | M12 × 1.0 / PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Contact Count
| Contacts | Rated Current | Rated Voltage | Wire Size Listed |
|---|---|---|---|
| 3 pins | 4 A | 250 V | 0.34 mm² / AWG22 |
| 4 pins | 4 A | 250 V | 0.34 mm² / AWG22 |
| 5 pins | 4 A | 60 V | 0.34 mm² / AWG22 |
| 8 pins | 2 A | 30 V | 0.25 mm² / AWG24 |
| 12 pins | 1.5 A | 30 V | 0.14 mm² / AWG26 |
| 17 pins | 1.5 A | 30 V | 0.14 mm² / AWG26 |
Applications
This M12 A-coded front mount connector can be considered for:
- Sensor interfaces: Connecting external sensor cables to internal equipment circuits.
- Actuator connections: Providing a detachable panel interface within the selected electrical ratings.
- Automation control enclosures: Routing multiple conductors through one receptacle.
- Machine harness assemblies: Using solder terminals or pre-wired leads for internal connections.
Select the connector according to the circuit ratings, contact assignment and panel design.
Wiring and Lead Options
[Insert the complete wire colour and pin assignment table from page 1 here.]
Choose the unwired version for solder termination during assembly or the 0.3 m pre-wired version for connection to the internal harness. Other wire types or lengths can be discussed when ordering.
The 4-pin version uses:
| Contact | Wire Colour |
|---|---|
| Pin 1 | Brown — BN |
| Pin 2 | White — WH |
| Pin 3 | Blue — BU |
| Pin 4 | Black — BK |
For the 3-pin version, positions 1, 3 and 4 use brown, blue and black wires respectively. Use the corresponding catalogue column for other pin counts and the equipment schematic for circuit functions.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact count | 3 / 4 / 5 / 8 / 12 / 17 pins |
| Mounting style | Front mount |
| Panel mounting thread | M12 × 1.0 / PG9 / M16 × 1.5 |
| Termination | Solder |
| Wiring | Unwired / 0.3 m pre-wired |
| Custom requirements | Specify wire type or lead length |
Example enquiry: M12 A-coded male front mount socket, 4-pin, solder termination, PG9 mounting, 0.3 m pre-wired leads.
