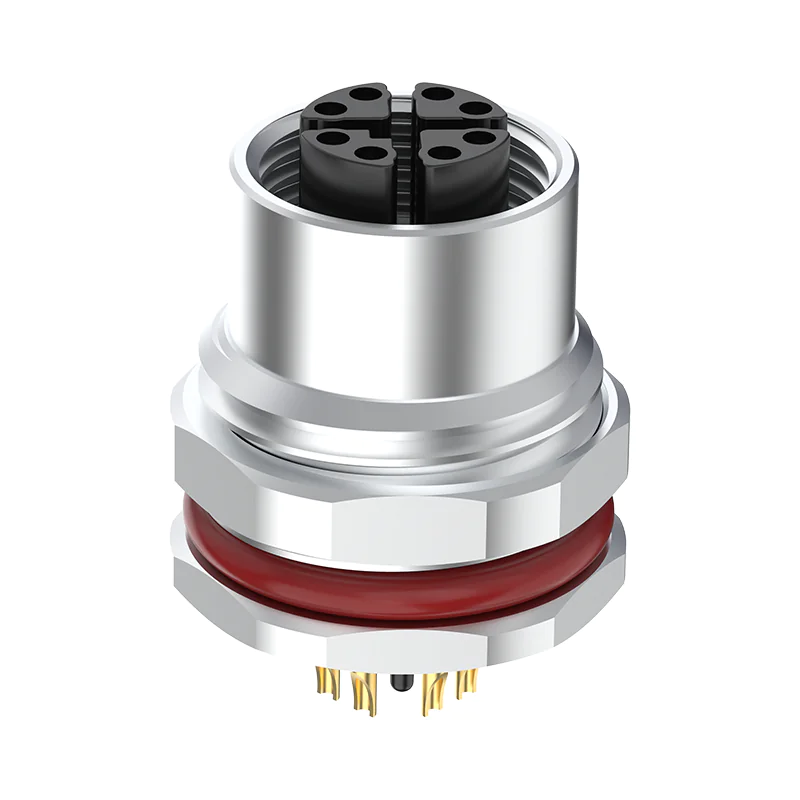

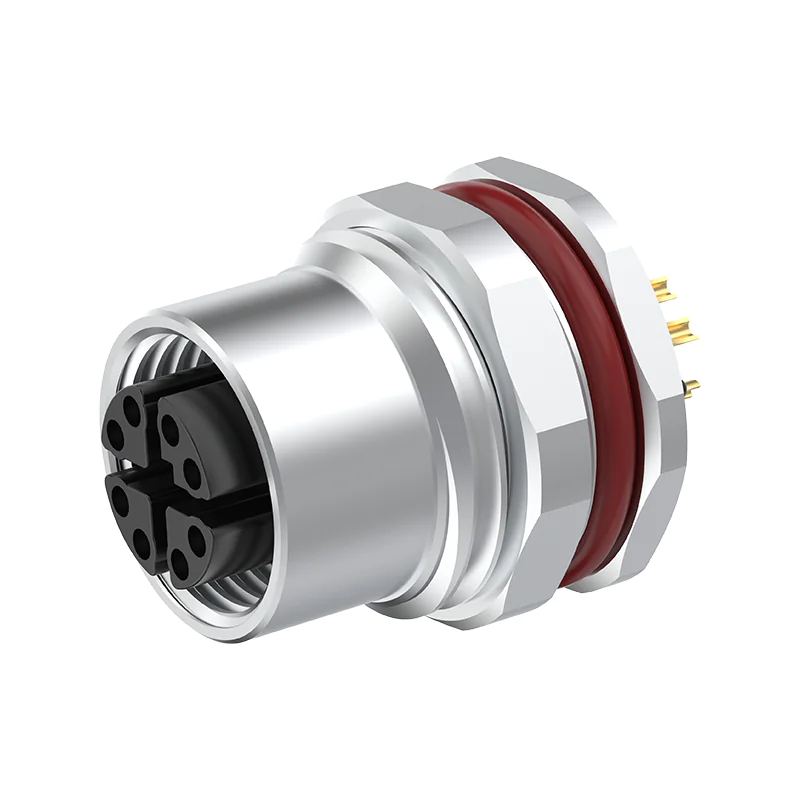

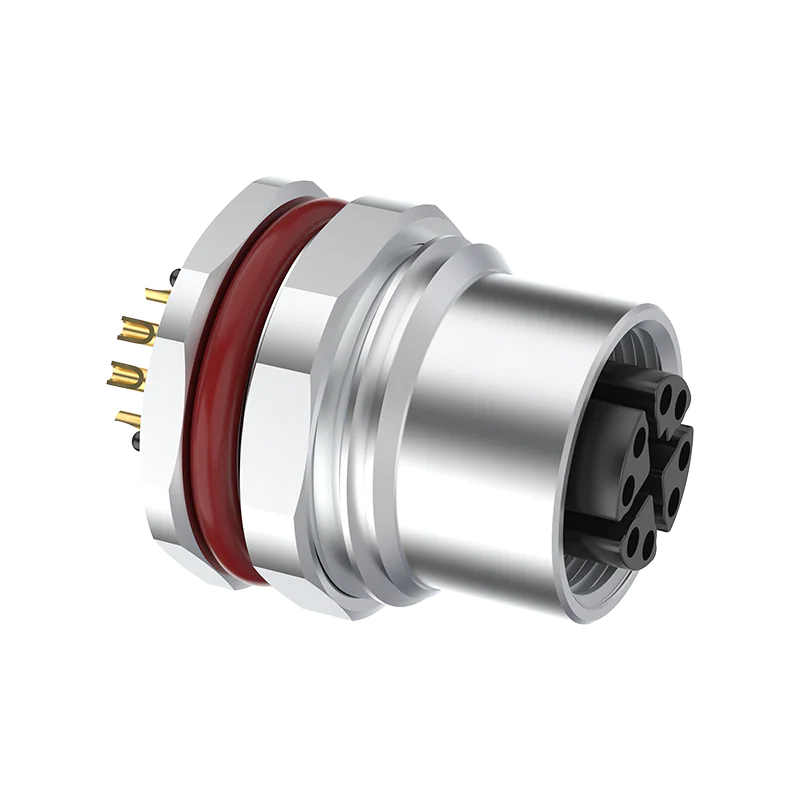

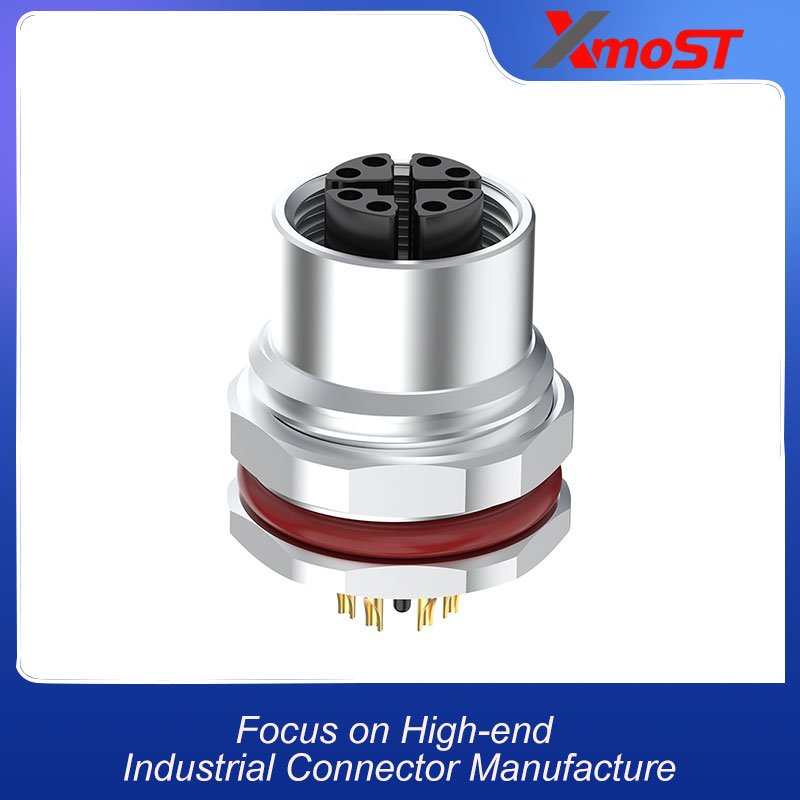

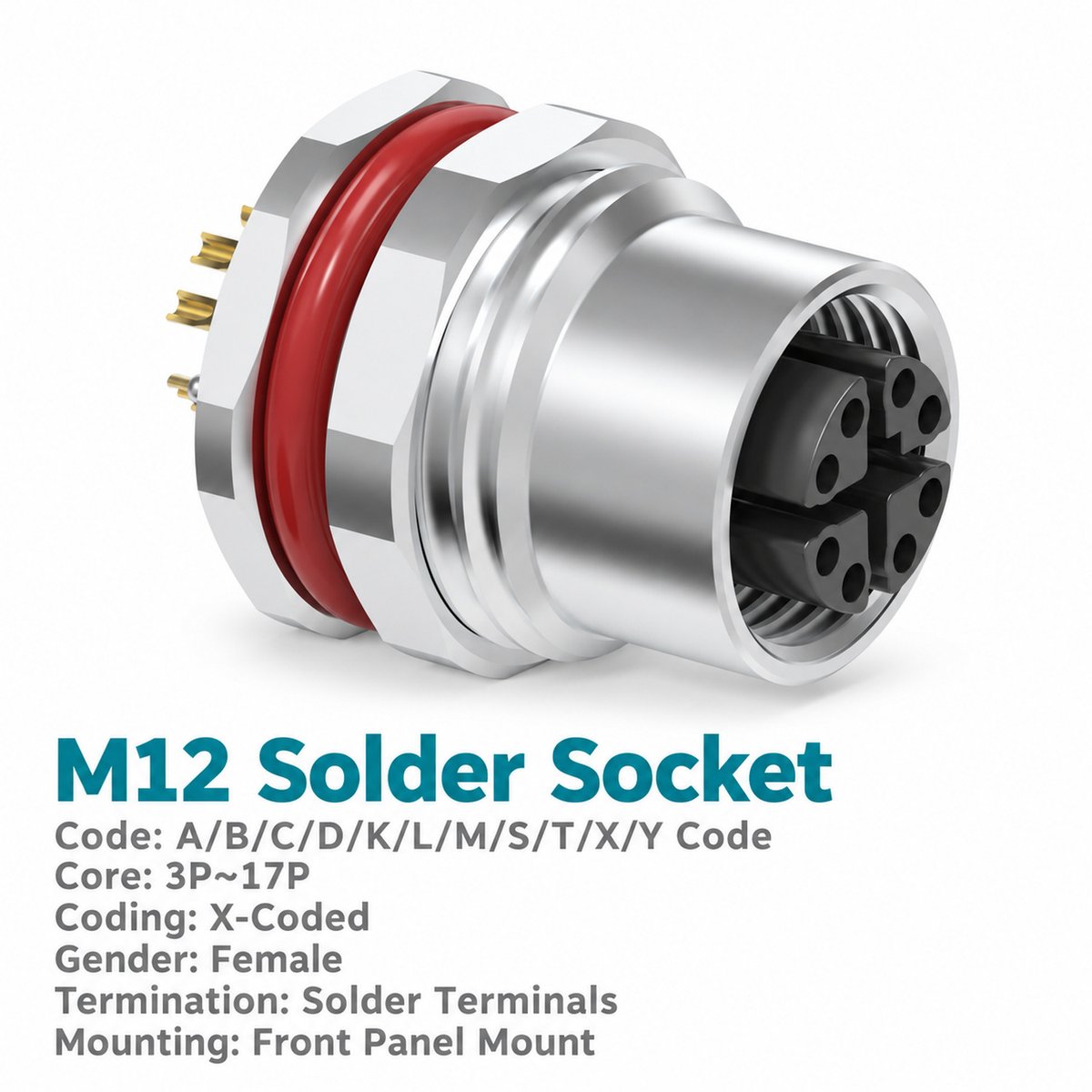

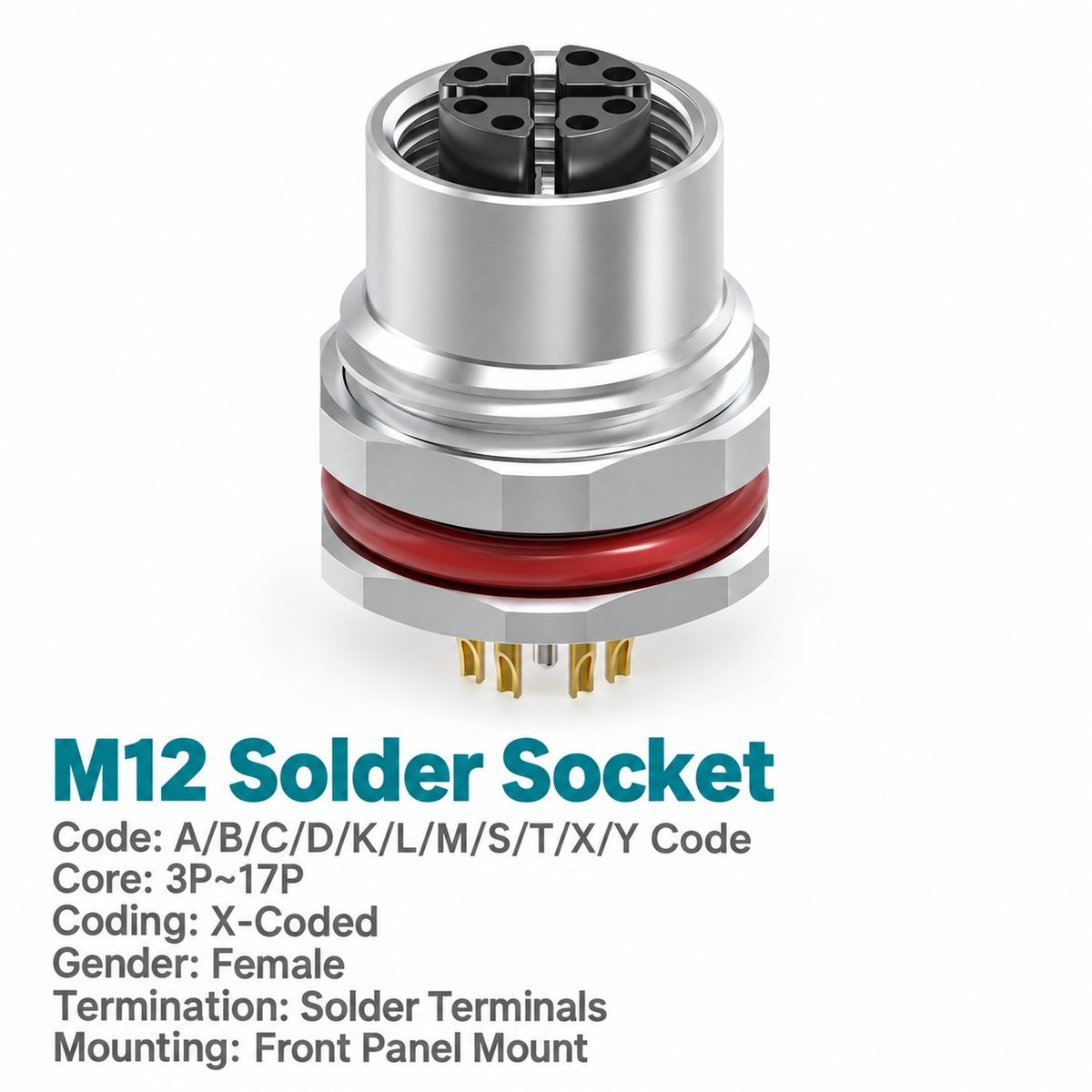

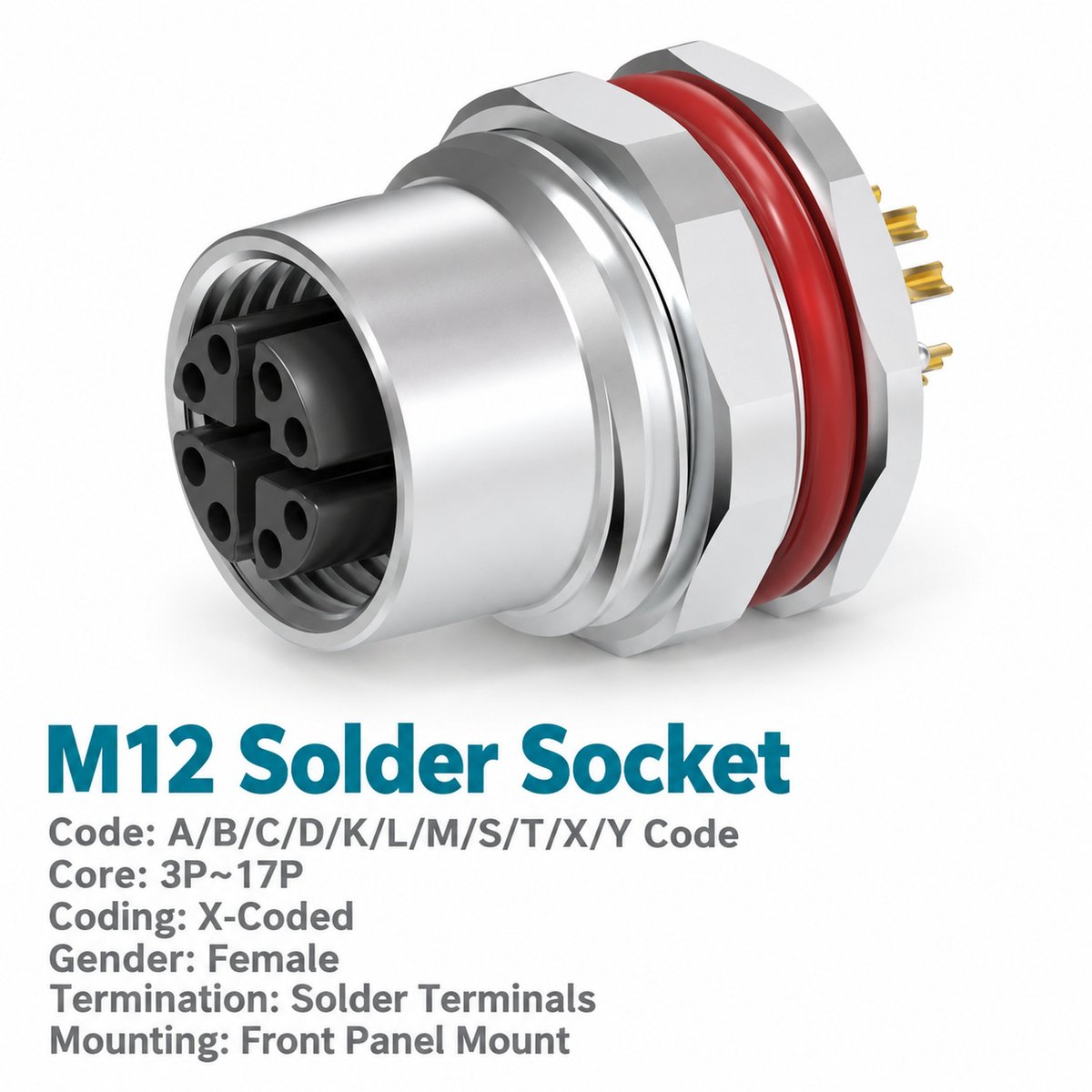

M12 X-Code 8Pin female straight front-locking socket with solder termination. IP67/IP68 waterproof. Front panel mount design for secure installation. Designed for industrial Ethernet and high-speed data transmission (up to 10GbE). Brass nickel-plated nut, gold-plated contacts. Operating temperature -25°C to +85°C. Ideal for industrial Ethernet, Gigabit Ethernet, and harsh environment applications requiring reliable panel mounting.
- Termination Method: Soldering
- Dynamic Operating Temperature: -25°C ~ +80°C
- Static Operating Temperature: -40°C ~ +80°C
- Wire Gauge Range: 0.14mm² (AWG26)
- Ingress Protection: IP67 / IP68
- Pollution Degree: 3
- Insulator Material: PA66+GF / TPU+GF
- Screw / Nut Material: Brass with Nickel Plating (Brass Ni) / Zinc Alloy with Nickel Plating
- Pin Material: Phosphor Bronze with Gold Plating / Brass with Gold Plating
- Sealing Material: FKM / Silicone / Epoxy
