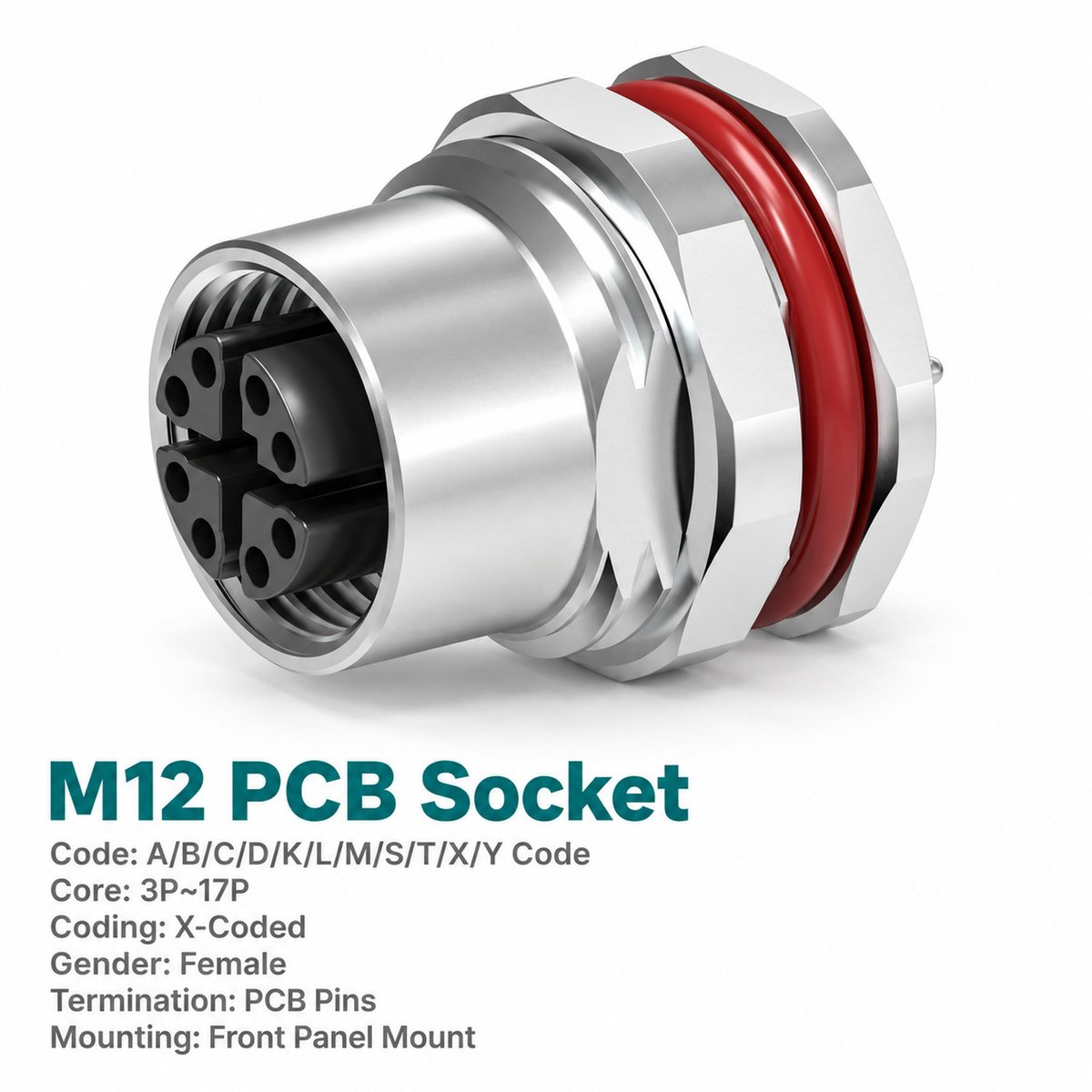

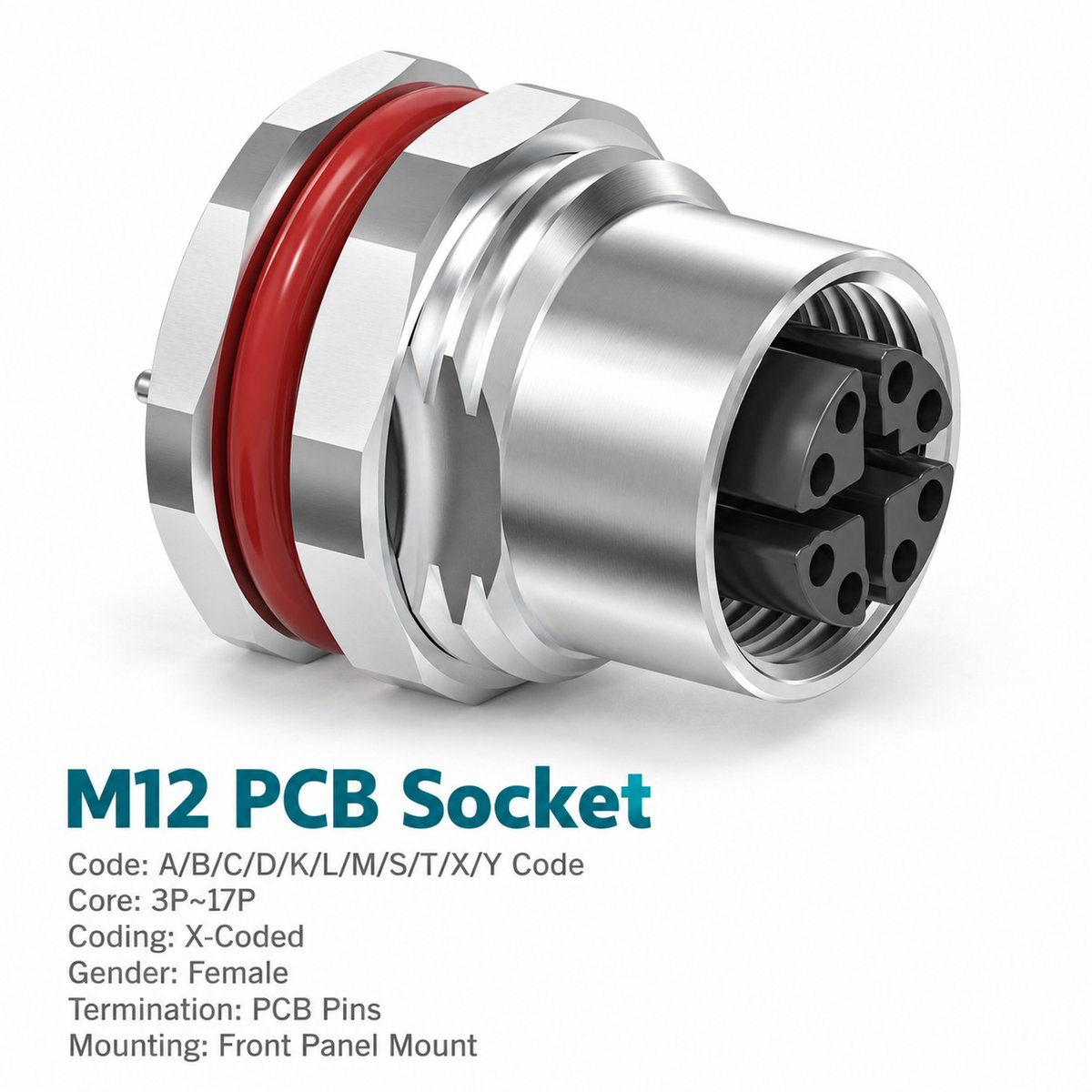

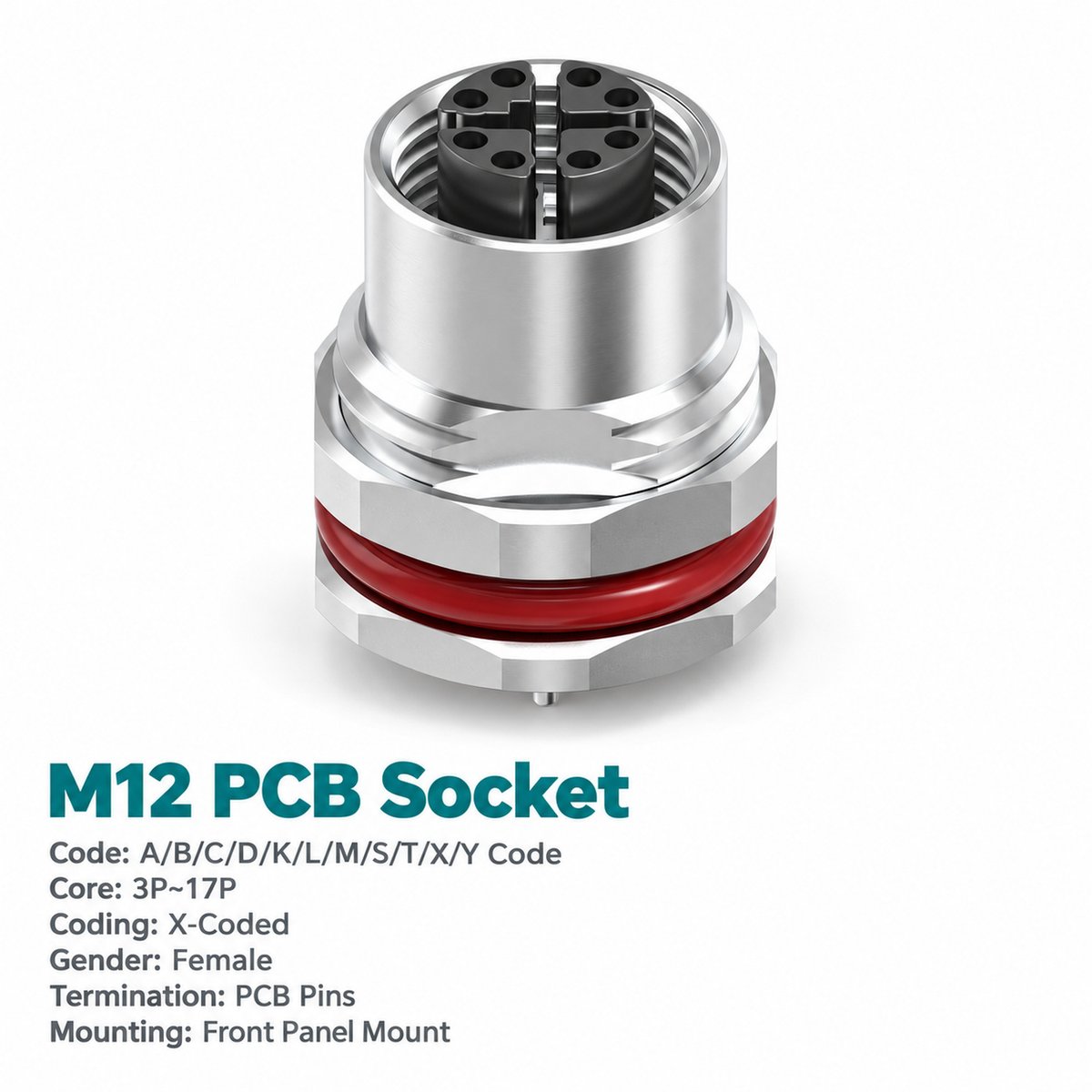

Xmost M12 X-coded female front mount PCB socket provides a detachable Ethernet cable interface for industrial communication equipment. Its 8-pin female connection accepts a compatible M12 X-coded male cable connector, while straight rear contacts connect to the internal circuit board through dip soldering.
This shielded M12 Ethernet panel socket combines front fastened installation with direct PCB termination. PG9 and M16 × 1.5 mounting options support different enclosure designs, with the illustrated PG9 outline defining the body dimensions and rear contact projection.
Select the X-coded PCB connector as part of the complete network assembly. The cable, mating connector, shielding connection and PCB design should match the equipment’s transmission requirements.
Key Features
- 8-pin X-coded female interface: Accepts compatible M12 X-coded male Ethernet cable connectors.
- Shielded construction: Provides a shielded connector interface for the equipment’s network connection.
- Front fastened mounting: Integrates the Ethernet socket into the enclosure panel.
- Straight PCB contacts: Supports board insertion and dip-solder termination.
- Two mounting threads: PG9 or M16 × 1.5 panel installation options.
- Listed electrical ratings: 0.5 A and 50 V AC / 60 V DC.
Product Dimensions
[Insert the female front mount outline drawing and corresponding panel cut-out drawing from page 22.]

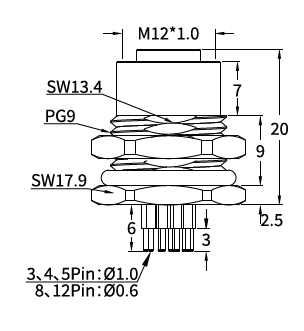

Illustrated PG9 Front Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section | 7 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 8-pin version | Ø0.6 |
Needle Arrangement (Front View)
[Insert the X-coded 8-pin female needle arrangement diagram from page 22.]
The diagram shows the female mating-face view with contacts numbered 1–8. Match the X-coded arrangement to the external male connector and follow the equipment specification for Ethernet signal assignments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 X-coded female front mount PCB Ethernet socket |
| Mounting | Front fastened |
| Contact count | 8 pins |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-109 |
| Rated current | 0.5 A |
| Rated voltage | 50 V AC / 60 V DC |
| Shielding | Shielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- Industrial Ethernet communication modules: Connects external network cables to internal PCB electronics.
- Industrial switches and gateways: Provides an X-coded panel interface where specified by the equipment design.
- Automation control devices: Integrates a shielded 8-contact Ethernet connection into the housing.
- Machine network panels: Suits front fastened assemblies with direct PCB termination.
Selection and Ordering
| Panel Mounting Thread | Front Mount Part Number |
|---|---|
| PG9 | 1M1207XF08HP9PS |
| M16 × 1.5 | 1M1207XF08H16PS |
Example enquiry: M12 X-coded female front mount PCB Ethernet socket, 8-pin, shielded, PG9 mounting, part number 1M1207XF08HP9PS.
