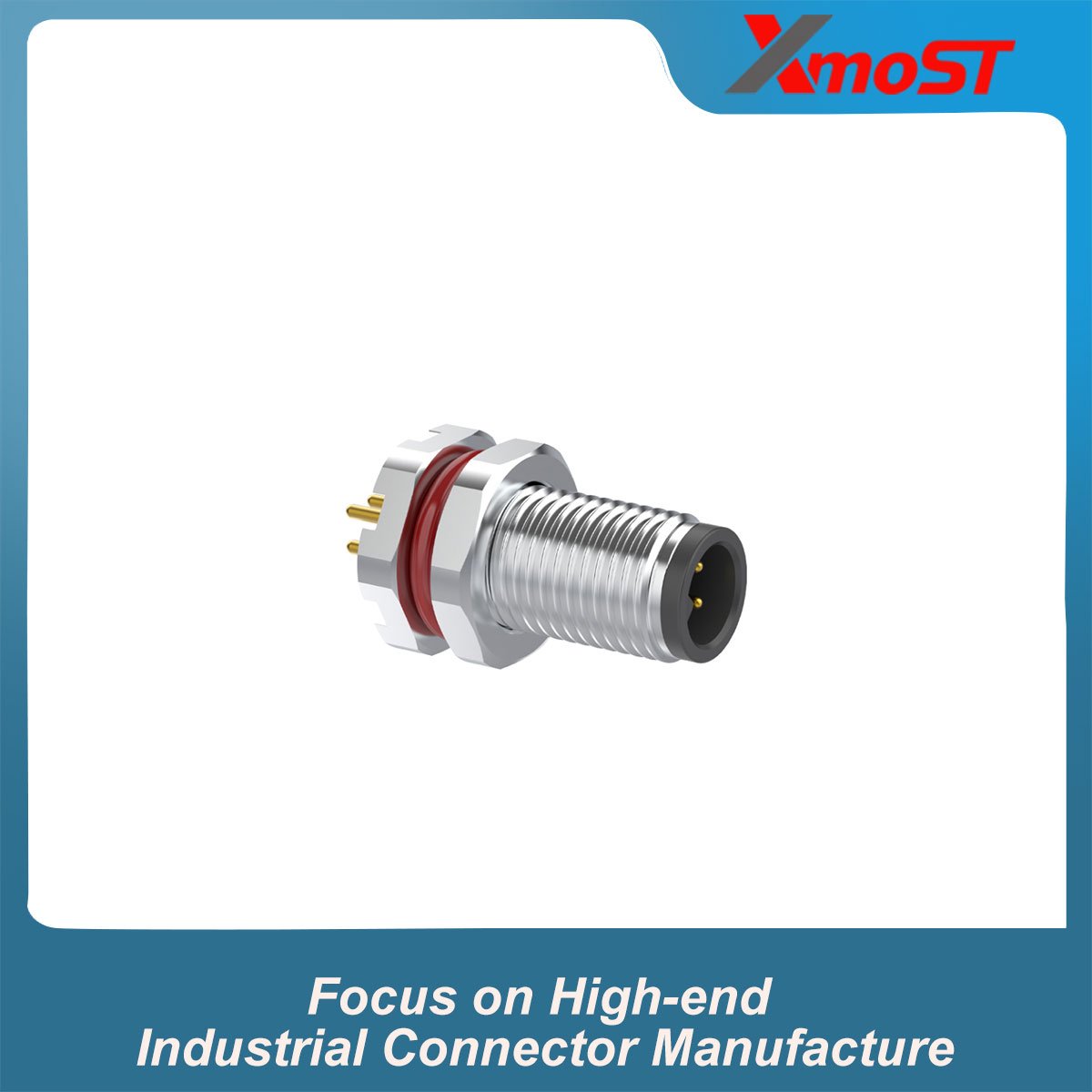

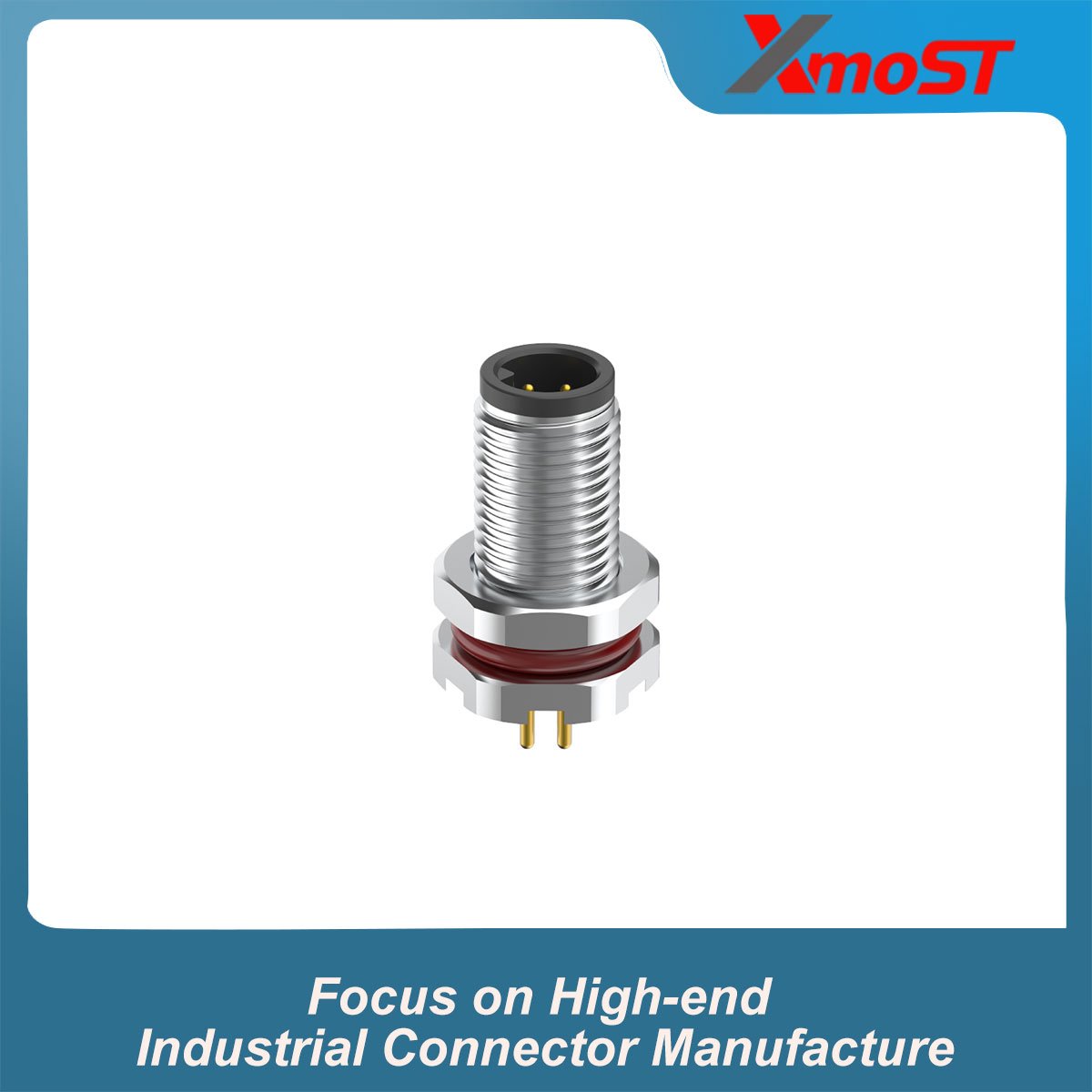

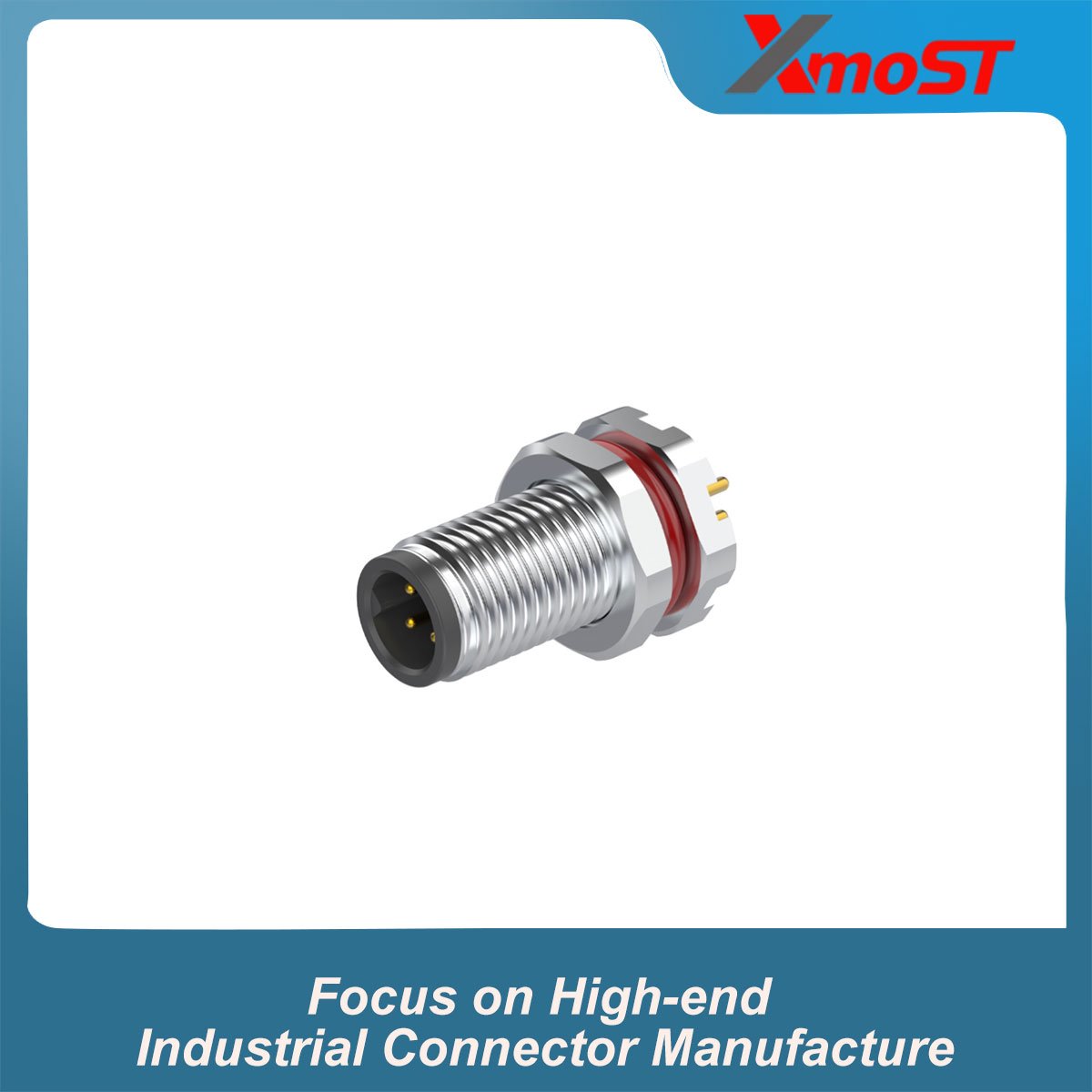

M5 A-Code 3Pin Male Terminal Resistor Plug, SMD

M5 Connector A-Code 3Pin Male Straight Terminal Resistor Plug, SMD, IP67

M5 A-Code 3Pin Male Straight Terminal Resistor Plug with SMD termination, M5 × 0.5 screw locking and IP67 protection. Designed for compact PCB and industrial electronic applications.

Category: M5
Model: Terminal Resistor Plug
Connector Type: Male Pin
Coding: A Code
Number of Cores: 3 / 4
Shape: Straight
Shielding: No (Non-Shielded)
Protection Rating: IP67
Standard: IEC 61076-2-105
Rated Current: 1A
Rated Voltage: 60V

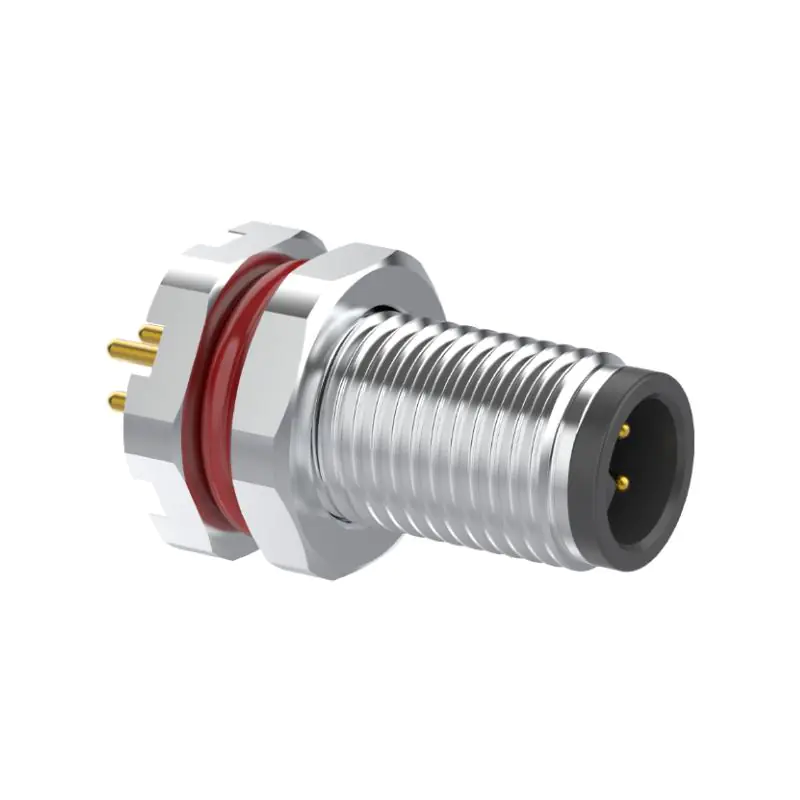

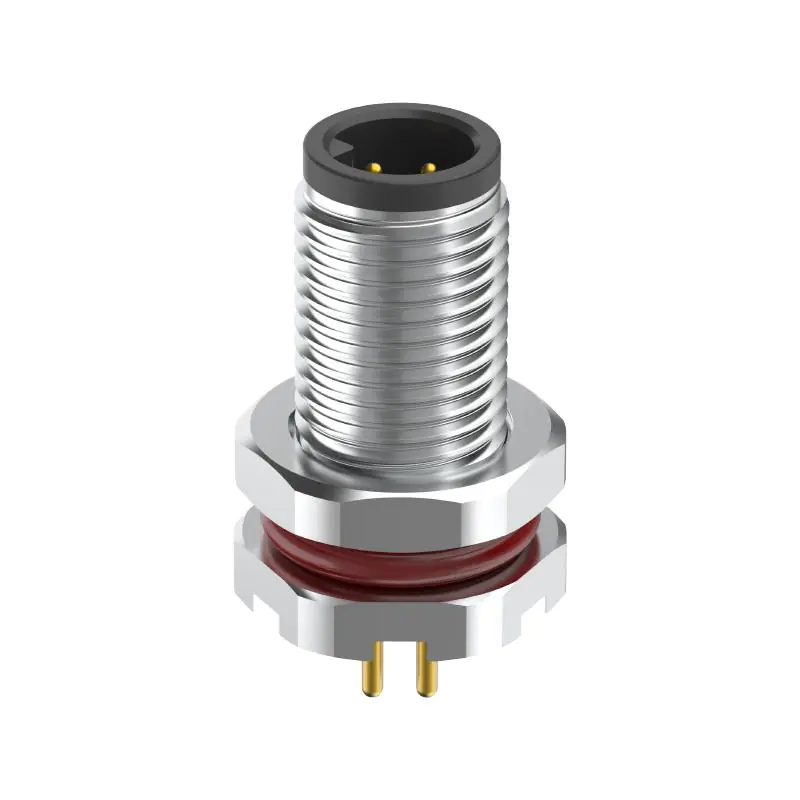

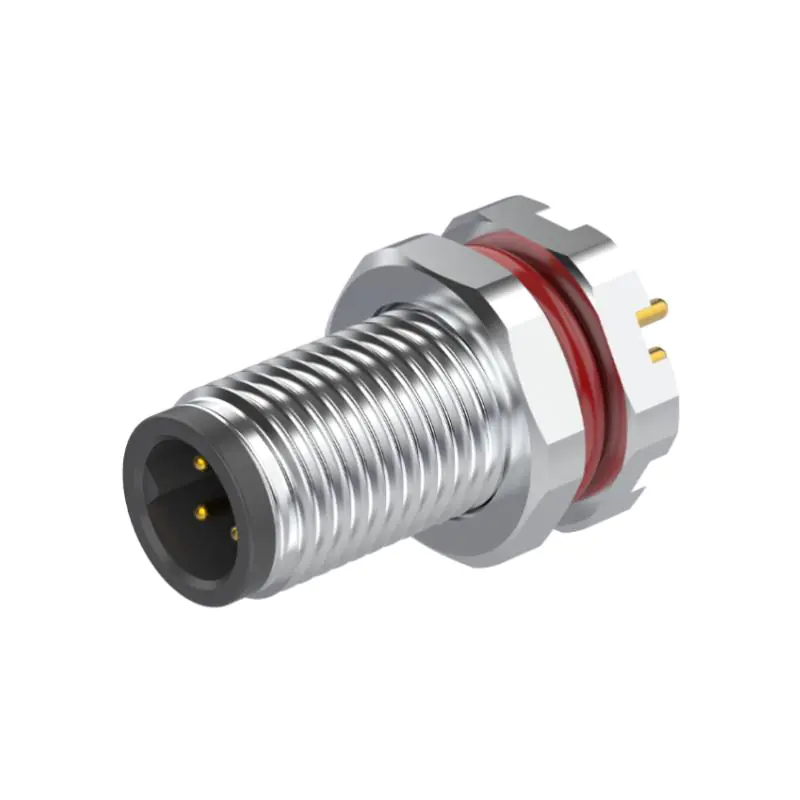

M5 A-Code 3Pin Male Straight Terminal Resistor Plug is a compact circular connector designed for PCB applications requiring a straight male interface and terminal resistor configuration. It features a 3-pin A-Code contact arrangement, SMD termination and an M5 × 0.5 screw-locking structure.

With IP67 protection when properly mated, the connector is suitable for industrial automation, sensors, control equipment and compact electronic systems. Its M5 form factor provides a space-efficient solution for applications requiring reliable PCB-level connectivity.

Key Features & Advantages

3-Pin A-Code Male
Straight Plug Design
Terminal Resistor Configuration
SMD Termination
M5 × 0.5 Screw Locking
IP67 Protection

Technical Specifications

Parameter	Specification
Connector Series	M5
Coding	A-Code
Contact Configuration	3 Pin
Connector Type	Male Straight Terminal Resistor Plug
Operating Standard	IEC 61076-2-105
Rated Current	1 A
Rated Voltage	60 V
Rated Impulse Voltage	500 V
Insulation Resistance	100 MΩ
Contact Resistance	≤5 mΩ
Shielding Performance	Non-Shielded
Locking Method	M5 × 0.5 Screw Lock
Screw Torque	Recommended: 0.1 Nm; Max.: 0.15 Nm
Wiring Method	SMD
Operating Temperature	-40°C to +80°C Static; -25°C to +80°C Dynamic
Protection Rating	IP67
Pollution Degree	3
Insulator Material	PA66 + GF / TPU + GF
Screw / Nut Material	Nickel-Plated Brass
Pin Material	Gold-Plated Phosphor Bronze / Gold-Plated Brass
Sealing Material	FKM / Silicone / Epoxy Resin

Contact Configuration

3-Pin A-Code Male

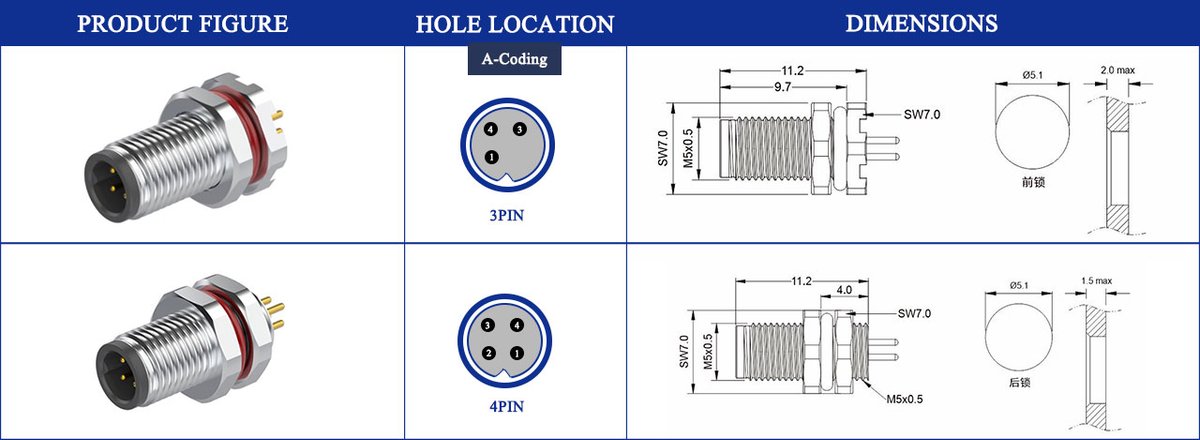

3-pin A-Code male contact arrangement follows the configuration shown in the technical drawing.

Dimensions

The straight terminal resistor plug features a compact M5 design for PCB and equipment integration. Detailed dimensions and contact arrangement are shown in the product drawing.
