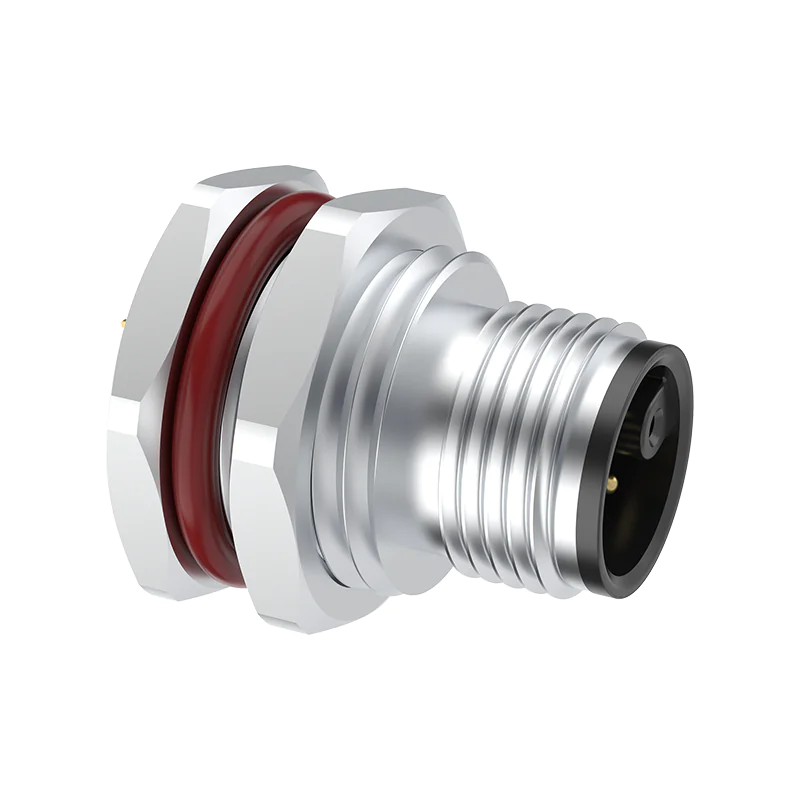

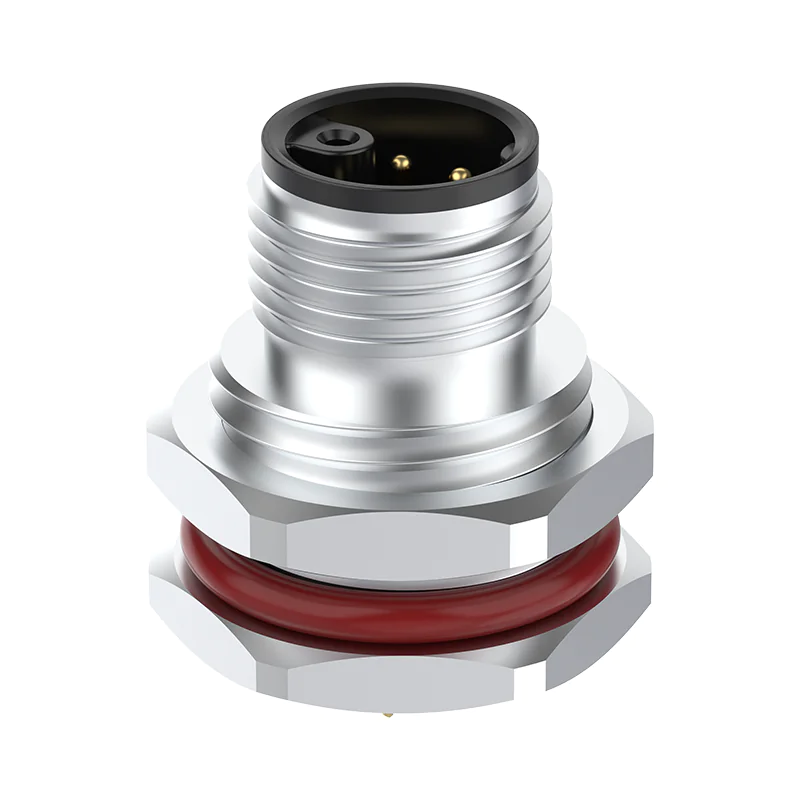

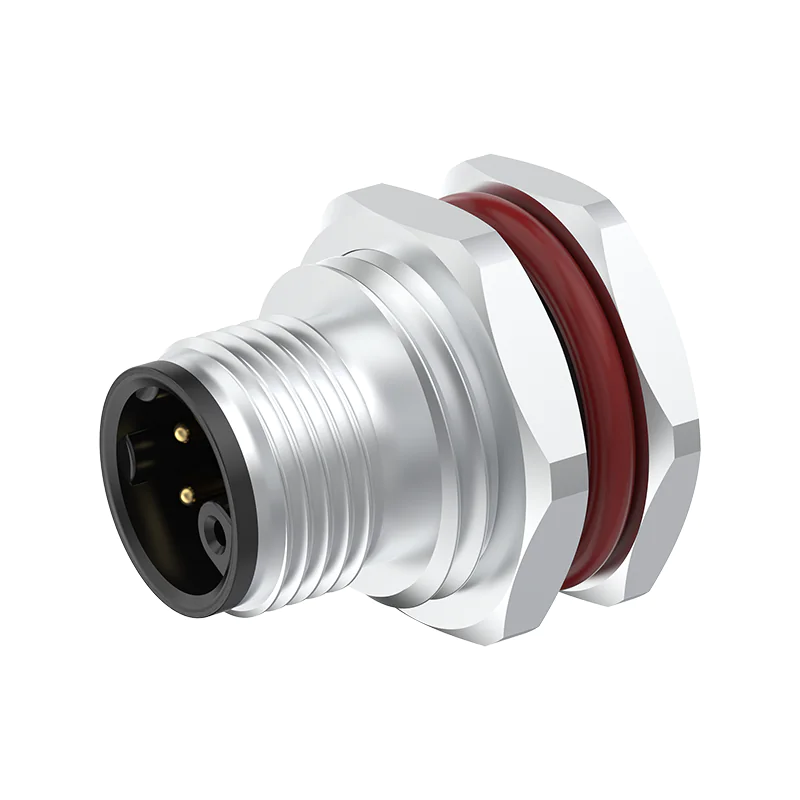

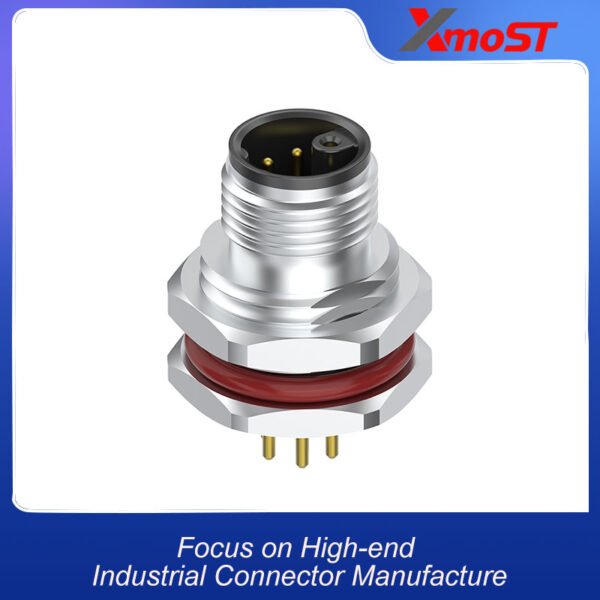

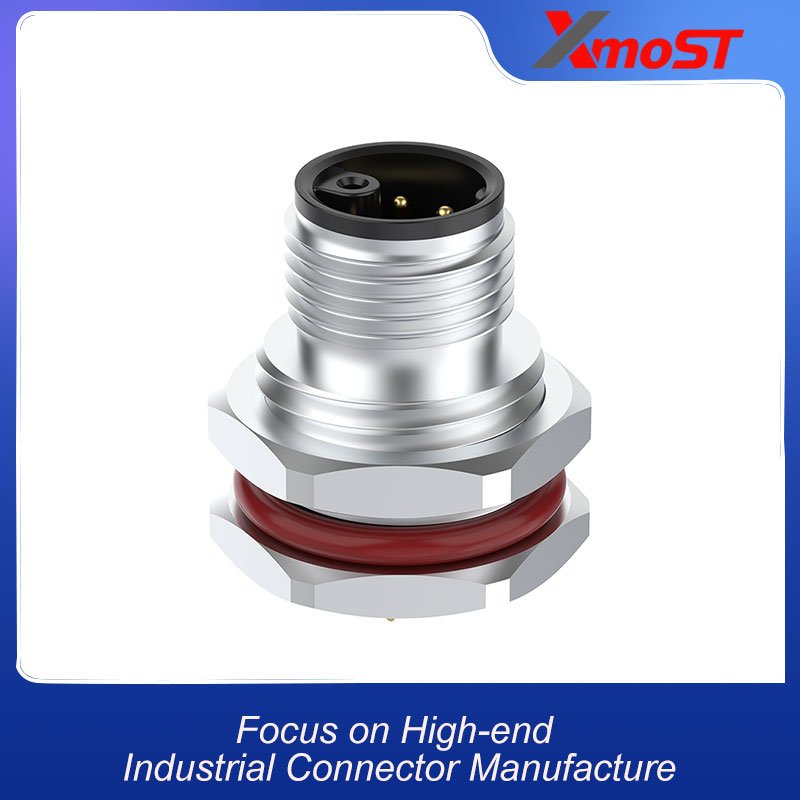

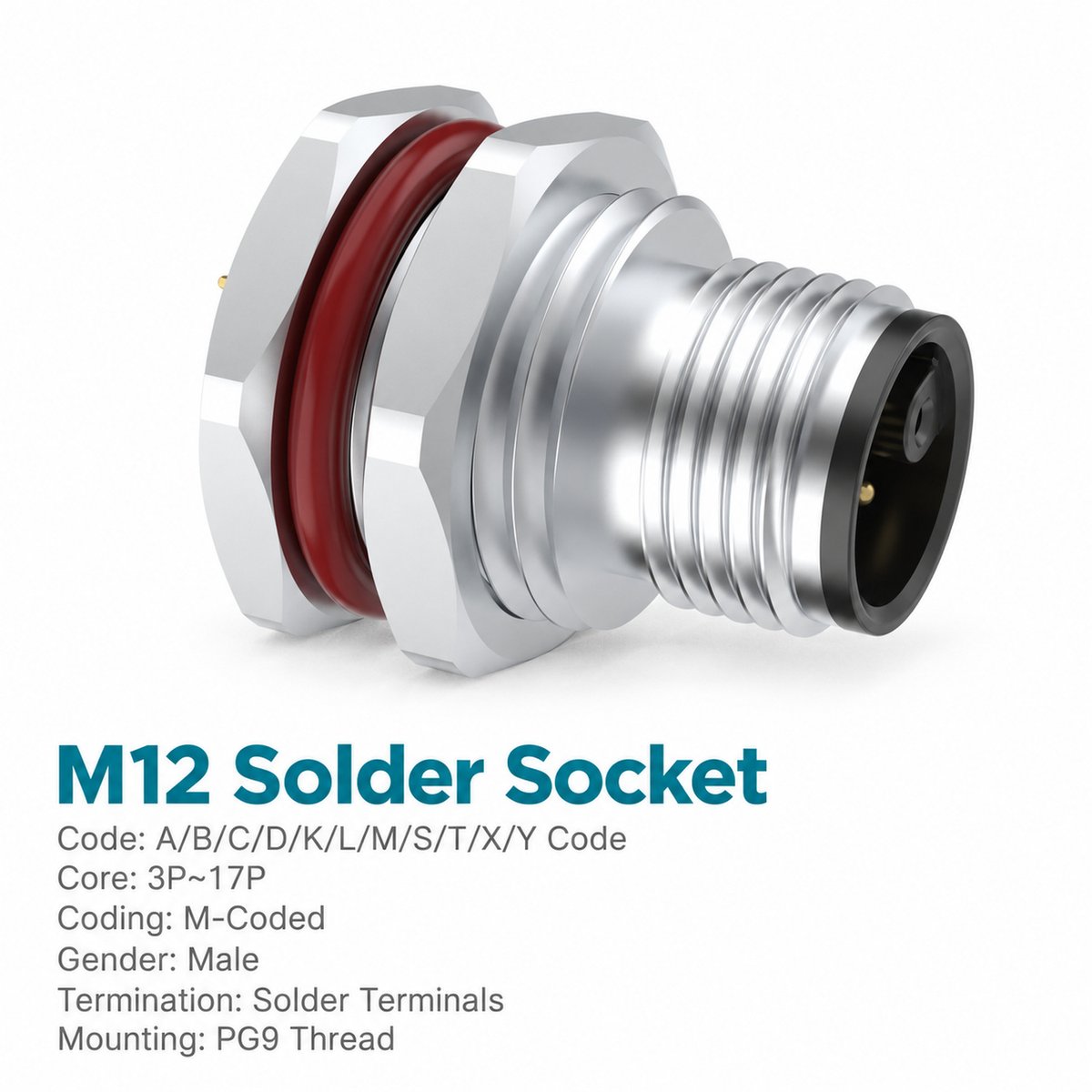

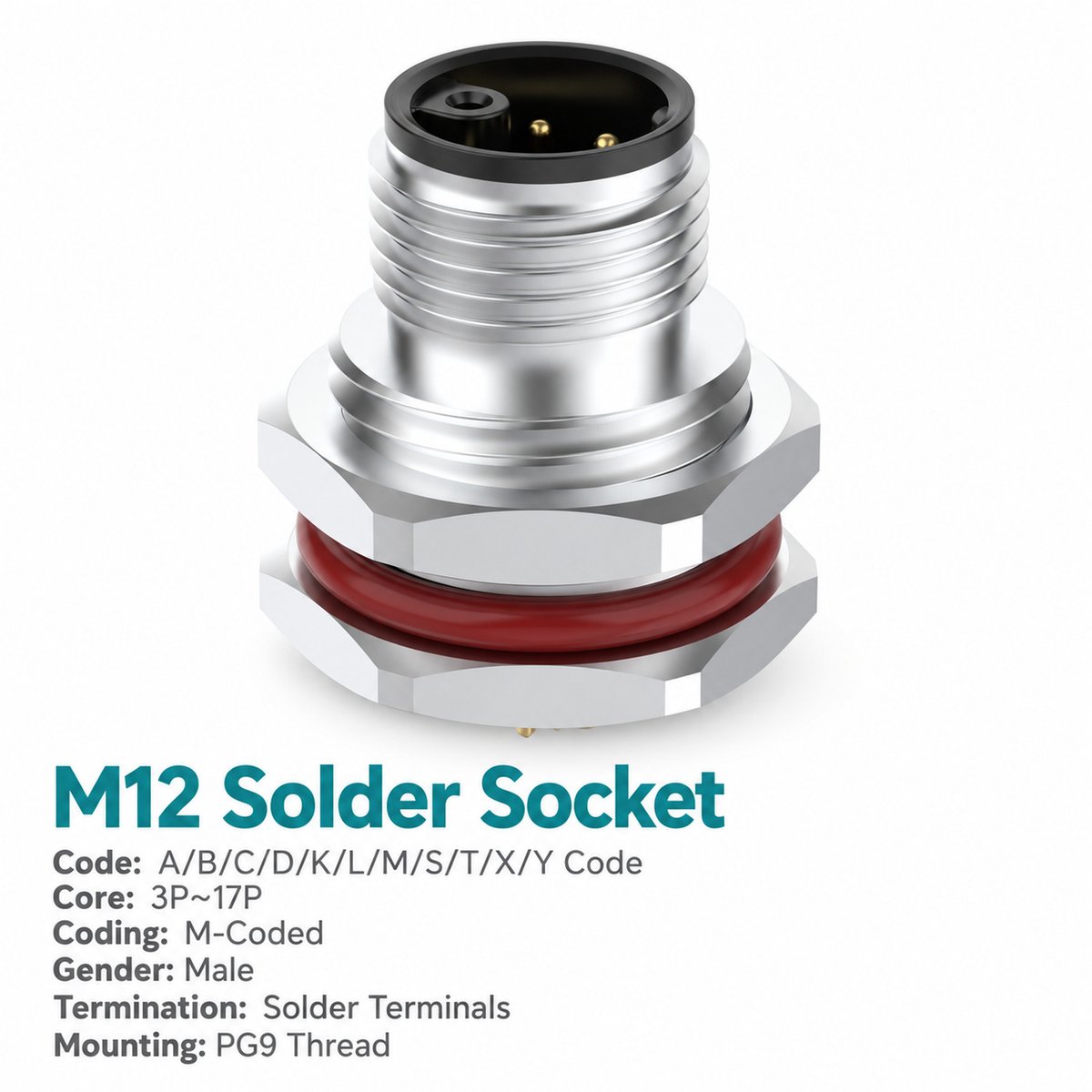

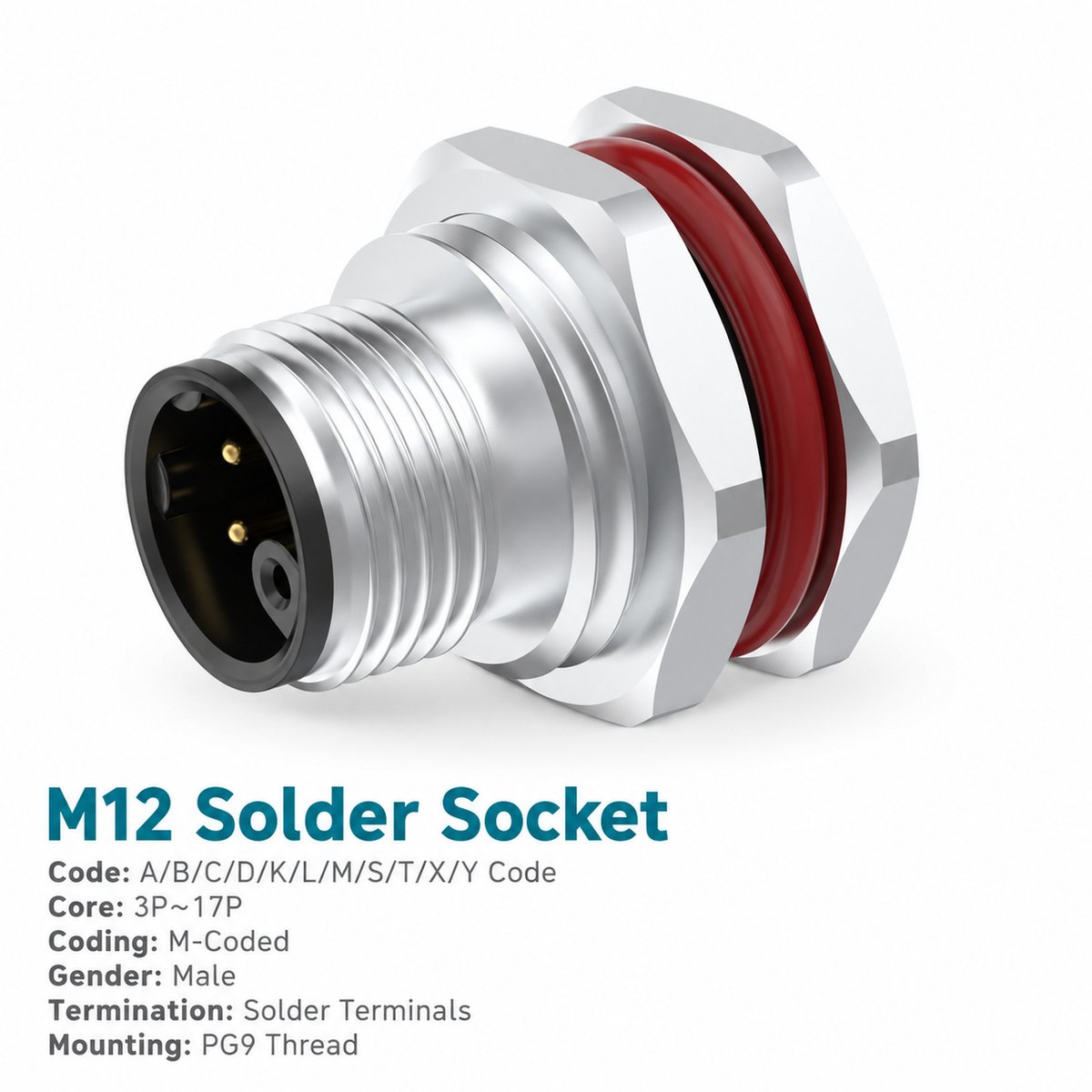

Xmost M12 M-coded male front mount socket creates a detachable AC power interface on an equipment enclosure. Its front fastened construction secures the receptacle to the panel, with solder connections routed to the internal power wiring.
This M12 panel mount power connector offers two to five circuit contacts plus a protective earth contact. Choose the contact configuration according to the equipment schematic, rather than total contact count alone.
The unwired M12 male solder socket allows termination during equipment assembly. Pre-wired versions are available with 0.1 m, 0.3 m or 0.5 m leads, allowing the lead length to be matched to the internal harness layout.
Key Features
- M-coded male power interface: For mating with a compatible M12 M-coded female connector.
- Front fastened installation: For equipment panels designed around a front mount receptacle.
- Four configurations with PE: 2+PE, 3+PE, 4+PE and 5+PE.
- Solder termination: Supports customer wire connection during assembly.
- Unwired or pre-wired: Listed lead lengths of 0.1 m, 0.3 m and 0.5 m.
- Rated 8 A / 630 V: For AC power circuits within the specified electrical limits.
- Three mounting thread options: M12 × 1.0, PG9 and M16 × 1.5.
- Unshielded construction: As specified for this catalogue version.
Product Dimensions

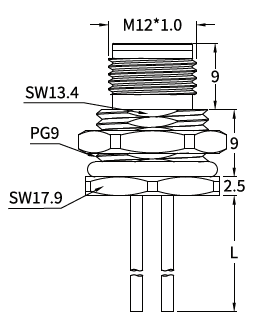

[Insert the front mount male socket dimension drawing and corresponding panel cut-out here.]
Dimensions for the Illustrated PG9 Version
| Drawing Item | Dimension / Specification |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Upper axial section shown | 9 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Lead length | L, according to ordered version |
| Unit | mm |
Use the panel cut-out corresponding to the selected mounting thread. Other mounting versions must follow their applicable drawings.
Needle Arrangement (Front View)
[Insert the M-coded male needle arrangement screenshot from page 19 here.]
| Configuration | Contact Composition | Positions Used in the Wiring Table |
|---|---|---|
| 3-pin (2+PE) | 2 circuit contacts + PE | 2, 4 and PE |
| 4-pin (3+PE) | 3 circuit contacts + PE | 1, 3, 5 and PE |
| 5-pin (4+PE) | 4 circuit contacts + PE | 1, 2, 4, 5 and PE |
| 6-pin (5+PE) | 5 circuit contacts + PE | 1, 2, 3, 4, 5 and PE |
The diagram shows the mating-face view. Contact positions are not consecutively populated in every configuration; follow the selected arrangement when wiring.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Product type | M12 M-coded male front mount socket |
| Mounting method | Front fastened |
| Application type | AC power |
| Contact configurations | 2+PE / 3+PE / 4+PE / 5+PE |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-111 |
| Rated current | 8 A |
| Rated voltage | 630 V |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | M12 × 1.0 / PG9 / M16 × 1.5 |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Wire size listed | 1.5 mm² / AWG16 |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
This M12 M-coded front mount AC power connector can be considered for:
- Machine power interfaces: Connecting an external power cable to wiring inside the equipment housing.
- Industrial control enclosures: Providing a panel receptacle with circuit contacts and protective earth.
- Modular automation assemblies: Allowing the external power connection to disconnect at the enclosure.
- Equipment harness assembly: Using unwired solder terminals or pre-wired leads to suit the production process.
- Front mount panel designs: Applications where the enclosure is designed for front fastened installation.
Select the contact arrangement and electrical rating according to the equipment circuit requirements.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot from page 19 here.]
| Contact Position | 2+PE | 3+PE | 4+PE | 5+PE |
|---|---|---|---|---|
| Pin 1 | — | Black 1 — BK1 | Black 1 — BK1 | Black 1 — BK1 |
| Pin 2 | Black 2 — BK2 | — | Black 2 — BK2 | Black 2 — BK2 |
| Pin 3 | — | Black 3 — BK3 | — | Black 3 — BK3 |
| Pin 4 | Black 4 — BK4 | — | Black 4 — BK4 | Black 4 — BK4 |
| Pin 5 | — | Black 5 — BK5 | Black 5 — BK5 | Black 5 — BK5 |
| Pin 6 / PE | Yellow/green — YE/GN | Yellow/green — YE/GN | Yellow/green — YE/GN | Yellow/green — YE/GN |
“—” indicates an unused position. The catalogue lists the protective earth lead in the Pin 6 / PE row. Assign the circuit conductors according to the equipment schematic.
Selection and Ordering
Specify:
- M-coded male, front mount.
- Contact configuration: 2+PE / 3+PE / 4+PE / 5+PE.
- Panel mounting thread.
- Unwired or pre-wired construction.
- Required lead length: 0.1 m, 0.3 m or 0.5 m.
- Any custom wire type or lead length.
Confirm that the mating cable matches the coding and contact arrangement.
