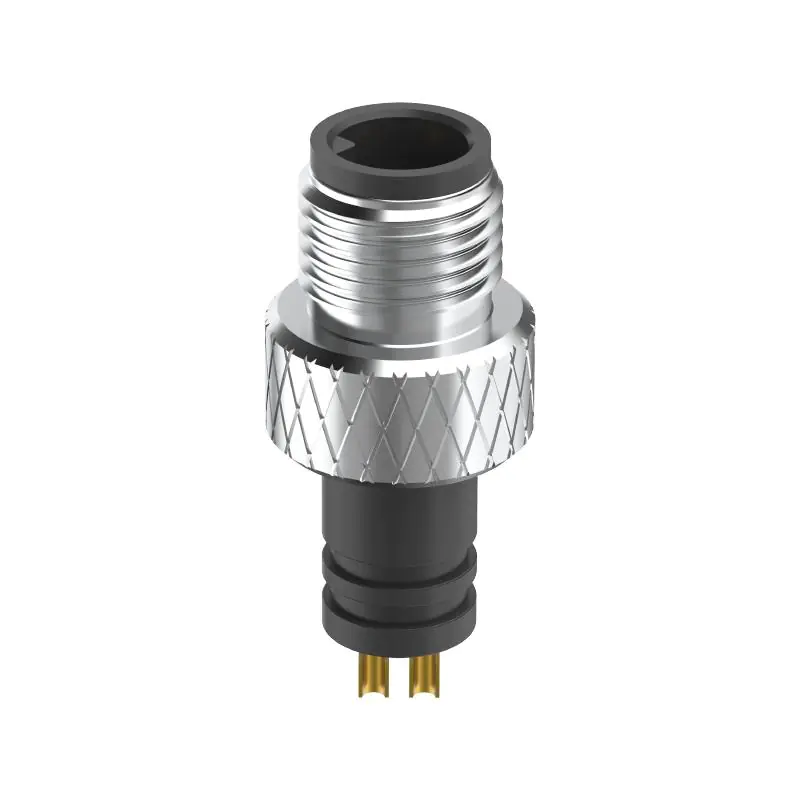

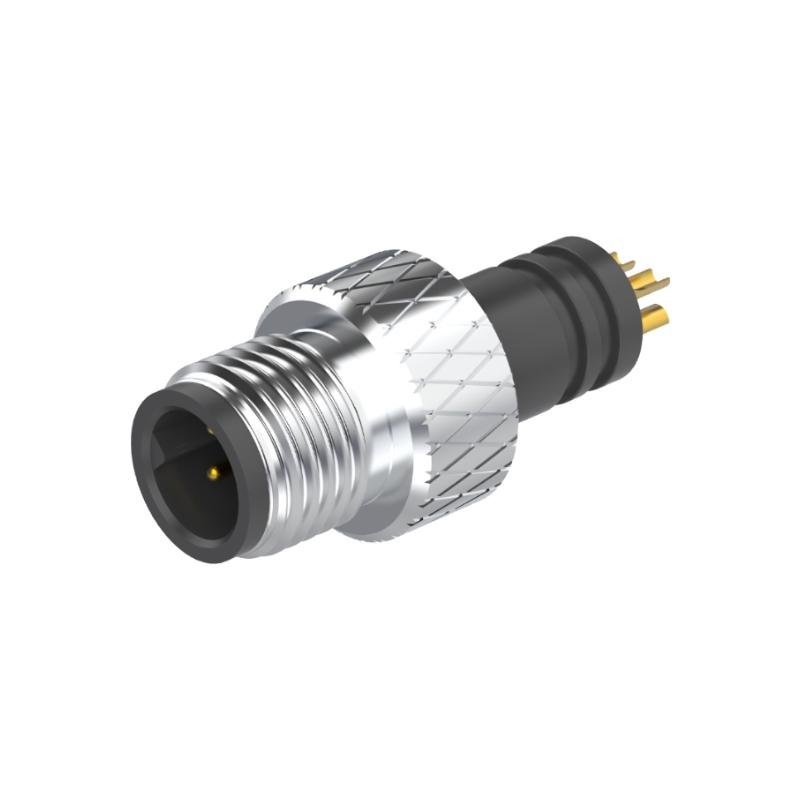

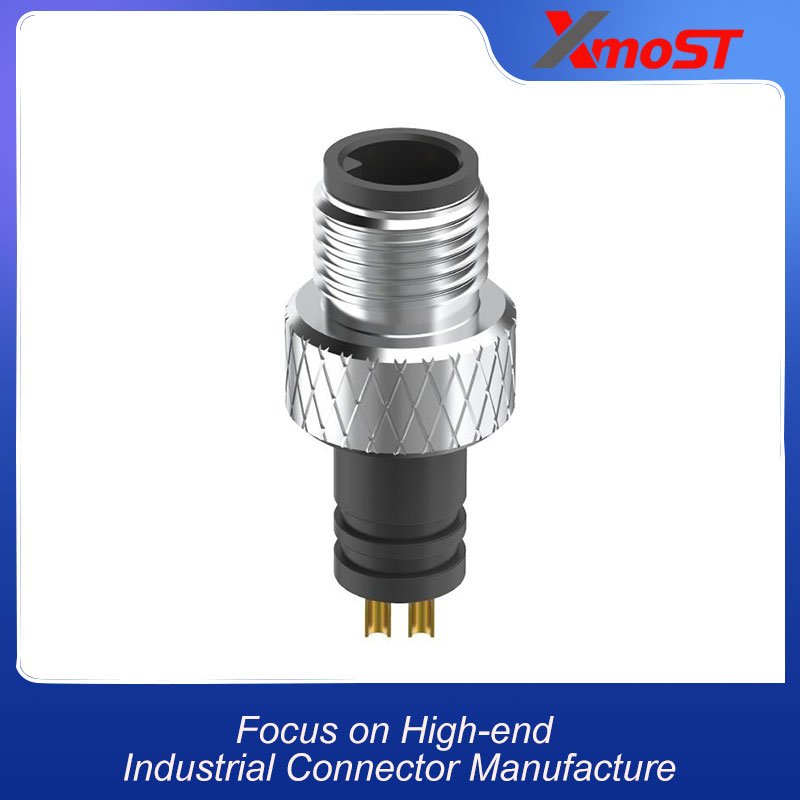

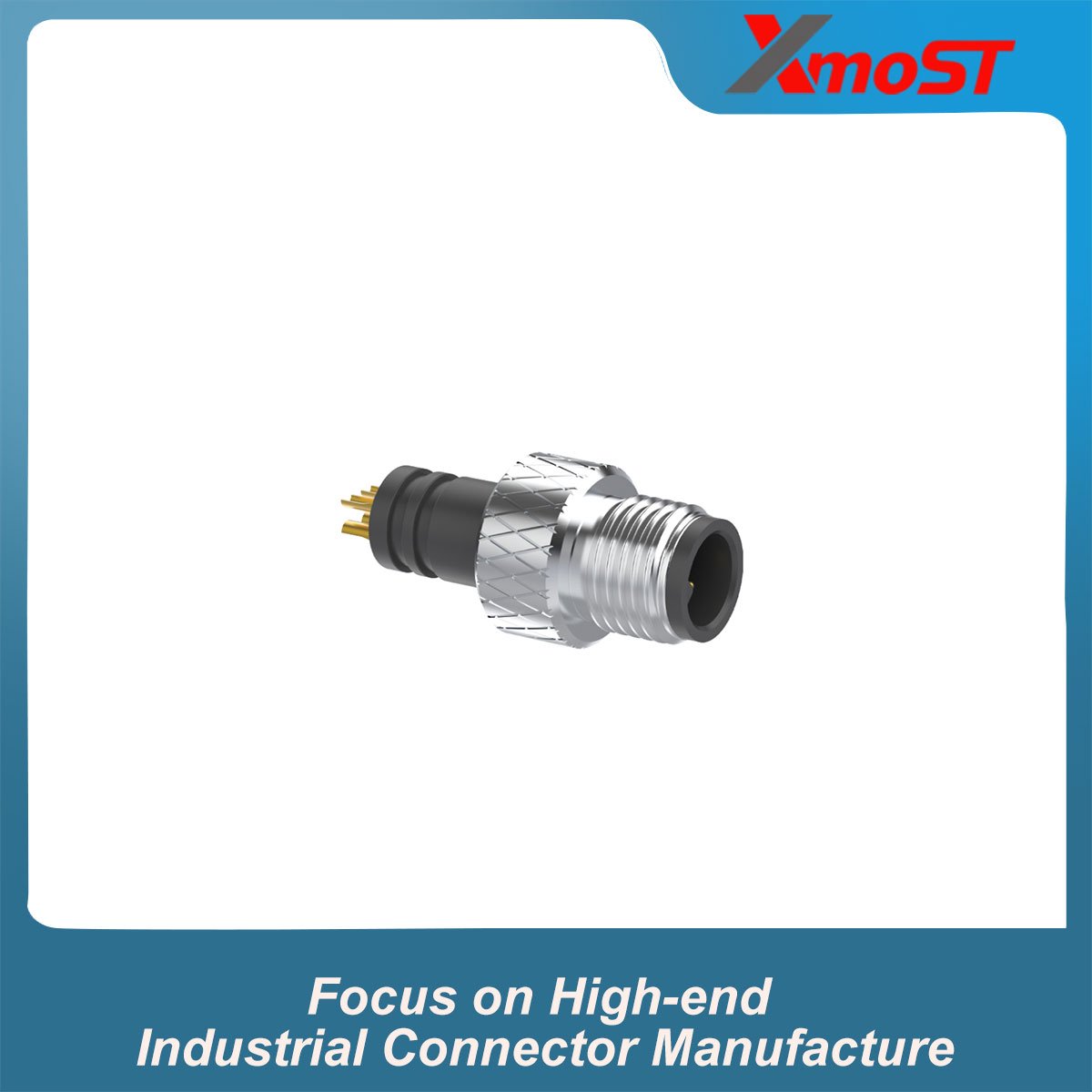

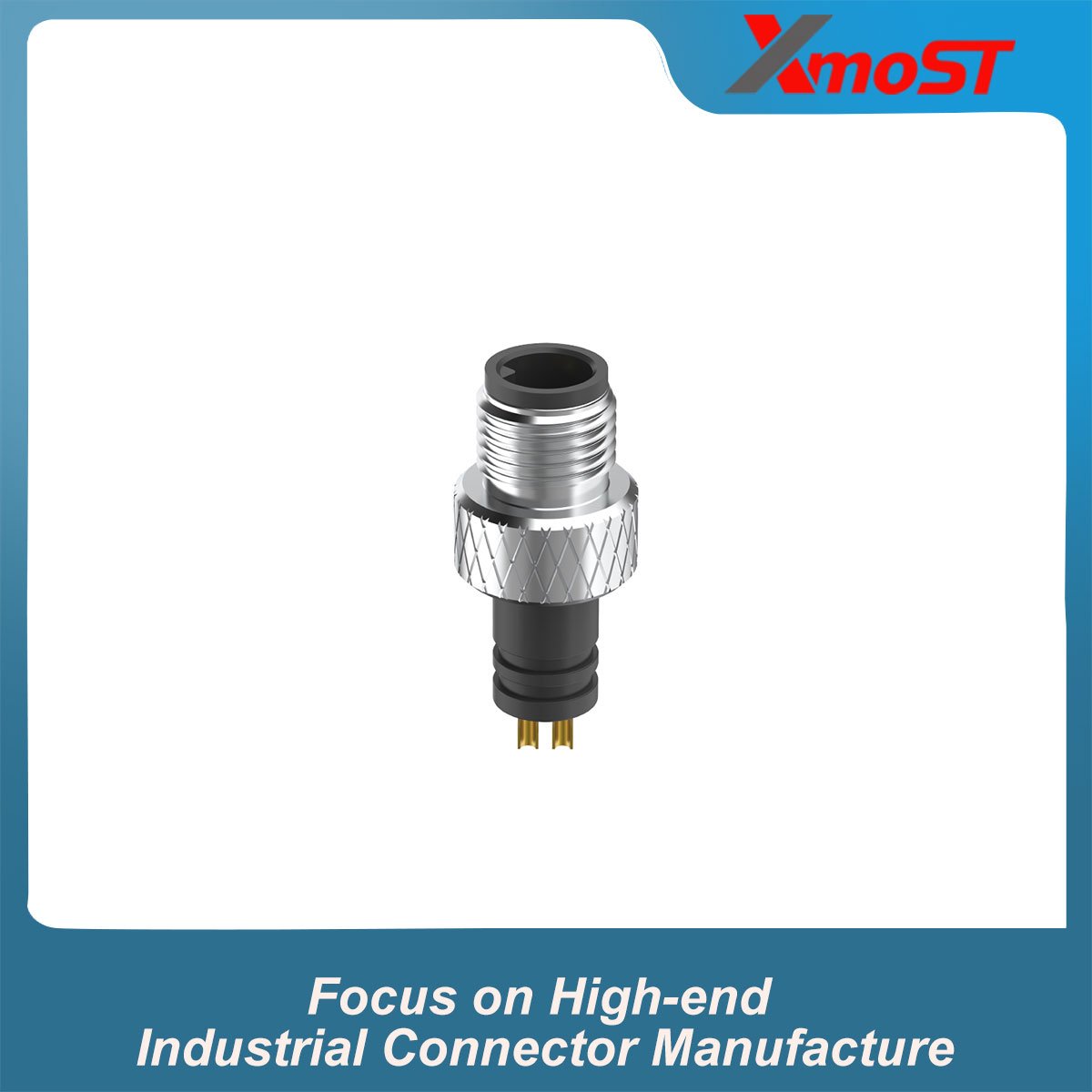

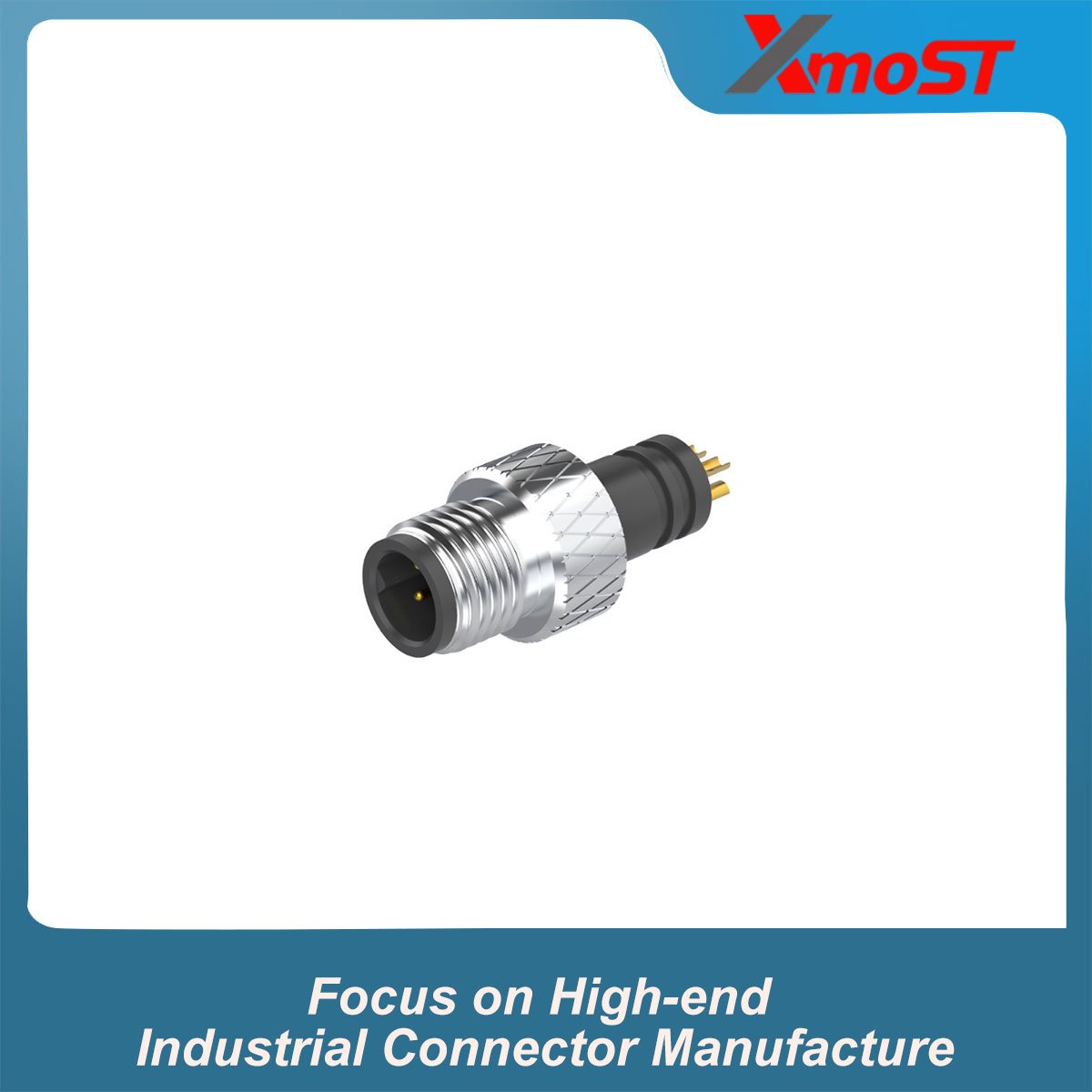

M5 A-Code 3-Pin Male Straight Raw Plug is a compact circular connector designed for reliable electrical connections in space-constrained industrial equipment. Featuring a 3-pin A-coded contact configuration, straight male plug design and solder termination, it provides a practical solution for cable assembly and equipment interconnection.
The connector uses an M5 × 0.5 screw-locking structure with a knurled locking component for secure mating. With an IP67 protection rating, the connector helps protect the mated connection against dust and water ingress. Its compact M5 form factor makes it suitable for industrial automation, sensors, control equipment and other applications requiring reliable connectivity in limited installation space.
Key Features & Advantages
- 3-Pin A-Code Configuration
- Male Straight Raw Plug
- Solder Termination
- M5 × 0.5 Screw Locking
- IP67 Protection
- Compact M5 Design
- Multiple Material Options
Product Information
| Parameter | Specification |
|---|---|
| Connector Series | M5 |
| Coding | A-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Male Straight Raw Plug |
| Operating Standard | IEC 61076-2-105 |
| Rated Current | 1 A |
| Rated Voltage | 60 V |
| Rated Impulse Voltage | 500 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M5 × 0.5 Screw Lock |
| Recommended Screw Torque | 0.1 Nm |
| Maximum Screw Torque | 0.15 Nm |
| Wiring Method | Soldering |
| Protection Rating | IP67 |
| Pollution Degree | 3 |
3-Pin A-Code Male

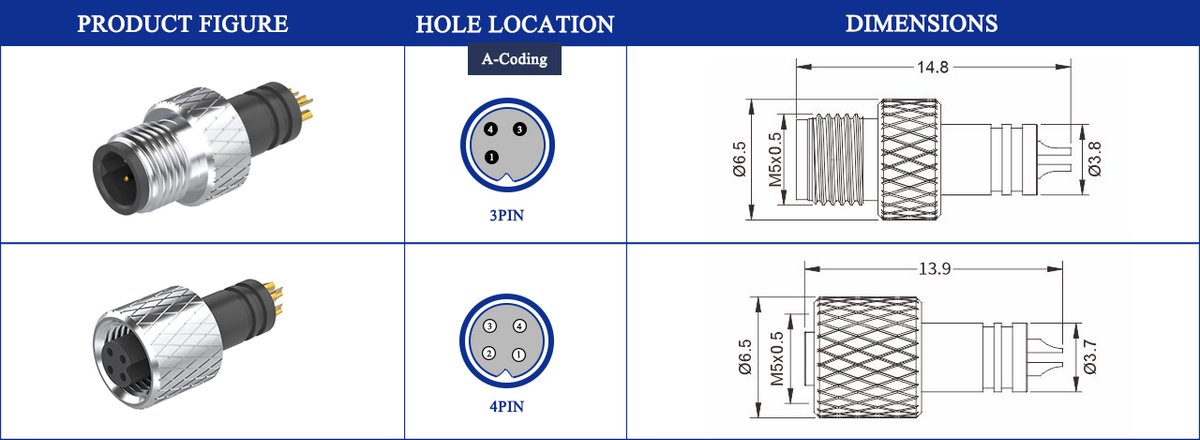

Dimensions
M5 A-Code 3-Pin Male Straight Raw Plug features a compact circular design for space-constrained installations. Detailed dimensions, connector structure and contact arrangement are shown in the product drawing.

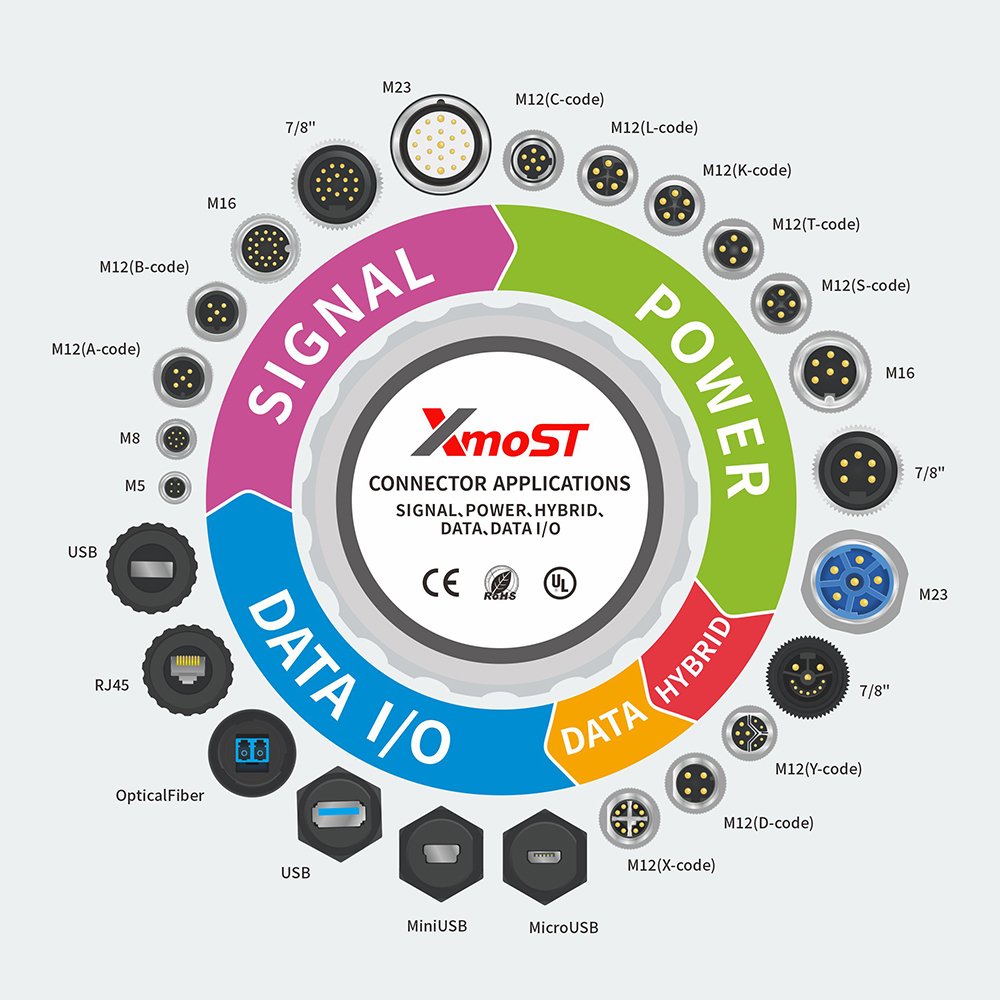

Product Industry Applications
- Industrial Automation
- Sensors & Measurement
- Control Equipment
- Industrial Machinery
| Image | Model | Category | Coding | Connector Type | Number of Cores | Shape | Protection Rating | Rated Current | Rated Voltage | Insulation Resistance | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | Raw Plug | M5 Connector A-Code 3Pin | A coding | Male Pin | 3 | Straight end | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Raw Plug | M5 Connector A-Code 4Pin | A coding | Female Pin | 4 | Straight end | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Molded Plug | M5 Connector A-Code 3Pin | A coding | Female Pin | 3 | Bent End (Right Angle) | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Molded Plug | M5 Connector A-Code 3Pin | A coding | Male Pin | 3 | Bent End (Right Angle) | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Molded Plug | M5 Connector A-Code 3Pin | A coding | Female Pin | 3 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Molded Plug | M5 Connector A-Code 3Pin | A coding | Male Pin | 3 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Front-Locking Socket | M5 Connector A-Code 4Pin | A Coding | Female Pin | 4 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Front-Locking Socket | M5 Connector A-Code 3Pin | A Code | Male Pin | 3 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Rear-Locking Socket | M5 Connector A-Code 4Pin | A Code | Female Pin | 4 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Rear-Locking Socket | M5 Connector A-Code 4Pin | A Code | Male Pin | 4 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
