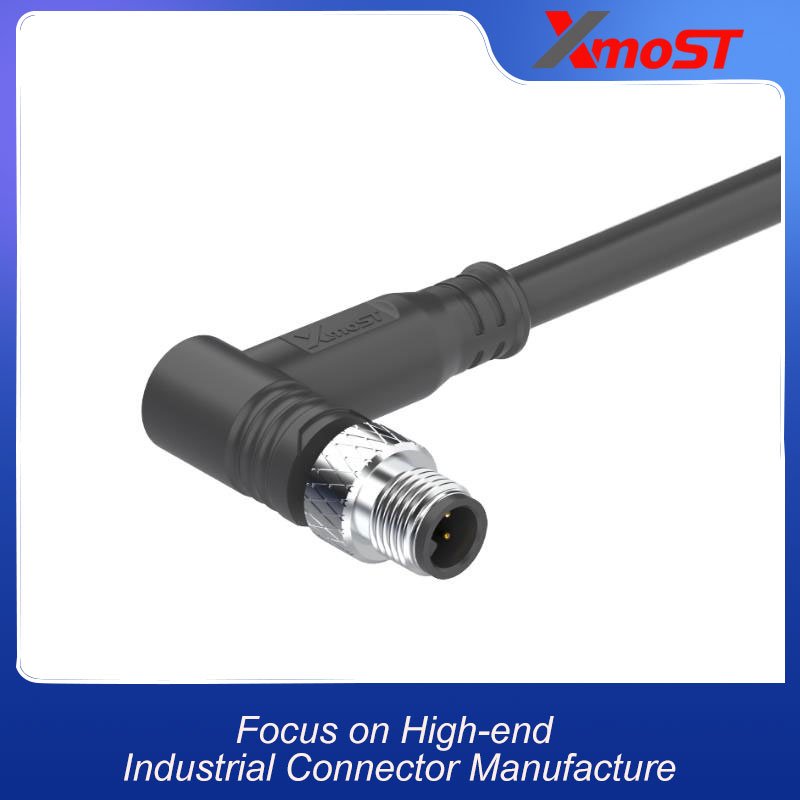

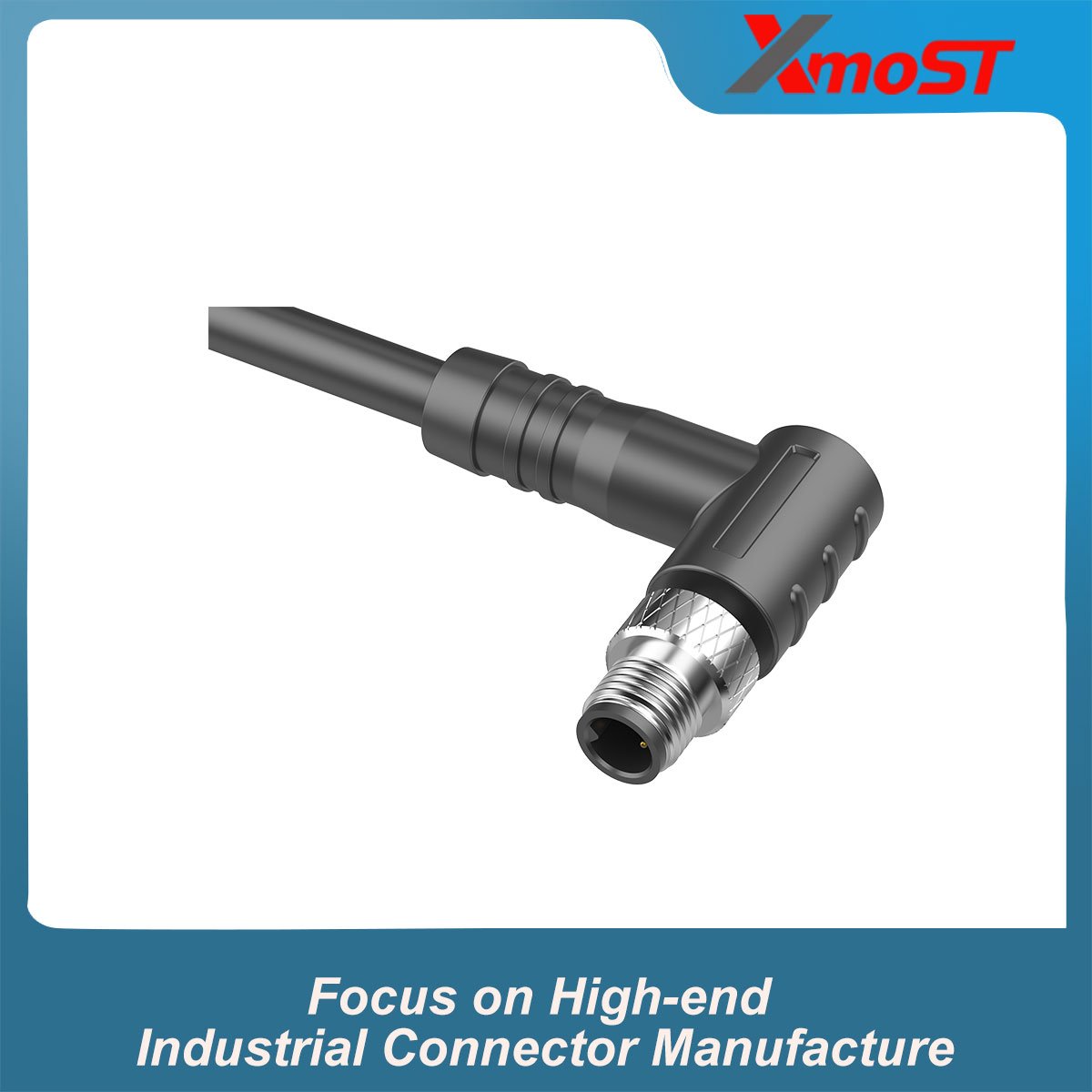

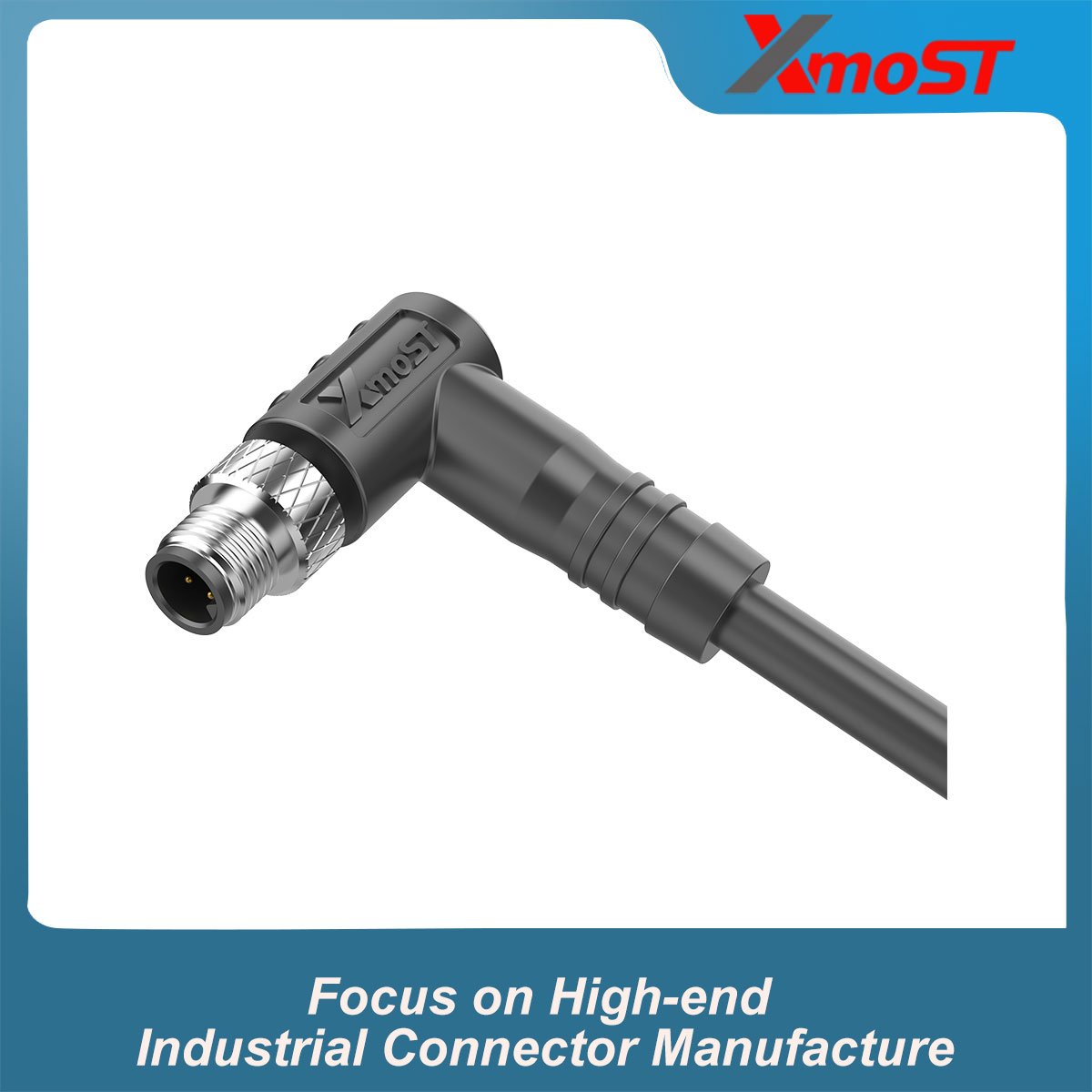

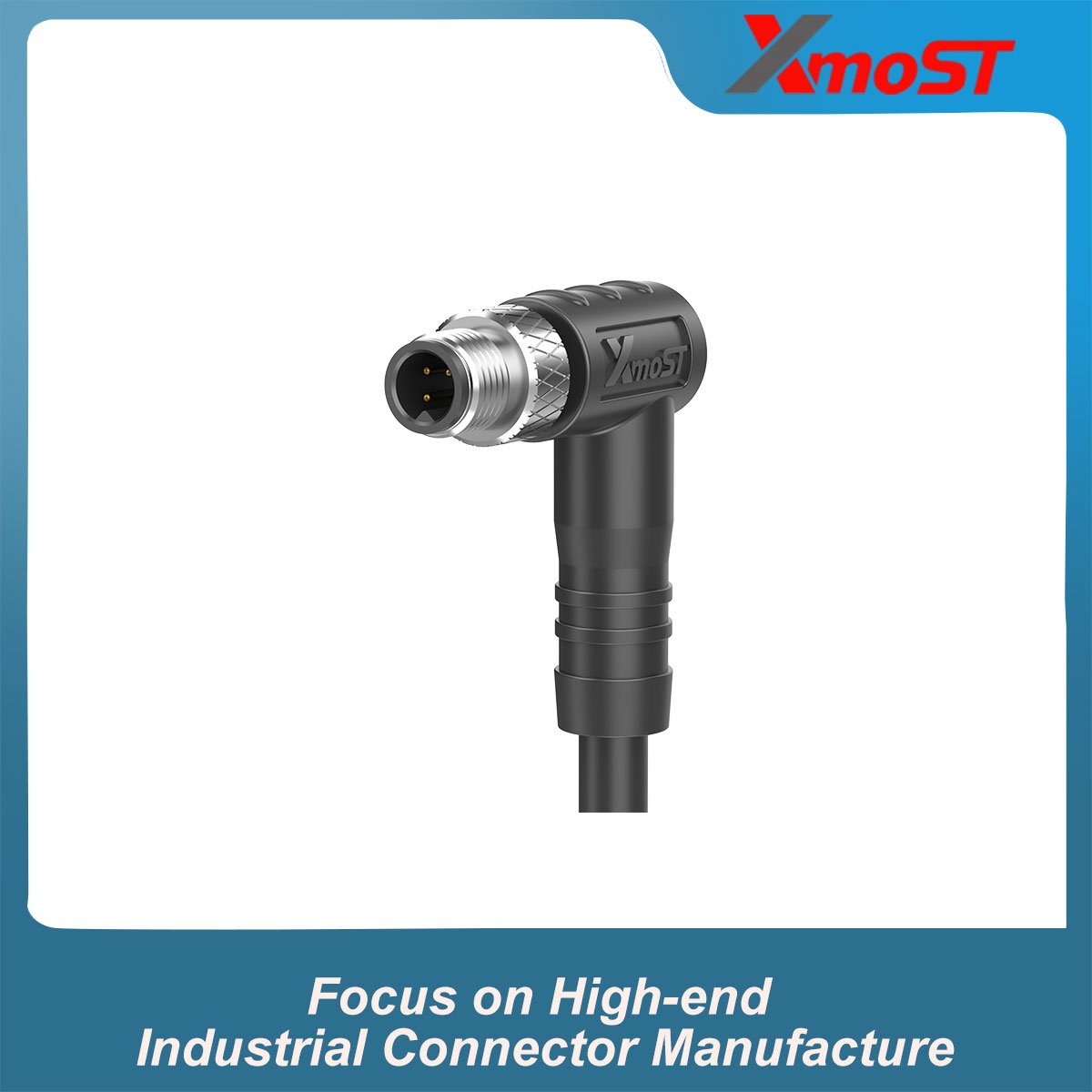

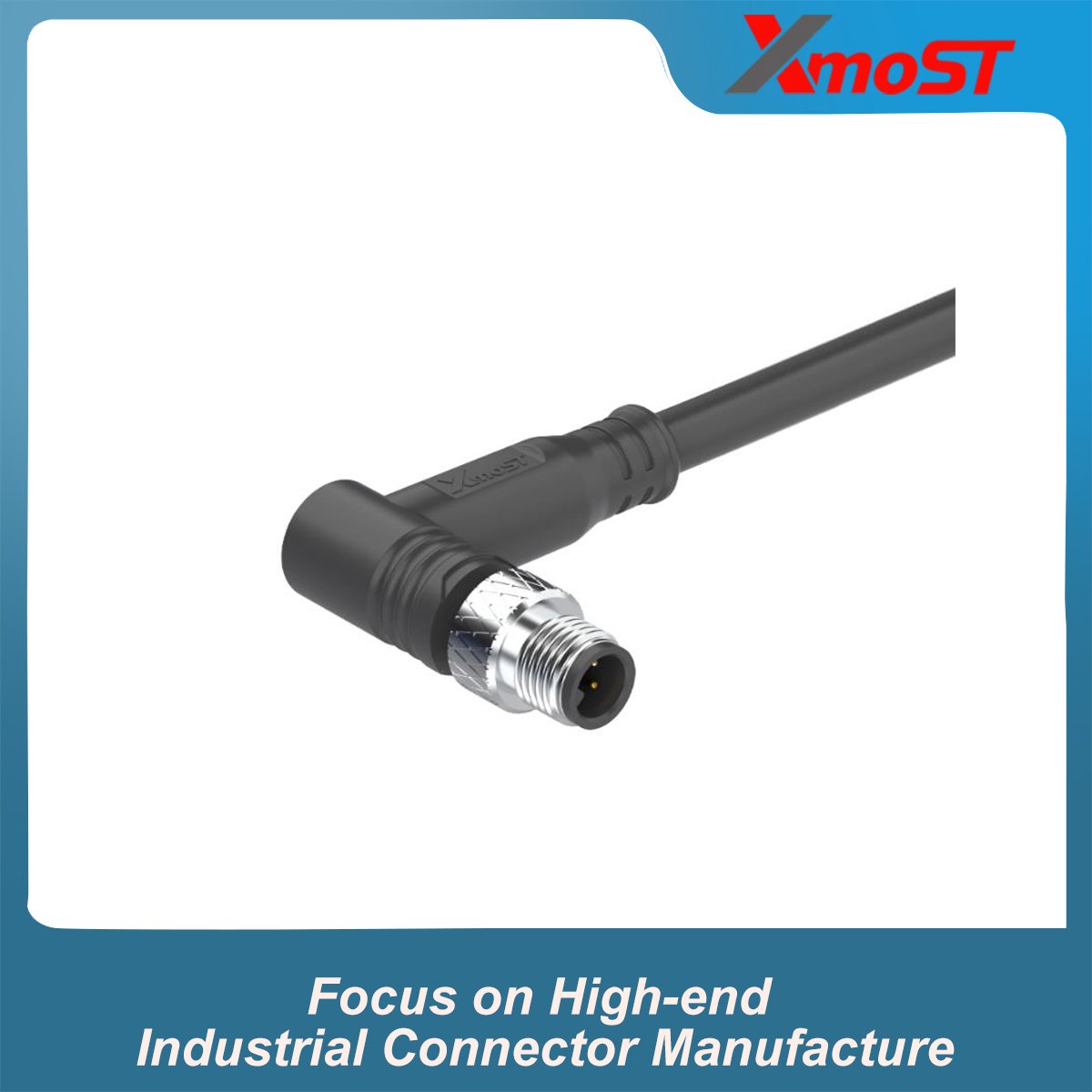

M5 A-Code 3Pin Male Right Angle Pre-Molded Plug is a compact circular connector designed for space-constrained industrial applications. It features a 3-pin A-Code configuration, right-angle design and pre-molded construction for convenient cable integration.
The connector uses an M5 × 0.5 screw-locking mechanism and provides IP67 protection when properly mated. With a maximum cable OD of Ø3.5 mm, it is suitable for compact sensor, automation and control applications where reliable connections and efficient cable routing are required
Key Features & Advantages
- 3-Pin A-Code Configuration
- Male Right Angle Design
- Pre-Molded Construction
- M5 × 0.5 Screw Locking
- IP67 Protection
- Max. Cable OD: Ø3.5 mm
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M5 |
| Coding | A-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Male Right Angle Pre-Molded Plug |
| Operating Standard | IEC 61076-2-105 |
| Rated Current | 1 A |
| Rated Voltage | 60 V |
| Rated Impulse Voltage | 500 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M5 × 0.5 Screw Lock |
| Screw Torque | Recommended: 0.1 Nm; Max.: 0.15 Nm |
| Wiring Method | Soldering |
| Operating Temperature | -40°C to +80°C Static; -25°C to +80°C Dynamic |
| Wire Gauge Range | 0.14 mm² (AWG 26) |
| Protection Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA66 + GF / TPU + GF |
| Screw / Nut Material | Brass, Nickel-Plated |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy Resin |
| Outer Housing Material | TPU / PVC |
| Max. Cable OD | Ø3.5 mm |
Contact Configuration
3-Pin A-Code Male

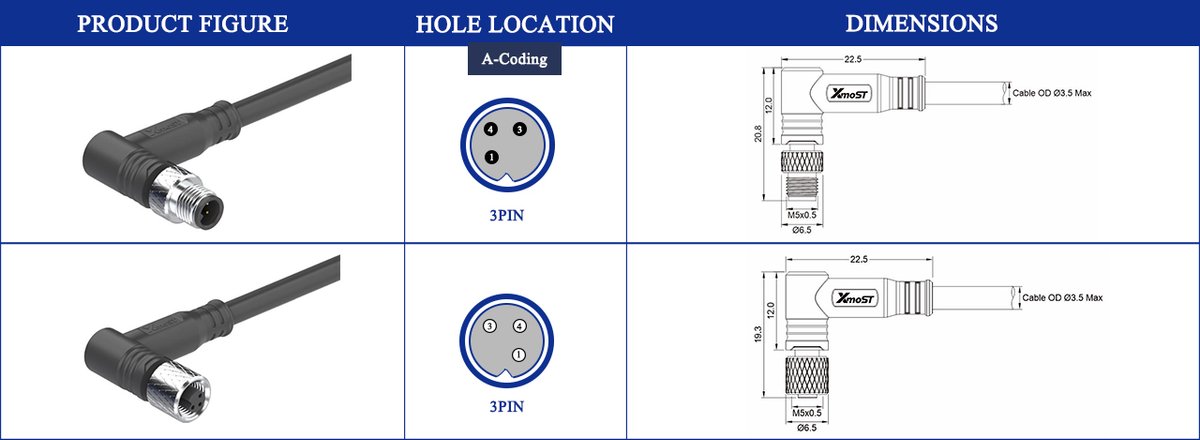

3-pin A-Code contact arrangement follows the front-view configuration shown in the technical drawing.
Dimensions
The right-angle pre-molded design provides a compact cable exit for installations with limited space. Detailed dimensions and cable routing are shown in the product drawing.
Product Industry Applications
- Industrial Automation
- Sensors & Measurement
- Control Equipment
- Industrial Machinery
| Image | Model | Category | Coding | Connector Type | Number of Cores | Shape | Protection Rating | Rated Current | Rated Voltage | Insulation Resistance | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | Raw Plug | M5 Connector A-Code 3Pin | A coding | Male Pin | 3 | Straight end | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Raw Plug | M5 Connector A-Code 4Pin | A coding | Female Pin | 4 | Straight end | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Molded Plug | M5 Connector A-Code 3Pin | A coding | Female Pin | 3 | Bent End (Right Angle) | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Molded Plug | M5 Connector A-Code 3Pin | A coding | Male Pin | 3 | Bent End (Right Angle) | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Molded Plug | M5 Connector A-Code 3Pin | A coding | Female Pin | 3 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Molded Plug | M5 Connector A-Code 3Pin | A coding | Male Pin | 3 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Front-Locking Socket | M5 Connector A-Code 4Pin | A Coding | Female Pin | 4 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Front-Locking Socket | M5 Connector A-Code 3Pin | A Code | Male Pin | 3 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Rear-Locking Socket | M5 Connector A-Code 4Pin | A Code | Female Pin | 4 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
 | Rear-Locking Socket | M5 Connector A-Code 4Pin | A Code | Male Pin | 4 | Straight | IP67 | 1A | 60V | ≥100MΩ | ≤5mΩ |
