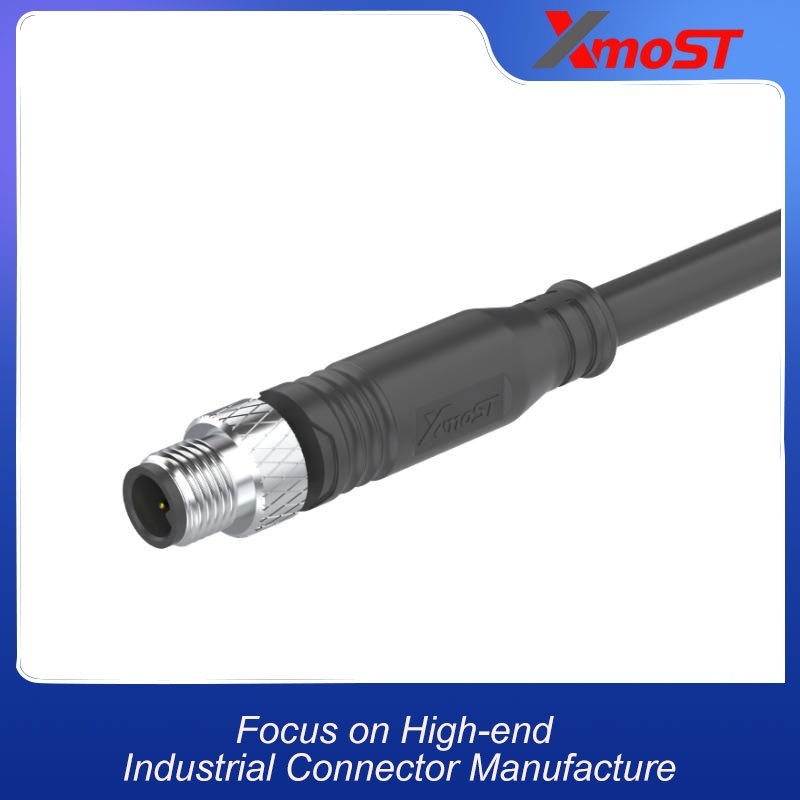

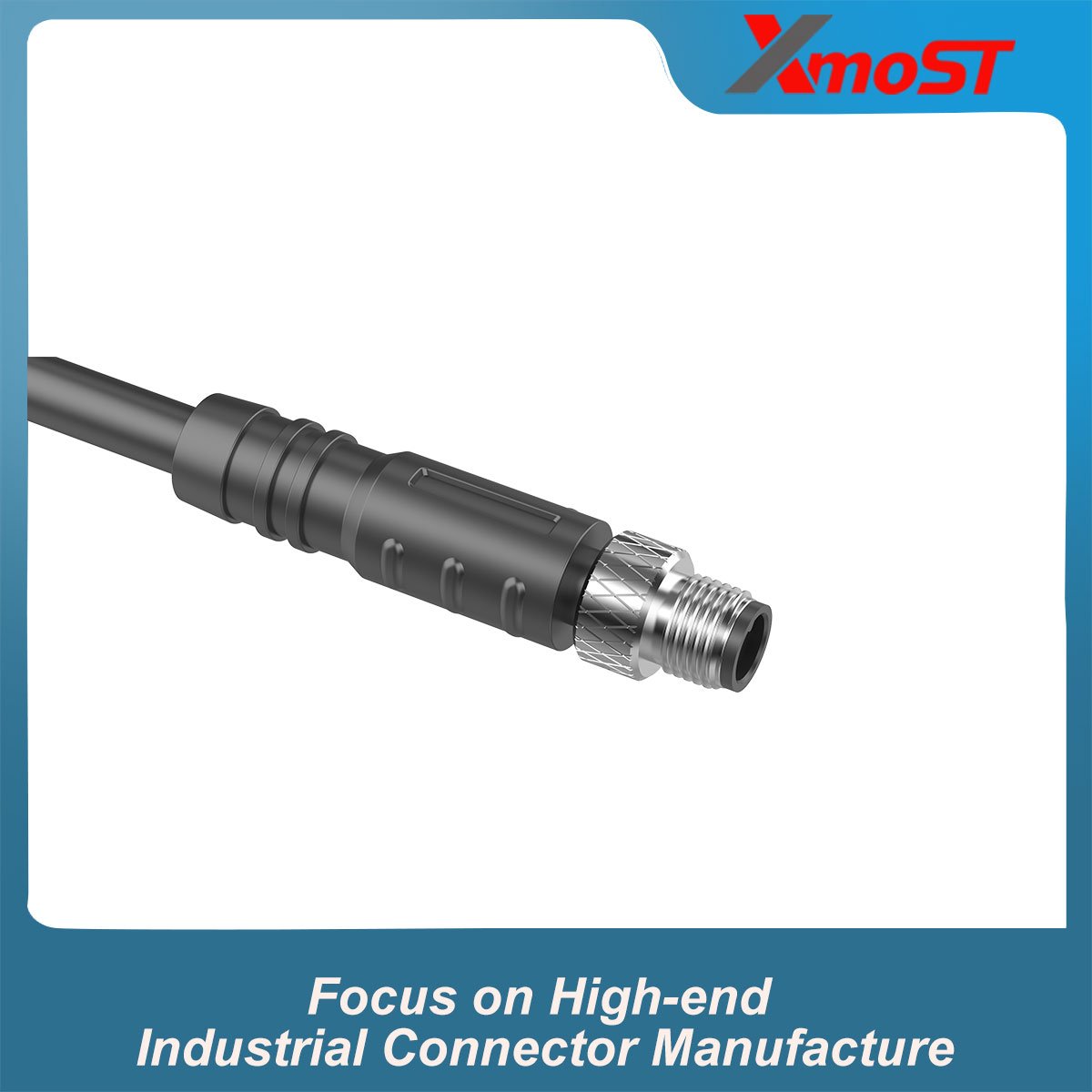

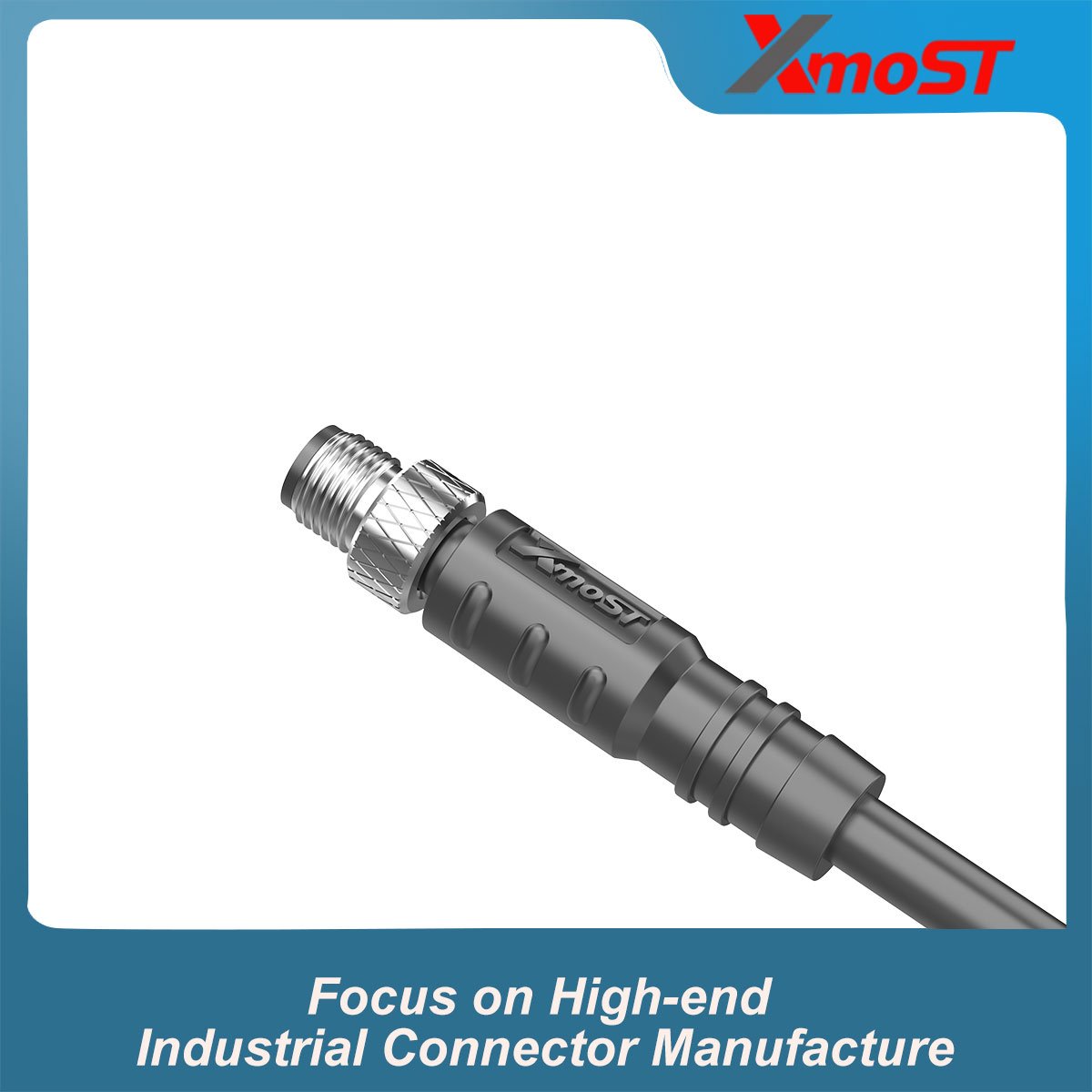

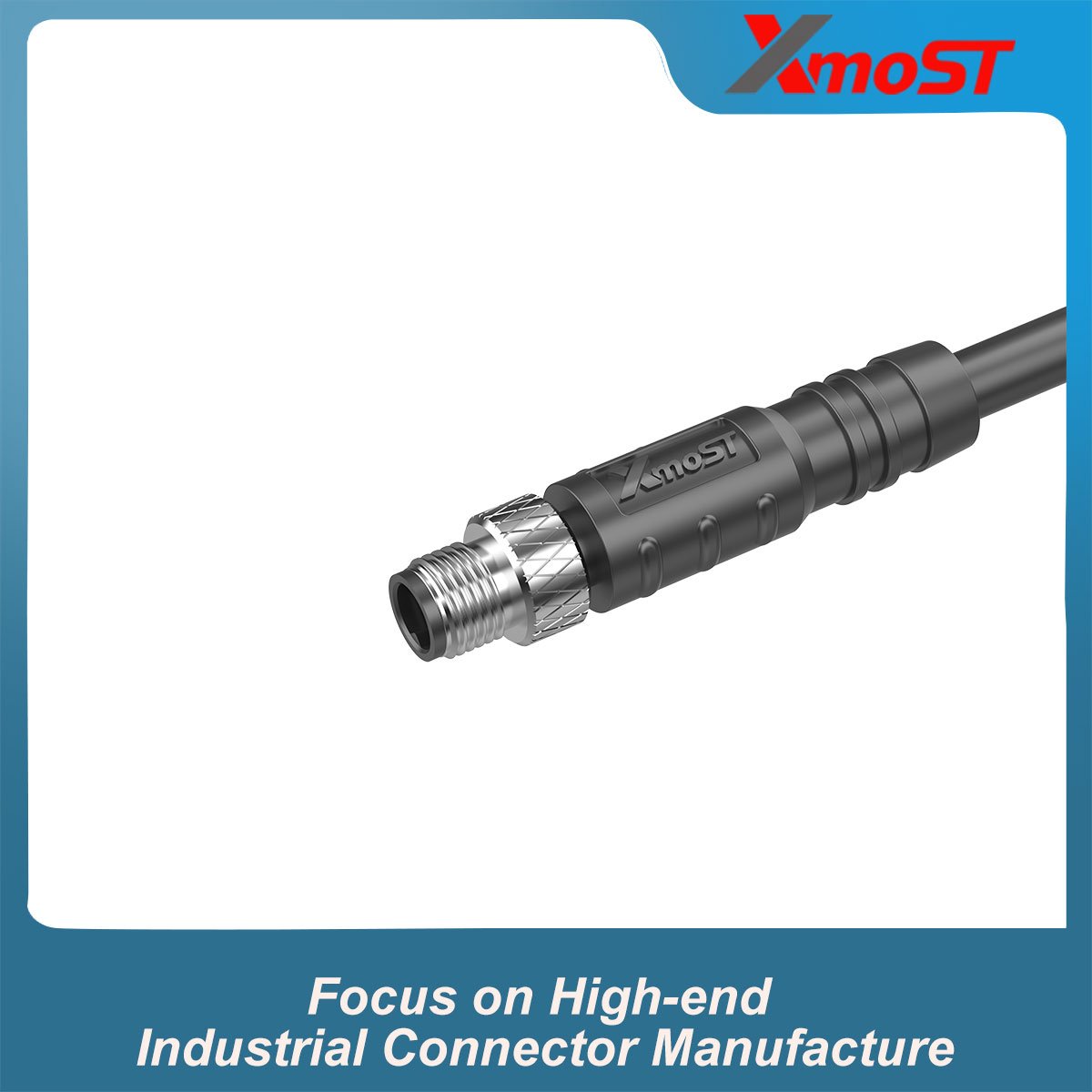

M5 A-Code 3Pin Male Straight Molded Plug is a compact circular connector designed for reliable connections in industrial equipment. It features a 3-pin A-Code configuration, male contacts and a straight molded design for direct cable connection.
The connector uses an M5 × 0.5 screw-locking mechanism and provides IP67 protection when properly mated. Its compact construction makes it suitable for sensors, industrial automation, control equipment and other applications requiring a reliable and space-efficient connection.
Key Features & Advantages
- 3-Pin A-Code Configuration
- Male Straight Design
- Molded Cable Construction
- M5 × 0.5 Screw Locking
- IP67 Protection
- Compact M5 Form Factor
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M5 |
| Coding | A-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Male Straight Molded Plug |
| Operating Standard | All ProductsIEC 61076-2-105 |
| Rated Current | 1 A |
| Rated Voltage | 60 V |
| Rated Impulse Voltage | 500 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Non-Shielded |
| Locking Method | M5 × 0.5 Screw Lock |
| Screw Torque | Recommended: 0.1 Nm; Max.: 0.15 Nm |
| Wiring Method | Soldering |
| Operating Temperature | -40°C to +80°C Static; -25°C to +80°C Dynamic |
| Wire Gauge Range | 0.14 mm² (AWG 26) |
| Protection Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA66 + GF / TPU + GF |
| Screw / Nut Material | Brass, Nickel-Plated |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy Resin |
| Outer Housing Material | TPU / PVC |
| Max. Cable OD | Ø3.5 mm |
Contact Configuration
3-Pin A-Code Male
3-pin A-Code male contact arrangement follows the front-view configuration shown in the technical drawing.

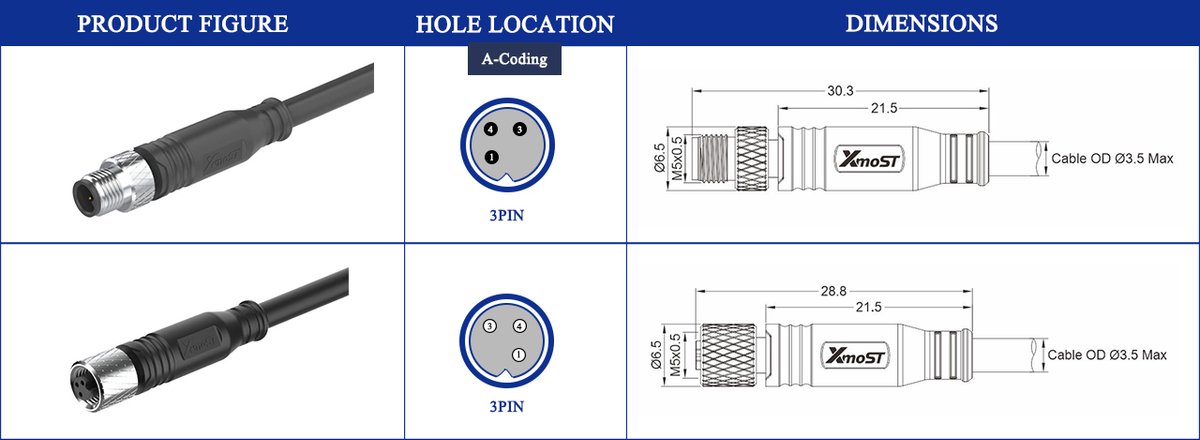

Dimensions
Straight molded design provides a direct cable connection in a compact M5 form factor. Detailed dimensions and contact arrangement are shown in the product drawing.
Product Industry Applications
- Industrial Automation
- Sensors & Measurement
- Control Equipment
- Industrial Machinery
