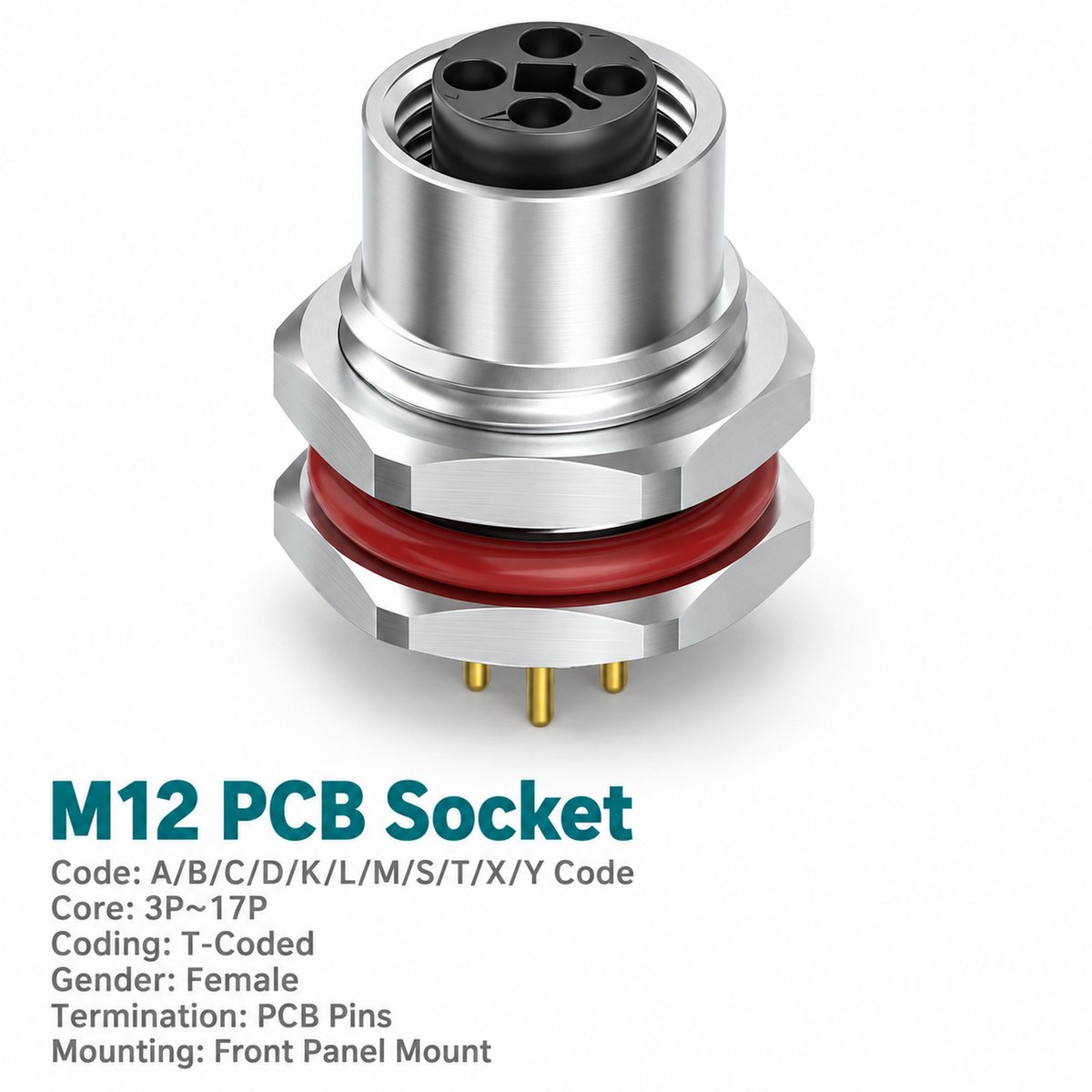

Xmost M12 T-coded female front mount PCB socket provides a detachable DC power connection between an external male cable connector and the equipment’s internal circuit board. Its four-contact female interface accepts a compatible M12 T-coded power connector, while straight rear contacts support PCB insertion and dip soldering.
This front fastened M12 panel mount power socket combines an enclosure-mounted cable interface with direct board termination. PG9 and M16 × 1.5 mounting threads allow the socket to be matched to different panel designs.
Rated at 12 A and 63 V, this unshielded PCB power connector supports compatible industrial DC power circuits. Contact functions and polarity should follow the equipment schematic and the numbered female contact arrangement.
Key Features
- 12 A / 63 V DC power interface: Listed electrical ratings for the 4-pin configuration.
- Female T-coded connection: Accepts a compatible M12 T-coded male power cable connector.
- Front fastened mounting: Integrates the power socket into the equipment panel.
- Straight PCB contacts: Supports board insertion and dip-solder termination.
- Two panel thread options: PG9 or M16 × 1.5.
- Unshielded construction: As specified for this catalogue product.
Product Dimensions
[Insert the female front mount outline drawing and corresponding panel cut-out drawing from page 15.]

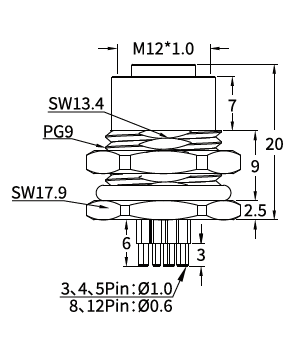

Illustrated PG9 Front Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section | 7 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 4-pin version | Ø1.0 |
Needle Arrangement (Front View)
[Insert the T-coded 4-pin female needle arrangement diagram from page 15.]
The diagram shows the female mating-face view with contacts numbered 1–4. Match the arrangement to the external male connector and follow the equipment schematic for DC polarity and circuit assignments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 T-coded female front mount PCB power socket |
| Mounting | Front fastened |
| Contact count | 4 pins |
| Power application | DC power |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-111 |
| Rated current | 12 A |
| Rated voltage | 63 V |
| Shielding | Unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- Industrial DC power modules: Connects external male power cables to internal PCB circuits.
- Automation control equipment: Provides a four-contact panel power interface.
- Machine electronics housings: Integrates a threaded M12 power socket into the enclosure.
- Modular electrical assemblies: Combines detachable cable connection with direct PCB termination.
Selection and Ordering
| Panel Mounting Thread | Front Mount Part Number |
|---|---|
| PG9 | 1M1207TF04HP9P |
| M16 × 1.5 | 1M1207TF04H16P |
Example enquiry: M12 T-coded female front mount PCB power socket, 4-pin, 12 A, 63 V DC, PG9 mounting, part number 1M1207TF04HP9P.
