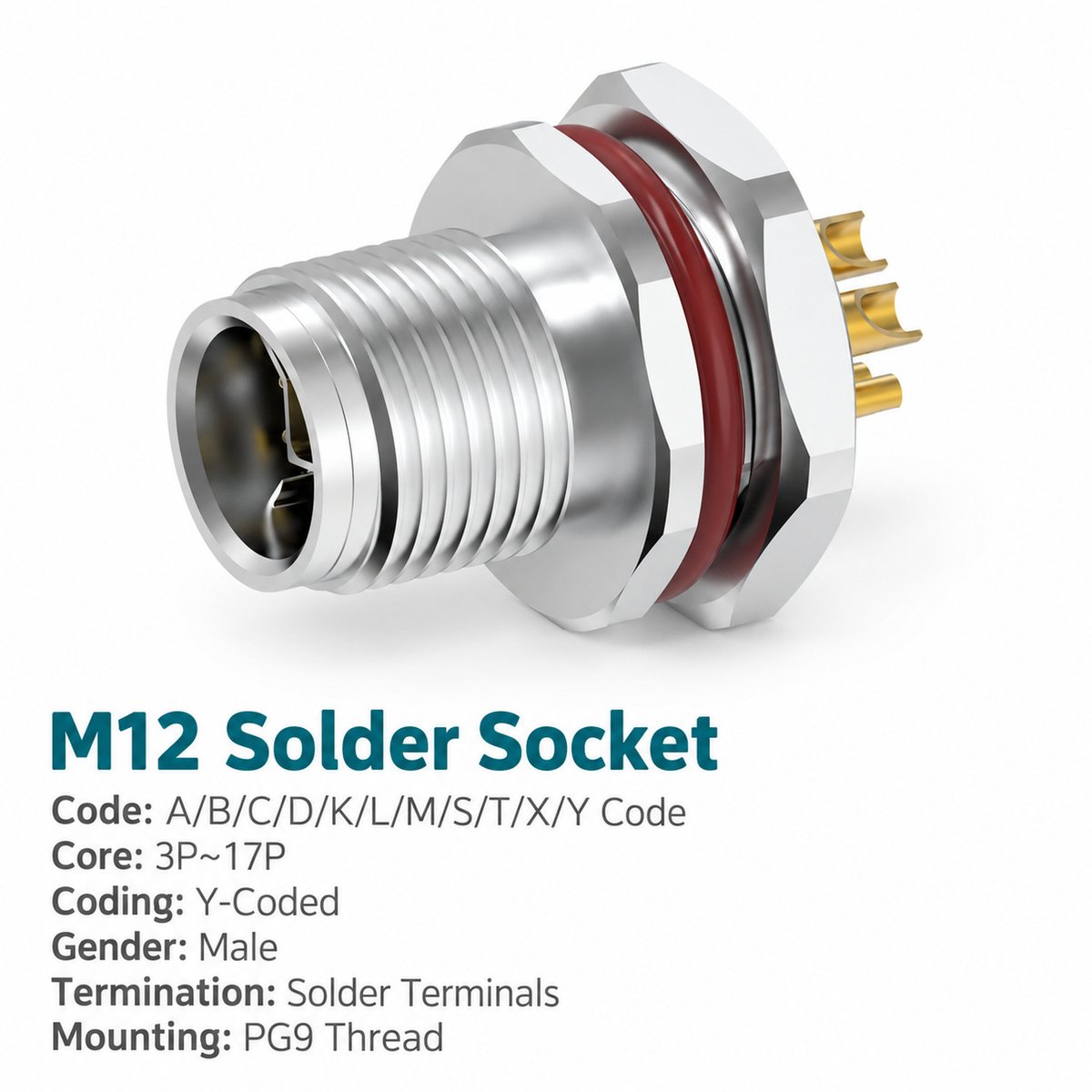

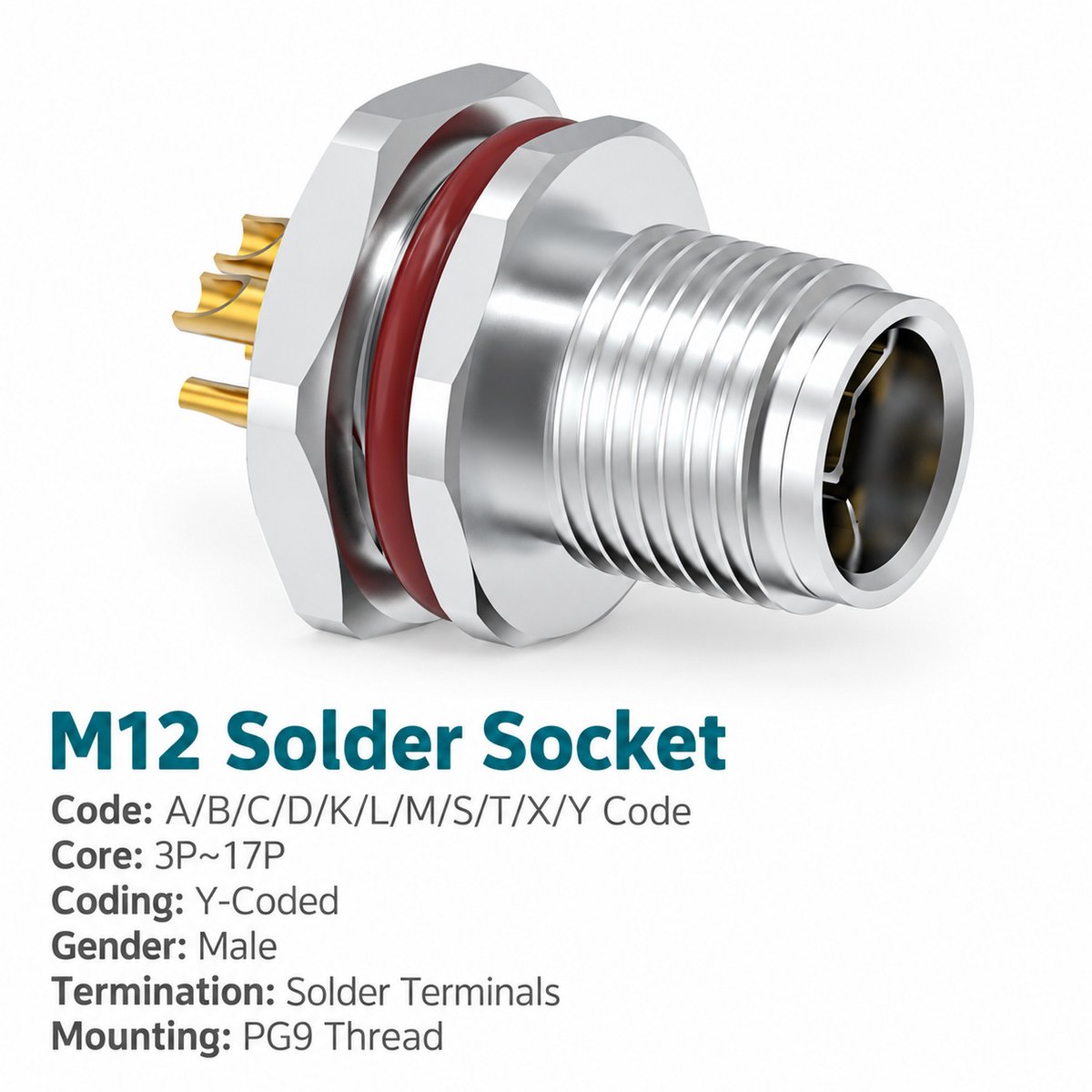

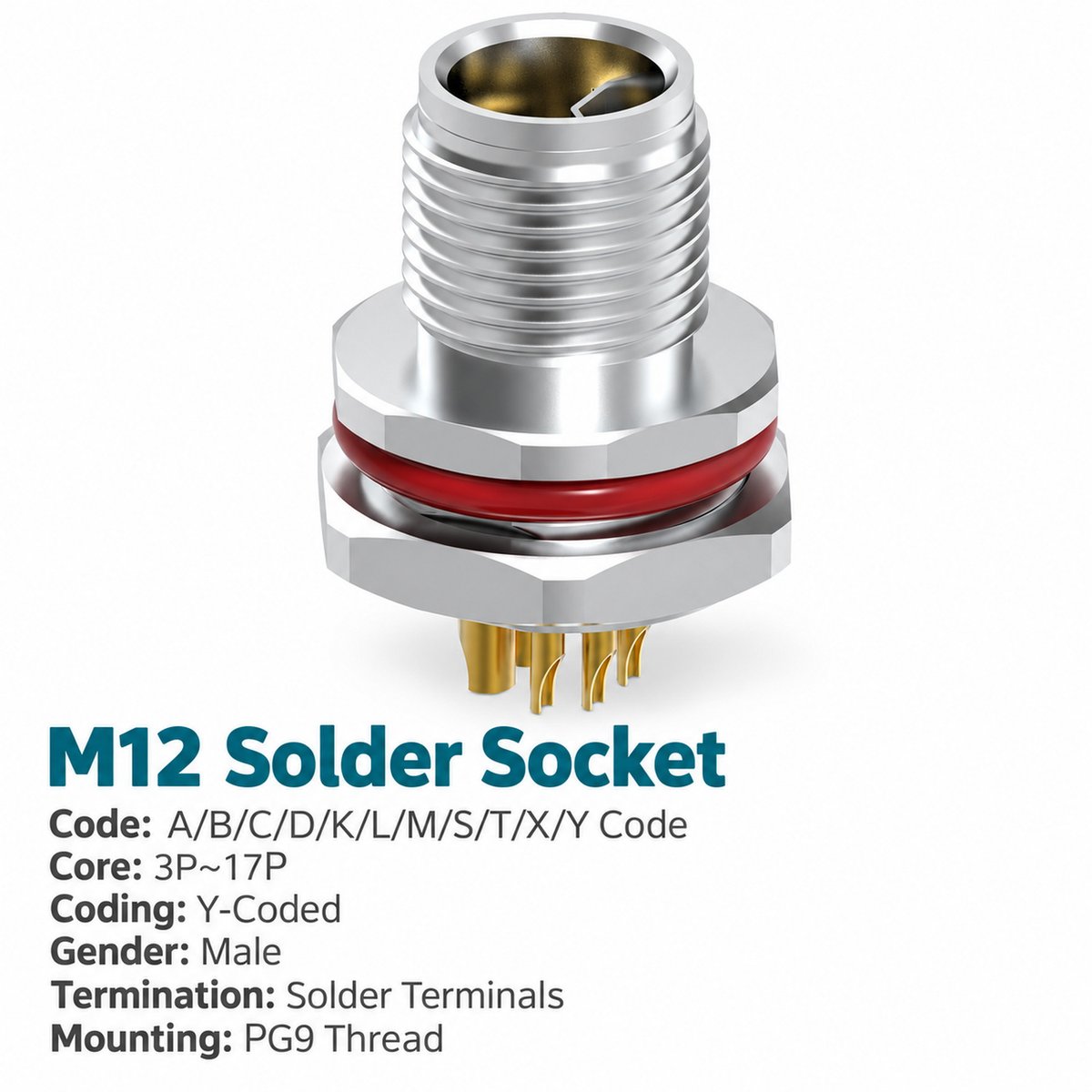

M12 Y-coded male rear mount socket connects a compatible external hybrid cable to separate signal and power wiring inside the equipment housing. Select the rear fastened version when the panel design provides access and clearance for the rear mounting hardware.
The Y3 arrangement contains four signal contacts and two power contacts. Y4 contains four signal contacts and four power contacts. Both use a 0.5 A signal-contact rating, while their power-contact ratings are 12 A and 6 A respectively.
Choose an unwired M12 hybrid solder socket for termination during assembly or the 0.3 m pre-wired version for routing to internal connection points. Confirm the configuration, mounting thread and mating connector together.
Key Features
- Hybrid signal and power connection: Combines separate circuits in one M12 panel interface.
- Rear fastened installation: For equipment housings designed around a rear mount receptacle.
- Male Y-coded interface: Connects to a matching Y3 or Y4 female connector.
- Y3 configuration: Four signal contacts plus two power contacts, with a 12 A power-contact rating.
- Y4 configuration: Four signal contacts plus four power contacts, with a 6 A power-contact rating.
- Shielded construction: As listed for this product version.
- Solder termination: Available unwired or with 0.3 m leads.
- PG9 or M16 mounting: Two panel thread options.
Product Dimensions

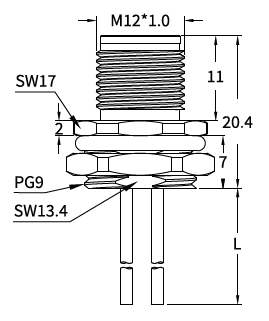

[Insert the rear mount male socket drawing and panel cut-out drawing here.]
Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Overall body length shown, excluding leads | 20.4 |
| Upper axial section shown | 11 |
| Flange thickness shown | 2 |
| Lower axial section shown | 7 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Lead length | L; according to ordered version |
Allow space for rear fastening hardware and internal wire routing. Use the panel opening specified for the ordered mounting thread.
Needle Arrangement (Front View)
[Insert the Y3 and Y4 male contact arrangement screenshot from page 24 here.]
| Configuration | Signal Contacts | Power Contacts | Total Contacts |
|---|---|---|---|
| Y3 | 4 | 2 | 6 |
| Y4 | 4 | 4 | 8 |
The contact diagrams are viewed from the mating face. Verify the selected arrangement against the external female connector and internal wiring schematic.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 Y-coded male rear mount hybrid socket |
| Mounting | Rear fastened |
| Function | Ethernet signal and power |
| Termination | Solder |
| Wiring options | Unwired / 0.3 m pre-wired leads |
| Standard listed | IEC 61076-2-113 |
| Rated voltage | 50 V AC / 60 V DC |
| Shielding | Shielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
This M12 Y-coded rear mount hybrid socket can be considered for:
- Ethernet-enabled equipment housings: Connecting external hybrid cables to internal signal and power wiring.
- Automation enclosures with rear mounting access: Accommodating the fastening hardware behind the panel.
- Pre-wired equipment assemblies: Routing leads to separate internal signal and power connection points.
- Modular machines: Providing a detachable hybrid interface at the equipment housing.
Check network performance, power requirements and shield connection as part of the complete equipment design.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot here.]
| Pin | Y3 Wire Colour | Y4 Wire Colour |
|---|---|---|
| 1 | White/orange — WH/OR | White/orange — WH/OR |
| 2 | Orange — OR | Orange — OR |
| 3 | White/green — WH/GN | White/green — WH/GN |
| 4 | Green — GN | Green — GN |
| 5 | Blue — BU | Blue — BU |
| 6 | White — WH | White — WH |
| 7 | — | Brown — BN |
| 8 | — | Black — BK |
“—” means the contact is not present. Follow the equipment schematic for power polarity and signal functions, and confirm shield termination for the ordered assembly.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | Y3 / Y4 |
| Mounting style | Rear mount |
| Panel mounting thread | PG9 / M16 × 1.5 |
| Termination | Solder |
| Wiring | Unwired / 0.3 m pre-wired |
| Custom requirements | Specify wire type or lead length |
Example enquiry: M12 Y-coded male rear mount hybrid socket, Y4, M16 × 1.5 mounting, solder termination, unwired.
