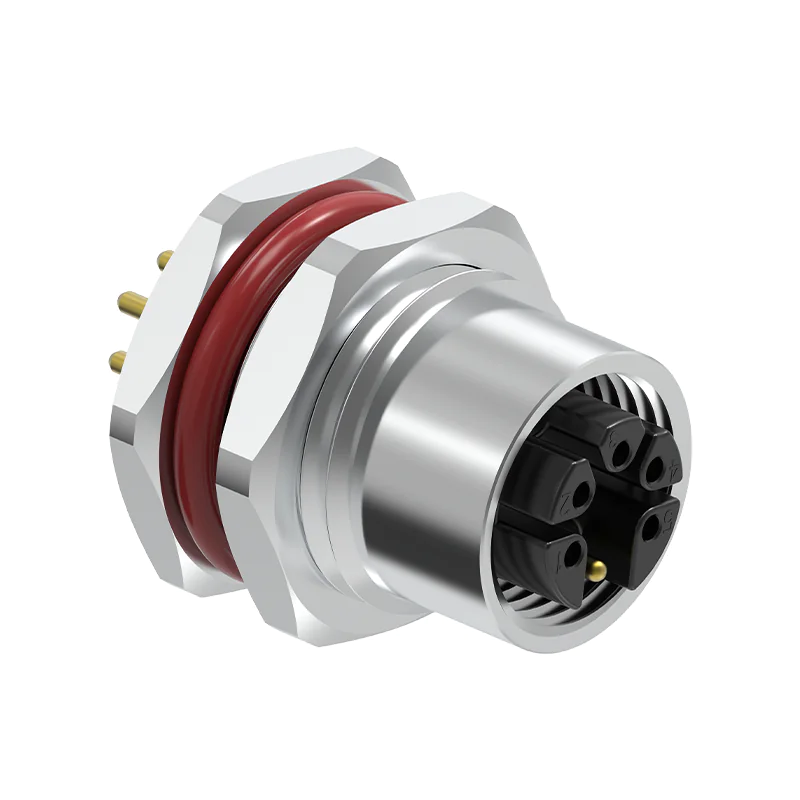

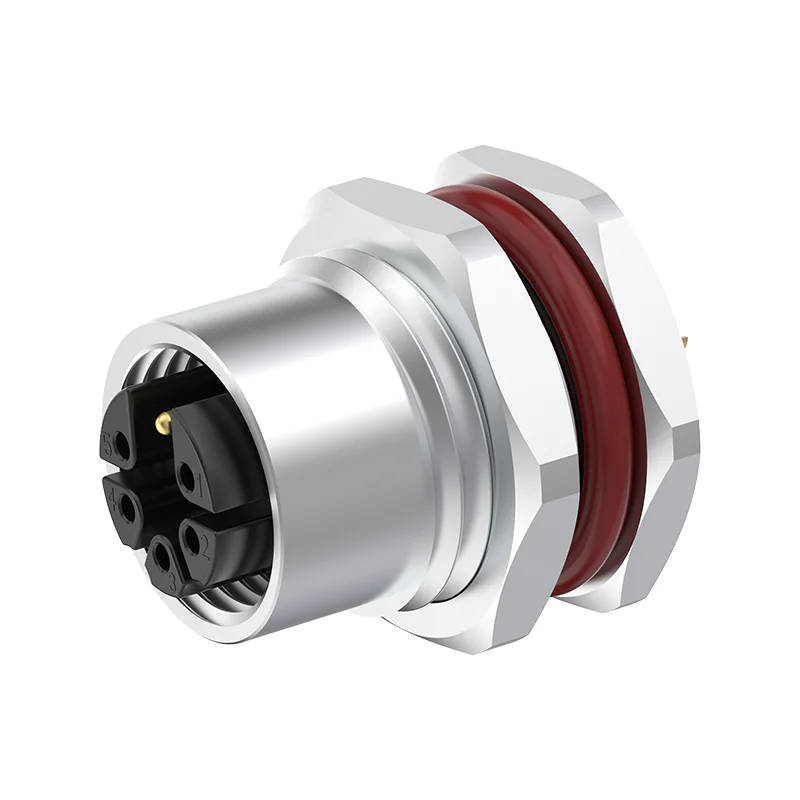

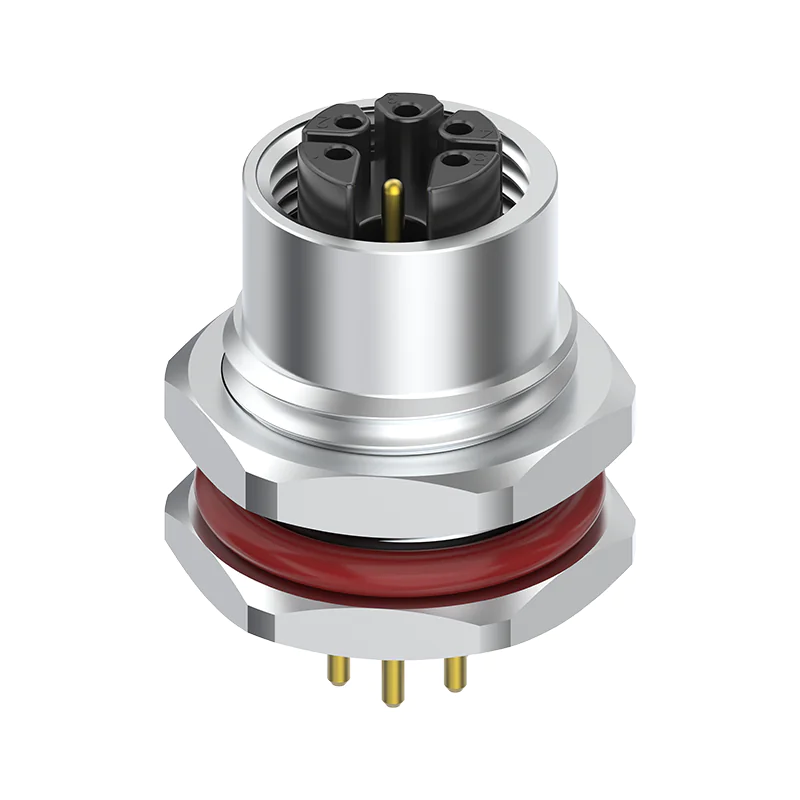

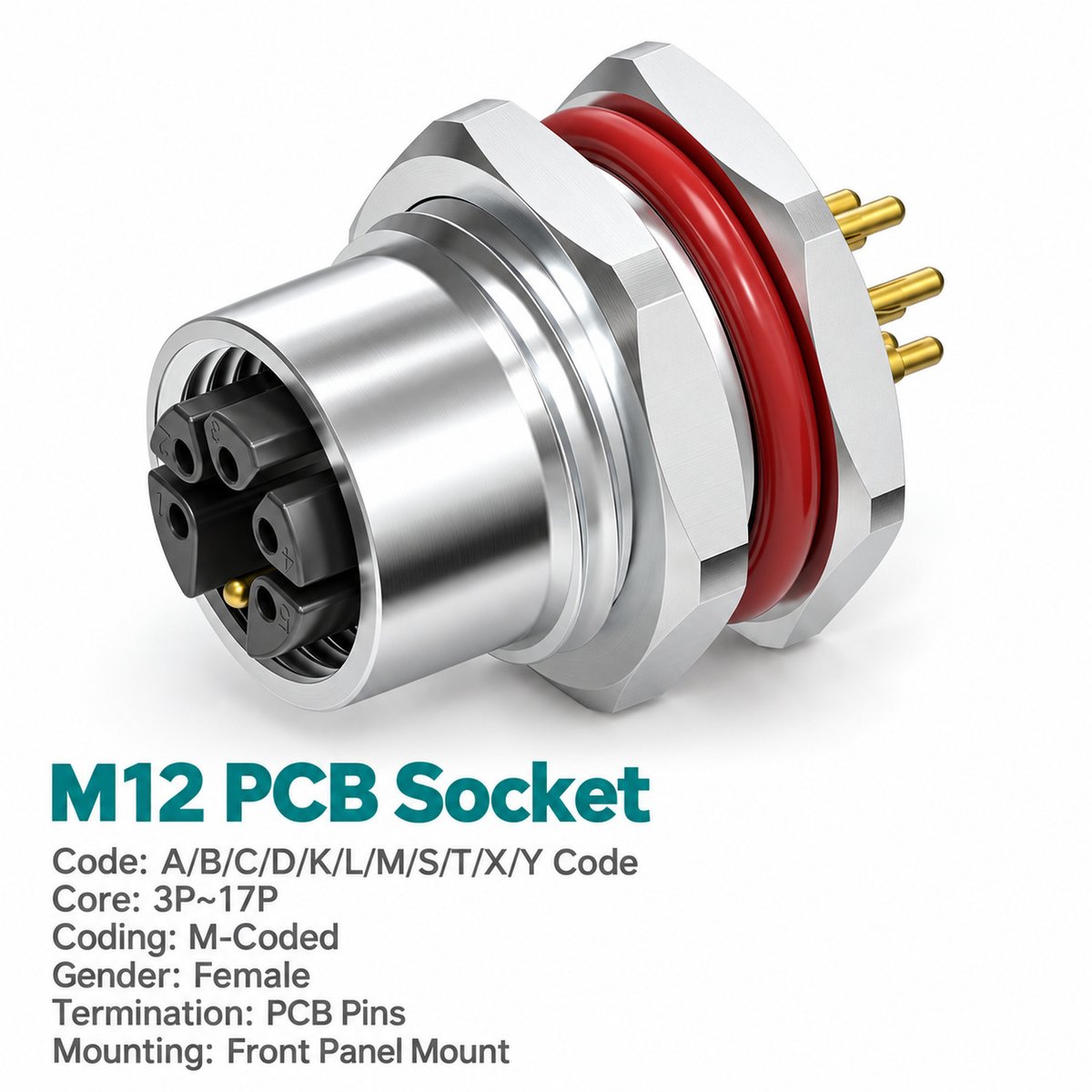

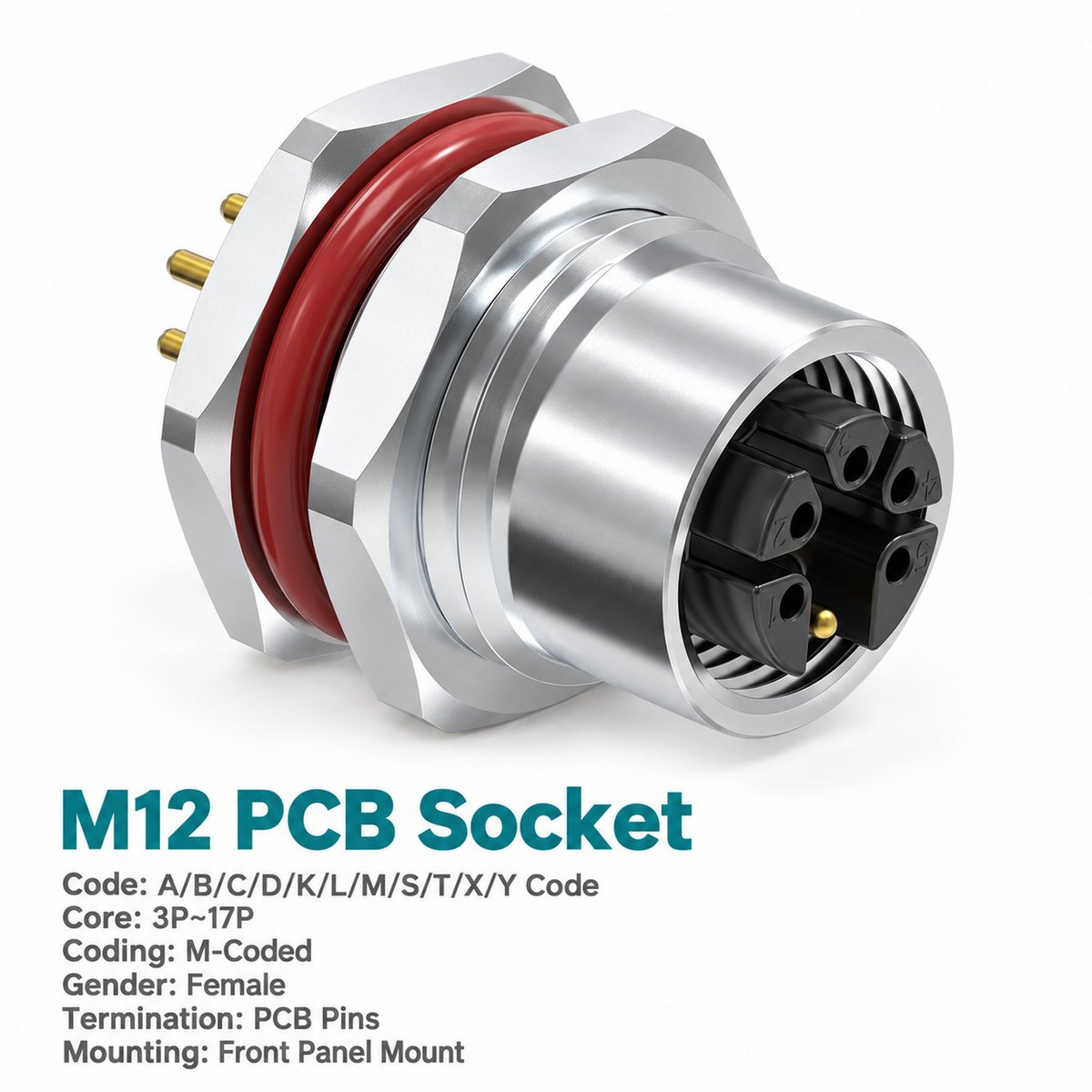

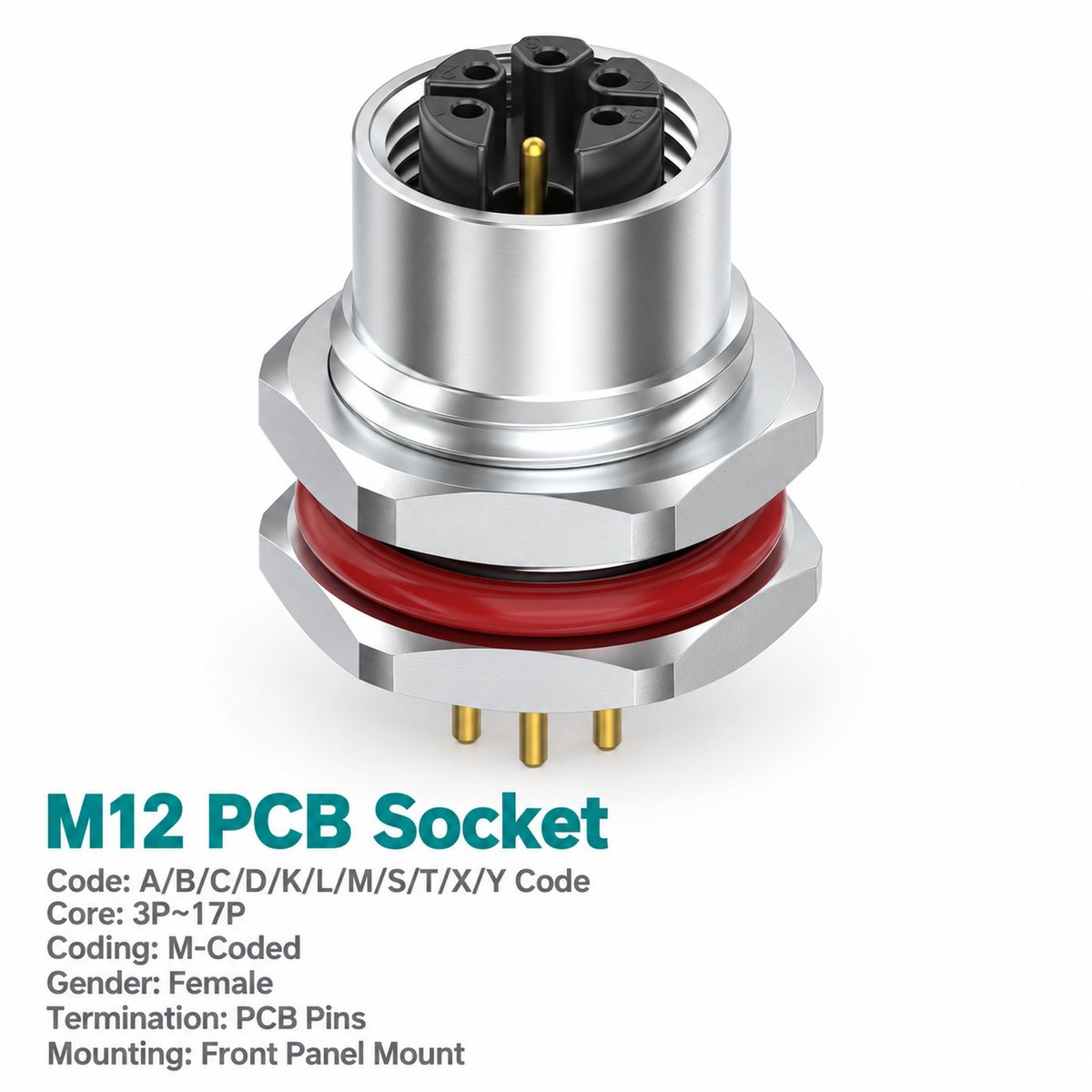

Xmost M12 M-coded female front mount PCB socket provides a detachable AC power connection between an external male cable connector and the equipment’s internal circuit board. Its female M-coded interface accepts a compatible power cable connector, while straight rear contacts support PCB insertion and dip soldering.
Four contact arrangements provide two, three, four or five circuit contacts plus protective earth. Each configuration carries catalogue ratings of 8 A and 630 V, allowing the contact count to be selected according to the equipment’s power circuit.
This front fastened M12 panel mount power socket is available with PG9 or M16 × 1.5 mounting threads. Match the complete contact arrangement to the male cable connector and use the front mount outline to check the enclosure opening and board position.
Key Features
- 8 A / 630 V AC power interface: Listed ratings for all four configurations.
- Four arrangements with PE: Choose 2+PE, 3+PE, 4+PE or 5+PE.
- Female M-coded connection: Accepts a compatible M12 M-coded male power cable connector.
- Front fastened mounting: Integrates the power socket into the equipment panel.
- Straight PCB contacts: Supports board insertion and dip-solder termination.
- Two panel thread options: PG9 or M16 × 1.5, in unshielded construction.
Product Dimensions

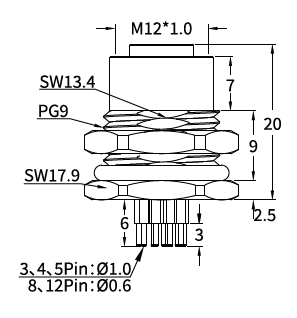

[Insert the female front mount outline drawing and corresponding panel cut-out drawing from page 21.]
Illustrated PG9 Front Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section | 7 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 3 / 4 / 5-pin versions | Ø1.0 |
The outline drawing does not separately specify the 6-pin PCB contact diameter.
Needle Arrangement (Front View)
[Insert the M-coded female needle arrangement diagrams for 3-pin (2+PE), 4-pin (3+PE), 5-pin (4+PE) and 6-pin (5+PE) from page 21.]
| Total Contacts | Arrangement |
|---|---|
| 3 pins | 2+PE |
| 4 pins | 3+PE |
| 5 pins | 4+PE |
| 6 pins | 5+PE |
The diagrams show the female mating-face view. Match the numbered contacts and PE position to the selected male cable connector and equipment power schematic.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 M-coded female front mount PCB AC power socket |
| Mounting | Front fastened |
| Contact arrangements | 2+PE / 3+PE / 4+PE / 5+PE |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-111 |
| Rated current | 8 A |
| Rated voltage | 630 V |
| Shielding | Unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- Industrial AC power modules: Connects external male power cables to internal PCB circuits.
- Automation control equipment: Provides a multi-contact panel power interface with protective earth.
- Machine electronics housings: Integrates a front mount M12 power socket into the enclosure.
- Modular electrical assemblies: Combines detachable cable connection with direct PCB termination.
Selection and Ordering
| Contact Arrangement | PG9 Mounting | M16 × 1.5 Mounting |
|---|---|---|
| 3-pin — 2+PE | 1M1207MF2EHP9WP | 1M1207MF2EH16WP |
| 4-pin — 3+PE | 1M1207MF3EHP9WP | 1M1207MF3EH16WP |
| 5-pin — 4+PE | 1M1207MF4EHP9WP | 1M1207MF4EH16WP |
| 6-pin — 5+PE | 1M1207MF5EHP9WP | 1M1207MF5EH16WP |
Example enquiry: M12 M-coded female front mount PCB power socket, 5-pin (4+PE), 8 A, 630 V AC, PG9 mounting, part number 1M1207MF4EHP9WP.
