M12 A-Coded Male Rear Mount PCB Connector, 3–17 Pin for Industrial Control

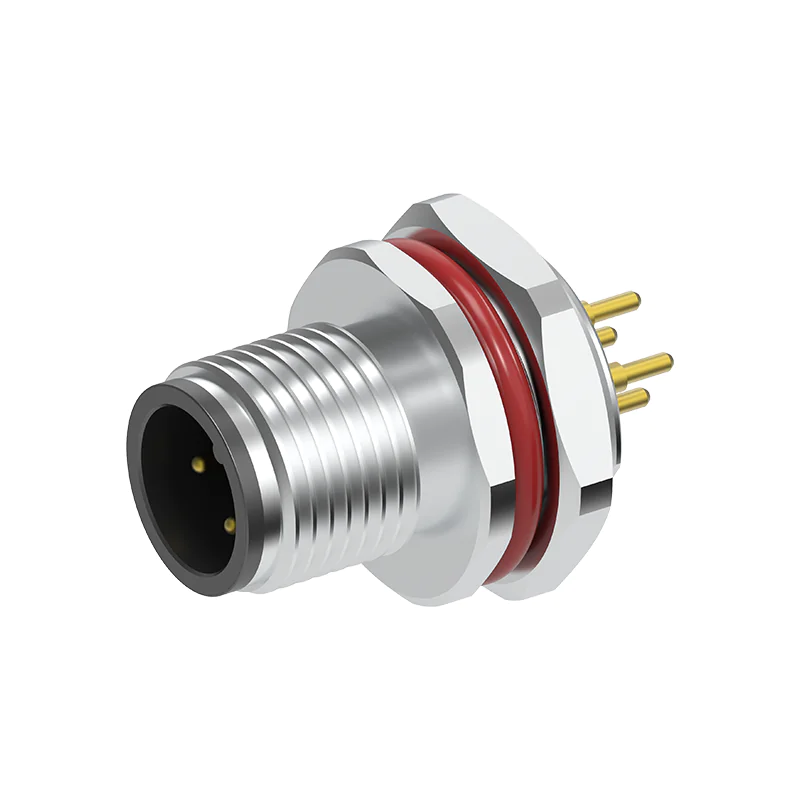

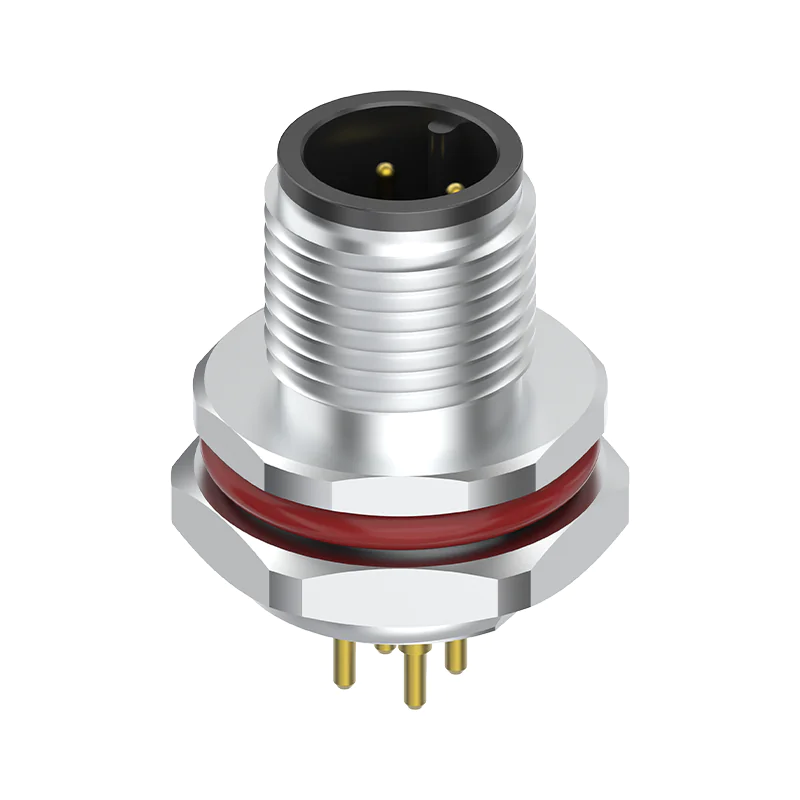

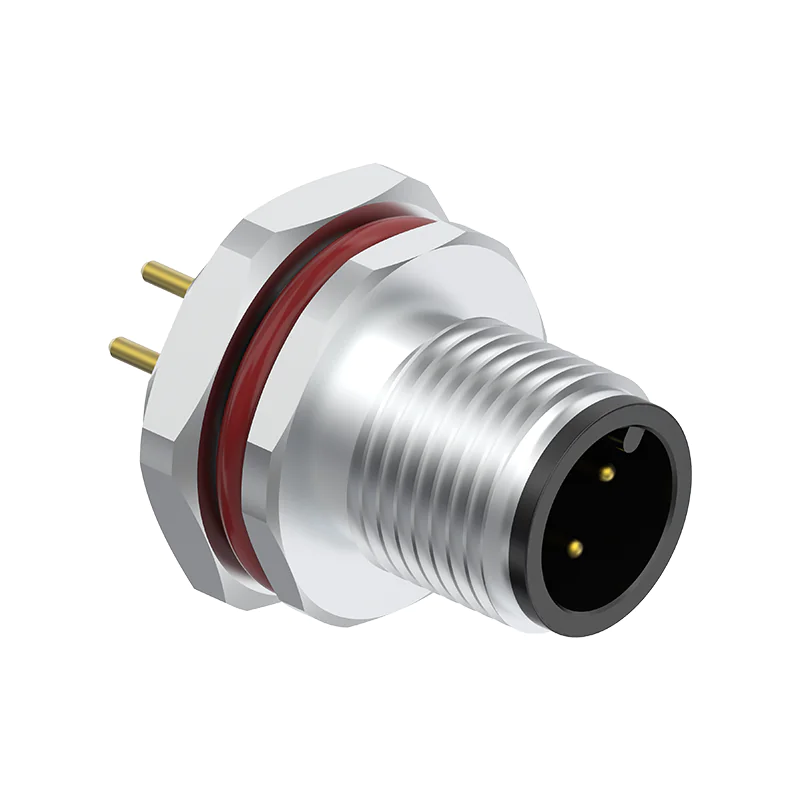

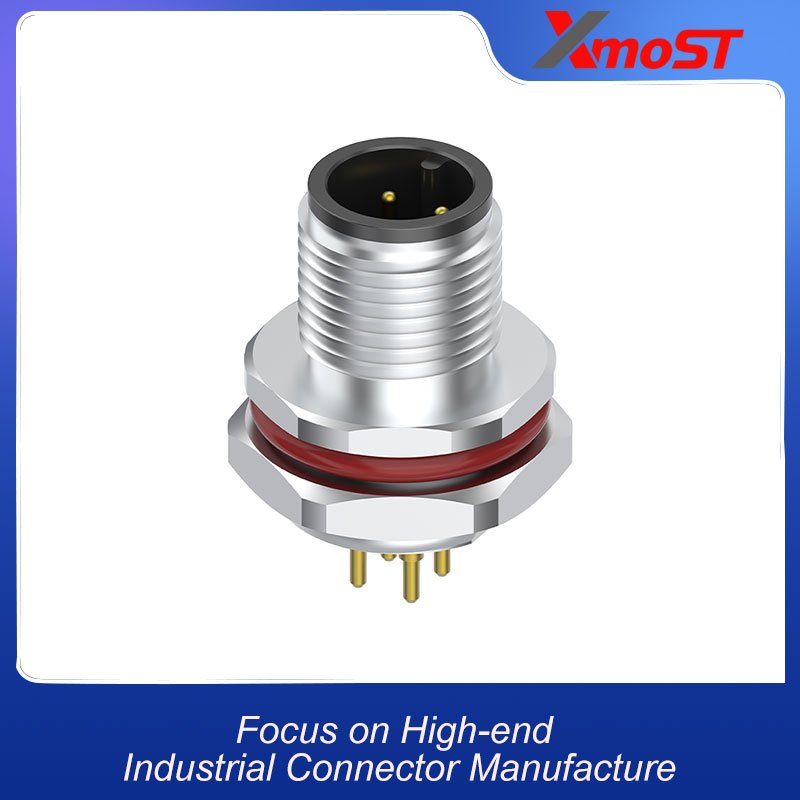

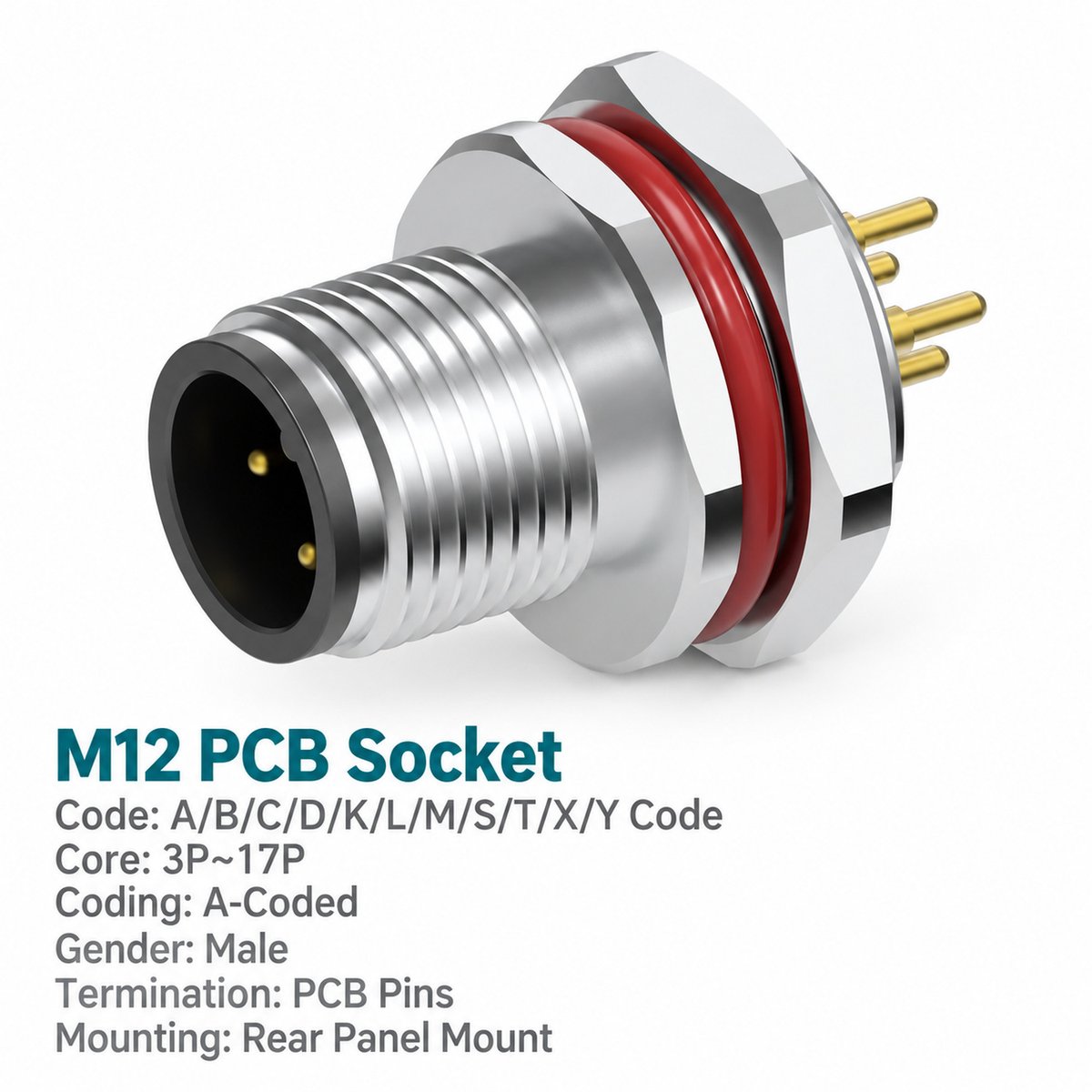

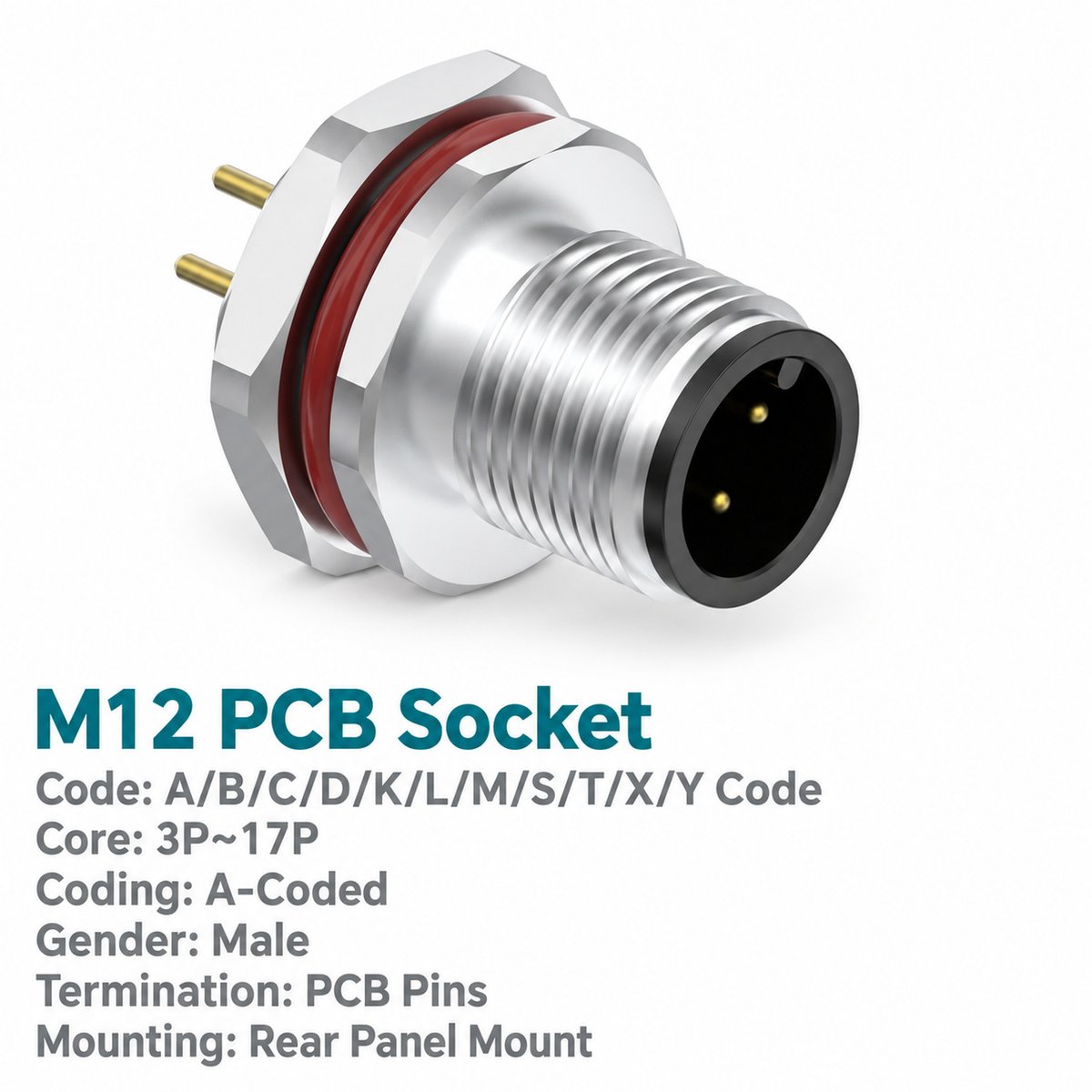

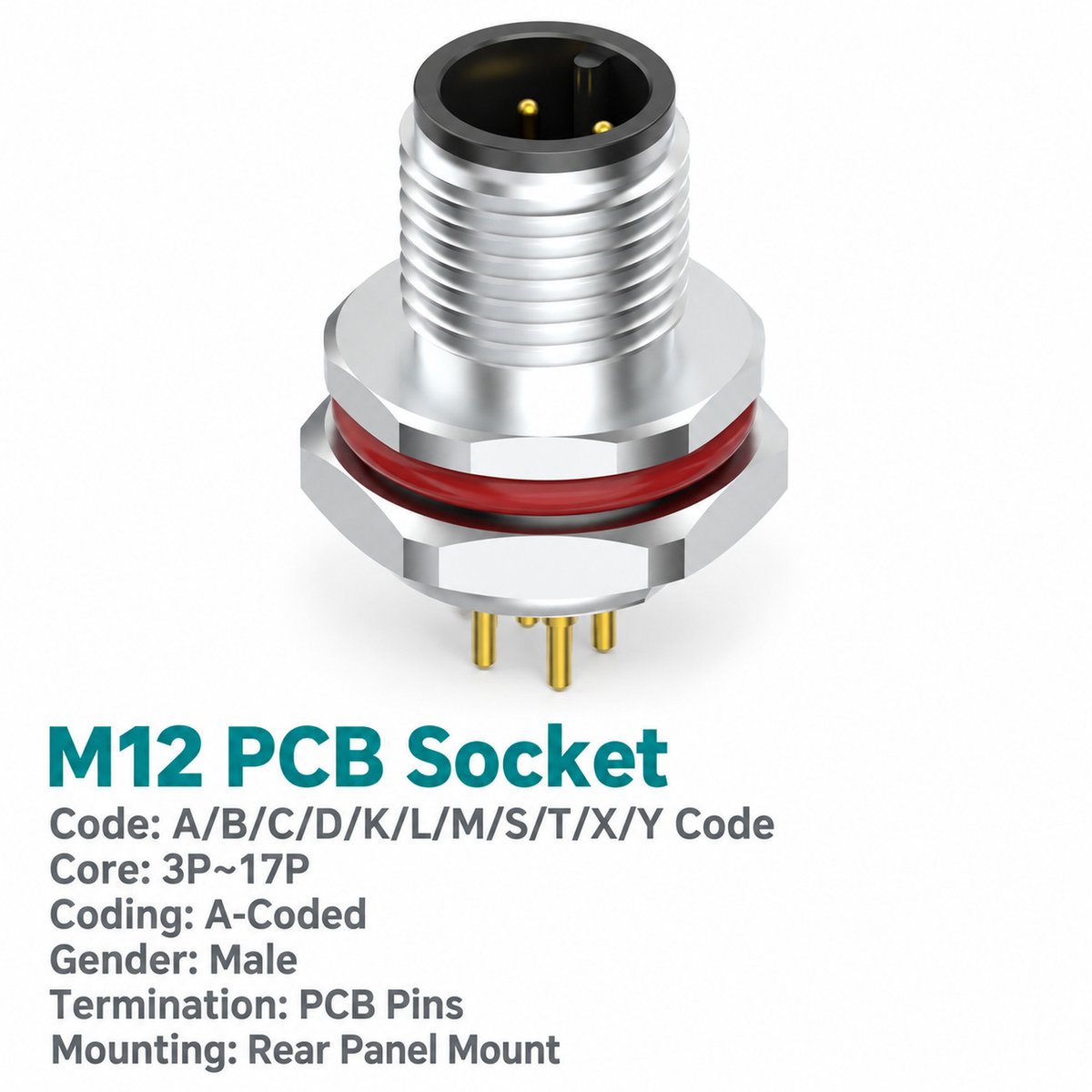

Xmost M12 A-coded male rear mount PCB connector provides an external cable connection for industrial control modules, sensor interfaces and actuator equipment. Its rear fastened panel construction combines an M12 × 1.0 mating thread with straight PCB dip-solder contacts. Six contact counts from 3 to 17 pins are available, together with grounding and shielding options.

  • Category: M12
  • Model: Rear-Locking Socket
  • Connector Type: Male Pin
  • Coding: A Code
  • Number of Cores: 4
  • Shape: Straight
  • Wiring Method: Soldering / PCB Dip Soldering
  • Shielding: Yes (Shielded)
  • Protection Rating: IP67, IP68
  • Standard: IEC 61076-2-101
Category: Tag: Brand:

Key Features

  • Rear mount installation: Designed for enclosures requiring a rear fastened M12 panel connector.
  • Male A-coded mating interface: Connects to matching M12 A-coded female cable assemblies used in industrial equipment.
  • Direct PCB termination: Rear insertion contacts support dip soldering to the equipment’s circuit board.
  • Six contact configurations: Select 3, 4, 5, 8, 12 or 17 pins according to the circuit count and electrical ratings.
  • Grounded or ungrounded construction: Available with shielded or unshielded options to match the specified equipment interface.

Product Dimensions

M12 A-Coded Male Rear Mount PCB Connector, 3–17 Pin for Industrial Control

[Insert the male rear mount outline drawing and corresponding panel cut-out drawing.]

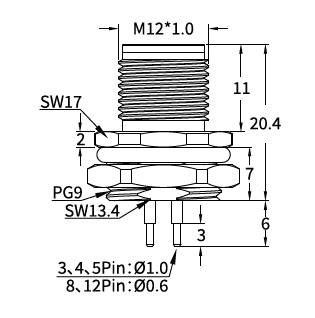

Illustrated PG9 Version — Dimensions in mm

Dimension Value
Mating thread M12 × 1.0
Panel mounting thread shown PG9
Body dimension shown, excluding PCB contacts 20.4
Upper axial section 11
Flange section 2
Lower axial section 7
Upper wrench size SW17
Lower wrench size SW13.4
Rear contact section 6
Contact tip section 3
PCB contact diameter: 3 / 4 / 5 pins Ø1.0
PCB contact diameter: 8 / 12 pins Ø0.6

The 17-pin contact diameter is not specified in the outline drawing.

Needle Arrangement (Front View)

M12 A-Coded Male Rear Mount PCB Connector, 3–17 Pin for Industrial Control 1

[Insert the male contact arrangement diagrams for 3, 4, 5, 8, 12 and 17 pins.]

Mating-face view. The 3-pin version uses contact positions 1, 3 and 4.

Specifications

Parameter Specification
Brand Xmost
Interface M12 A-coded, male
Mounting Rear fastened
Termination PCB dip soldering
Standard listed IEC 61076-2-101
Grounding Grounded / ungrounded
Shielding Shielded / unshielded
Insulation resistance ≥100 MΩ
Contact resistance ≤5 mΩ
Coupling torque Recommended 0.4 N·m; maximum 0.8 N·m
Temperature, flexible use −25°C to +80°C
Temperature, static use −40°C to +80°C
Protection ratings listed IP67 / IP68
Pollution degree 3
Insulator materials PA66+GF / TPU+GF
Contacts Rated Current Rated Voltage
3 / 4 pins 4 A 250 V
5 pins 4 A 60 V
8 pins 2 A 30 V
12 / 17 pins 1.5 A 30 V

Applications

  • Industrial control modules: Connects external cables to control electronics through a rear mount panel interface.
  • Sensor and actuator equipment: Provides an A-coded cable connection with internal PCB termination.
  • Machine electronics housings: Suits assemblies designed around rear fastened connectors and a defined panel-to-board position.
  • Multi-contact signal interfaces: Supports several equipment circuits through one detachable M12 connection.

Ordering Options

Item Options
Contact count 3 / 4 / 5 / 8 / 12 / 17 pins
Panel mounting thread M12 × 1.0 / PG9 / M16 × 1.5 / M20 × 1.5
Grounding Grounded / ungrounded
Shielding Shielded / unshielded
