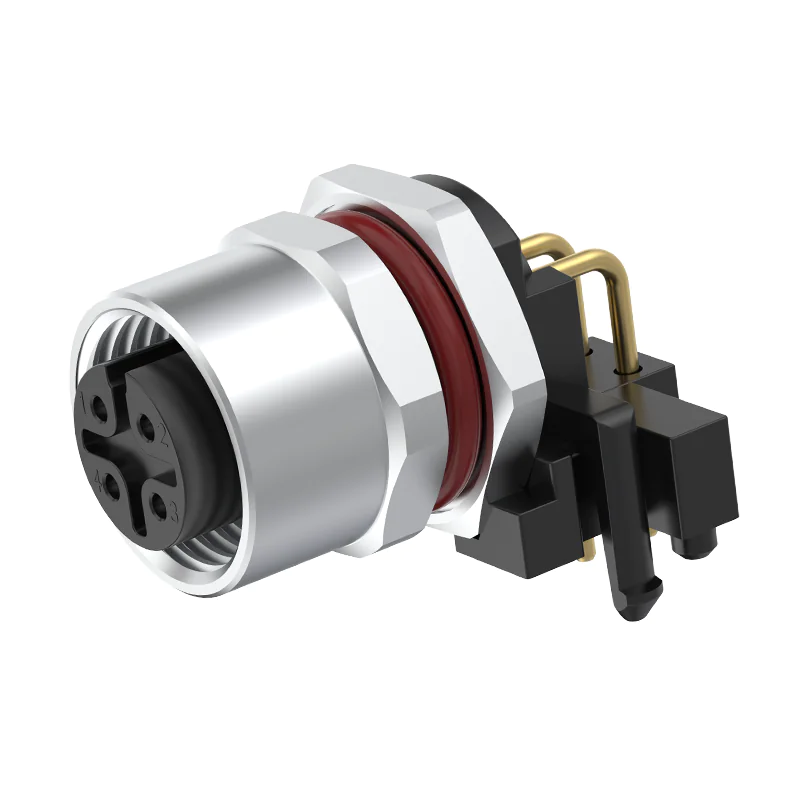

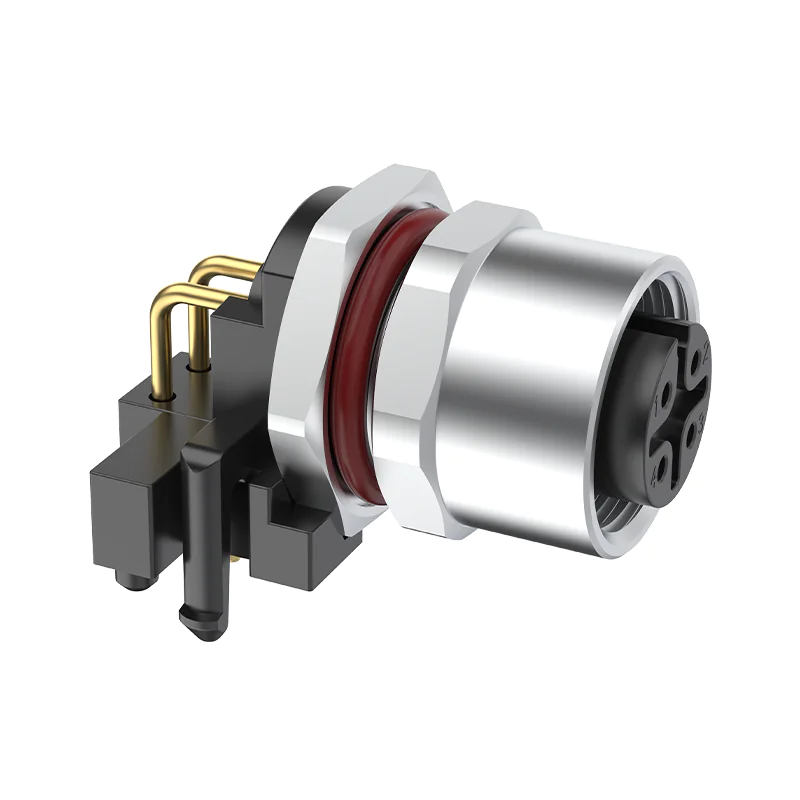

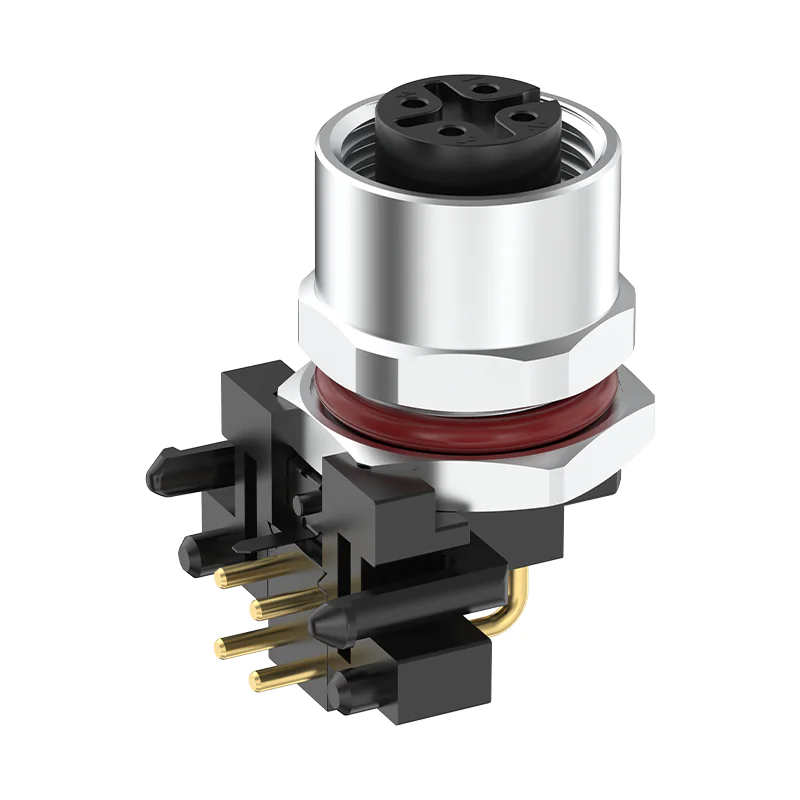

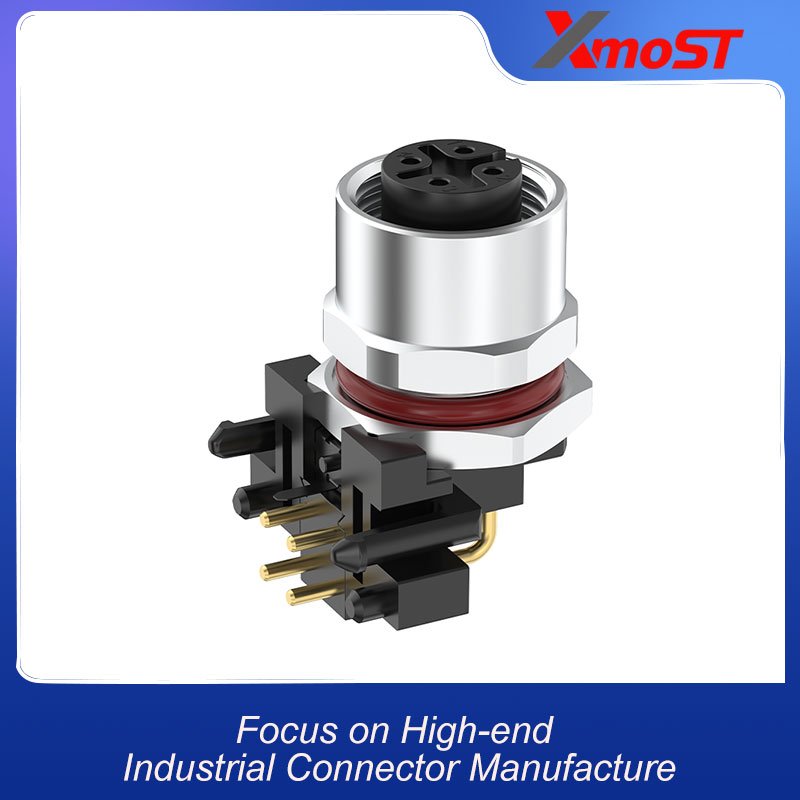

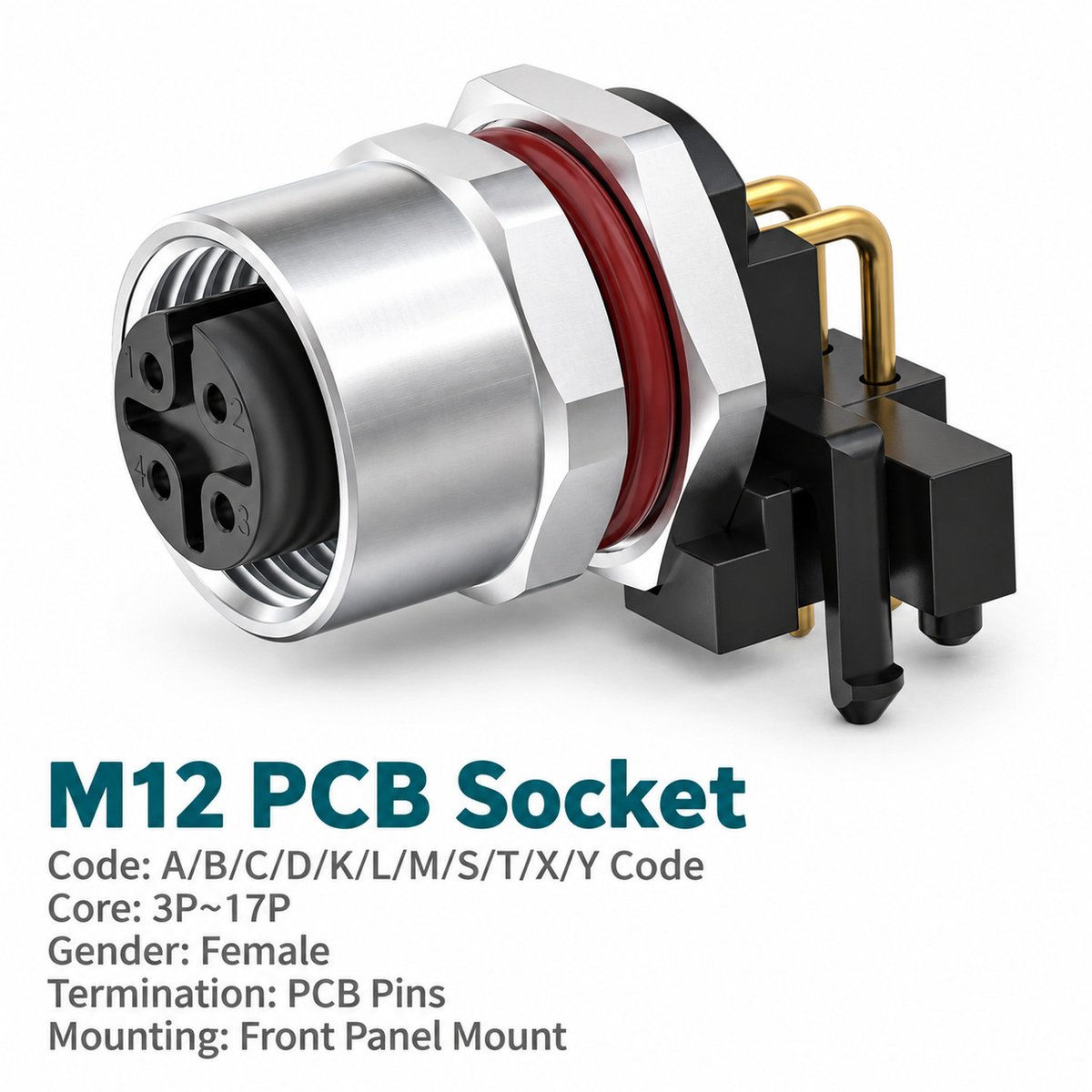

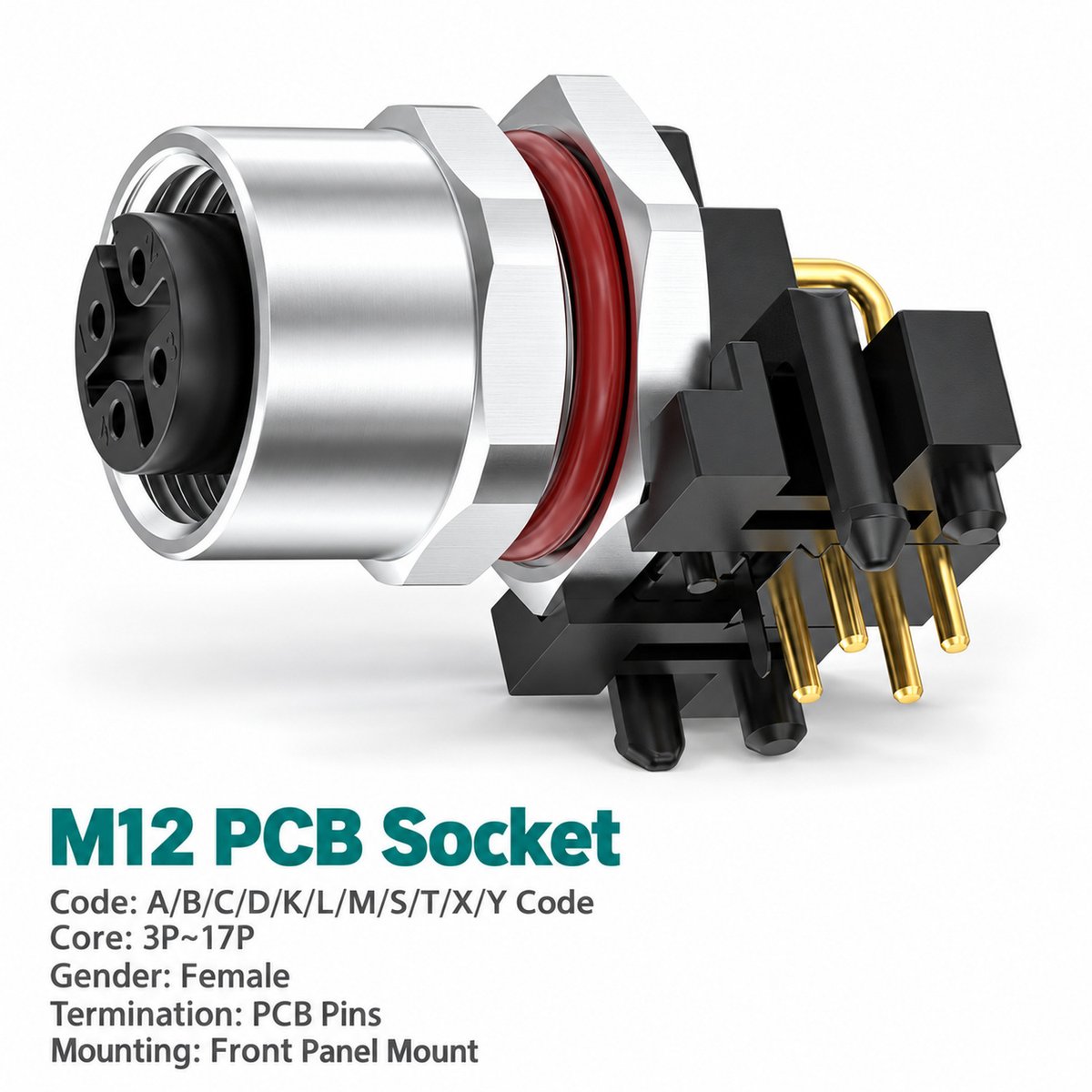

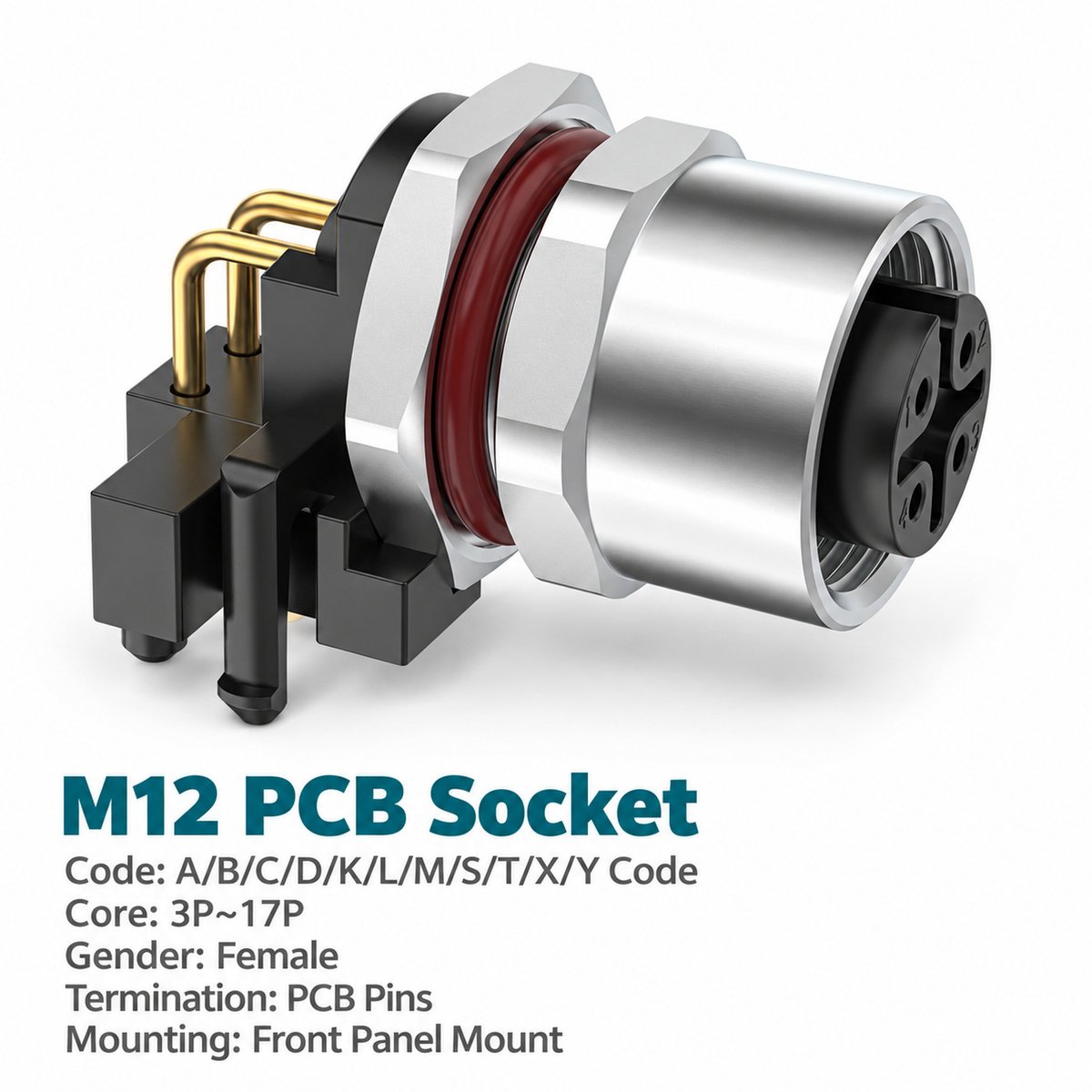

Xmost M12 A-coded female front mount right angle PCB socket provides a panel interface between an external male cable connector and internal circuit-board electronics. Its female A-coded connection accepts a compatible sensor or actuator cable, while bent contacts provide PCB dip-solder termination.
The front fastened socket combines M12 × 1.0 panel mounting with a 90-degree board connection. This construction suits equipment where the PCB position requires the contacts to turn behind the panel rather than extend straight back.
Four contact counts are available, with different current and voltage ratings. Select the required pin count, grounding construction and shielding option to match the equipment interface.
Key Features
- Female A-coded connection: Accepts compatible M12 male sensor and actuator cable connectors.
- 90-degree PCB termination: Bent contacts connect the panel socket to the internal board.
- 4 / 5 / 8 / 12-pin options: Four contact arrangements for different circuit requirements.
- Front fastened construction: M12 × 1.0 panel mounting.
- Grounding options: Grounded and ungrounded versions available.
- Shielding selection: Choose shielded or unshielded construction.
Product Dimensions

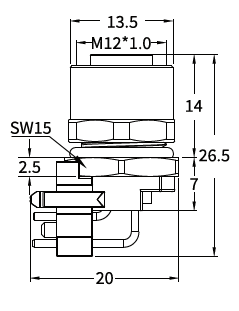

[Insert the female front mount right angle outline drawing and corresponding panel cut-out drawing from page 4.]
Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | M12 × 1.0 |
| Overall vertical dimension shown | 26.5 |
| Upper axial section | 14 |
| Flange section dimension shown | 2.5 |
| Lower section dimension shown | 7 |
| Horizontal dimension shown | 20 |
| Upper body width shown | 13.5 |
| Mounting nut wrench size | SW15 |
| Recommended through-hole diameter | Ø12.1, +0.1/−0 |
| Recommended threaded panel hole | M12 × 1.0 |
| Panel edge chamfer shown | C1.0 |

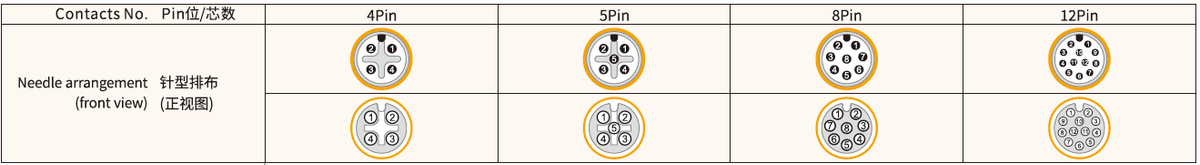

Needle Arrangement (Front View)
[Insert only the female A-coded needle arrangement row showing 4, 5, 8 and 12 pins from page 4.]
The diagrams show the female mating-face view. Use the numbered female arrangement to identify contacts and check compatibility with the external male cable connector.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 A-coded female front mount right angle PCB socket |
| Mounting | Front fastened |
| Contact options | 4 / 5 / 8 / 12 pins |
| PCB contact style | Right angle / 90-degree |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Grounding options | Grounded / ungrounded |
| Shielding options | Shielded / unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting thread | M12 × 1.0 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Contact Count
| Contacts | Rated Current | Rated Voltage |
|---|---|---|
| 4 pins | 4 A | 250 V |
| 5 pins | 4 A | 60 V |
| 8 pins | 2 A | 30 V |
| 12 pins | 1.5 A | 30 V |
Applications
- Sensor connection modules: Receives external male cables and connects them to PCB circuits.
- Actuator control equipment: Provides an A-coded panel socket within the selected ratings.
- Industrial control housings: Suits assemblies requiring right angle PCB contacts.
- Multi-contact automation devices: Routes multiple circuits through one detachable M12 interface.
Selection and Ordering
| Contact Count | Ungrounded Female Part Number | Grounded Female Part Number |
|---|---|---|
| 4 pins | 1M1211AF04R12P | 1M1211AF04R12PM |
| 5 pins | 1M1211AF05R12P | 1M1211AF05R12PM |
| 8 pins | 1M1211AF08R12P | 1M1211AF08R12PM |
| 12 pins | 1M1211AF12R12P | 1M1211AF12R12PM |
Specify the required shielded or unshielded construction when requesting a quotation.
Example enquiry: M12 A-coded female front mount right angle PCB socket, 8-pin, grounded construction, shielded version, part number 1M1211AF08R12PM.
