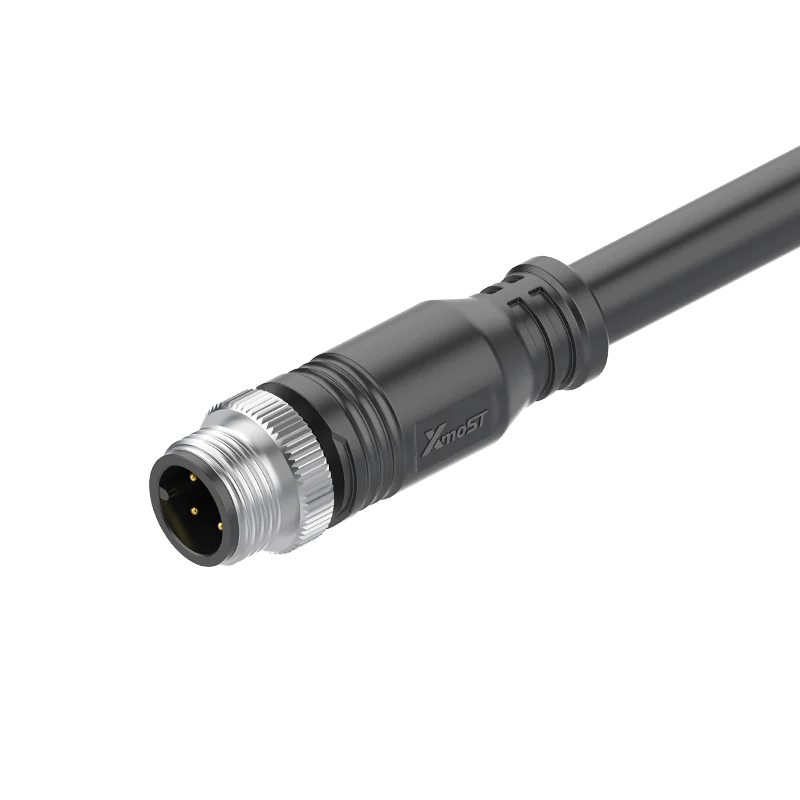

Xmost M12 A-coded male straight connector is an unshielded, single-ended molded cable assembly for compatible sensor and actuator connections. Available in 3-, 4-, 5-, 8-, 12- and 17-pin configurations, this M12 sensor cable connector features a straight cable exit, M12 screw locking and PVC or PUR cable options.
Brand: Xmost
Connector Size: M12
Coding: A-coded
Contact Gender: Male
Contact Configurations: 3-pin / 4-pin / 5-pin / 8-pin / 12-pin / 17-pin
Assembly Type: Single-ended molded cable assembly
Connector Orientation: Straight
Shielding: Unshielded
Application: Sensors and Actuators
Standard: IEC 61076-2-101
Product Overview

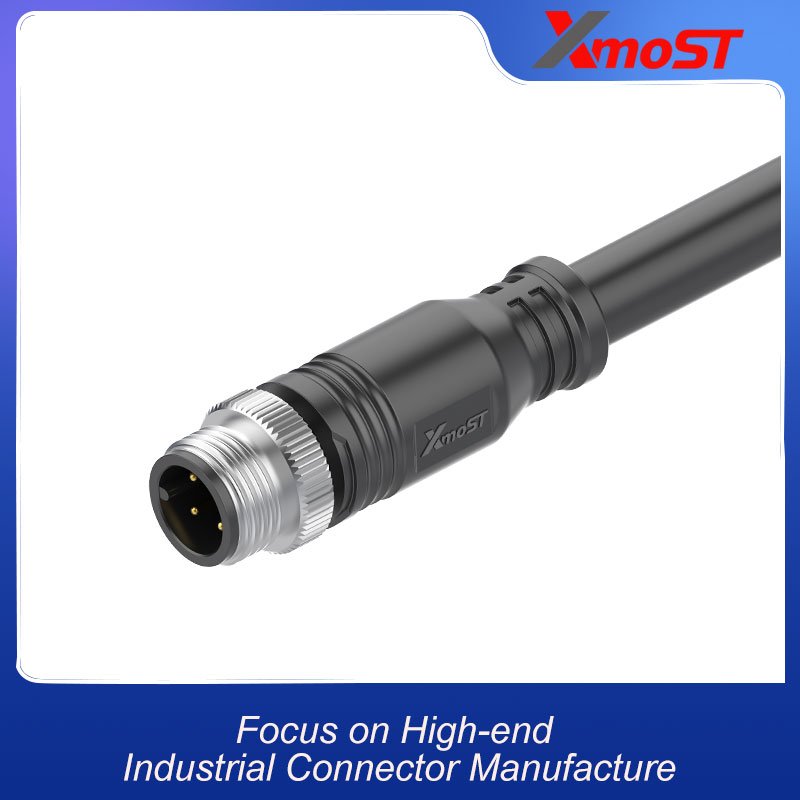

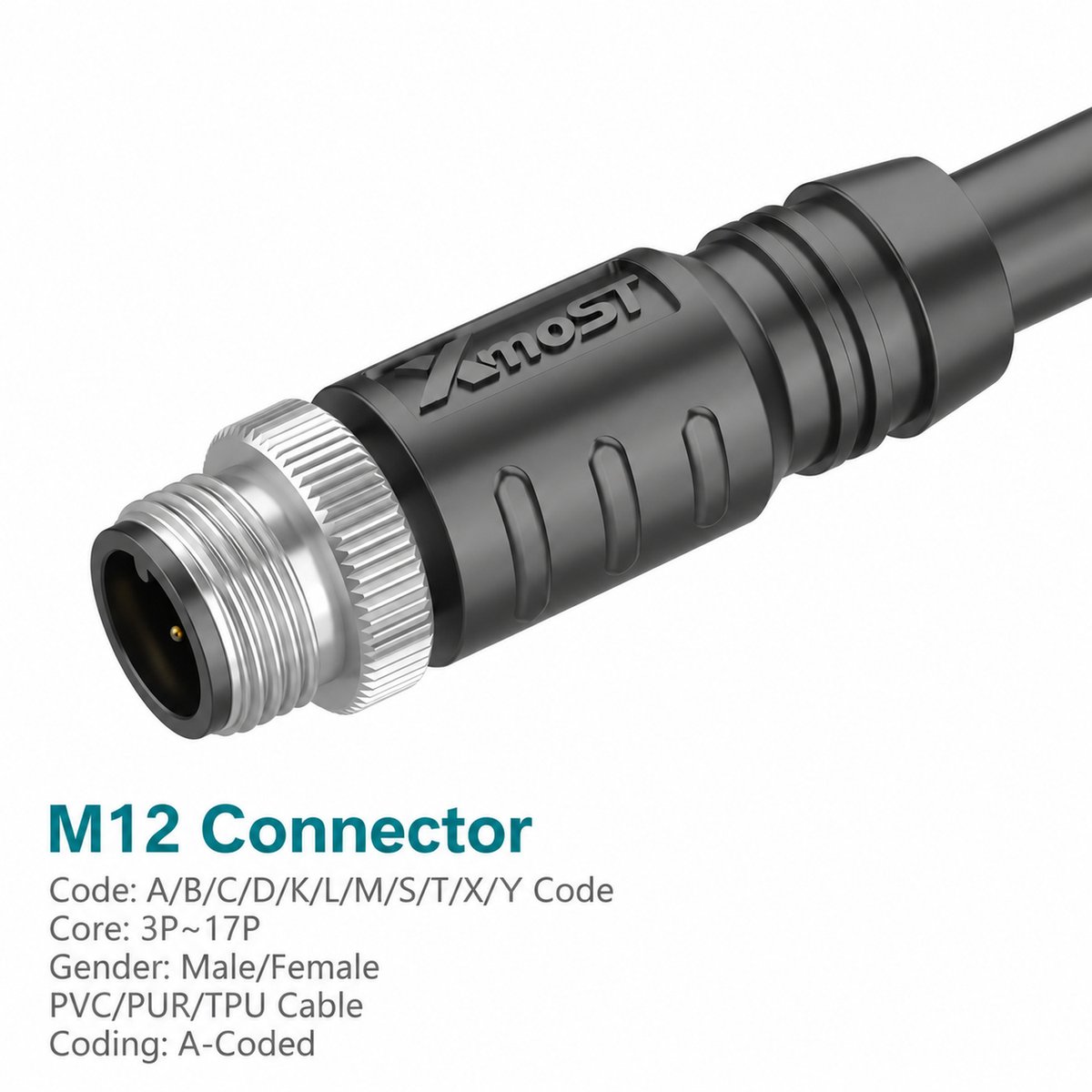

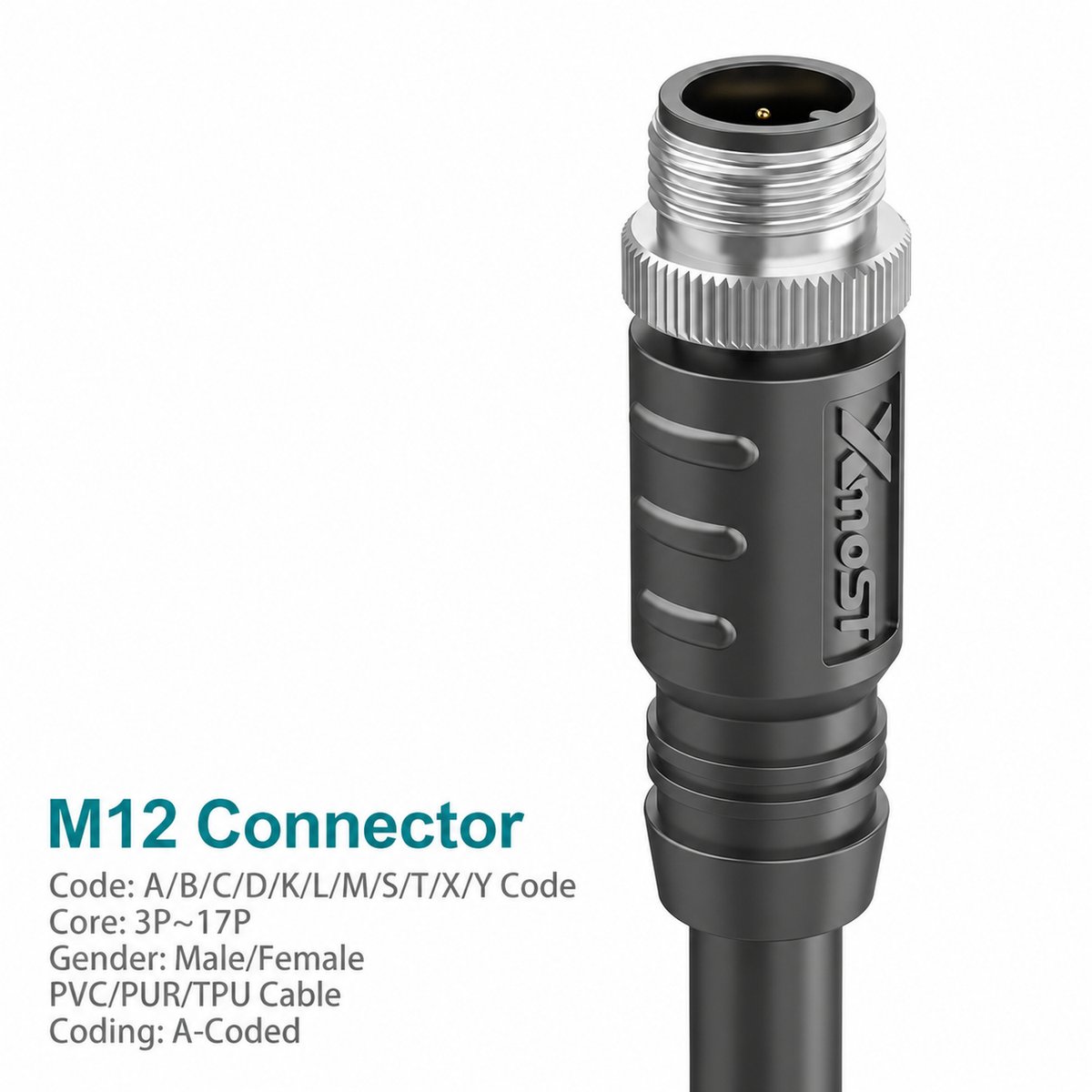

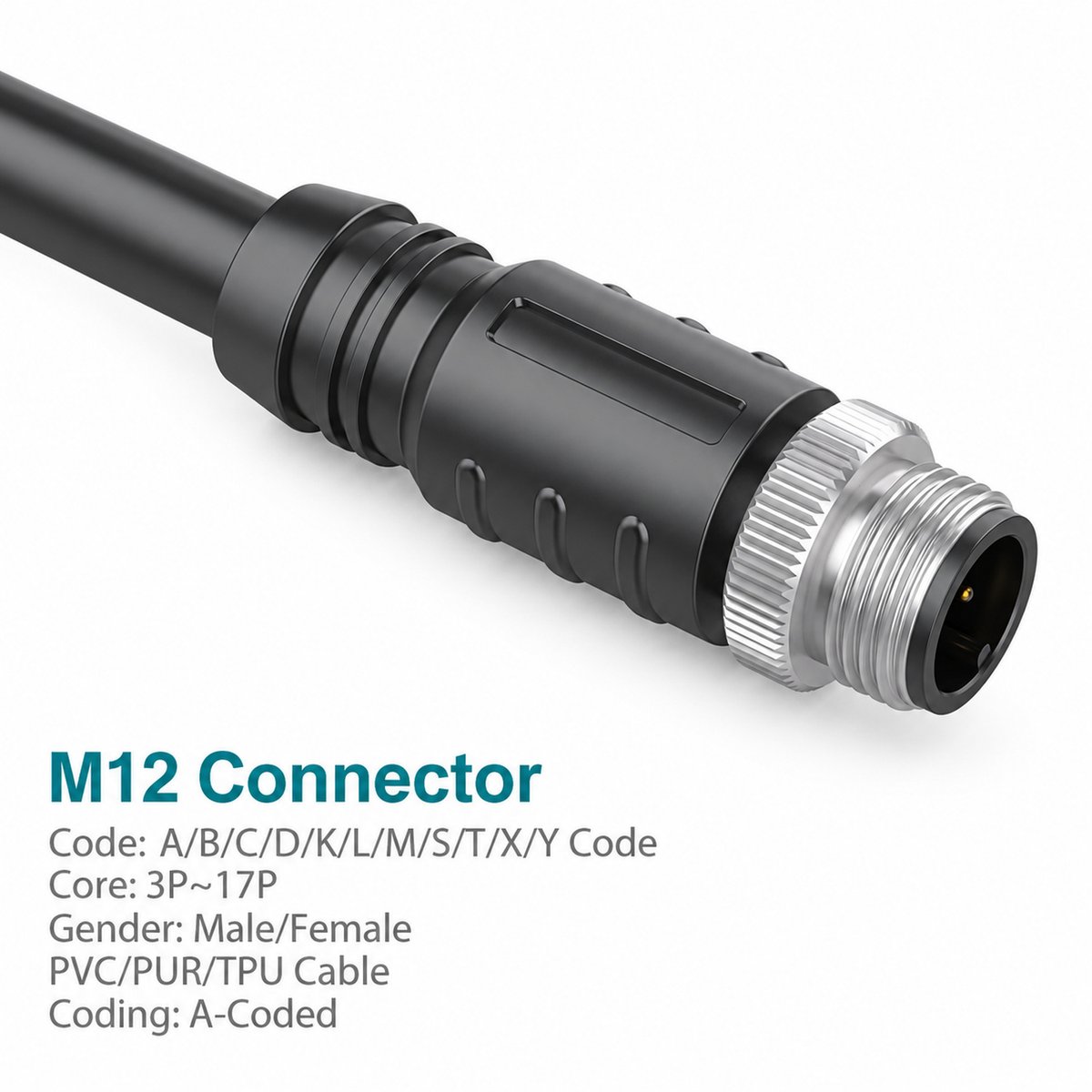

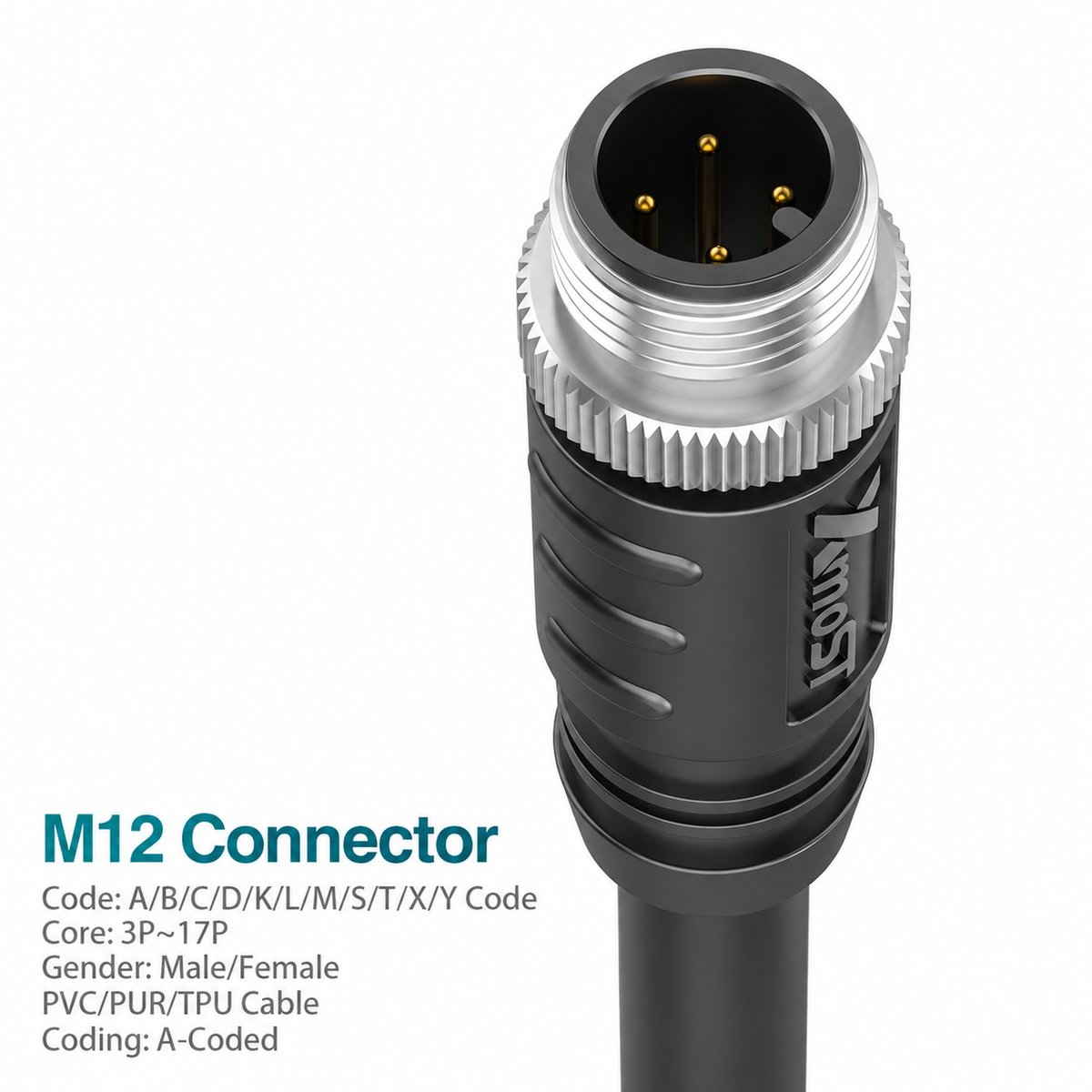

The Xmost M12 A-coded male straight cable connector provides a preassembled connection for compatible sensors, actuators and industrial automation equipment. Its single-ended molded construction combines the male connector and cable into one assembly.
The straight cable exit directs the cable along the mating axis, supporting installations with clearance behind the connection. M12 × 1.0 screw locking secures the interface to a matching A-coded female connector.
This unshielded M12 sensor cable assembly is available in six contact configurations. Electrical ratings and wire sizes vary by pin count. PVC and PUR cable options are listed in 1 m and 3 m lengths.
Key Features
- M12 A-coded male interface for compatible sensors and actuators.
- Straight molded connector for axial cable routing.
- Unshielded, single-ended cable assembly.
- 3-, 4-, 5-, 8-, 12- and 17-pin configurations.
- M12 × 1.0 screw-locking interface.
- Preassembled cable construction with an integrated molded cable exit.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.

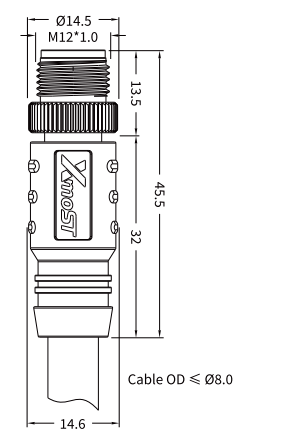

Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Connector axial length shown | 45.5 |
| Coupling section axial span | 13.5 |
| Molded body axial span | 32 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 14.6 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the straight male connector drawing. Cable length is specified separately.
Product Specifications
Electrical Ratings by Contact Configuration
| Contact Configuration | Rated Current | Rated Voltage | Wire Size |
|---|---|---|---|
| 3-pin | 4 A | 250 V | 0.34 mm² / AWG22 |
| 4-pin | 4 A | 250 V | 0.34 mm² / AWG22 |
| 5-pin | 4 A | 60 V | 0.34 mm² / AWG22 |
| 8-pin | 2 A | 30 V | 0.34 mm² / AWG22 |
| 12-pin | 1.5 A | 30 V | 0.25 mm² / AWG24 |
| 17-pin | 1.5 A | 30 V | 0.14 mm² / AWG26 |
General Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | A-coded |
| Contact Gender | Male |
| Connector Orientation | Straight |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Unshielded |
| Application Listed | Sensors and Actuators |
| Standard Listed | IEC 61076-2-101 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
Applications
Suggested applications for this M12 A-coded male straight sensor connector include:
- Industrial sensors: Connections to compatible A-coded female interfaces.
- Actuator wiring: Cable connections to devices with matching pin arrangements and electrical requirements.
- Automation equipment: Field-device wiring between compatible sensors, actuators and I/O modules.
- Multi-contact device connections: Equipment requiring the selected 8-, 12- or 17-pin arrangement.
- Axial cable-routing layouts: Installations where the cable can exit directly behind the connector.
Select the pin count, electrical ratings and wire assignment to match the connected equipment.
Selection and Ordering
Specify the contact configuration, cable jacket and cable length. Select the corresponding unshielded straight male part number from the catalog ordering table.
Match the A-coded interface and pin arrangement to the equipment. Follow the male connector’s front-view pin diagram and corresponding wire-color assignment when wiring.
