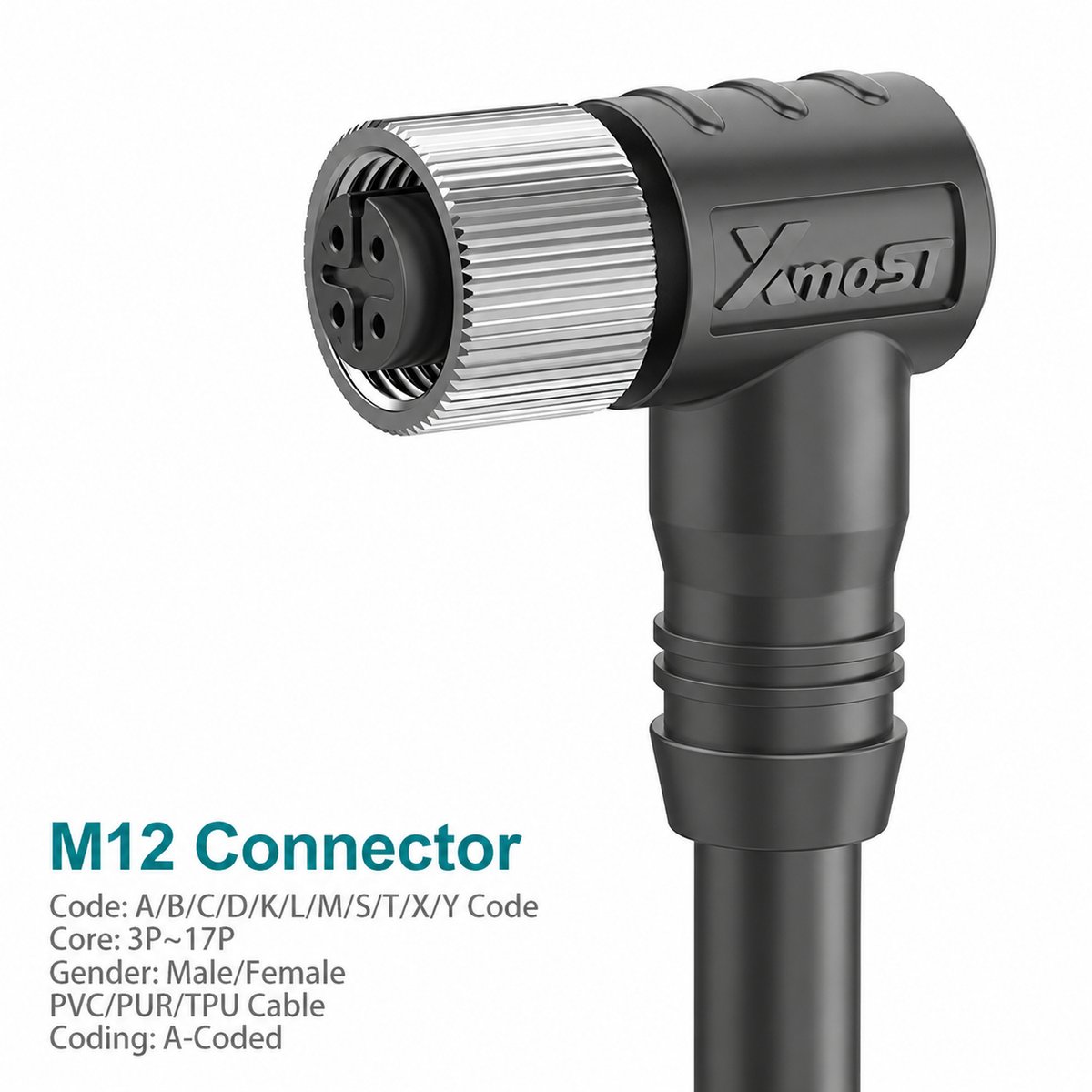

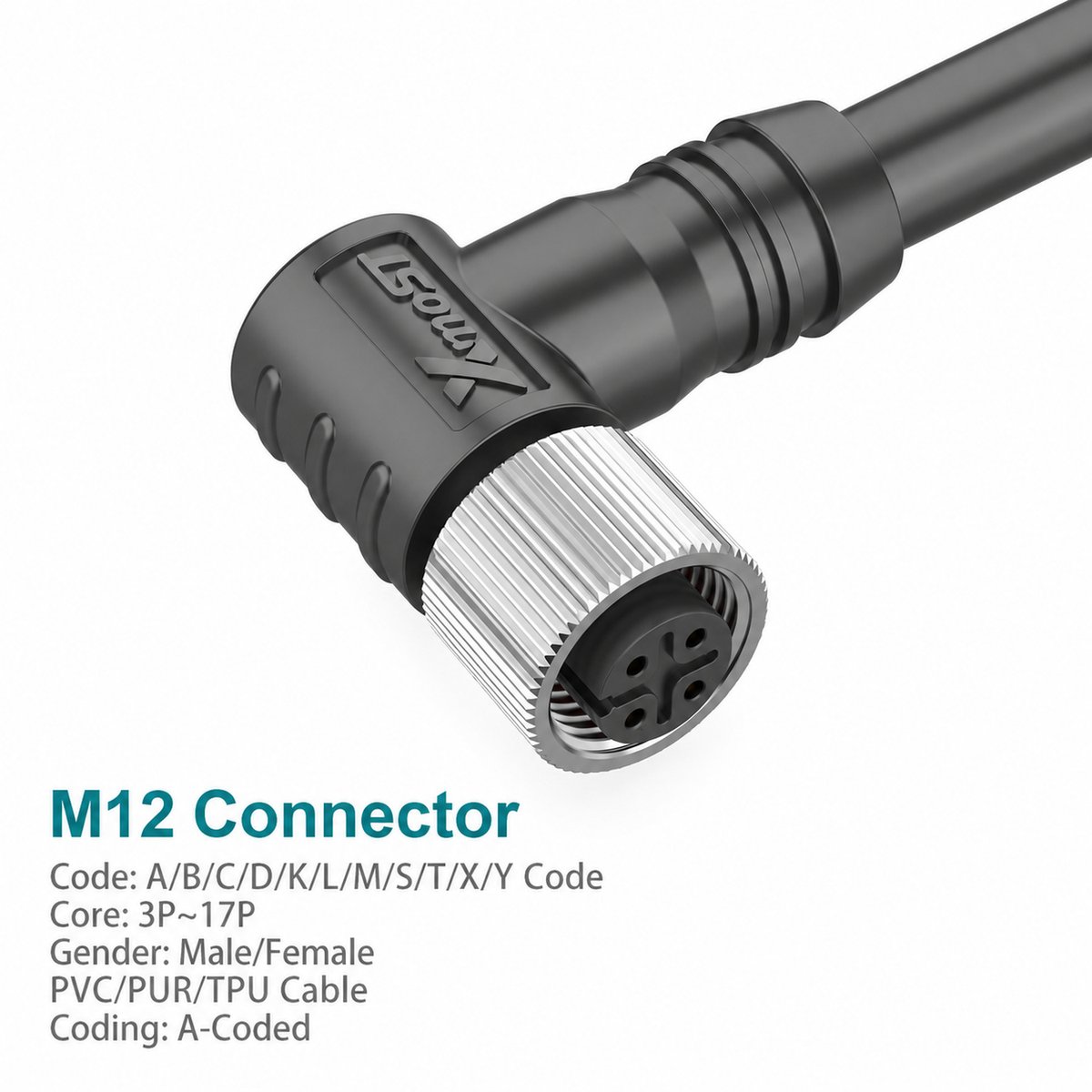

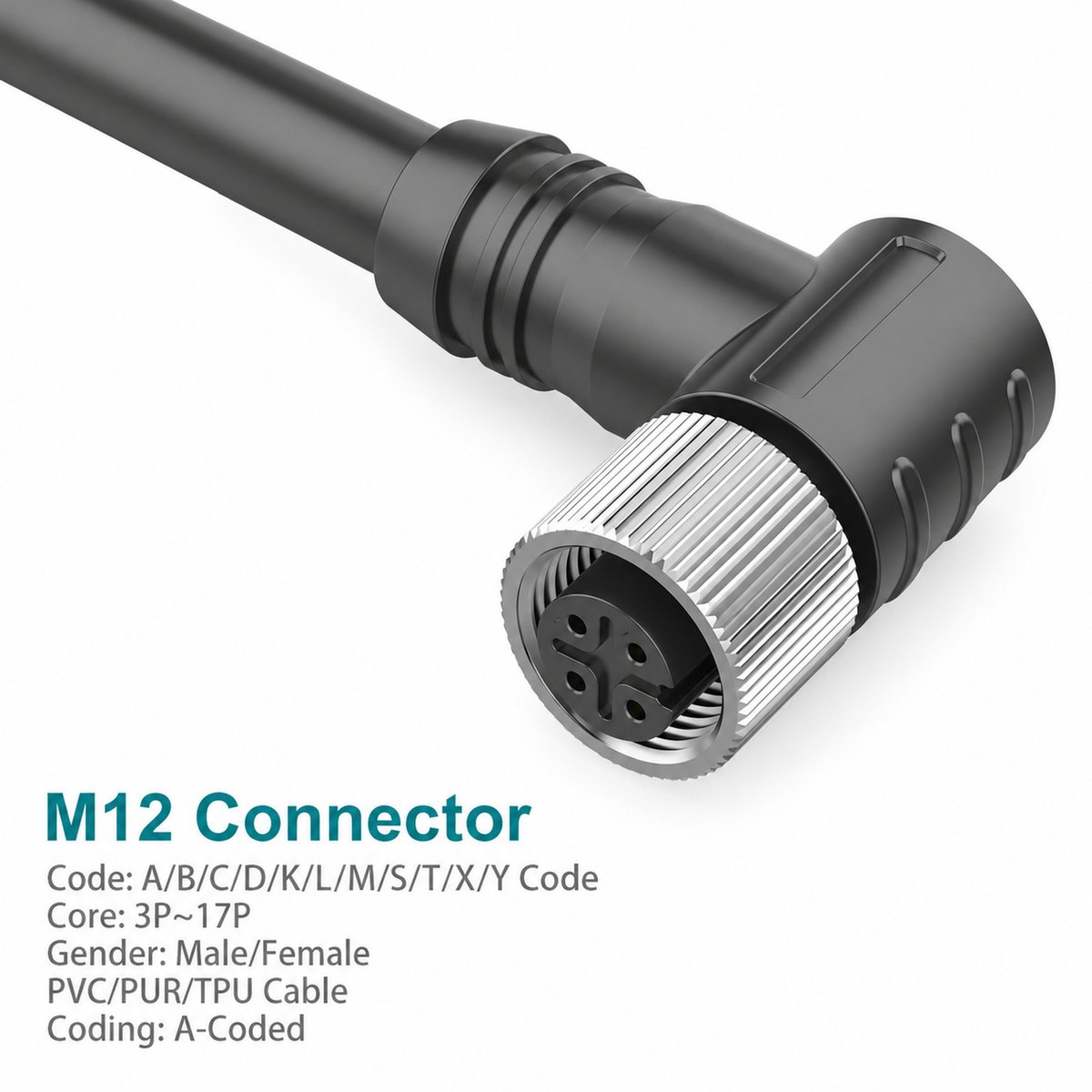

Xmost M12 A-coded female 90° shielded cable connector provides a preassembled connection to equipment with a matching A-coded male interface. Its right-angle molded design directs the cable perpendicular to the mating axis, accommodating layouts where a straight cable exit is impractical.
This single-ended M12 female shielded sensor cable assembly uses M12 × 1.0 screw locking. Six contact configurations are listed, with electrical ratings and wire sizes varying by pin count.
PVC and PUR cable options are available in catalog lengths of 1 m and 3 m.
Key Features
- 90° right-angle cable exit for routing close to equipment.
- M12 A-coded female interface for compatible sensors and actuators.
- Shielded, single-ended molded cable construction.
- 3-, 4-, 5-, 8-, 12- and 17-pin configurations.
- M12 × 1.0 screw locking.
- Preassembled cable design with an integrated molded cable exit.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.
Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Horizontal span shown | 31.4 |
| Horizontal molded section | 18 |
| Vertical span shown | 36.3 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.4 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the right-angle female connector drawing. Cable length is specified separately.
Product Specifications
Electrical Ratings by Contact Configuration
| Contact Configuration | Rated Current | Rated Voltage | Wire Size |
|---|---|---|---|
| 3-pin | 4 A | 250 V | 0.34 mm² / AWG22 |
| 4-pin | 4 A | 250 V | 0.34 mm² / AWG22 |
| 5-pin | 4 A | 60 V | 0.34 mm² / AWG22 |
| 8-pin | 2 A | 30 V | 0.34 mm² / AWG22 |
| 12-pin | 1.5 A | 30 V | 0.25 mm² / AWG24 |
| 17-pin | 1.5 A | 30 V | 0.14 mm² / AWG26 |
General Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | A-coded |
| Contact Gender | Female |
| Connector Orientation | 90° Right-angle |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Shielded |
| Application Listed | Sensors and Actuators |
| Standard Listed | IEC 61076-2-101 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
Applications
Suggested applications for this M12 A-coded female right-angle shielded sensor connector include:
- Industrial sensors: Connections to devices with compatible A-coded male interfaces.
- Actuators and field devices: Wiring to equipment with matching electrical and contact requirements.
- Automation modules: Shielded sensor and actuator connections in machine control systems.
- Compact machine layouts: Installations where nearby components restrict a straight cable exit.
- Equipment panel connections: Cable routing alongside the panel through a 90° connection.
Select the pin count, electrical ratings, wire assignment and shielding arrangement to match the connected equipment.
Selection and Ordering
Specify the contact configuration, cable jacket and cable length. Select the corresponding shielded right-angle female part number from the catalog ordering table.
Check the A-coded mating interface, pin assignment and cable-routing clearance. Follow the female connector’s front-view wiring diagram and maintain the specified shield connection during installation.
