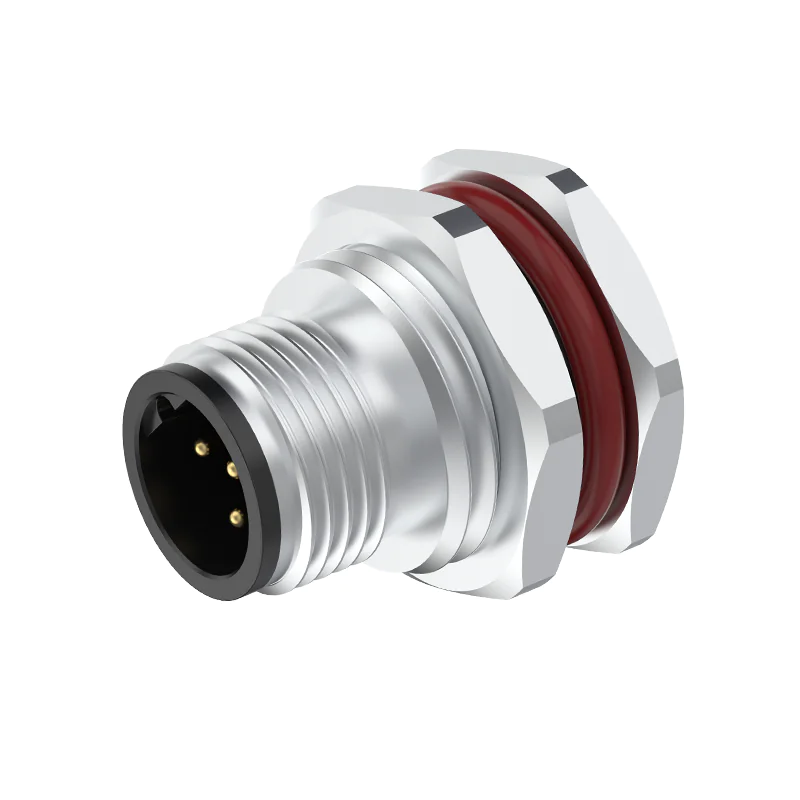

M12 B-Code 5Pin Male 2

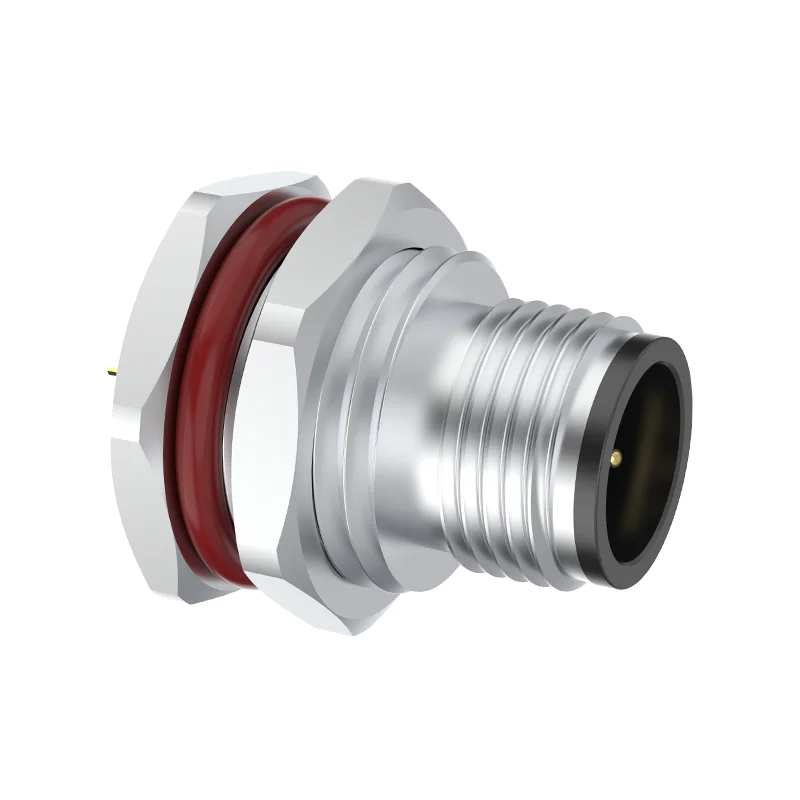

M12 Connector B-Code 5Pin Male Straight Front-Locking Socket, Solder, IP68 - Image 2

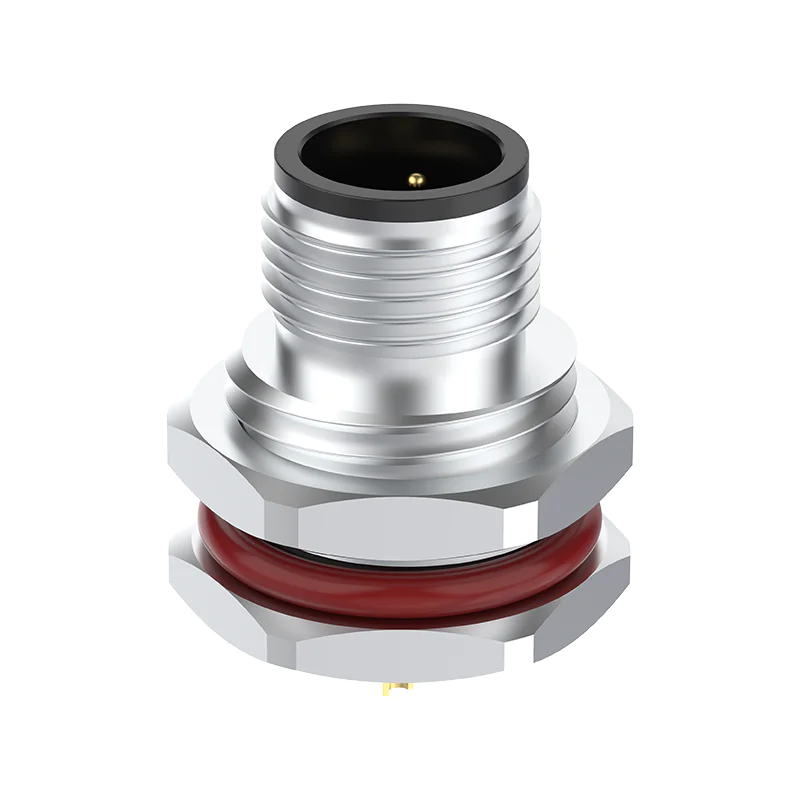

M12 Connector B-Code 5Pin Male Straight Front-Locking Socket, Solder, IP68 - Image 3

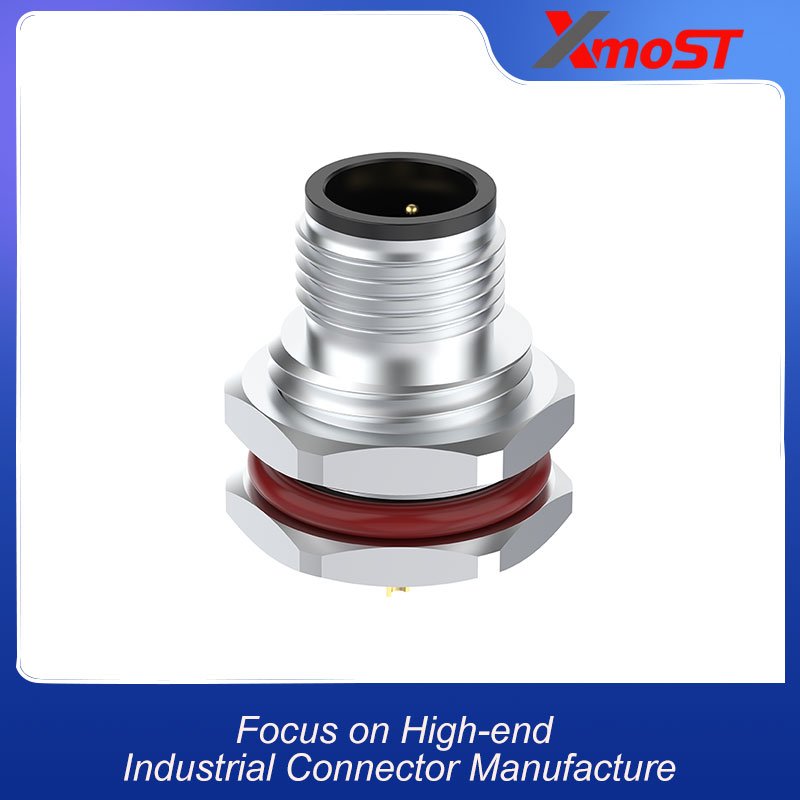

M12 Connector B-Code 5Pin Male Straight Front-Locking Socket, Solder, IP68

  • Category: M12
  • Model: Front-Locking Socket
  • Connector Type: Male Pin
  • Coding: B Code
  • Pin Count: 5Pin
  • Number of Cores: 5
  • Shape: Straight
  • Wiring Method: Solder / Soldering
  • Shielding: No (Non-Shielded)
  • Protection Rating: IP67, IP68
  • Standard: IEC 61076-2-101
  • Rated Current: 4A
  • Rated Voltage: 60V
  • Insulation Resistance: ≥100MΩ
  • Contact Resistance: ≤5mΩ
  • Shielding Performance: Non-Shielded
  • Locking Method: M12×1.0 Screw Lock
  • Screw Torque: Recommended: 0.4Nm, Maximum: 0.8Nm
Category: Tag: Brand:

M12 B-Code 5Pin male straight front-locking socket with solder termination. IP67/IP68 waterproof. Front panel mount design for secure installation. Brass nickel-plated nut, gold-plated contacts. Operating temperature -25°C to +85°C. Ideal for industrial automation, sensors, and actuators requiring high waterproof rating and reliable panel mounting.

  • Termination Method: Soldering
  • Dynamic Operating Temperature: -25°C ~ +80°C
  • Static Operating Temperature: -40°C ~ +80°C
  • Wire Gauge Range: 0.34mm² (AWG22)
  • Ingress Protection: IP67, IP68
  • Pollution Degree: 3
  • Insulator Material: PA66+GF / TPU+GF
  • Screw / Nut Material: Brass with Nickel Plating (Brass Ni) / Zinc Alloy with Nickel Plating
  • Pin Material: Phosphor Bronze with Gold Plating / Brass with Gold Plating
  • Sealing Material: FKM / Silicone / Epoxy
