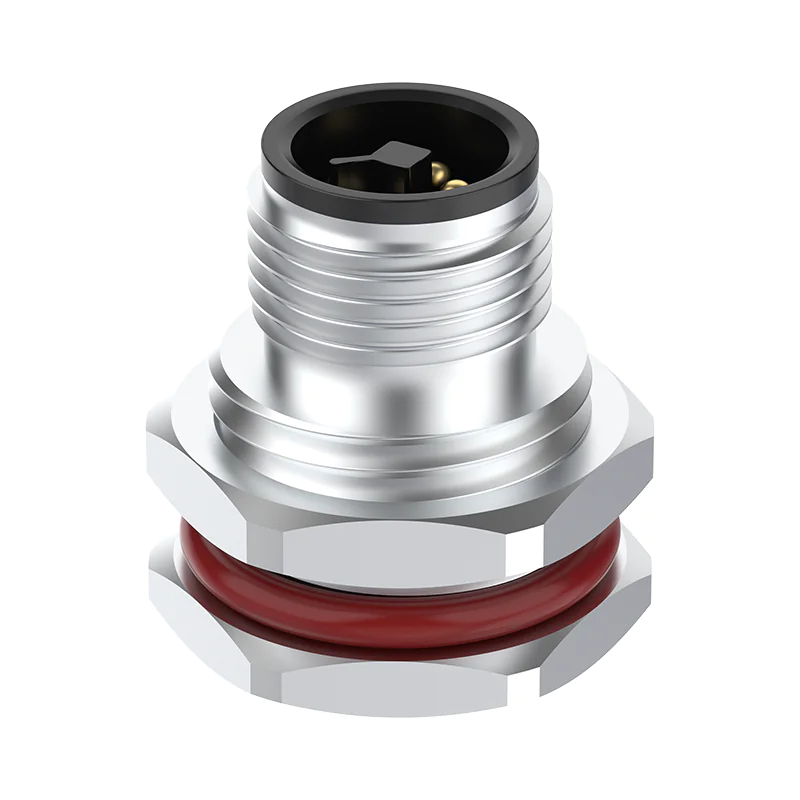

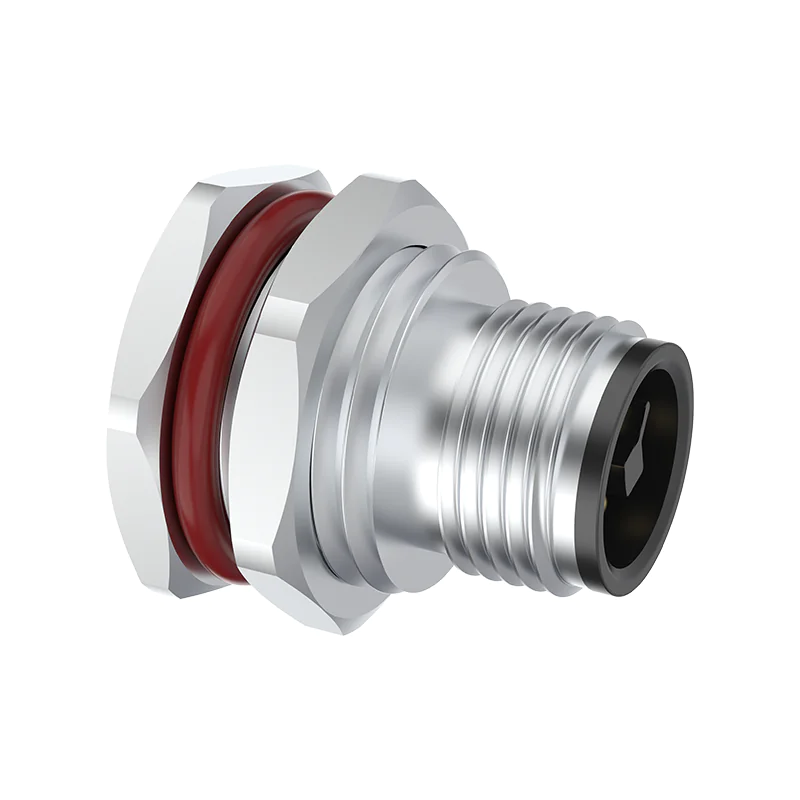

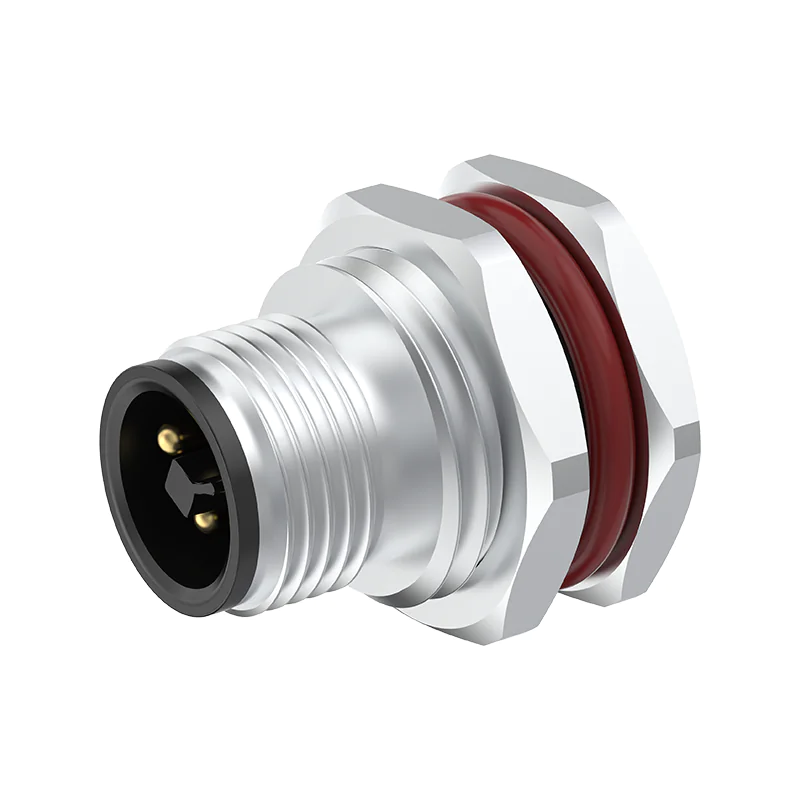

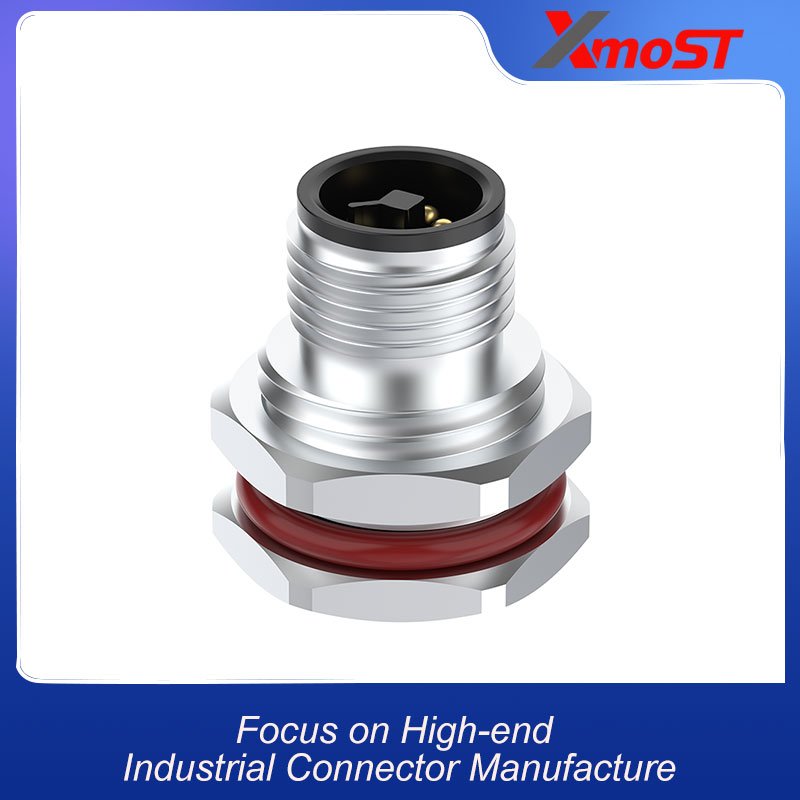

M12 T-Code 4Pin male front panel socket compliant with IEC 61076-2-111. Rated 60V / 12A DC for power transmission. IP67/IP68 waterproof. Solder or crimp termination (1.5mm² / AWG16). Front panel mount design with M12x1.0mm screw locking. Brass nickel-plated nut, phosphor bronze gold-plated pins. Insulation resistance ≥100MΩ, contact resistance ≤5mΩ. Operating temperature -25°C to +80°C (dynamic) / -40°C to +80°C (static). Ideal for sensor/actuator power supply, field distribution boxes, and industrial automation requiring compact power connection.
