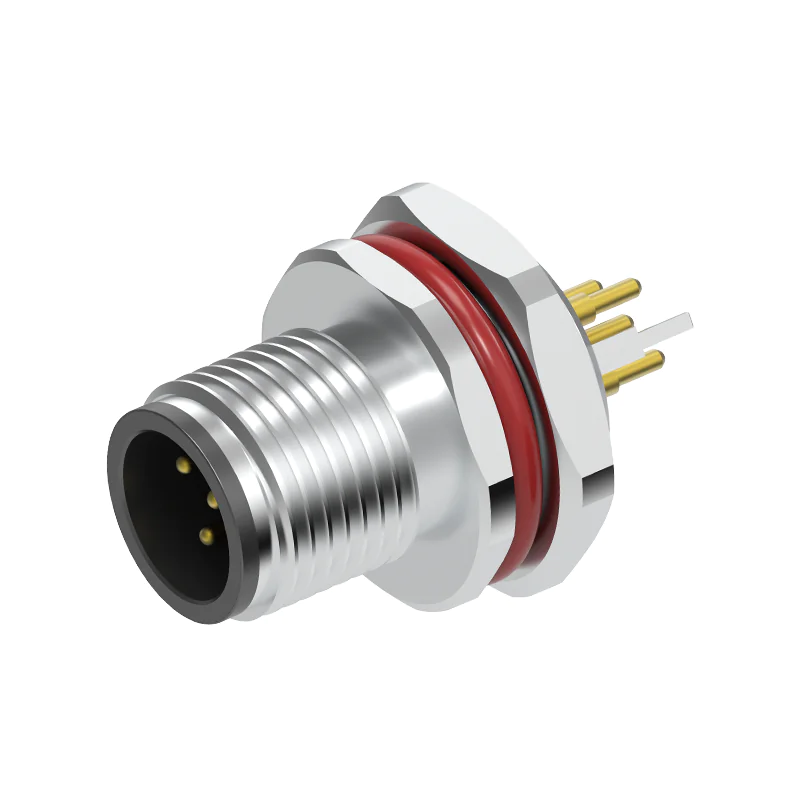

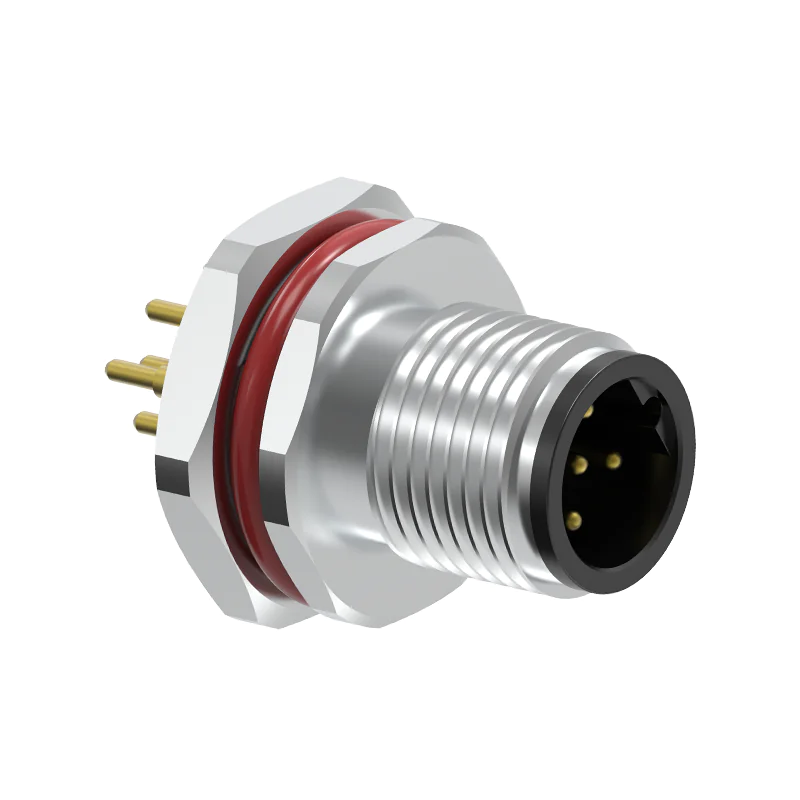

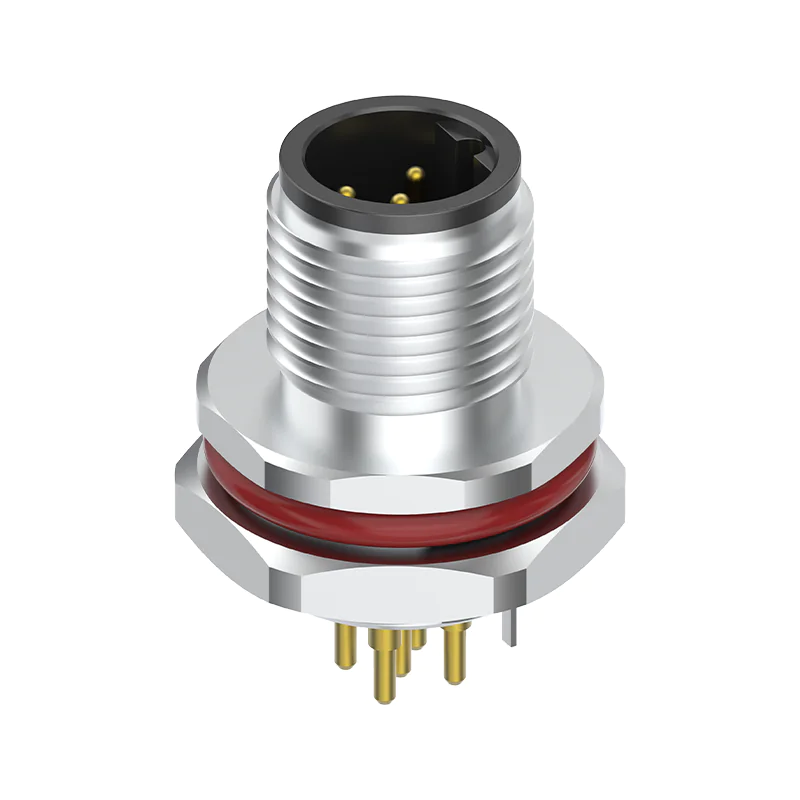

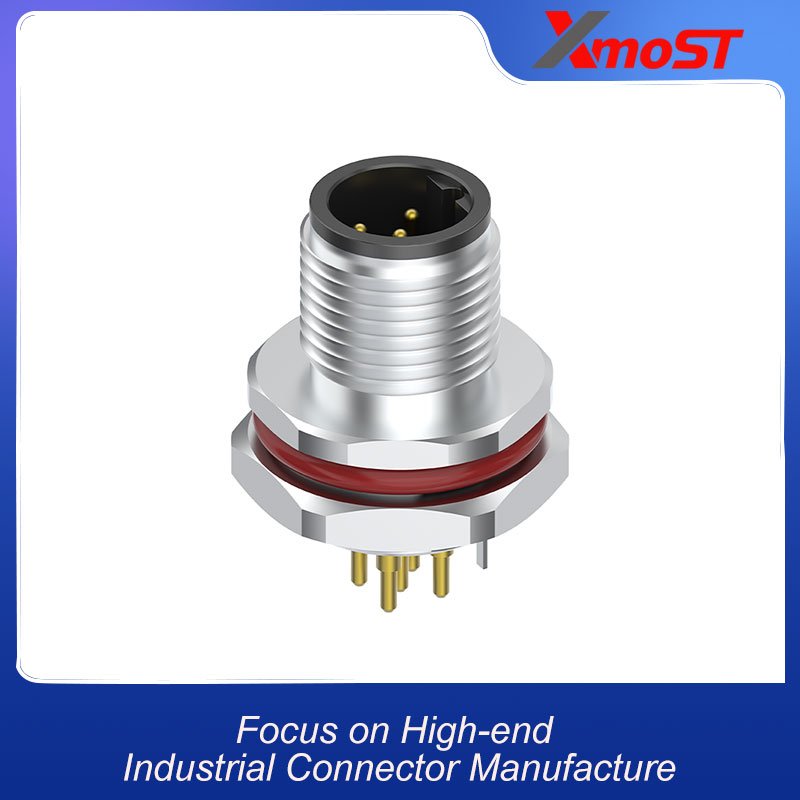

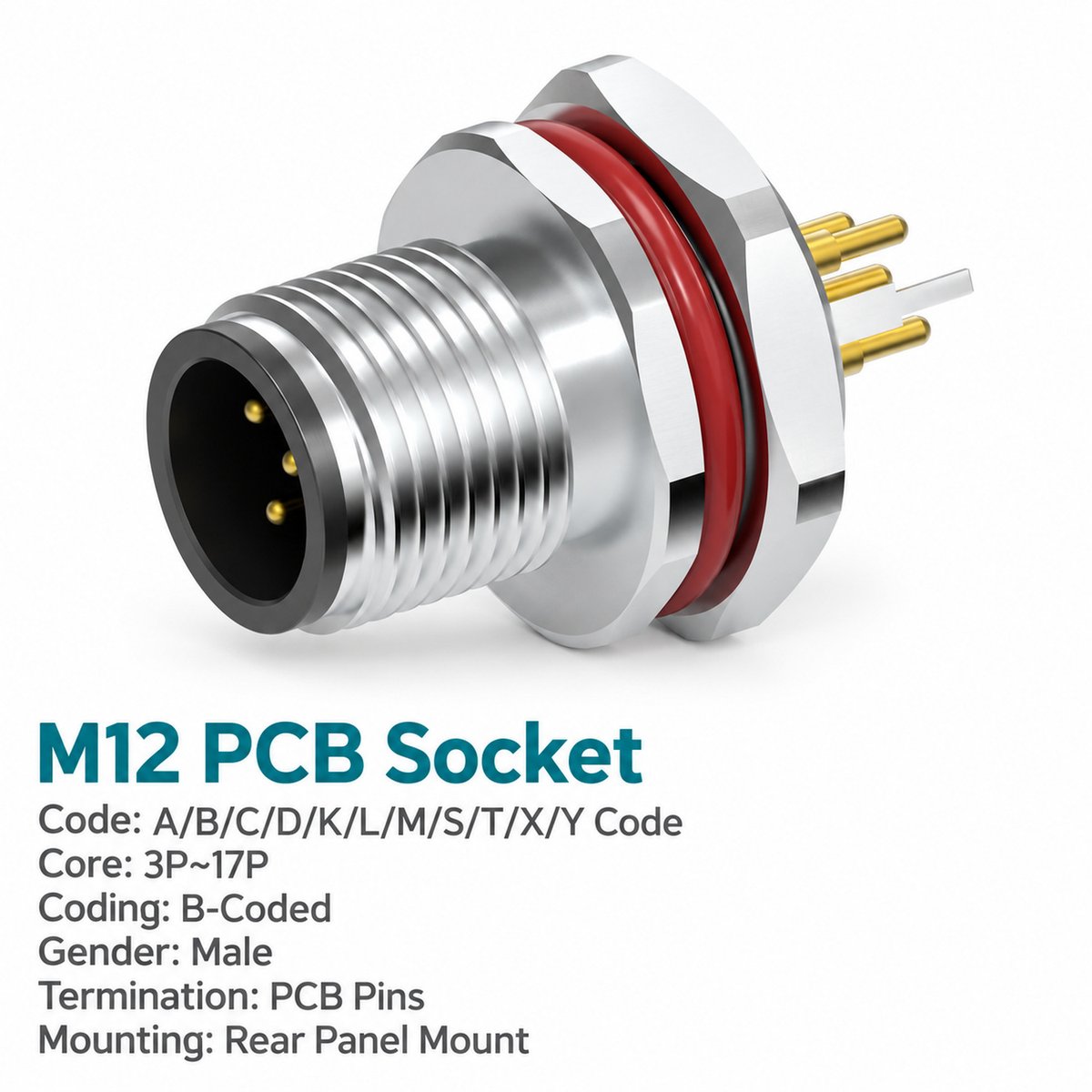

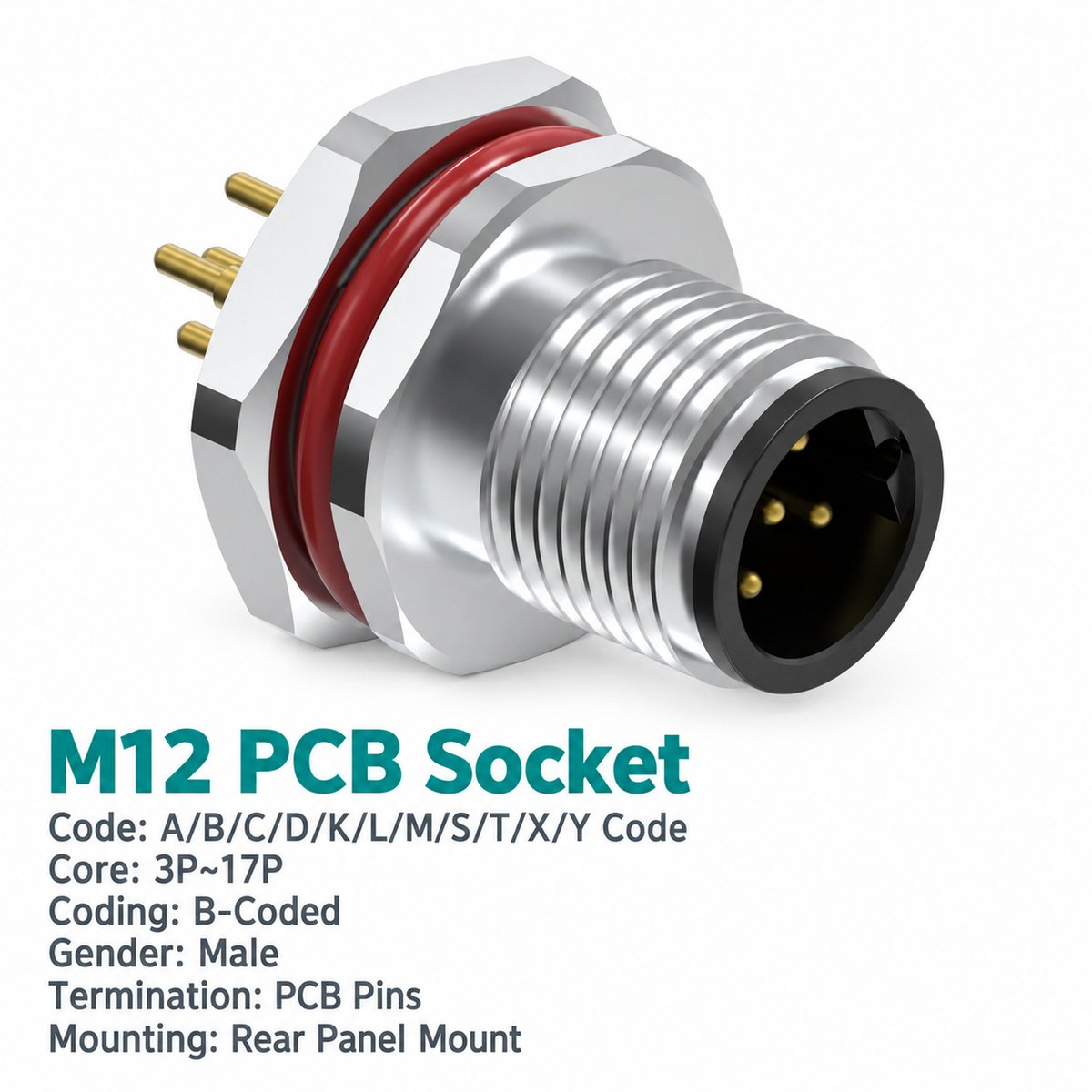

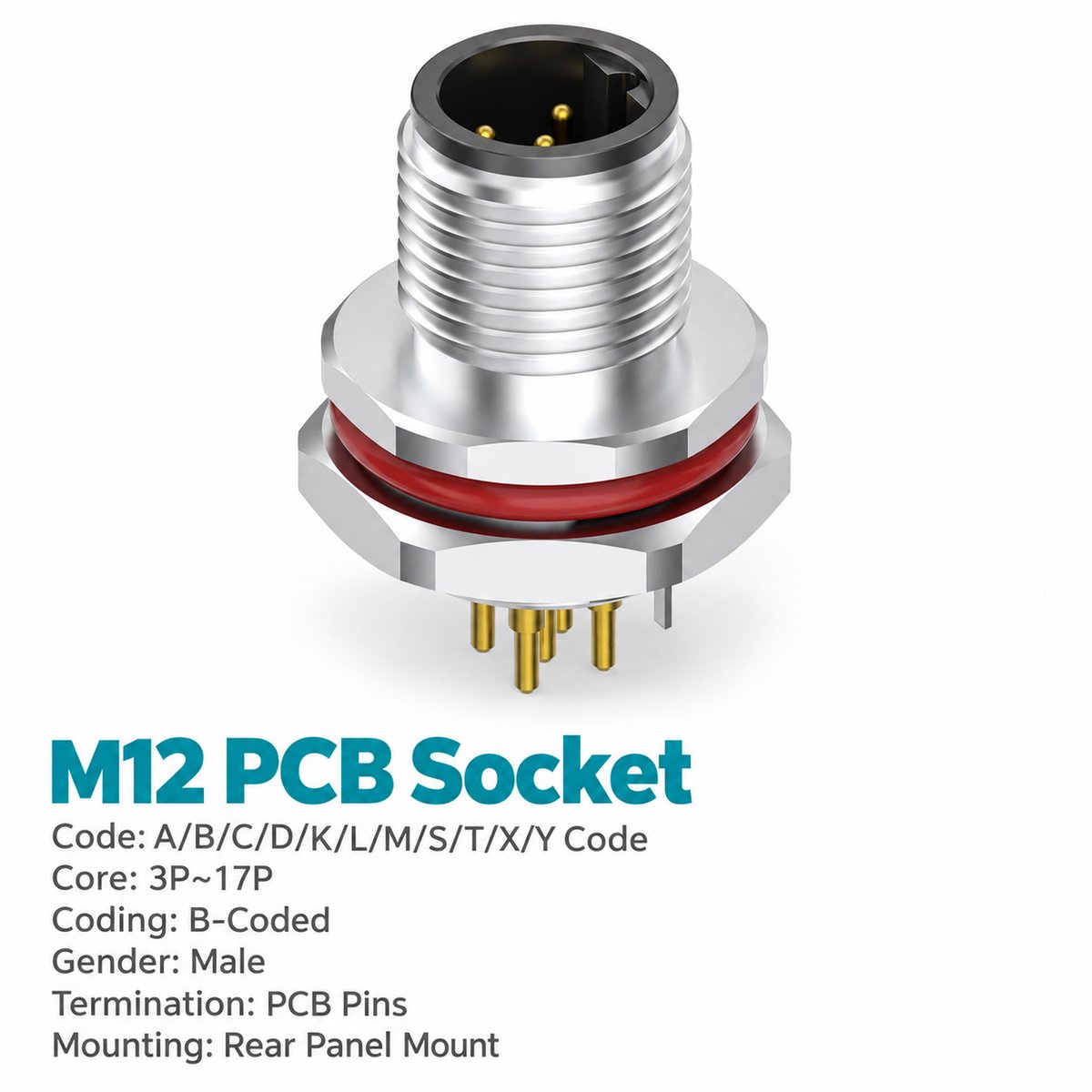

Xmost M12 B-coded male rear mount PCB connector links an external PROFIBUS cable assembly to the circuit board inside industrial communication equipment. The male B-coded interface accepts a compatible female cable connector, with straight rear contacts providing PCB dip-solder termination.
Designed for rear fastened installation, this M12 panel mount connector suits enclosures with a defined panel-to-board position. Its rear mount outline differs from the front mount version and should be used when checking housing clearance and PCB placement.
Three panel mounting threads are available. Grounded or ungrounded construction and shielded or unshielded options allow the connector to be specified for the equipment’s fieldbus interface.
Key Features
- Rear fastened construction: For equipment housings designed around a rear mount panel connector.
- Male B-coded connection: Mates with compatible 5-pin M12 B-coded female PROFIBUS cable connectors.
- Direct PCB termination: Straight insertion contacts support dip soldering to the internal board.
- Multiple mounting threads: Choose M12 × 1.0, PG9 or M16 × 1.5.
- Grounding and shielding options: Match the connector construction to the equipment design.
- Listed 4 A / 60 V ratings: Electrical specifications for the 5-pin configuration.
Product Dimensions
[Insert the male rear mount outline drawing and corresponding panel cut-out drawing from page 5.]
Illustrated PG9 Rear Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20.4 |
| Upper axial section | 11 |
| Flange section | 2 |
| Lower axial section | 7 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter, 5-pin version | Ø1.0 |
Needle Arrangement (Front View)
[Insert the B-coded 5-pin male needle arrangement diagram from page 5.]
The diagram shows the male connector from the mating face, with contacts numbered 1–5. Use the numbered arrangement to identify contacts and verify the mating female connector. Signal functions follow the equipment wiring specification.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 B-coded male rear mount PCB connector |
| Mounting | Rear fastened |
| Contact count | 5 pins |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Rated current | 4 A |
| Rated voltage | 60 V |
| Grounding options | Grounded / ungrounded |
| Shielding options | Shielded / unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | M12 × 1.0 / PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- PROFIBUS fieldbus devices: Connects external cables to PCB-based communication circuits.
- Remote I/O modules: Provides a B-coded interface for distributed automation equipment.
- Industrial communication gateways: Supports equipment incorporating a compatible PROFIBUS cable connection.
- Machine control housings: Suits rear fastened panel assemblies with internal PCB termination.
Selection and Ordering
| Grounding Option | M12 × 1.0 Mounting | PG9 Mounting | M16 × 1.5 Mounting |
|---|---|---|---|
| Ungrounded | 1M1208BM05H12P | 1M1208BM05HP9P | 1M1208BM05H16P |
| Grounded | 1M1208BM05H12PS | 1M1208BM05HP9PS | 1M1208BM05H16PS |
Specify the required shielding option when requesting a quotation.
Example enquiry: M12 B-coded male rear mount PROFIBUS PCB connector, 5-pin, M16 × 1.5 mounting, grounded construction, shielded version.
