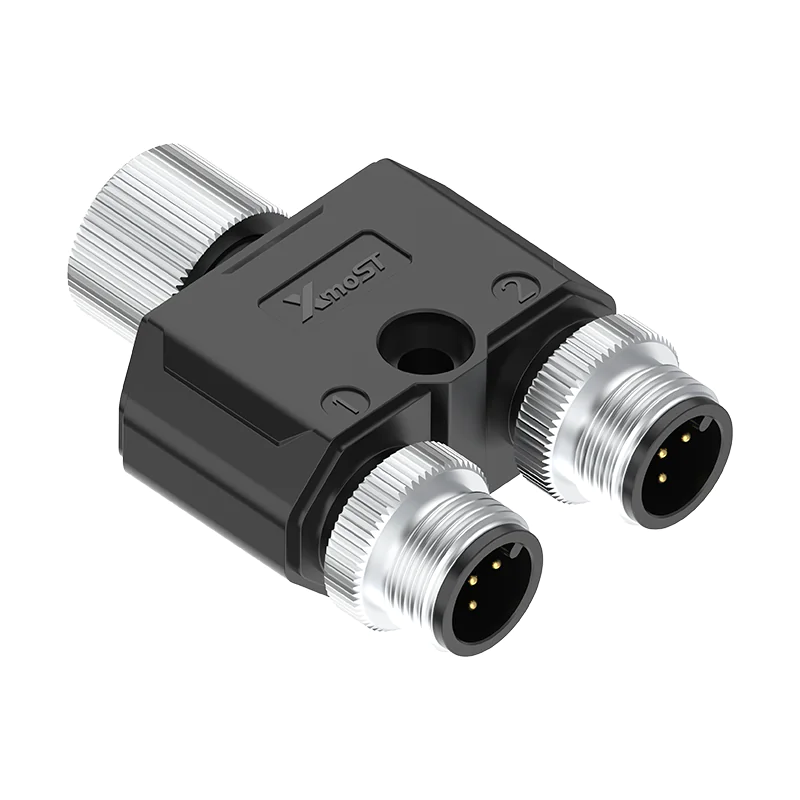

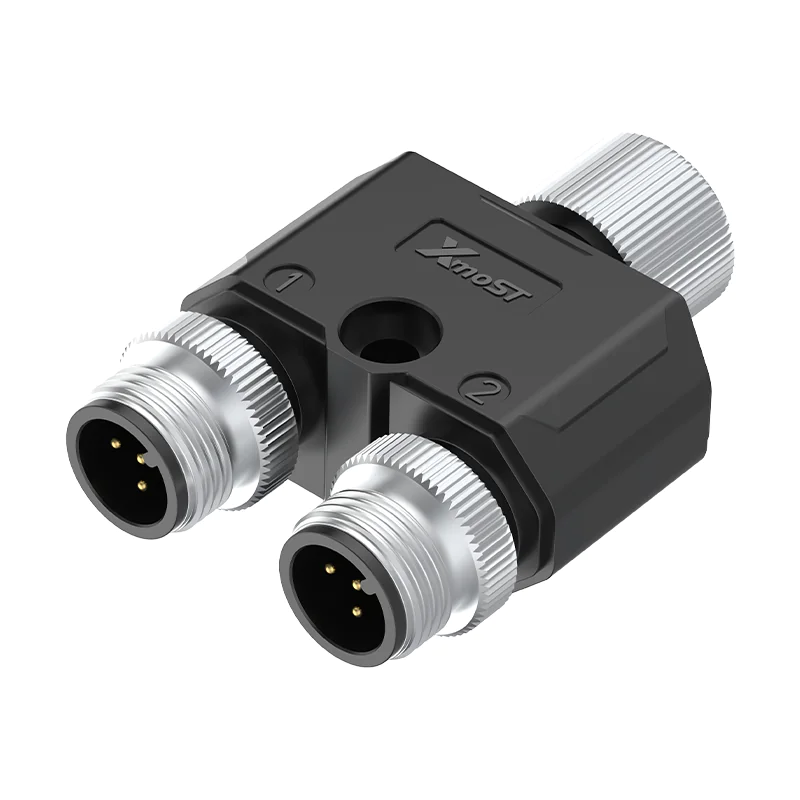

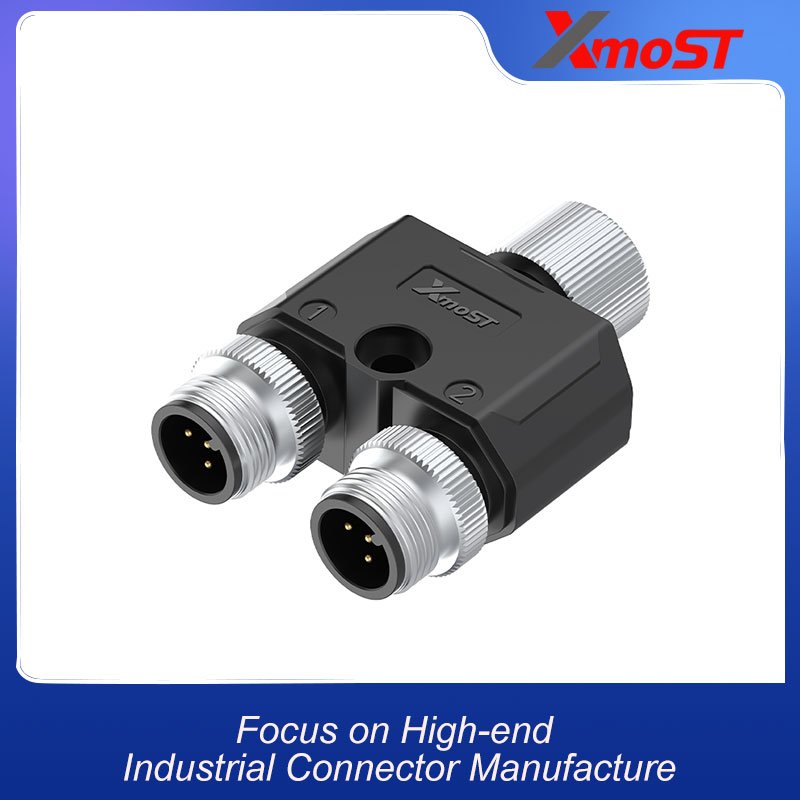

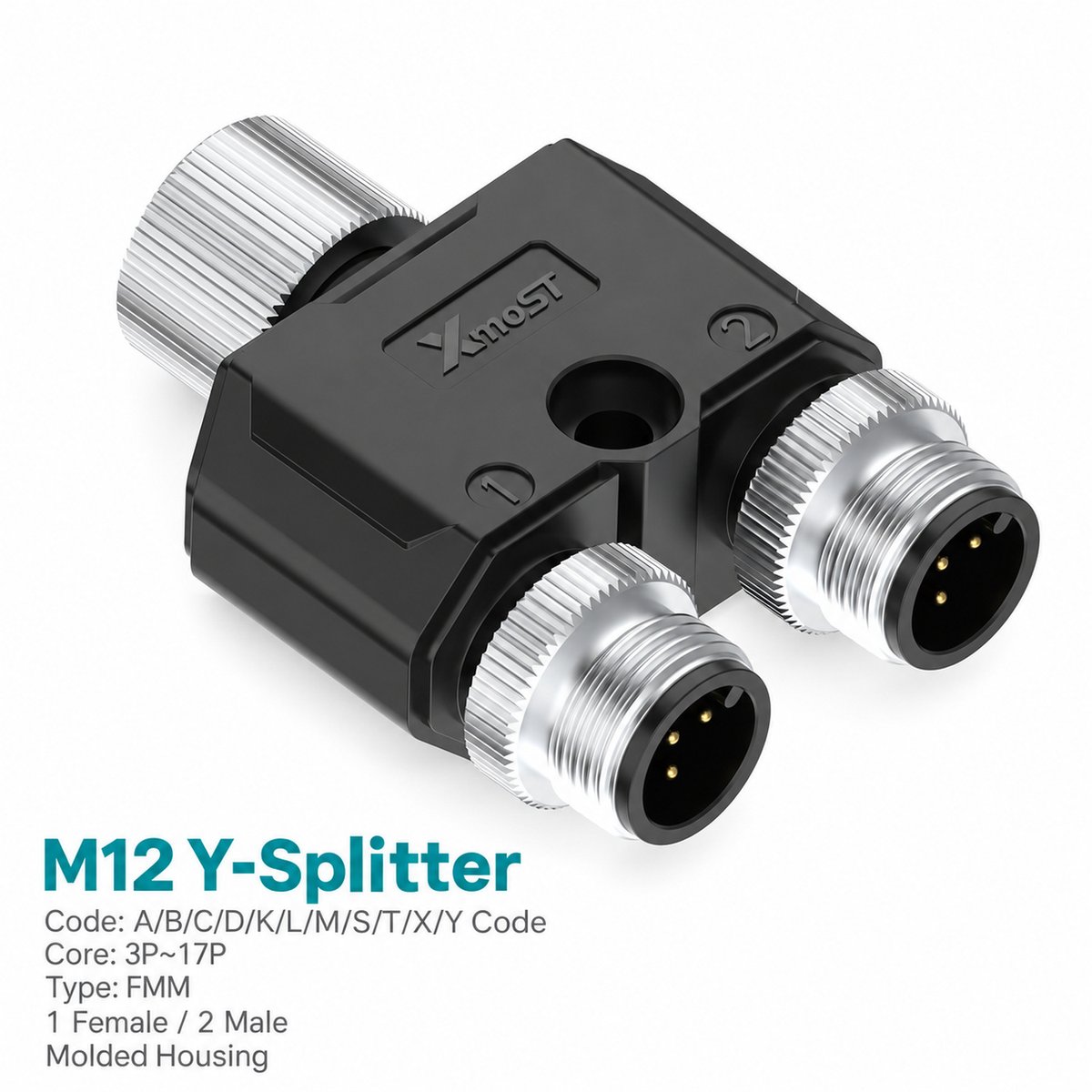

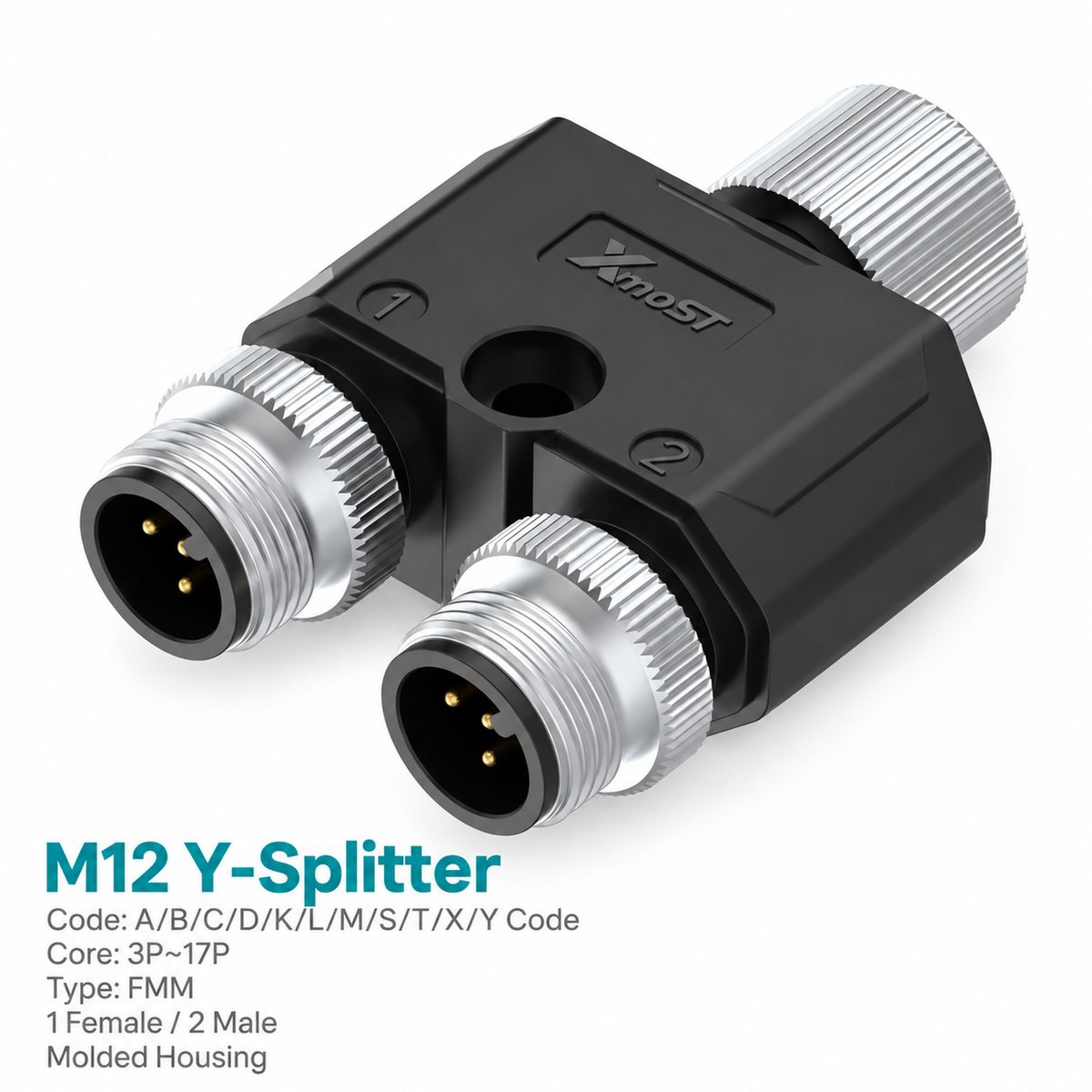

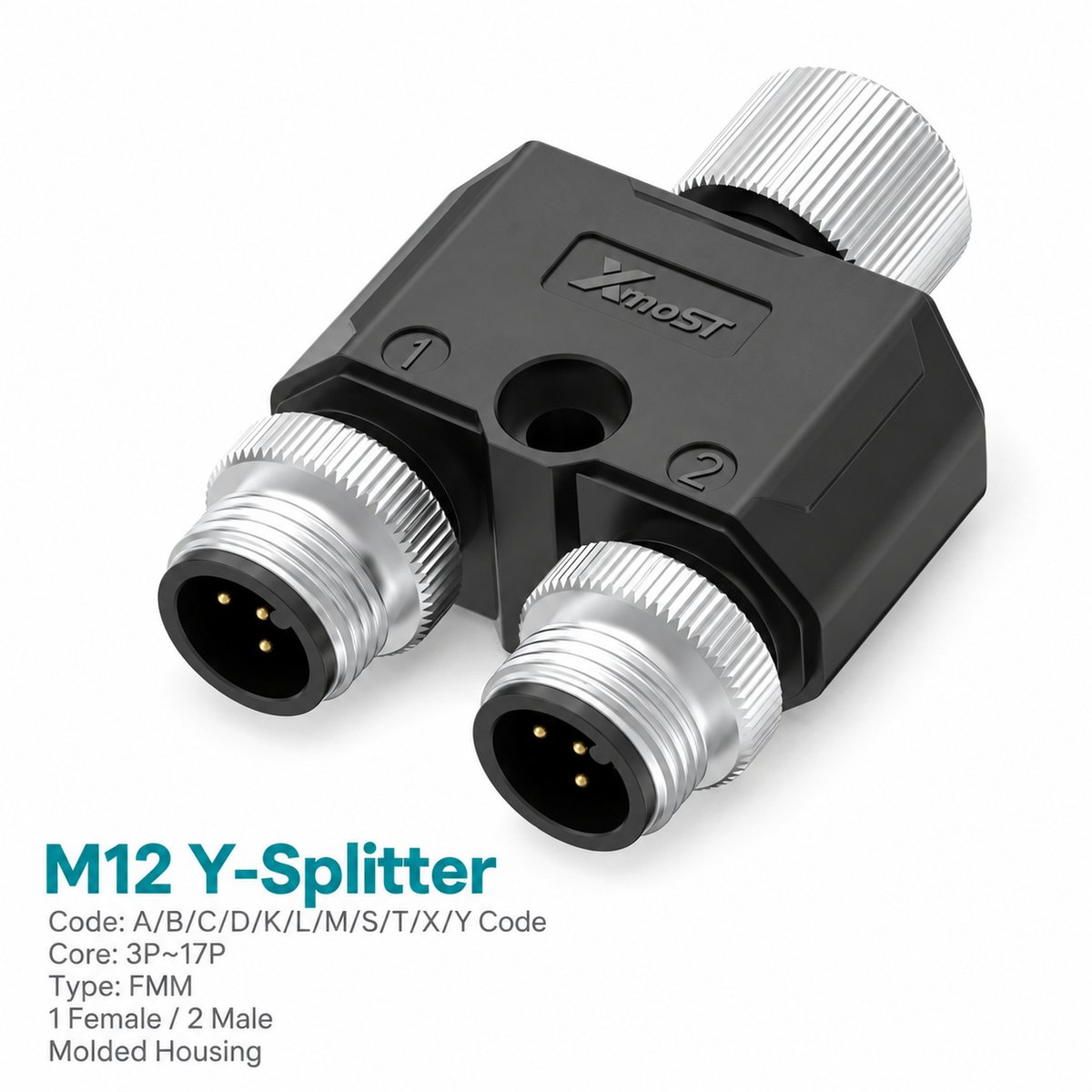

M12 Y-shape splitter, 1 female input to 2 male outputs. 5Pin (A/B-Code) or 4Pin (D-Code), bent end design. IP67/IP68 waterproof. Compatible with A/B/D coding for sensor/actuator, Profibus, or industrial Ethernet signal distribution. M12x1.0mm screw locking, brass nickel-plated nut, gold-plated pins. Operating temperature -40°C to +80°C. Ideal for fieldbus signal distribution in industrial automation, saving wiring and installation space.

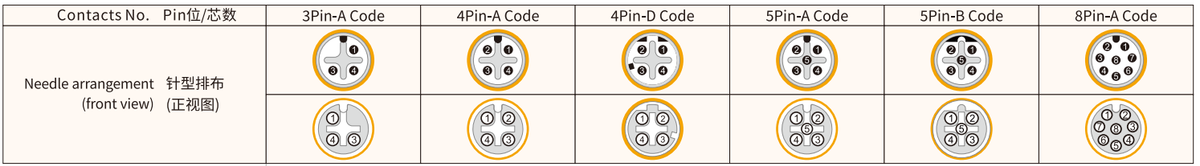

| Pin count | 3Pin-A Code | 4Pin-A Code | 4Pin-D Code | 5Pin-A Code | 5Pin-B Code | 8Pin-A Code |
| Operating standard | IEC 61076-2-101 | |||||
| Rated current | 4A | 4A | 2A | |||
| Rated voltage | 250V | 60V | 30V | |||
| Insulation resistance | ≥100MΩ | |||||
| Contact resistance | ≤5mΩ | |||||
| Shielding performance | A/B-code Non-Shielded；D-code shielded | |||||

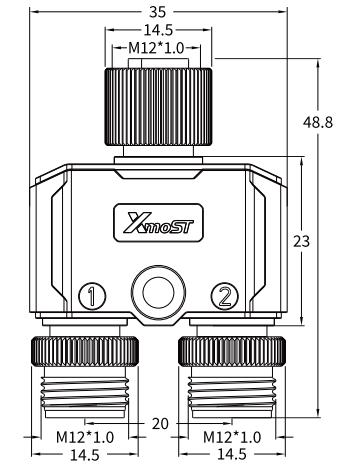

| Locking method | M12x1.0mm screw | |||||
| Screw torque | Recommend：0.4Nm；Max：0.8Nm | |||||
| Operating temperature | -25℃ ~ +80℃ Dynamic -40℃ ~ +80℃ Static | |||||
| Ip rating | IP67，IP68 | |||||
| Pollution degree | 3 | |||||
| Insulator material | PA66+GF/TPU+GF | |||||
| Screw/nut material | Brass Ni/Zinc Alloy Ni | |||||
| Pin material | Phosphor Bronze Au/Brass Au | |||||
| Sealing material | FKM/Silicon/epoxy | |||||
| Outer housing material | PVC/TPU | |||||
