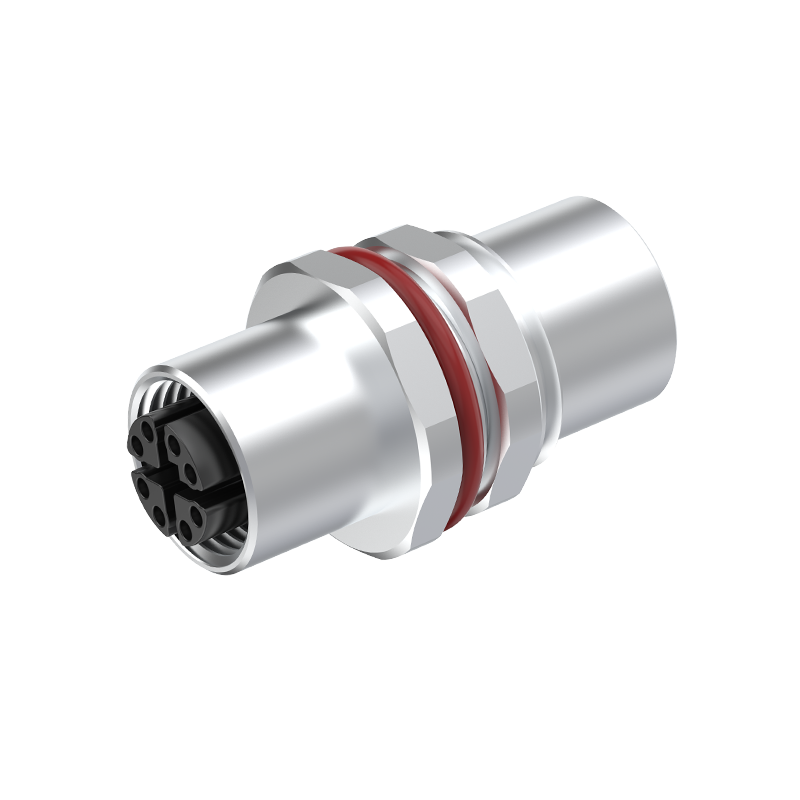

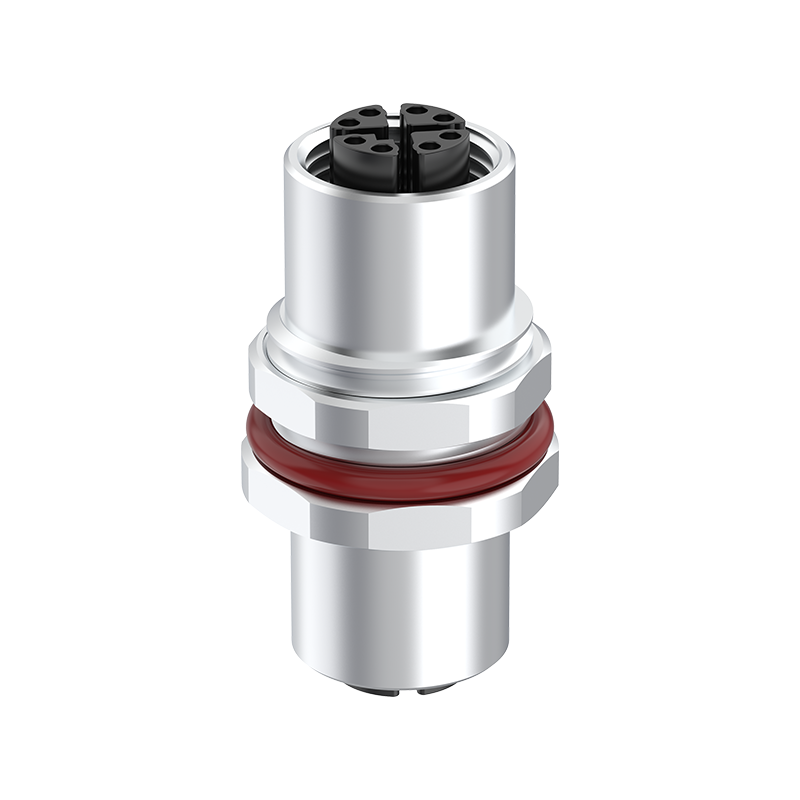

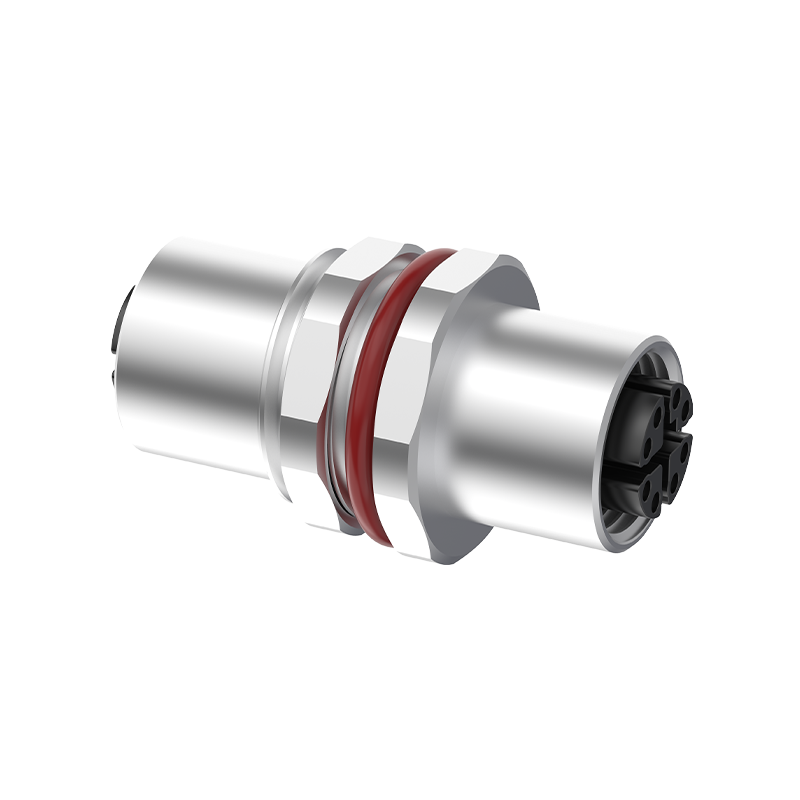

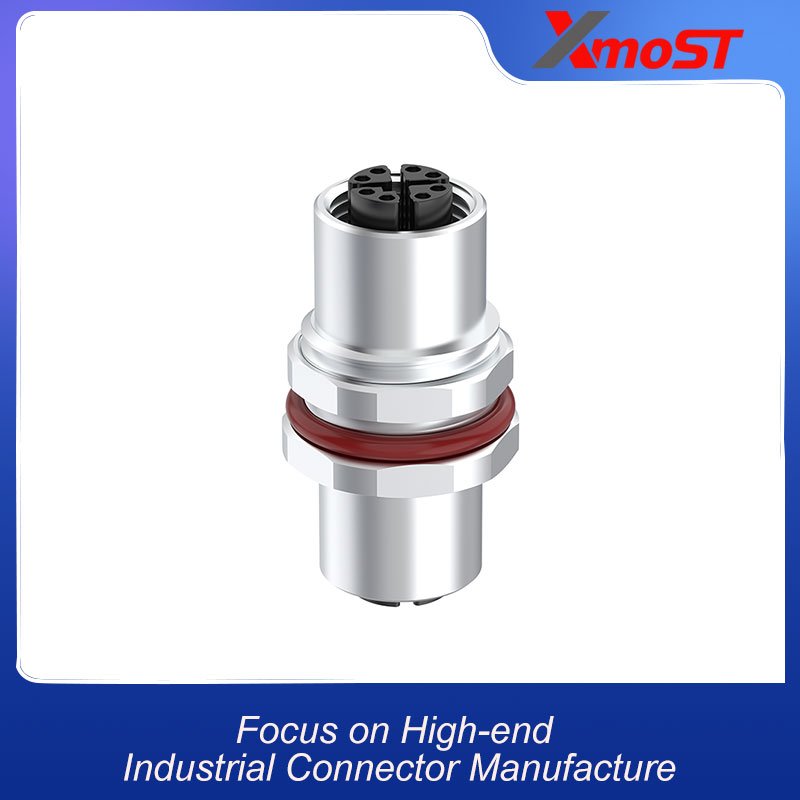

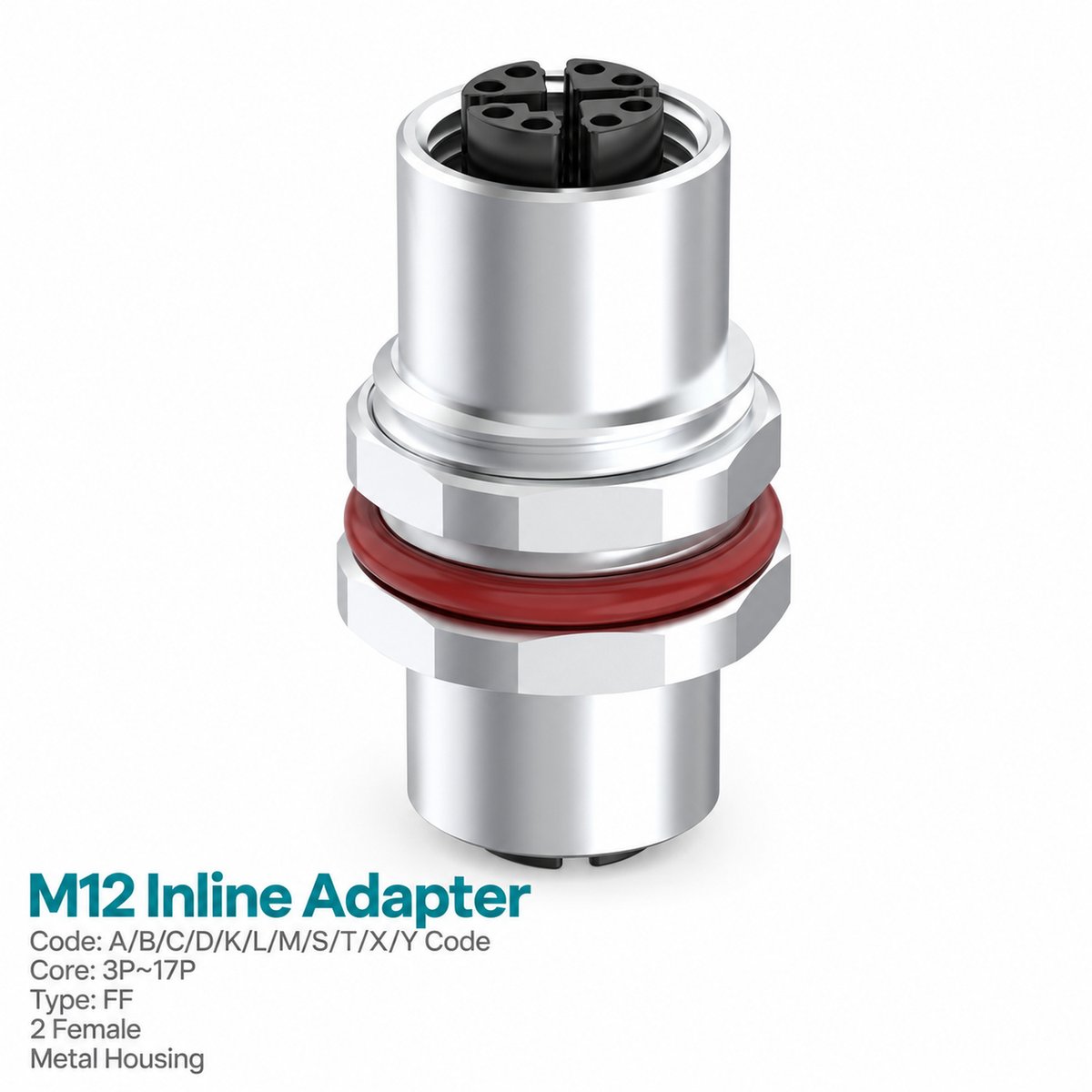

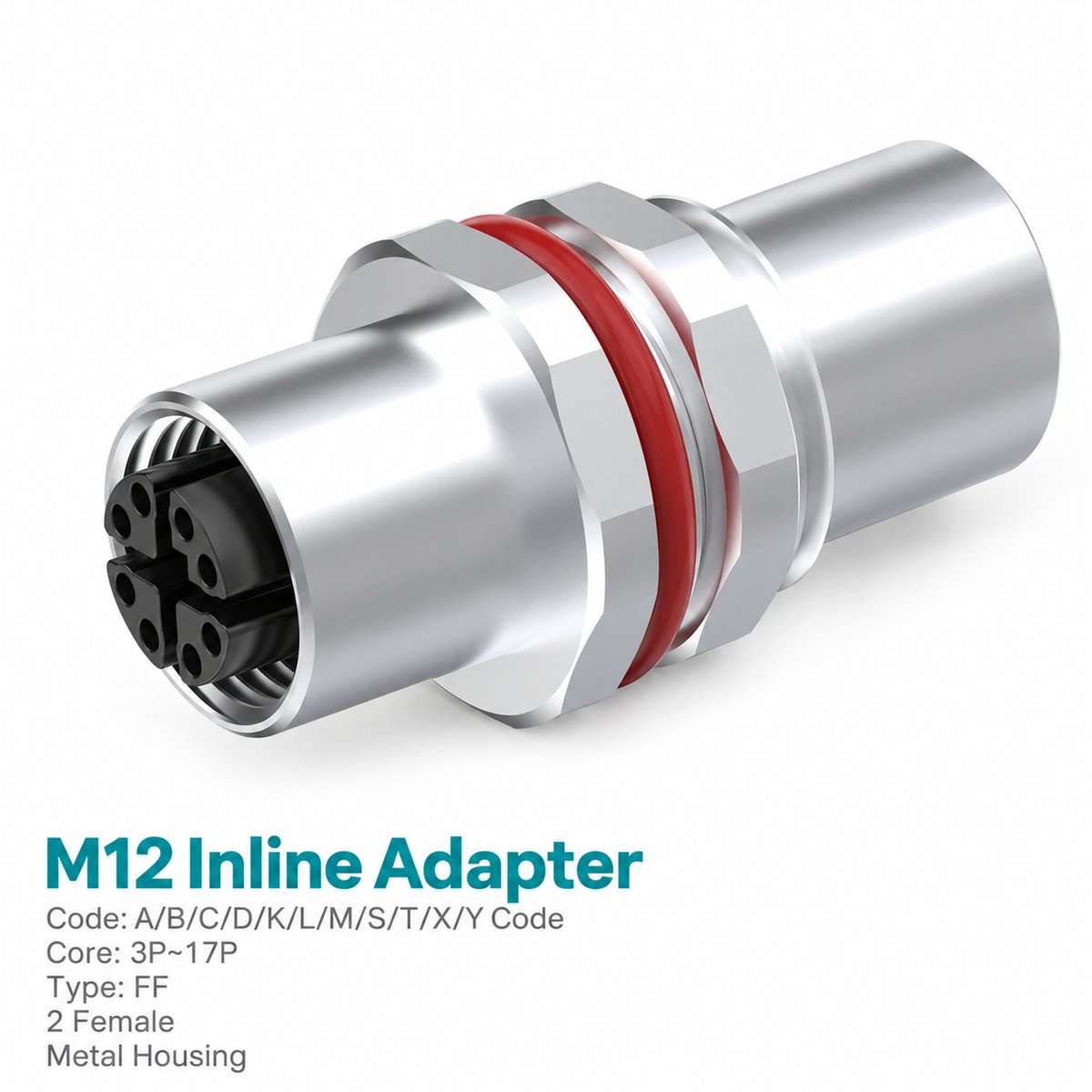

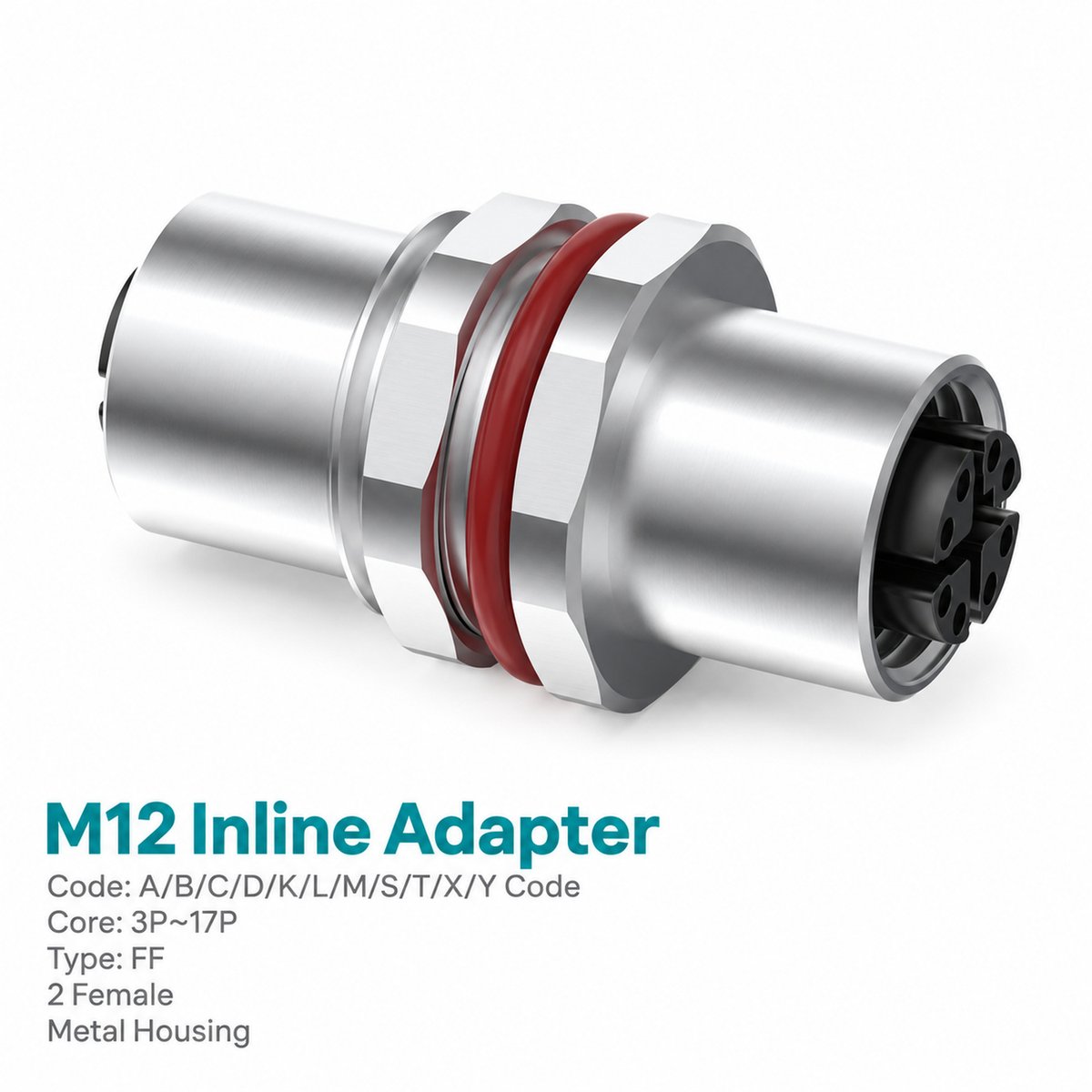

The M12 I-shape splitter is a compact inline splitter designed for daisy-chaining multiple devices in tight spaces. This 2 female pass-through splitter features 8Pin data distributor configuration, making it ideal for high-density signal distribution. The shielded fieldbus splitter provides reliable EMI protection for stable data transmission. Rated IP68 waterproof, it withstands harsh industrial environments. Compatible with A/B/D coding for sensor/actuator, Profibus, or industrial Ethernet applications. M12x1.0mm screw locking ensures secure connection. Ideal for factory automation and fieldbus systems.

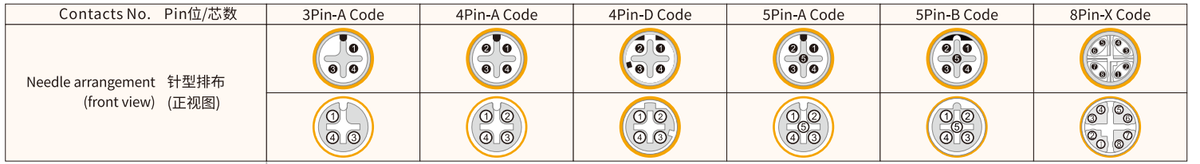

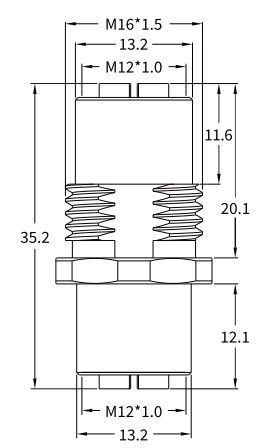

| Pin count | 3Pin-A Code | 4Pin-A Code | 4Pin-D Code | 5Pin-A Code | 5Pin-B Code | 8Pin-A Code |
| Operating standard | IEC 61076-2-101 | |||||
| Rated current | 4A | 4A | 0.5A | |||
| Rated voltage | 250V | 60V | 50V AC/60V AC | |||
| Insulation resistance | ≥100MΩ | |||||
| Contact resistance | ≤5mΩ | |||||
| Shielding performance | shielded | |||||
| Locking method | M12x1.0mm screw | |||||
| Screw torque | Recommend：0.4Nm；Max：0.8Nm | |||||
| Operating temperature | -25℃ ~ +80℃ Dynamic -40℃ ~ +80℃ Static | |||||
| Ip rating | IP67，IP68 | |||||
| Pollution degree | 3 | |||||
| Insulator material | PA66+GF/TPU+GF | |||||
| Screw/nut material | Brass Ni/Zinc Alloy Ni | |||||
| Pin material | Phosphor Bronze Au/Brass Au | |||||
| Sealing material | FKM/Silicon/epoxy | |||||
| Outer housing material | PVC/TPU | |||||
