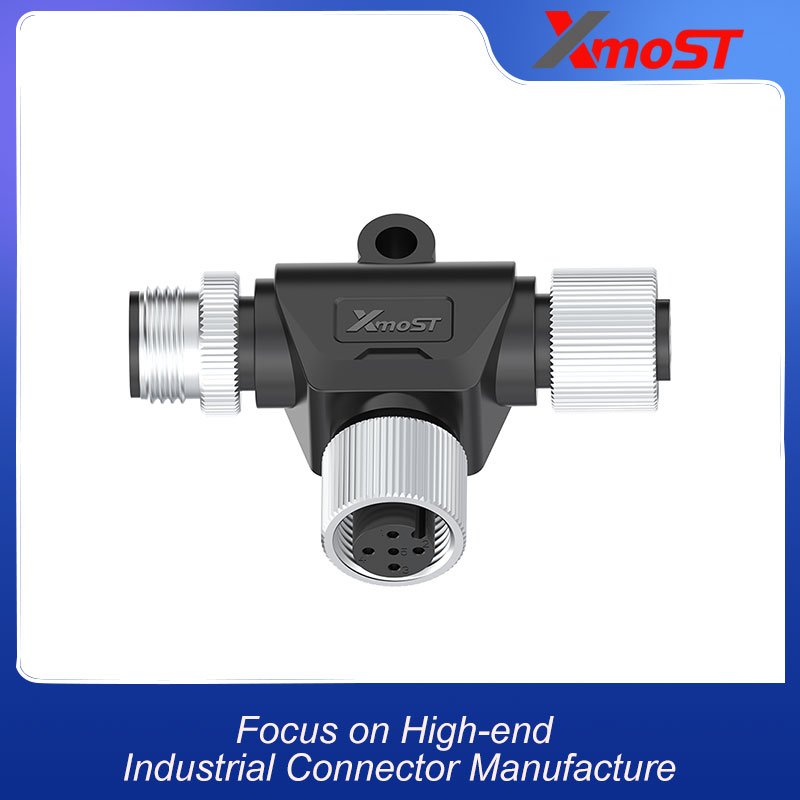

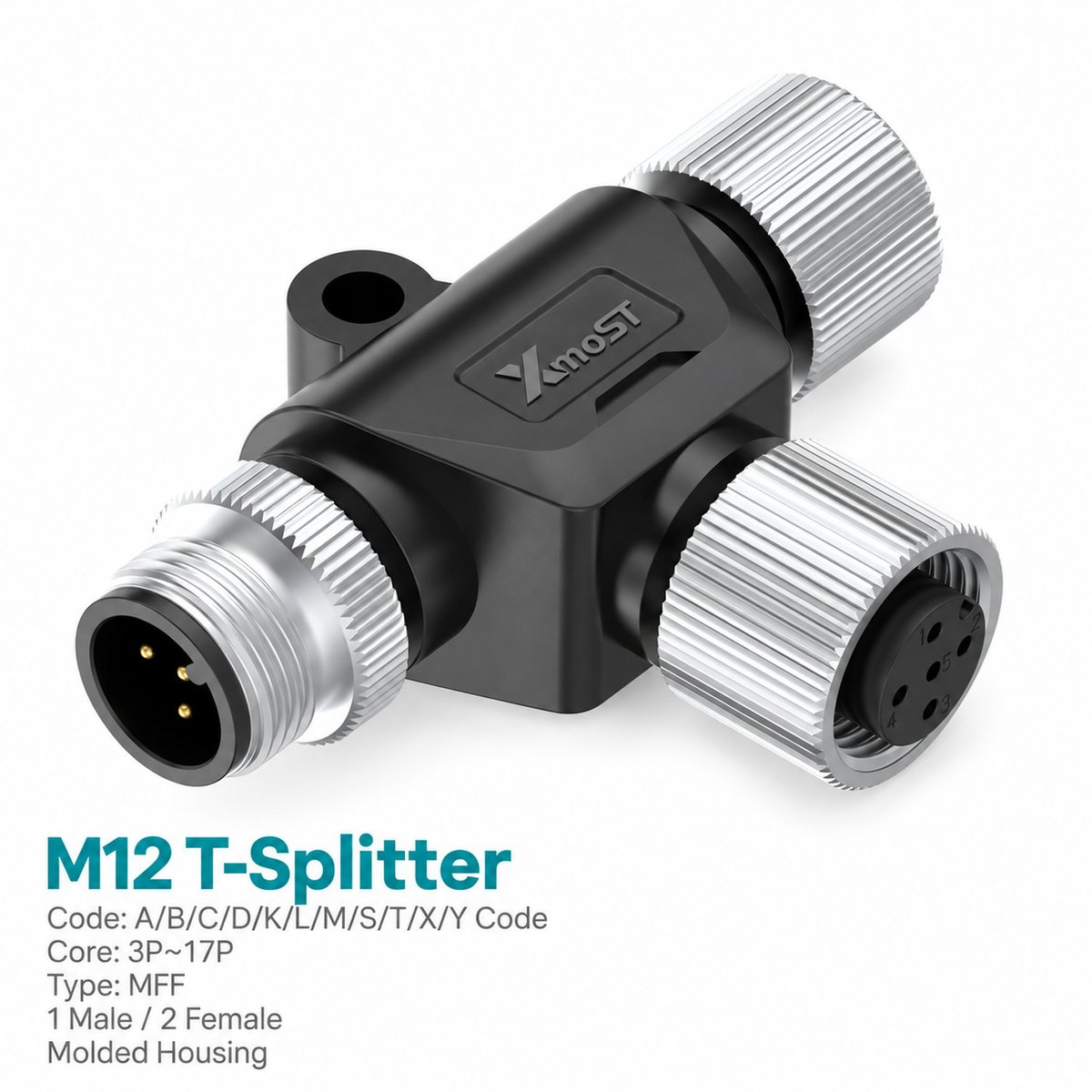

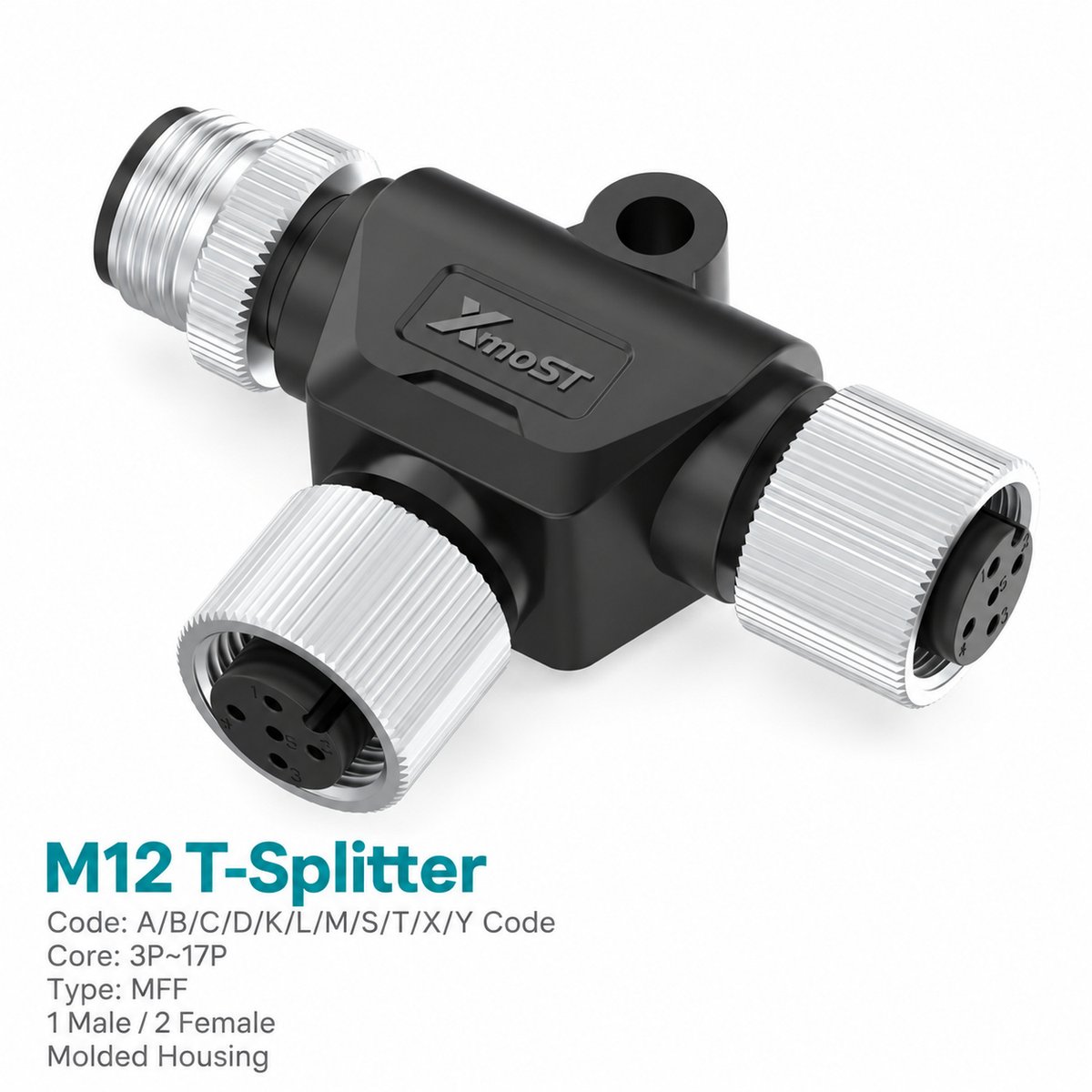

M12 T-Shape Splitter, 1 Male to 2 Female, MFF Connector

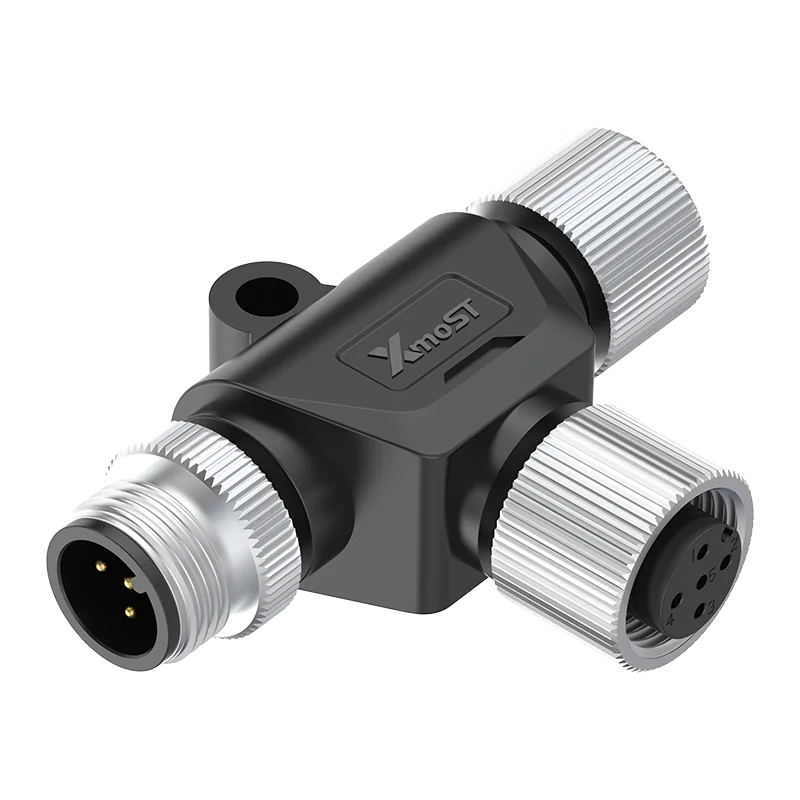

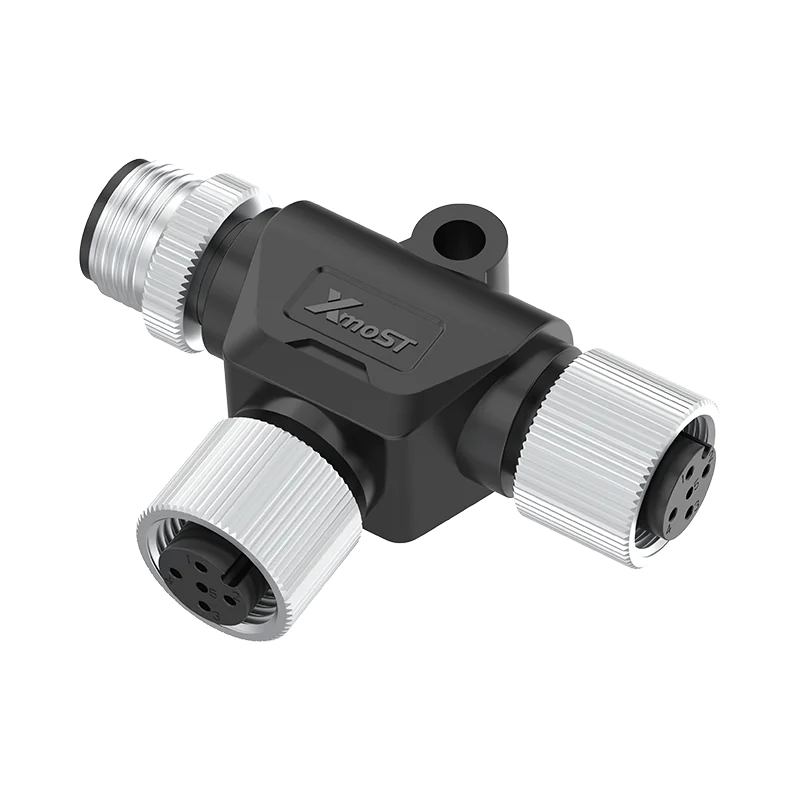

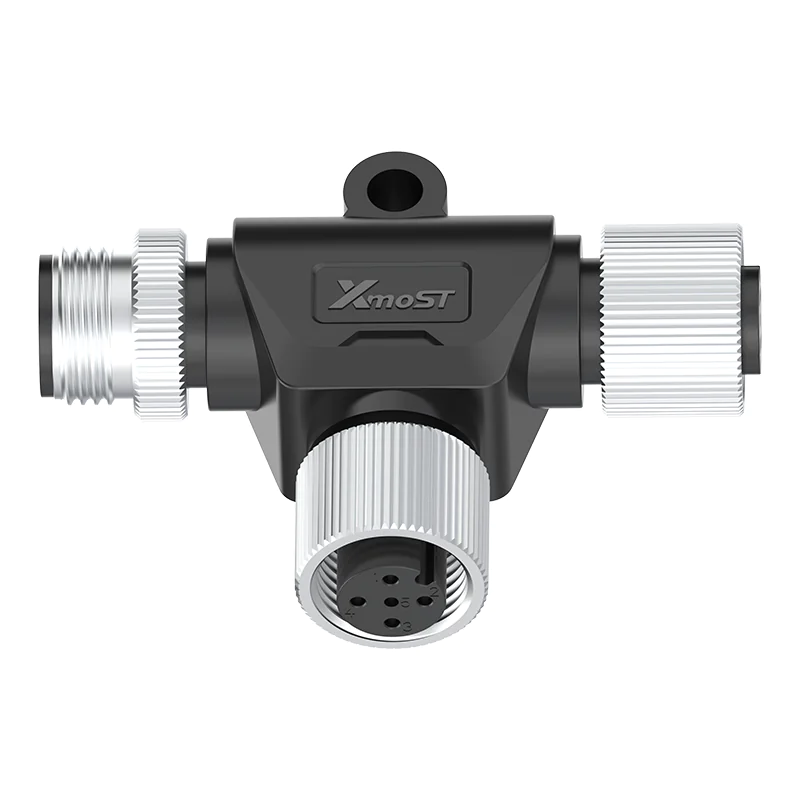

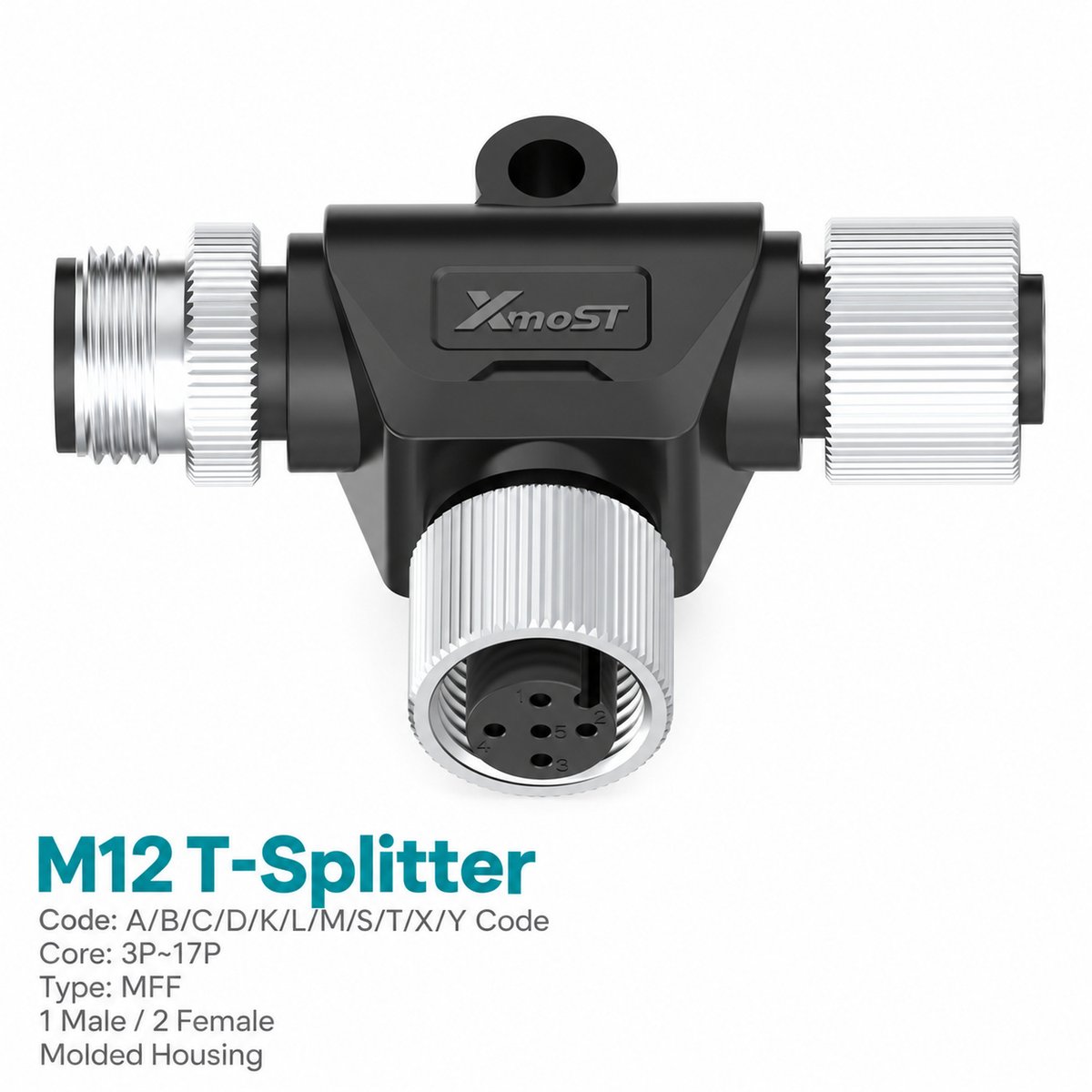

Xmost M12 T-shape MFF splitter connects one male interface to two female interfaces through parallel pin-to-pin wiring. This compact M12 three-way adapter features screw-locking connections and an integrated mounting eye. A-, B- and D-coded configurations are available, with shielding and electrical ratings depending on the selected version.

  • Brand: Xmost
  • Connector Size: M12
  • Product Type: T-shape three-way splitter
  • Interface Type: MFF — Male / Female / Female
  • Interface Arrangement: 1 Male / 2 Female
  • Coding Options: A-coded / B-coded / D-coded
  • Contact Configurations: 3-pin / 4-pin / 5-pin / 8-pin, depending on coding
  • Shielding: A/B-coded unshielded; D-coded shielded
  • Mating Thread: M12 × 1.0
  • Standard Listed: IEC 61076-2-101
Categories: , , Tag: Brand:

Xmost M12 T-shape male-to-two-female splitter provides a three-way connection for compatible industrial equipment wiring. Its MFF interface arrangement combines one male connector with two female connectors in a compact T-shaped housing.

The catalog wiring diagrams show corresponding numbered contacts connected in parallel across all three interfaces. Both female ports therefore share the circuits connected to the male port.

Each interface uses M12 × 1.0 screw locking. An integrated mounting eye provides a fixing point for securing the splitter to equipment. A- and B-coded versions are unshielded, while the D-coded version is shielded.

Key Features

  • One male and two female M12 interfaces.
  • Compact T-shaped three-way connector housing.
  • Parallel pin-to-pin wiring as shown in the catalog diagrams.
  • A-, B- and D-coded configurations.
  • 3-, 4-, 5- and 8-pin options, depending on coding.
  • M12 × 1.0 screw-locking connections.
  • Integrated mounting eye with a Ø4.2 mm hole.
  • Unshielded A-/B-coded versions and a shielded D-coded version.

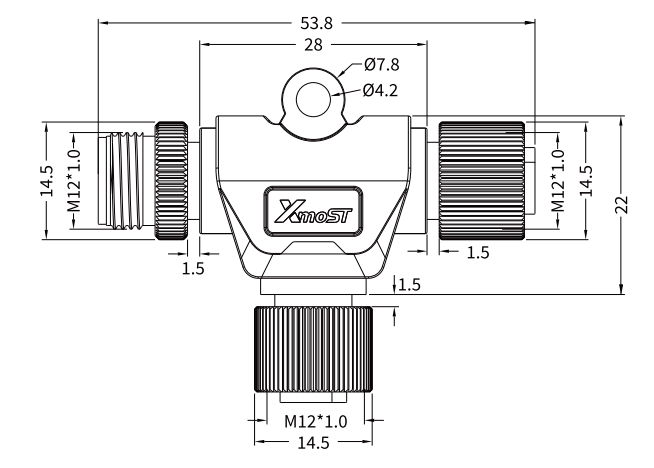

Product Dimensions

M12 T-Shape Splitter, 1 Male to 2 Female, MFF Connector

Dimensions (mm)

Dimension Value
Overall horizontal span shown 53.8
Upper body horizontal span shown 28
Body vertical span shown 22
Coupling diameter Ø14.5
Mounting hole diameter Ø4.2
Mounting eye outside diameter Ø7.8
Interface spacing marked 1.5
Mating thread M12 × 1.0

Dimensions correspond to the marked spans in the catalog drawing. The 22 mm span does not include the full lower female connector.

Needle Arrangement (Front View)

M12 T-Shape Splitter, 1 Male to 2 Female, MFF Connector 1

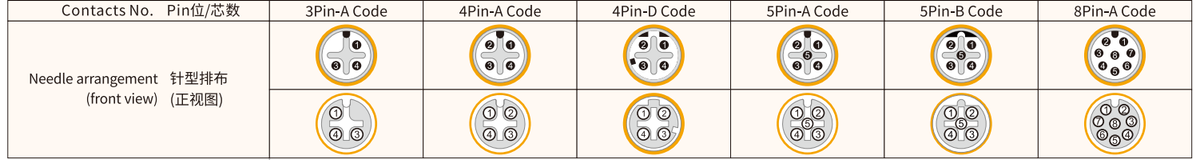

The pin arrangement diagrams show the male and female mating faces viewed from the front. Select the diagram matching the splitter’s coding and contact count.

Coding Contact Count
A-coded 3-pin
A-coded 4-pin
D-coded 4-pin
A-coded 5-pin
B-coded 5-pin
A-coded 8-pin

Read the male and female diagrams in their respective orientations. Use the numbered contacts and key position to identify the connections.

Product Specifications

Electrical Ratings by Configuration

Coding Contact Count Rated Current Rated Voltage Shielding
A-coded 3-pin 4 A 250 V Unshielded
A-coded 4-pin 4 A 250 V Unshielded
D-coded 4-pin 4 A 250 V Shielded
A-coded 5-pin 4 A 60 V Unshielded
B-coded 5-pin 4 A 60 V Unshielded
A-coded 8-pin 2 A 30 V Unshielded

General Specifications

Parameter Specification
Brand Xmost
Connector Size M12
Product Type T-shape three-way splitter
Interface Type MFF
Male Interfaces 1
Female Interfaces 2
Standard Listed IEC 61076-2-101
Locking Method M12 × 1.0 screw locking
Wiring Arrangement Corresponding contacts connected in parallel
Insulation Resistance ≥ 100 MΩ
Contact Resistance ≤ 5 mΩ
Recommended Tightening Torque 0.4 N·m
Maximum Tightening Torque 0.8 N·m
Dynamic Operating Temperature −25 °C to +80 °C
Static Operating Temperature −40 °C to +80 °C
Protection Ratings Listed IP67 / IP68
Pollution Degree 3
Insulator Material Options PA66 + GF / TPU + GF

Applications

Suggested applications for this M12 T-shape MFF splitter include:

  • Machine wiring distribution: Connections where one interface shares corresponding circuits with two branches.
  • Compatible field-device wiring: Connections using the selected coding and pin arrangement.
  • Modular automation equipment: Detachable branch connections between compatible equipment sections.
  • Secured cable junctions: Installations where the mounting eye can hold the splitter in position.

Use the splitter where the equipment supports the illustrated parallel wiring. Check the combined load carried by shared contacts. For communication circuits, confirm that the network permits the branch topology.

Wiring Diagram

The catalog diagrams show each numbered male contact connected to the same numbered contact at both female interfaces.

For example:

  • Male Pin 1 connects to Pin 1 at both female ports.
  • Male Pin 2 connects to Pin 2 at both female ports.
  • The same numbered connection continues through the remaining contacts.

The two female ports share corresponding circuits; they are not independently switched channels. Use the wiring diagram matching the 3-, 4-, 5- or 8-pin splitter.

Selection and Ordering

Coding Contact Count Catalog Part Number
A-coded 3-pin 1M1232AH03MFX2
A-coded 4-pin 1M1232AH04MFX2
D-coded 4-pin 1M1232DH04MFX2S
A-coded 5-pin 1M1232AH05MFX2
B-coded 5-pin 1M1232BH05MFX2
A-coded 8-pin 1M1232AH08MFX2

Select the coding, contact count and shielding arrangement to match the equipment. Confirm the parallel wiring, electrical requirements and installation clearance before ordering.
