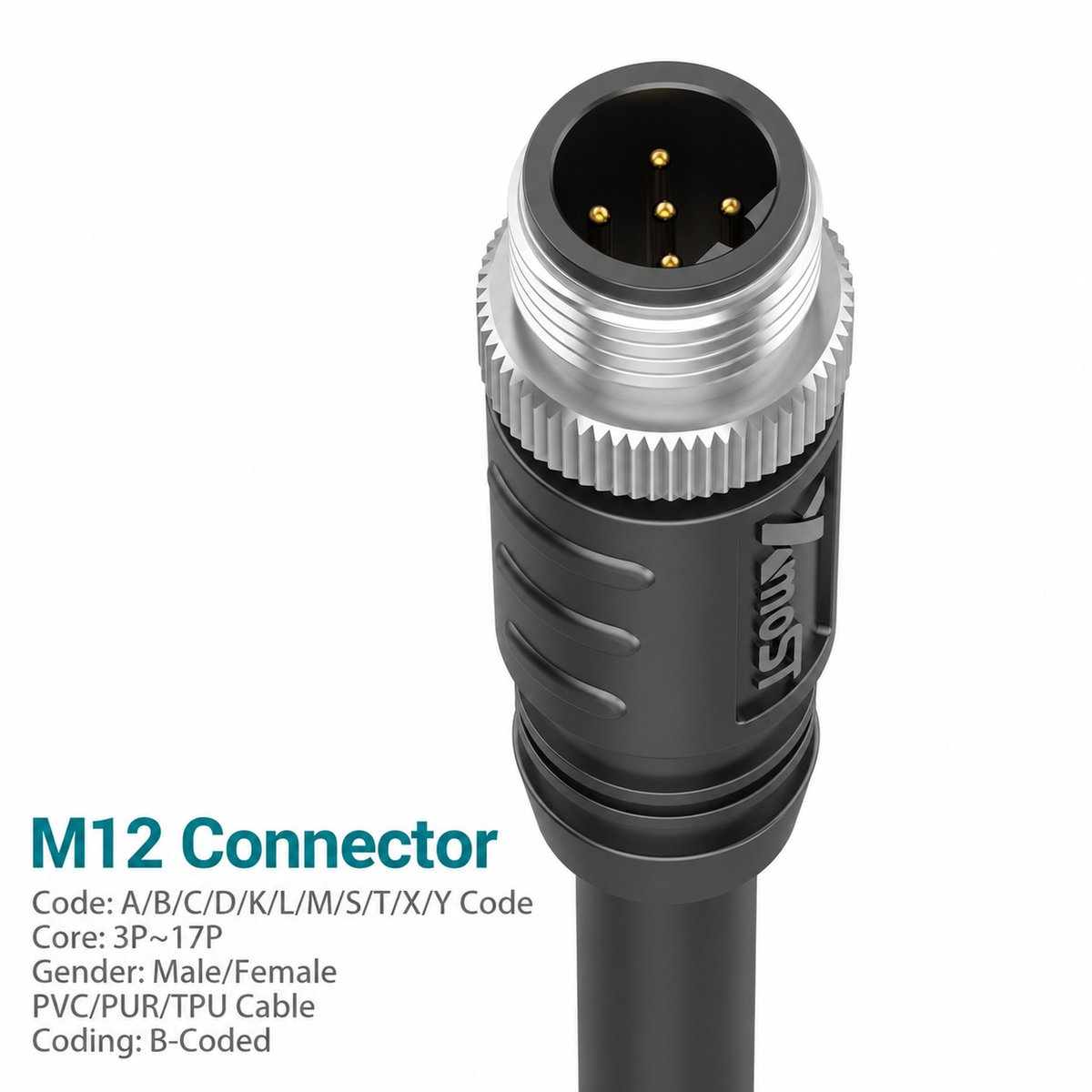

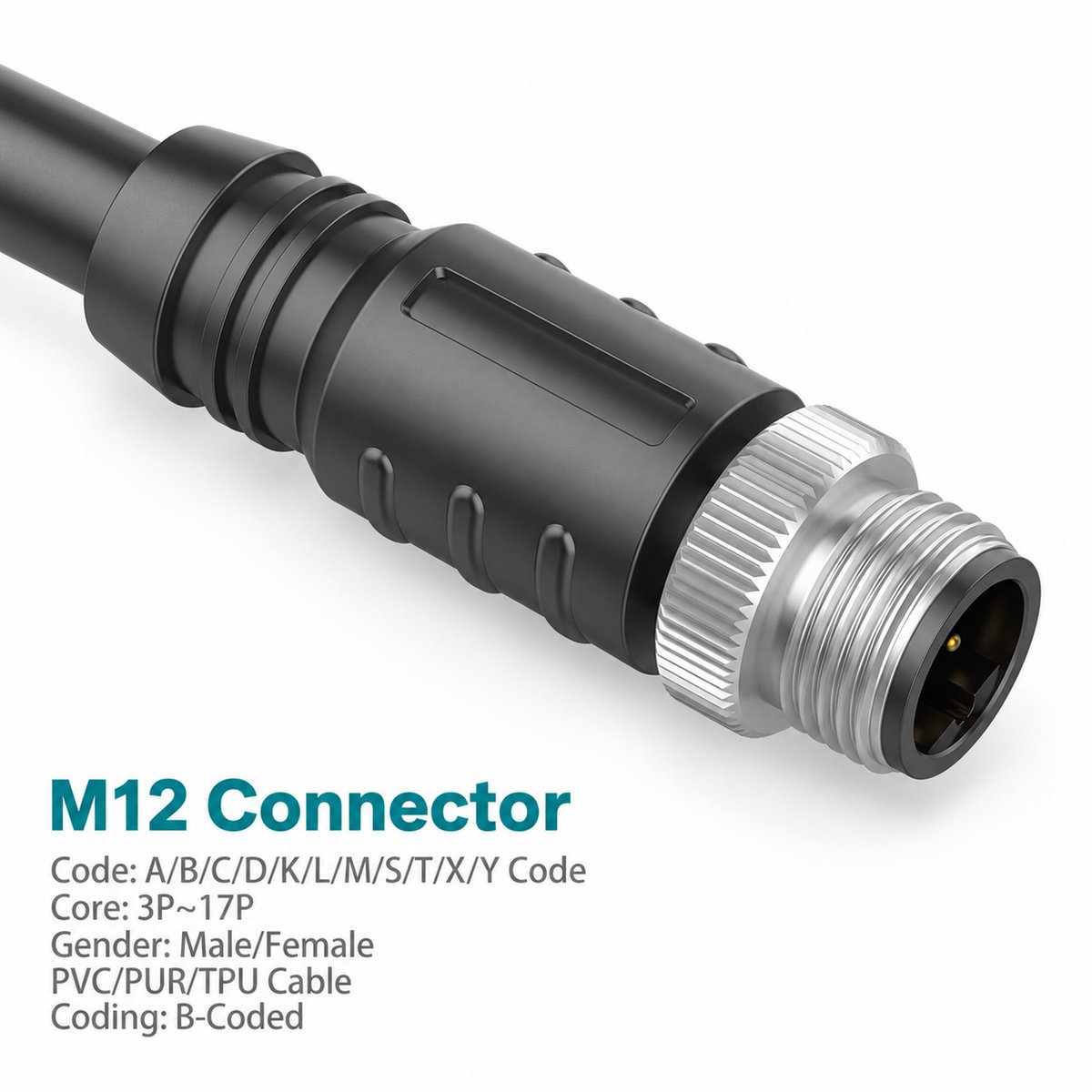

Xmost M12 B-coded male straight cable connector provides a shielded connection for compatible PROFIBUS equipment. Its single-ended molded construction combines the 5-pin male connector and cable into a preassembled assembly.
The straight cable exit directs the cable along the mating axis, supporting installations with clearance behind the connection. M12 × 1.0 screw locking secures the interface to a matching B-coded female connector.
This M12 PROFIBUS cable assembly has catalog-listed electrical ratings of 4 A and 60 V, with a wire size of 0.34 mm² / AWG22. PVC and PUR cable options are listed in 1 m, 3 m and 5 m lengths.
Key Features
- 5-pin M12 B-coded male interface for compatible PROFIBUS equipment.
- Shielded fieldbus cable assembly.
- Straight molded connector for axial cable routing.
- Single-ended preassembled cable construction.
- 4 A rated current and 60 V rated voltage.
- M12 × 1.0 screw-locking interface.
- 0.34 mm² / AWG22 wire size.
- PVC or PUR cable options, with 1 m, 3 m and 5 m catalog lengths.

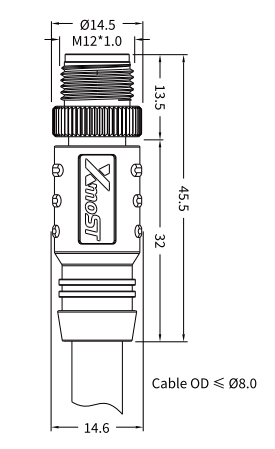

Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Connector axial length shown | 45.5 |
| Coupling section axial span | 13.5 |
| Molded body axial span | 32 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 14.6 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the straight male connector drawing. Cable length is specified separately.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | B-coded |
| Contact Gender | Male |
| Contact Count | 5-pin |
| Connector Orientation | Straight |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Shielded |
| Application Listed | PROFIBUS |
| Standard Listed | IEC 61076-2-101 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Wire Size | 0.34 mm² / AWG22 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
Applications
Suggested applications for this M12 B-coded male straight PROFIBUS connector include:
- PROFIBUS field devices: Connections to compatible B-coded female interfaces.
- Distributed automation equipment: Fieldbus wiring between compatible devices and network modules.
- Industrial machinery: PROFIBUS connections within machine communication systems.
- Axial cable-routing layouts: Installations where the cable can exit directly behind the connector.
Match the connector pin assignment and cable requirements to the PROFIBUS equipment.
Selection and Ordering
Specify the cable jacket and cable length. Select the corresponding straight male part number from the catalog ordering table.
Match the B-coded 5-pin interface to the equipment. Follow the male connector’s front-view pin diagram and wire-color assignment, and maintain the specified shield connection during installation.
