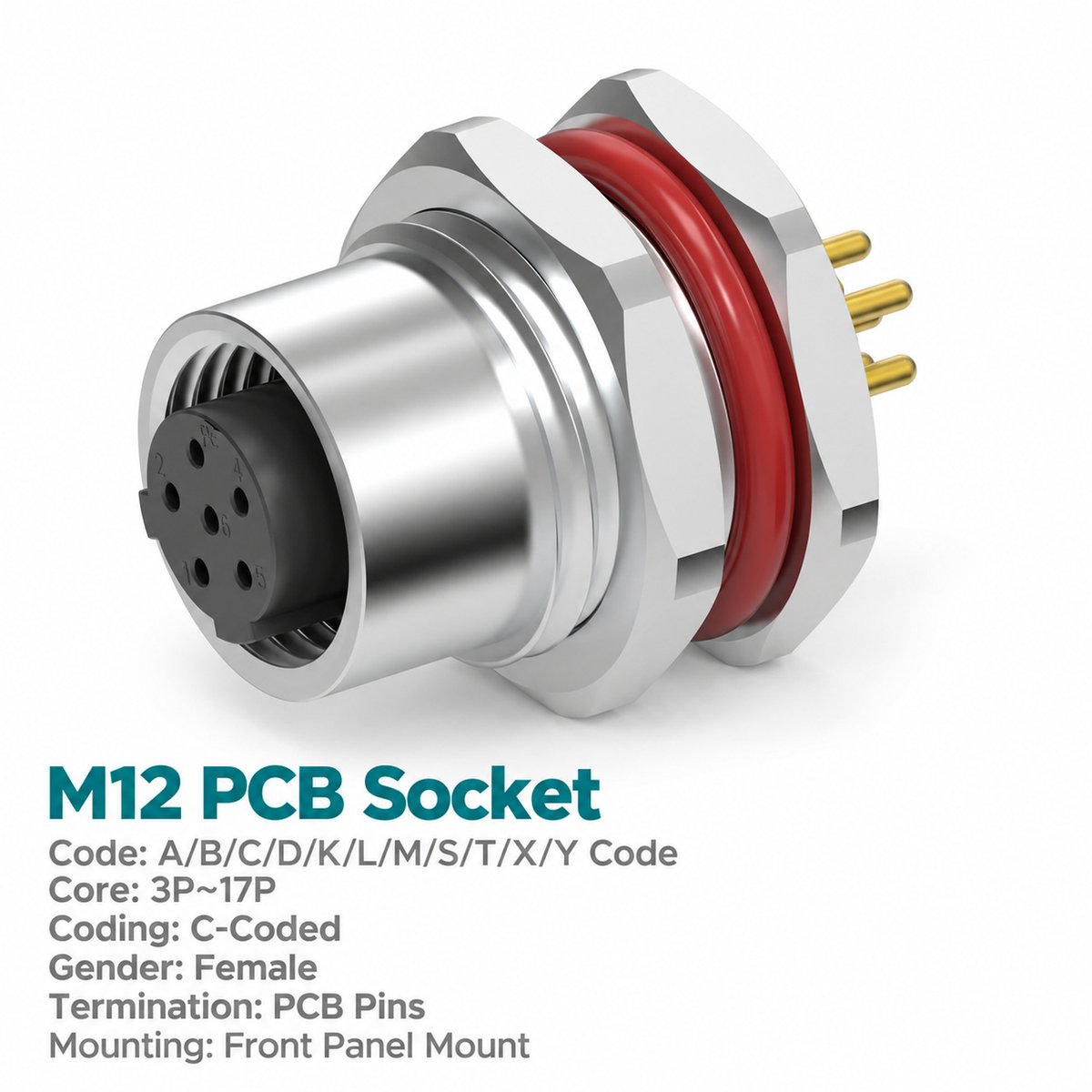

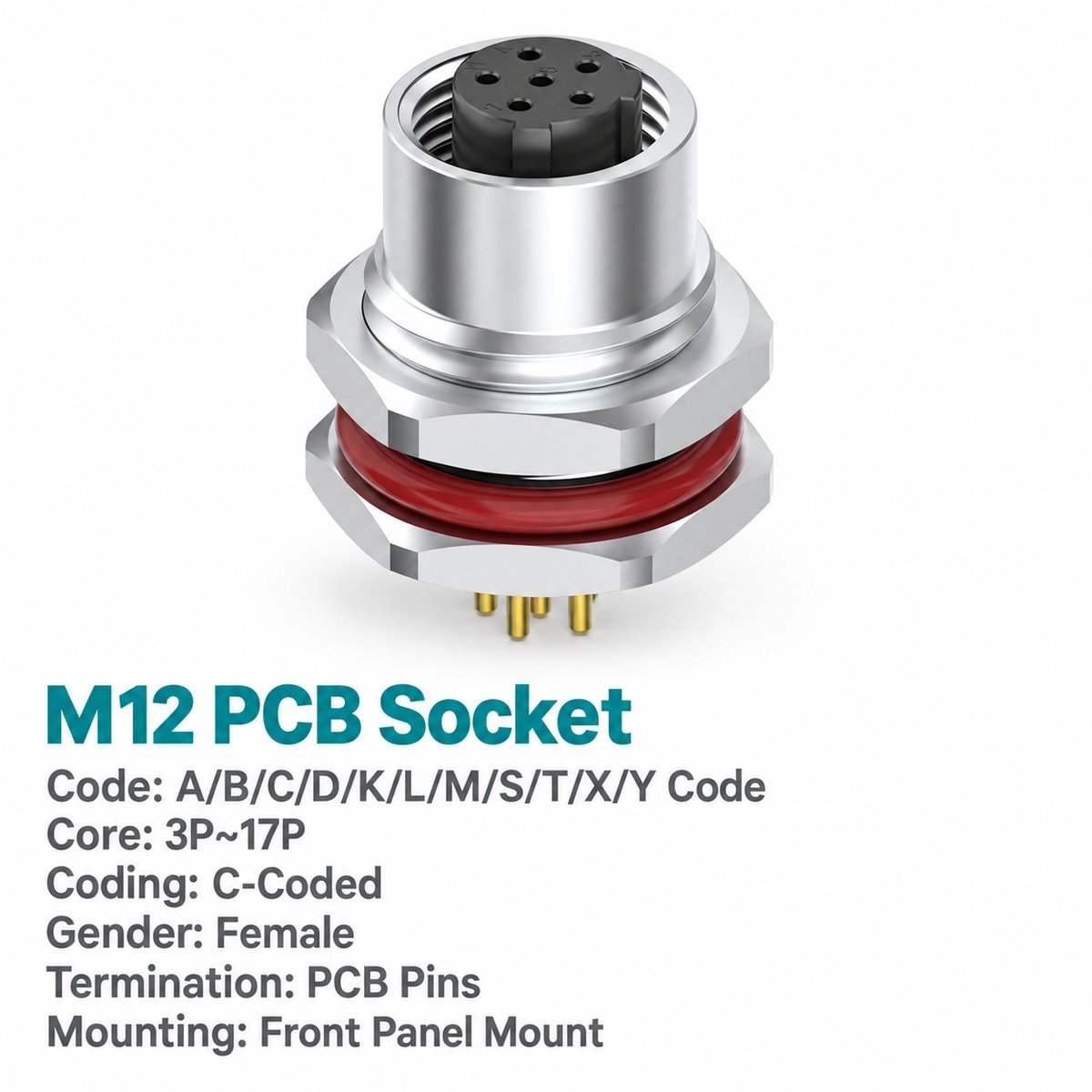

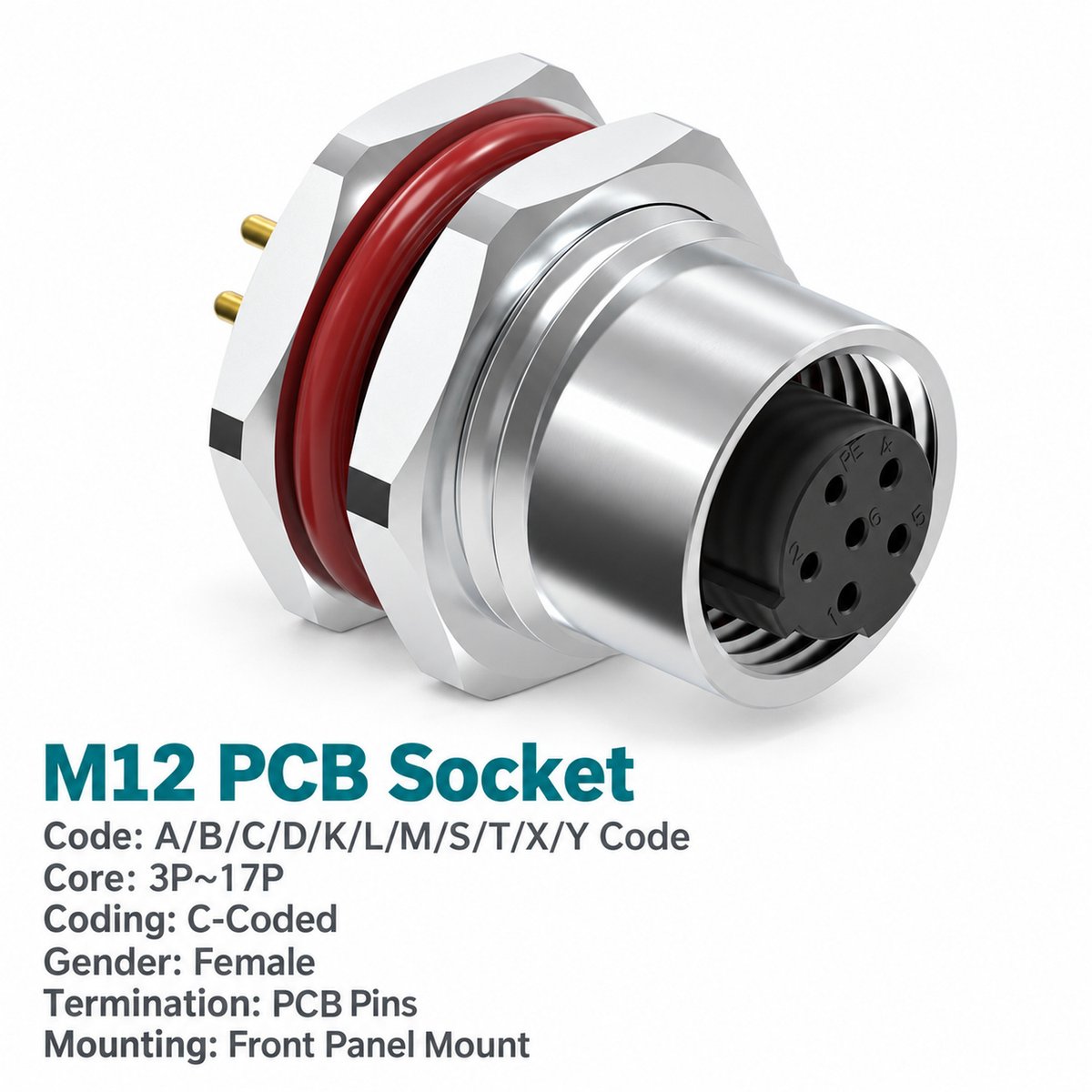

Xmost M12 C-coded female front mount PCB socket provides a detachable AC power connection between an external male cable connector and the equipment’s internal circuit board. Straight rear contacts support PCB insertion and dip soldering, combining a panel-mounted power interface with board termination.
The front fastened construction is available with PG9 or M16 × 1.5 panel mounting threads. Its female C-coded interface accepts a matching M12 C-coded male power connector.
Four contact arrangements include a protective earth contact. Select the required number of contacts and its corresponding current and voltage ratings, then choose shielded or unshielded construction to match the equipment design.
Key Features
- Female C-coded power interface: Mates with a compatible M12 C-coded male AC power cable connector.
- Four configurations with PE: Choose 2+PE, 3+PE, 4+PE or 5+PE.
- Front fastened panel mounting: Integrates the power socket into the equipment enclosure.
- PCB dip-solder termination: Straight rear contacts connect directly to the circuit board.
- Two mounting thread options: PG9 or M16 × 1.5.
- Optional shielding: Shielded and unshielded versions available.
Product Dimensions
[Insert the female front mount outline drawing and corresponding panel cut-out drawing from page 8.]

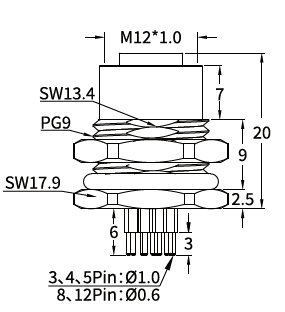

Illustrated PG9 Front Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section | 7 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 3 / 4 / 5-pin versions | Ø1.0 |
The outline drawing does not separately specify the 6-pin PCB contact diameter.
Needle Arrangement (Front View)
[Insert the C-coded female contact arrangement diagrams for 3-pin (2+PE), 4-pin (3+PE), 5-pin (4+PE) and 6-pin (5+PE).]
The diagrams show the female mating-face view. Match the numbered contacts and PE position to the external male connector and equipment power schematic.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 C-coded female front mount PCB power socket |
| Mounting | Front fastened |
| Power application | AC power |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Shielding options | Shielded / unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Contact Arrangement
| Total Contacts | Arrangement | Rated Current | Rated Voltage |
|---|---|---|---|
| 3 pins | 2+PE | 4 A | 250 V |
| 4 pins | 3+PE | 4 A | 250 V |
| 5 pins | 4+PE | 2 A | 60 V |
| 6 pins | 5+PE | 2 A | 30 V |
Applications
- AC-powered control modules: Connects an external power cable to internal PCB power circuits.
- Industrial equipment panels: Provides a front mount M12 power socket with a PE contact.
- Automation devices: Integrates a detachable power cable interface into PCB-based equipment.
- Modular machine assemblies: Combines multiple circuit contacts and protective earth in one panel connector.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | 2+PE / 3+PE / 4+PE / 5+PE |
| Contact gender | Female |
| Mounting style | Front mount |
| Panel mounting thread | PG9 / M16 × 1.5 |
| Termination | PCB dip soldering |
| Shielding | Shielded / unshielded |
Example enquiry: M12 C-coded female front mount PCB power socket, 4-pin (3+PE), PG9 mounting, shielded version.
