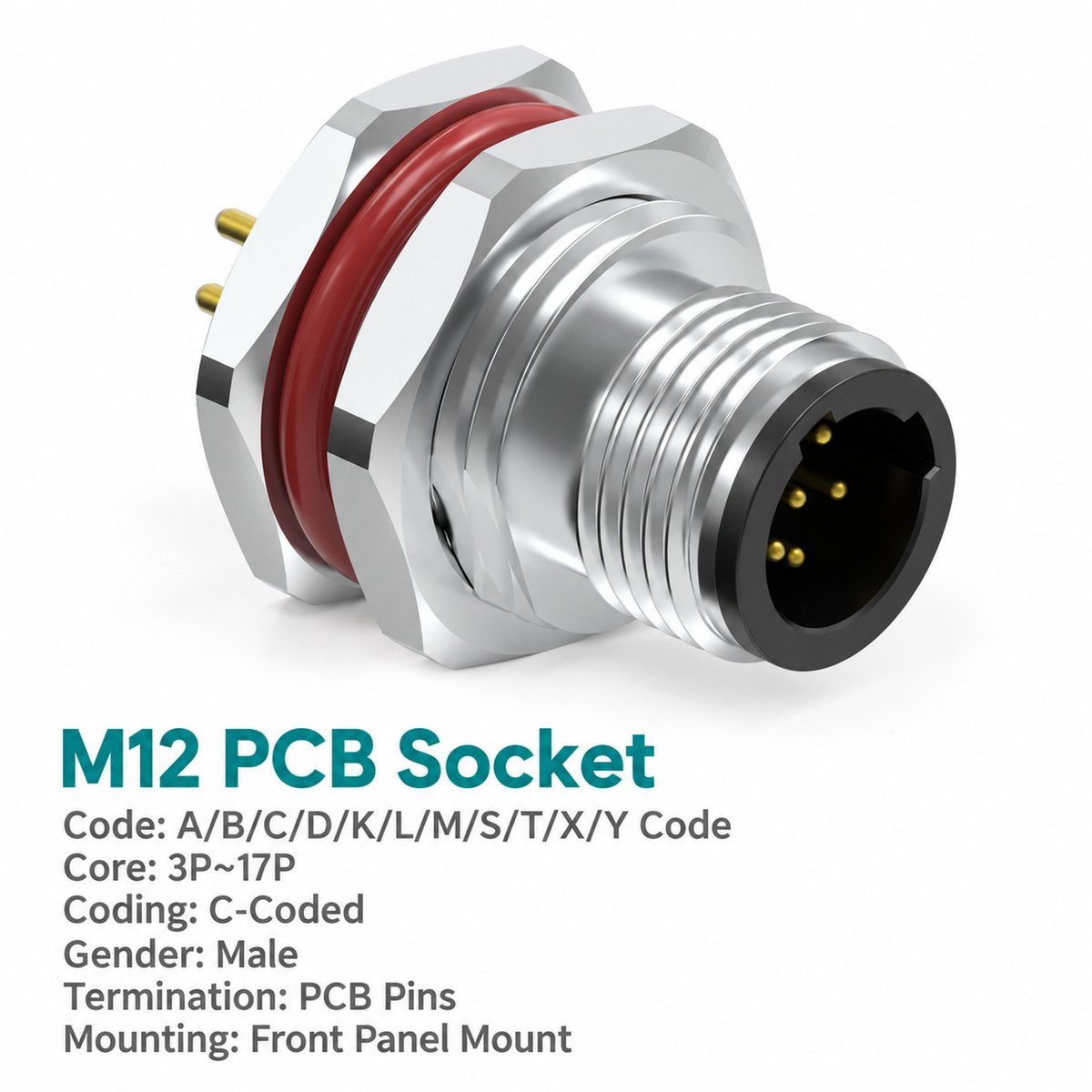

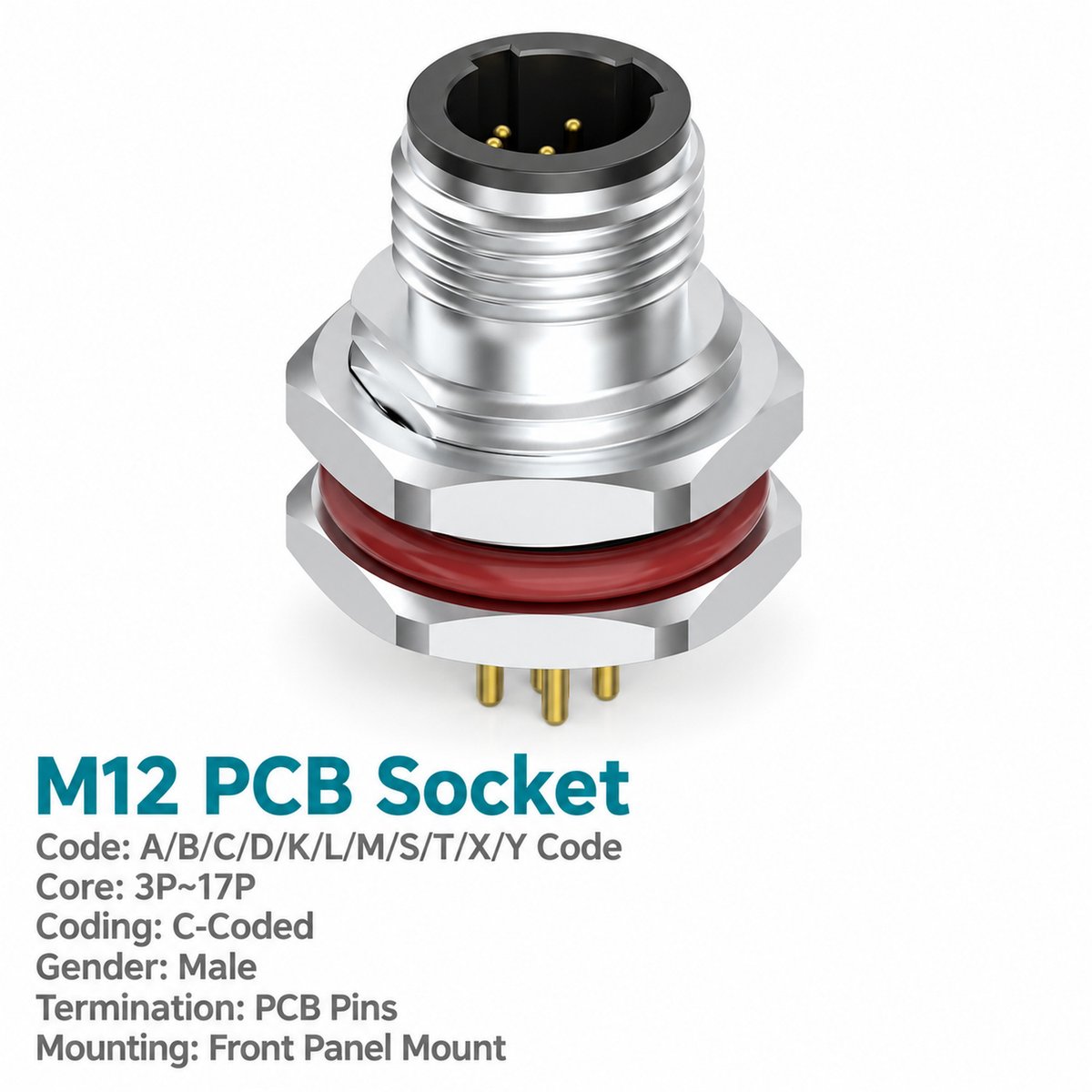

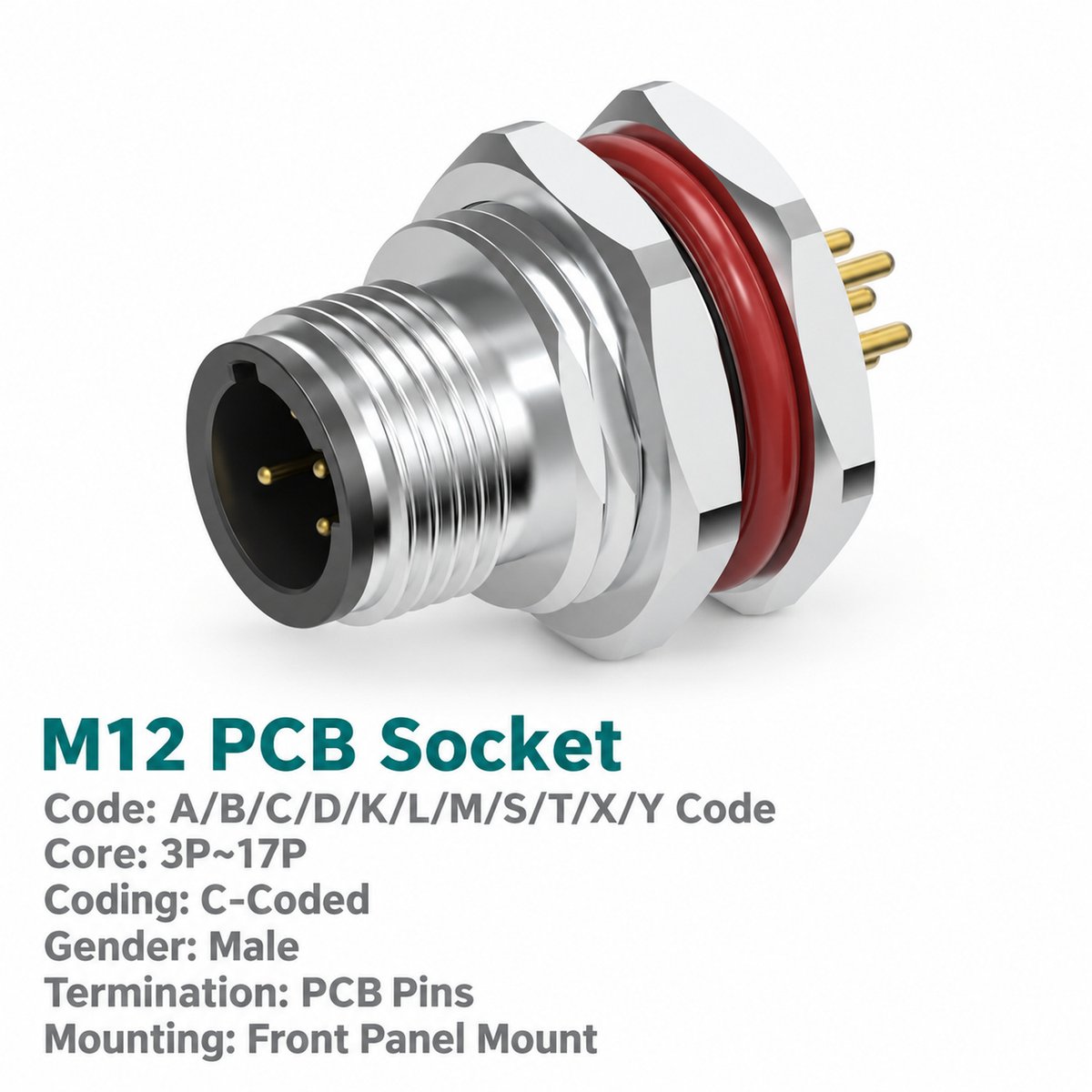

Xmost M12 C-coded male front mount PCB connector provides a detachable AC power interface between an external female cable connector and the equipment’s internal circuit board. Straight rear contacts support PCB insertion and dip soldering, integrating the panel connection into the board assembly.
This front fastened M12 power connector is available in four contact arrangements, from 2+PE to 5+PE. Each arrangement includes a protective earth contact, while current and voltage ratings vary by contact count.
Shielded and unshielded constructions accommodate different equipment requirements. Select the C-coded panel mount connector by contact arrangement, electrical rating, shielding and mounting thread.
Key Features
- C-coded AC power interface: Male connection for a compatible M12 C-coded female power cable connector.
- Four contact arrangements: 2+PE, 3+PE, 4+PE or 5+PE.
- Front fastened mounting: Combines an enclosure-mounted power interface with internal PCB termination.
- PCB dip-solder contacts: Straight insertion contacts connect directly to the circuit board.
- Shielding options: Available in shielded and unshielded constructions.
- Ratings by configuration: Separate current and voltage values support accurate selection.
Product Dimensions

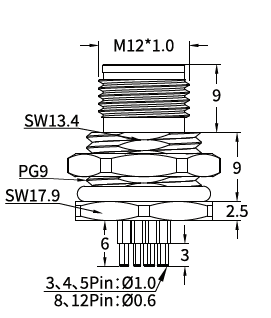

[Insert the male front mount outline drawing and corresponding panel cut-out drawing from page 7.]
Illustrated PG9 Front Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Upper axial section | 9 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 3 / 4 / 5-pin versions | Ø1.0 |
The outline drawing does not separately specify the 6-pin PCB contact diameter.
Needle Arrangement (Front View)

[Insert the C-coded male contact arrangement diagrams for 3-pin (2+PE), 4-pin (3+PE), 5-pin (4+PE) and 6-pin (5+PE).]
The diagrams show the male mating-face view. Match the numbered contacts and PE position to the mating female connector and equipment power schematic.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 C-coded male front mount PCB power connector |
| Mounting | Front fastened |
| Power application | AC power |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Shielding options | Shielded / unshielded |
| Mating thread | M12 × 1.0 |
| Confirmed panel thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Contact Arrangement
| Total Contacts | Arrangement | Rated Current | Rated Voltage |
|---|---|---|---|
| 3 pins | 2+PE | 4 A | 250 V |
| 4 pins | 3+PE | 4 A | 250 V |
| 5 pins | 4+PE | 2 A | 60 V |
| 6 pins | 5+PE | 2 A | 30 V |
Applications
- AC-powered control modules: Connects external power cables to internal PCB power circuits.
- Industrial equipment panels: Provides a front mount M12 power interface with a PE contact.
- Automation assemblies: Integrates a detachable cable connection into PCB-based equipment.
- Modular machine electronics: Supports power interfaces requiring multiple contacts and protective earth.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | 2+PE / 3+PE / 4+PE / 5+PE |
| Mounting style | Front mount |
| Termination | PCB dip soldering |
| Shielding | Shielded / unshielded |
| Panel mounting thread | PG9 / M16 × 1.5; additional catalogue option requires confirmation |
Example enquiry: M12 C-coded male front mount PCB power connector, 4-pin (3+PE), PG9 mounting, shielded version.
