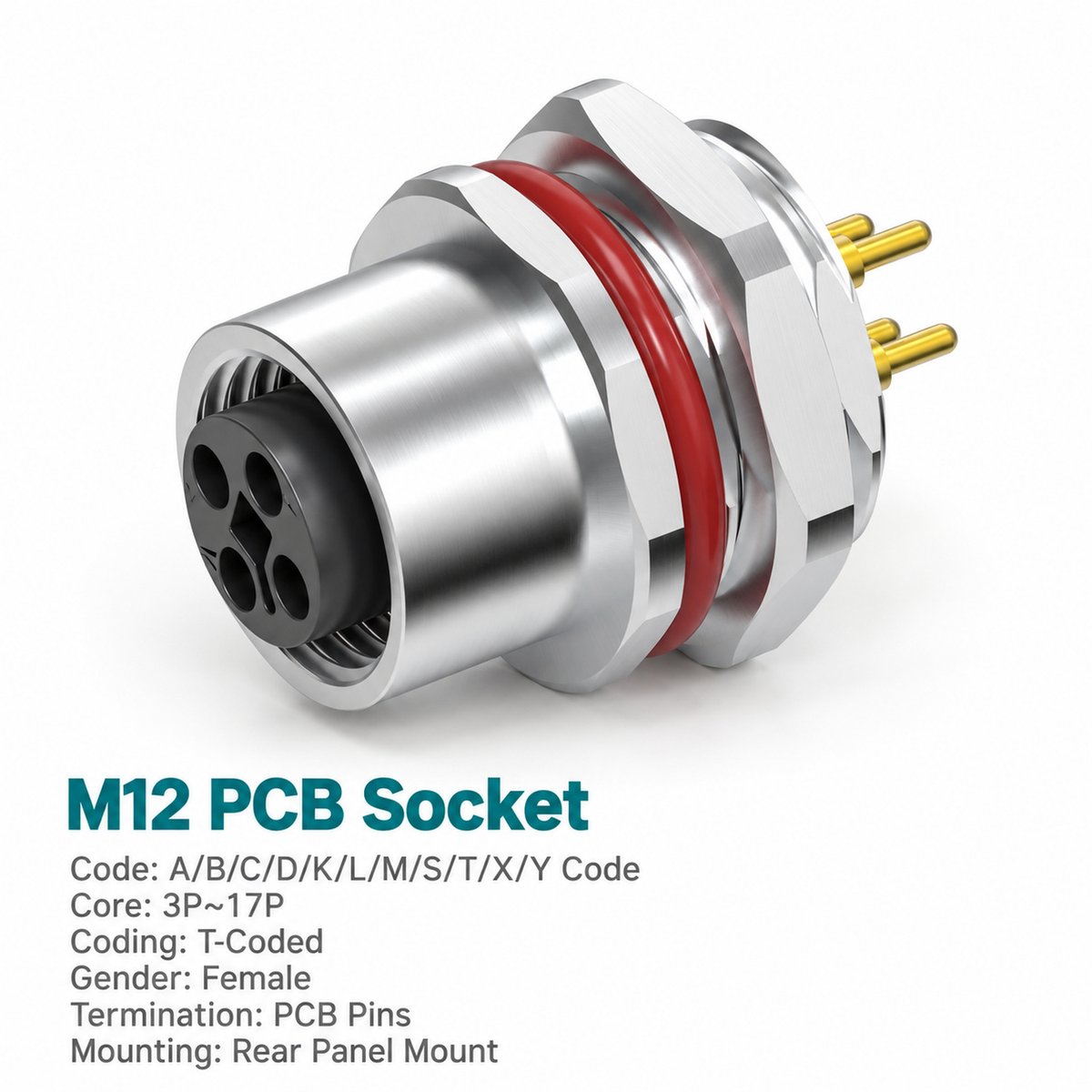

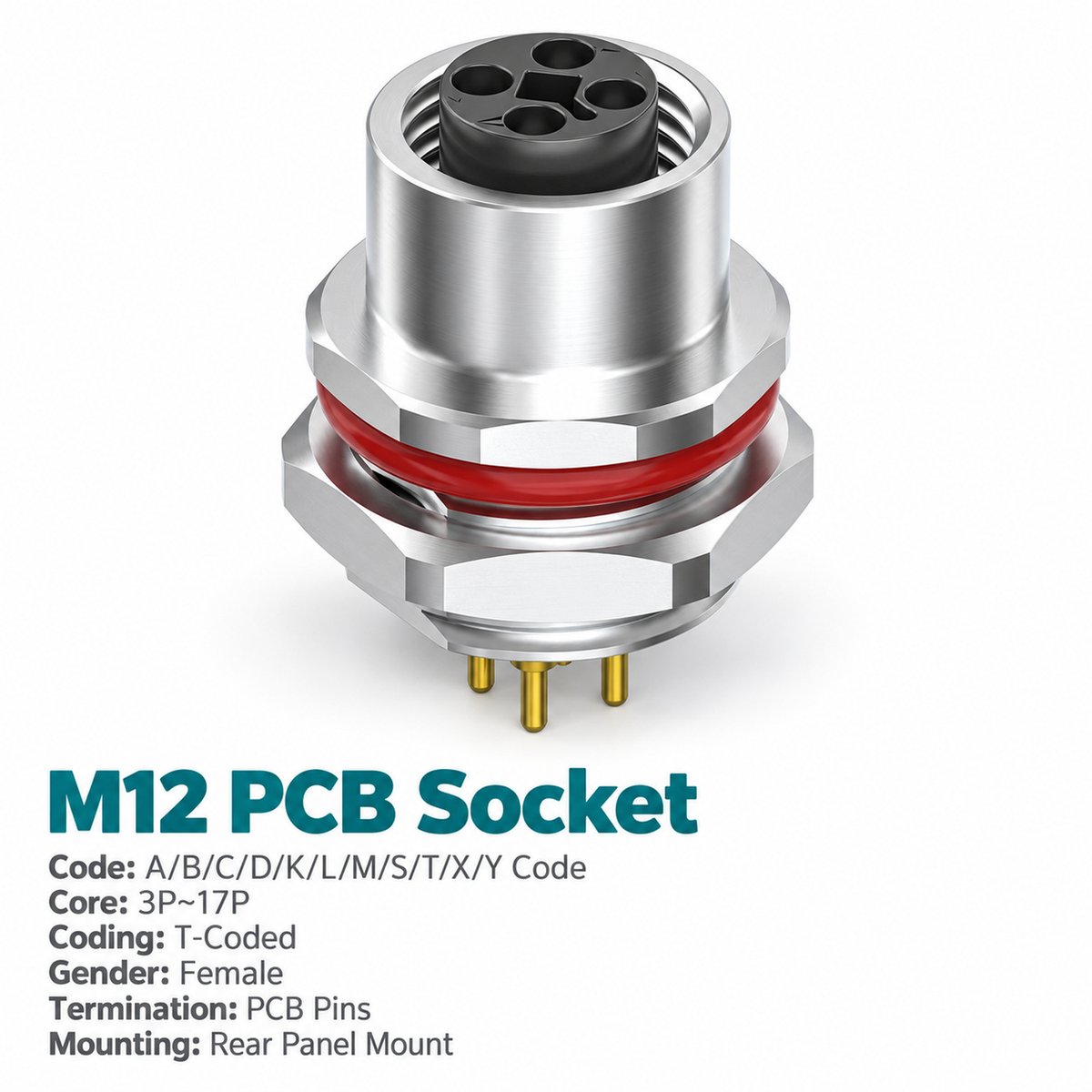

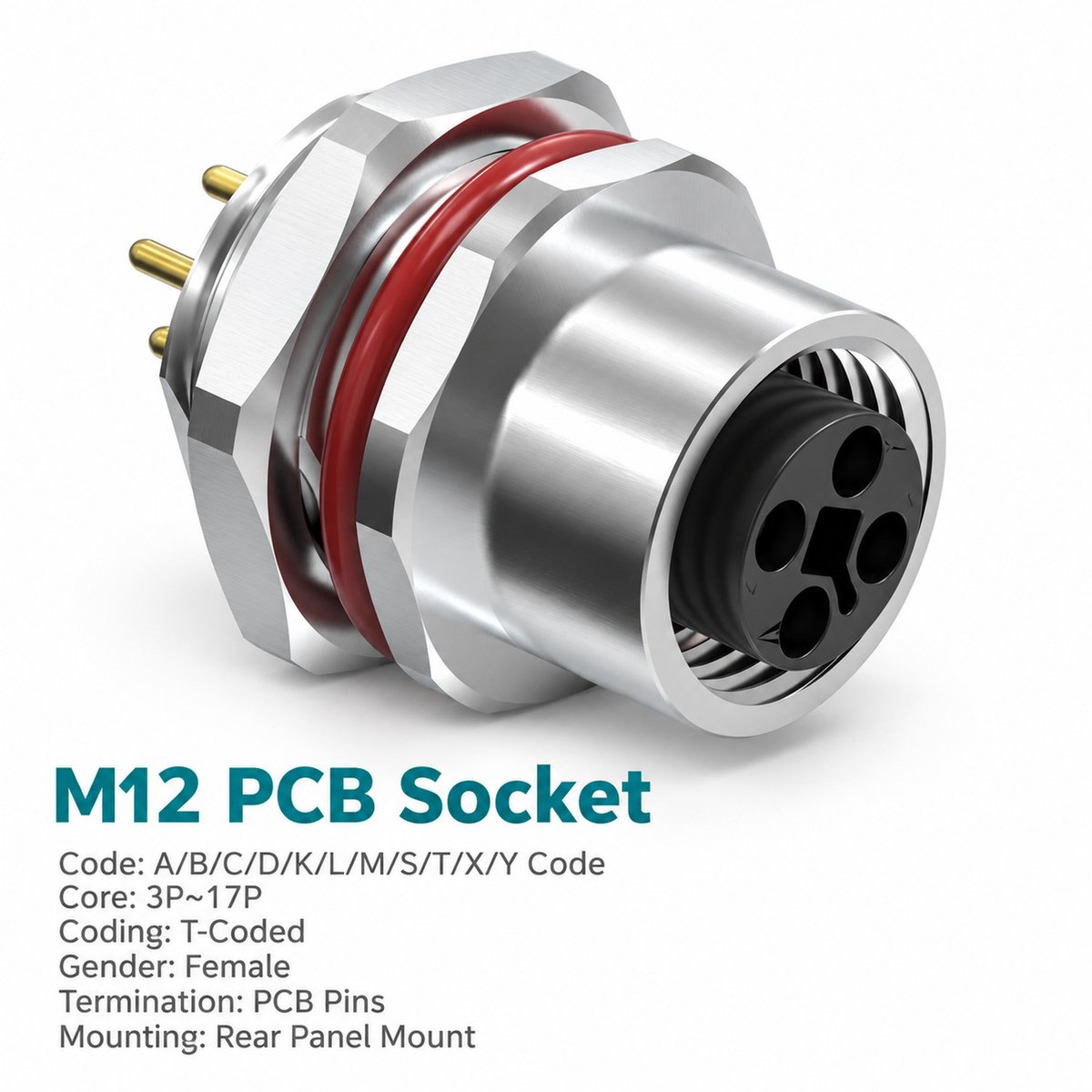

Xmost M12 T-coded female rear mount PCB socket connects an external DC power cable to the circuit board inside industrial equipment. Its female T-coded interface receives a compatible male cable connector, while straight rear contacts provide PCB dip-solder termination.
Designed for rear fastened installation, this M12 panel mount power socket suits enclosures with a defined panel-to-board position. The rear mount outline should be used to check mounting clearance and circuit-board placement.
The four-contact socket carries catalogue ratings of 12 A and 63 V. Select PG9 or M16 × 1.5 panel mounting and assign the contacts according to the equipment’s DC power schematic.
Key Features
- Rear fastened construction: For housings designed around a rear mount panel power socket.
- 4-pin female T-coded interface: Mates with compatible M12 T-coded male cable connectors.
- 12 A / 63 V ratings: Defined electrical limits for DC power applications.
- Direct PCB termination: Straight insertion contacts support dip soldering.
- PG9 or M16 × 1.5 mounting: Two panel thread options.
- Unshielded design: Matches the construction listed on this product page.
Product Dimensions
[Insert the female rear mount outline drawing and corresponding panel cut-out drawing from page 15.]

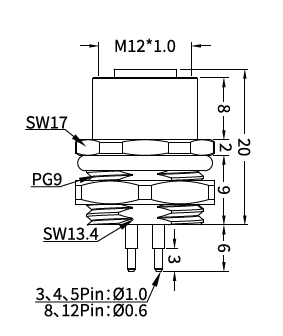

Illustrated PG9 Rear Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section | 8 |
| Flange section | 2 |
| Lower axial section | 9 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 4-pin version | Ø1.0 |
Needle Arrangement (Front View)
[Insert the T-coded 4-pin female needle arrangement diagram from page 15.]
The diagram shows the female connector from the mating face, with contacts numbered 1–4. Use this arrangement to identify mating contacts and follow the equipment schematic for power polarity.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 T-coded female rear mount PCB power socket |
| Mounting | Rear fastened |
| Contact count | 4 pins |
| Power application | DC power |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-111 |
| Rated current | 12 A |
| Rated voltage | 63 V |
| Shielding | Unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- PCB-based DC power equipment: Links external power cables to internal board circuits.
- Machine control housings: Provides a rear fastened M12 power connection at the enclosure.
- Industrial automation modules: Integrates a detachable four-contact power interface.
- Modular equipment assemblies: Supports cable disconnection at the panel with internal PCB termination.
Selection and Ordering
| Panel Mounting Thread | Rear Mount Part Number |
|---|---|
| PG9 | 1M1208TF04HP9P |
| M16 × 1.5 | 1M1208TF04H16P |
Example enquiry: M12 T-coded female rear mount PCB power socket, 4-pin, 12 A, 63 V DC, M16 × 1.5 mounting, part number 1M1208TF04H16P.
