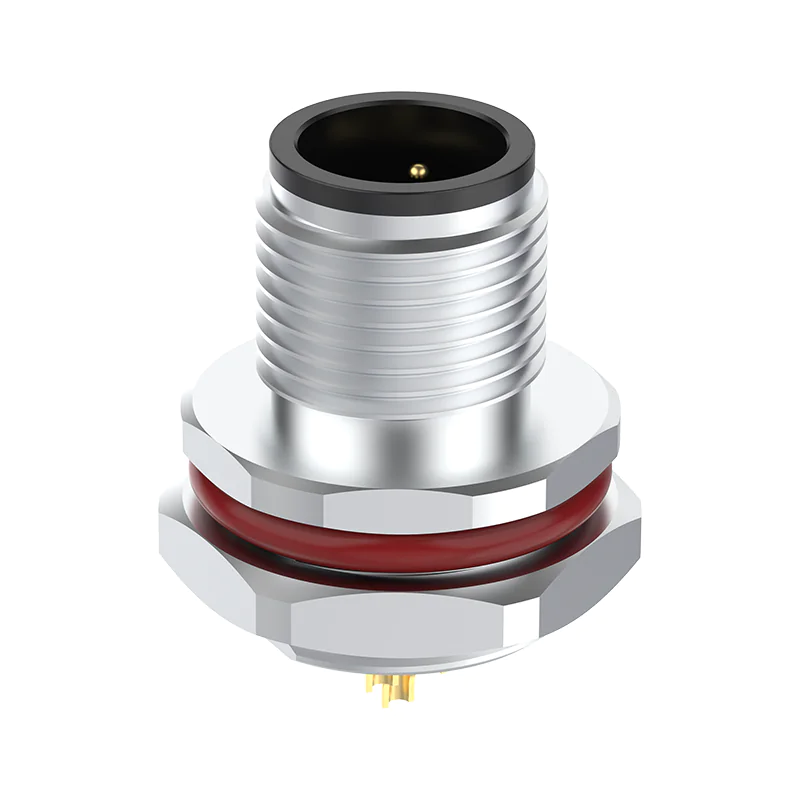

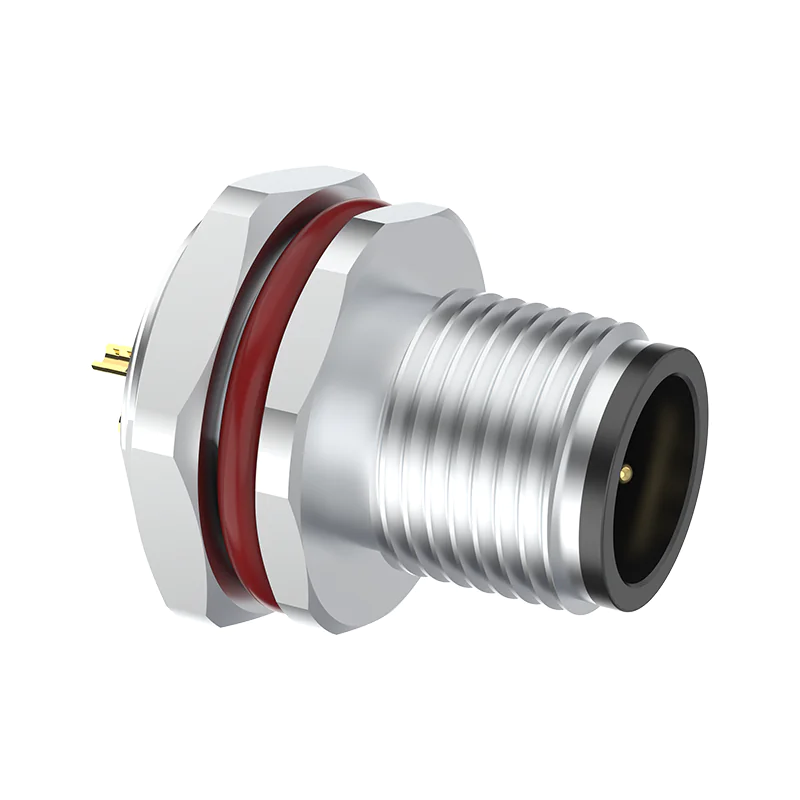

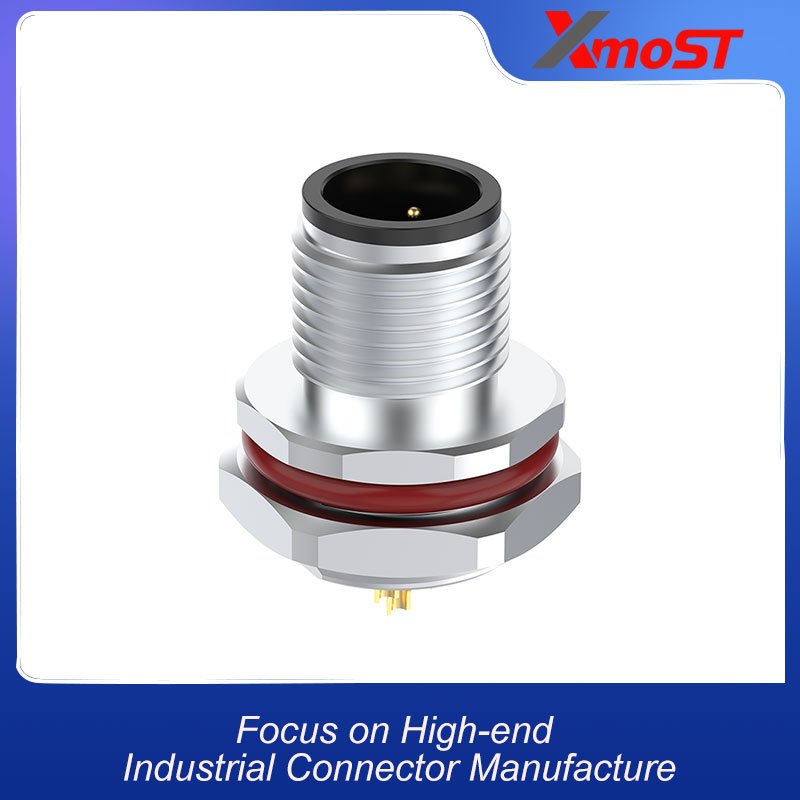

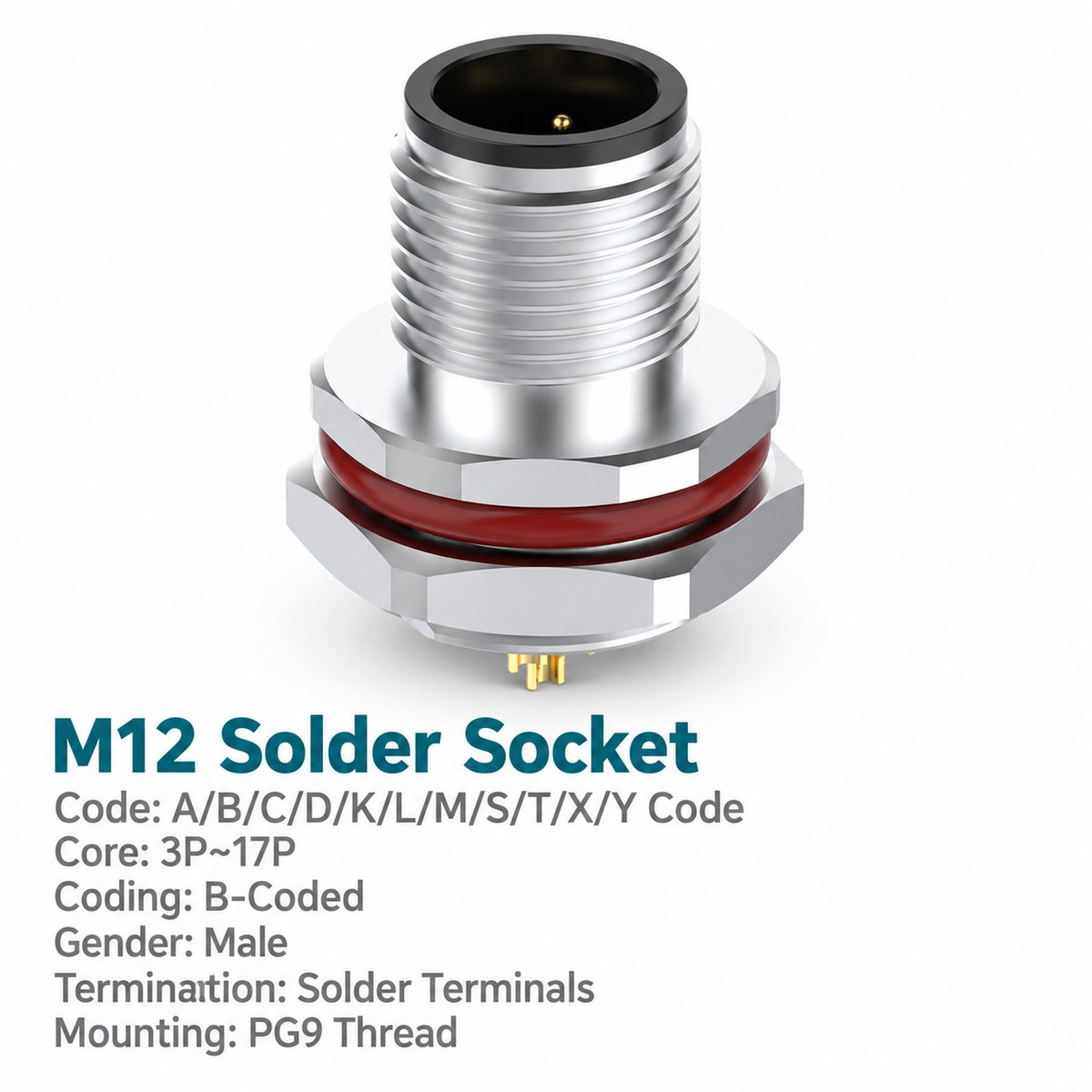

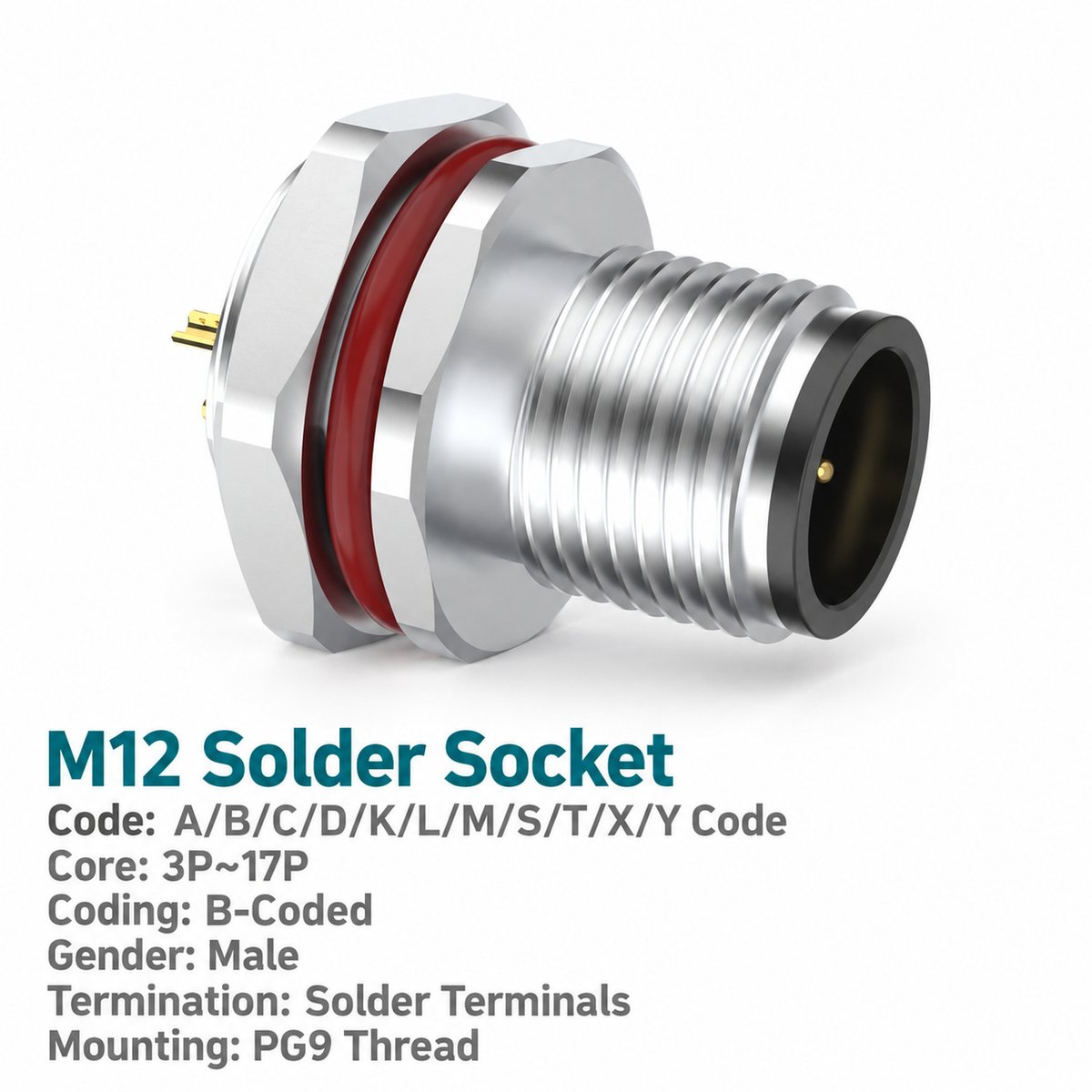

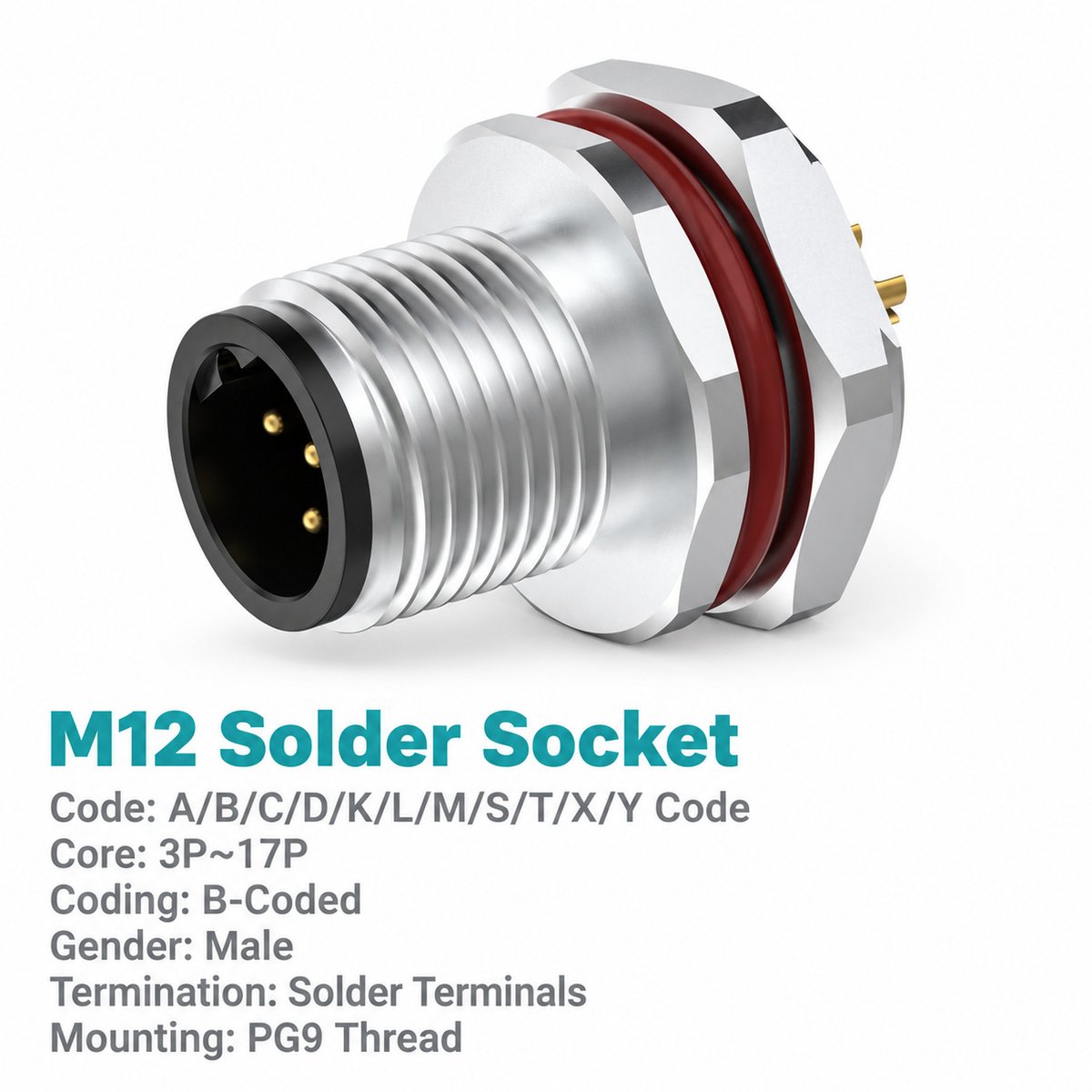

M12 B-Coded Male Rear Mount Socket, 5-Pin

Xmost M12 B-coded male rear mount socket provides an external threaded mating interface with wiring connections behind the panel. Its rear fastened mounting arrangement suits equipment housings designed for a rear mount receptacle.

This M12 B-coded panel mount connector offers five contacts, solder termination and a choice of unwired or pre-wired construction. Select the mounting thread and lead length to match the panel design and internal wiring layout. For PROFIBUS-related installations, check the complete assembly against the network’s wiring and shielding requirements.

Key Features

Rear fastened construction: For panels designed to accept a rear mount socket.
5-pin B-coded interface: Connects to a compatible M12 B-coded female cable connector.
Solder connection: Allows wires to be terminated during equipment assembly.
Lead length selection: Unwired, 0.1 m, 0.3 m and 0.5 m versions listed.
Three mounting thread options: M12 × 1.0, PG9 and M16 × 1.5.
Unshielded design: As specified for this catalogue version.
Rated 4 A / 60 V: For circuits within the listed electrical limits.

Product Dimensions

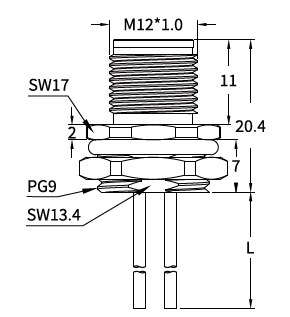

[Insert the rear mount male socket dimension drawing and corresponding panel cut-out here.]

Illustrated PG9 Version

Drawing Item	Dimension / Specification
Mating thread	M12 × 1.0
Panel mounting thread	PG9
Upper wrench size	SW17
Lower wrench size	SW13.4
Upper axial section shown	11
Overall body length shown, excluding leads	20.4
Flange thickness shown	2
Lower axial section shown	7
Lead length	L, according to ordered version
Unit	mm

Refer to the matching panel cut-out for the ordered thread. Check the rear mounting hardware and wiring clearance against the equipment layout.

Needle Arrangement (Front View)

[Insert the B-coded 5-pin male needle arrangement screenshot from page 3 here.]

Contact positions are shown from the mating face. Use the numbered diagram together with the wire colour table when preparing or inspecting the connection.

Product Specifications

Parameter	Specification
Brand	Xmost
Product type	M12 B-coded male rear mount socket
Contact count	5 pins
Termination	Solder
Wiring options	Unwired / pre-wired leads
Standard listed	IEC 61076-2-101
Rated current	4 A
Rated voltage	60 V
Insulation resistance	≥100 MΩ
Contact resistance	≤5 mΩ
Shielding	Unshielded
Coupling thread	M12 × 1.0
Panel mounting thread options	M12 × 1.0 / PG9 / M16 × 1.5
Recommended coupling torque	0.4 N·m
Maximum coupling torque	0.8 N·m
Wire size listed	0.34 mm² / AWG22
Temperature range, flexible use	−25°C to +80°C
Temperature range, static use	−40°C to +80°C
Protection ratings listed	IP67 / IP68
Pollution degree	3
Insulator materials listed	PA66+GF / TPU+GF

Applications

This M12 male rear mount solder socket can be selected for:

Equipment housings with rear fastened B-coded receptacles.
Industrial control panels connected to external B-coded cables.
Automation assemblies using pre-wired internal harnesses.
PROFIBUS-related interfaces subject to complete system requirements.
Machinery requiring a five-contact panel connection.

Wiring and Lead Options

[Insert the wire colour and pin assignment screenshot here.]

Pin	Wire Colour
1	Brown — BN
2	White — WH
3	Blue — BU
4	Black — BK
5	Grey — GY

The unwired socket supports customer solder termination. Pre-wired lead lengths allow the connection to be routed to the internal circuit or harness.

Ordering Information

Wiring Option	M12 × 1.0 Mounting	PG9 Mounting	M16 × 1.5 Mounting
Unwired	1M1208BM05H12W00	1M1208BM05HP9W00	1M1208BM05H16W00
0.1 m leads	1M1208BM05H12W10	1M1208BM05HP9W10	1M1208BM05H16W10
0.3 m leads	1M1208BM05H12W30	1M1208BM05HP9W30	1M1208BM05H16W30
0.5 m leads	1M1208BM05H12W50	1M1208BM05HP9W50	1M1208BM05H16W50
