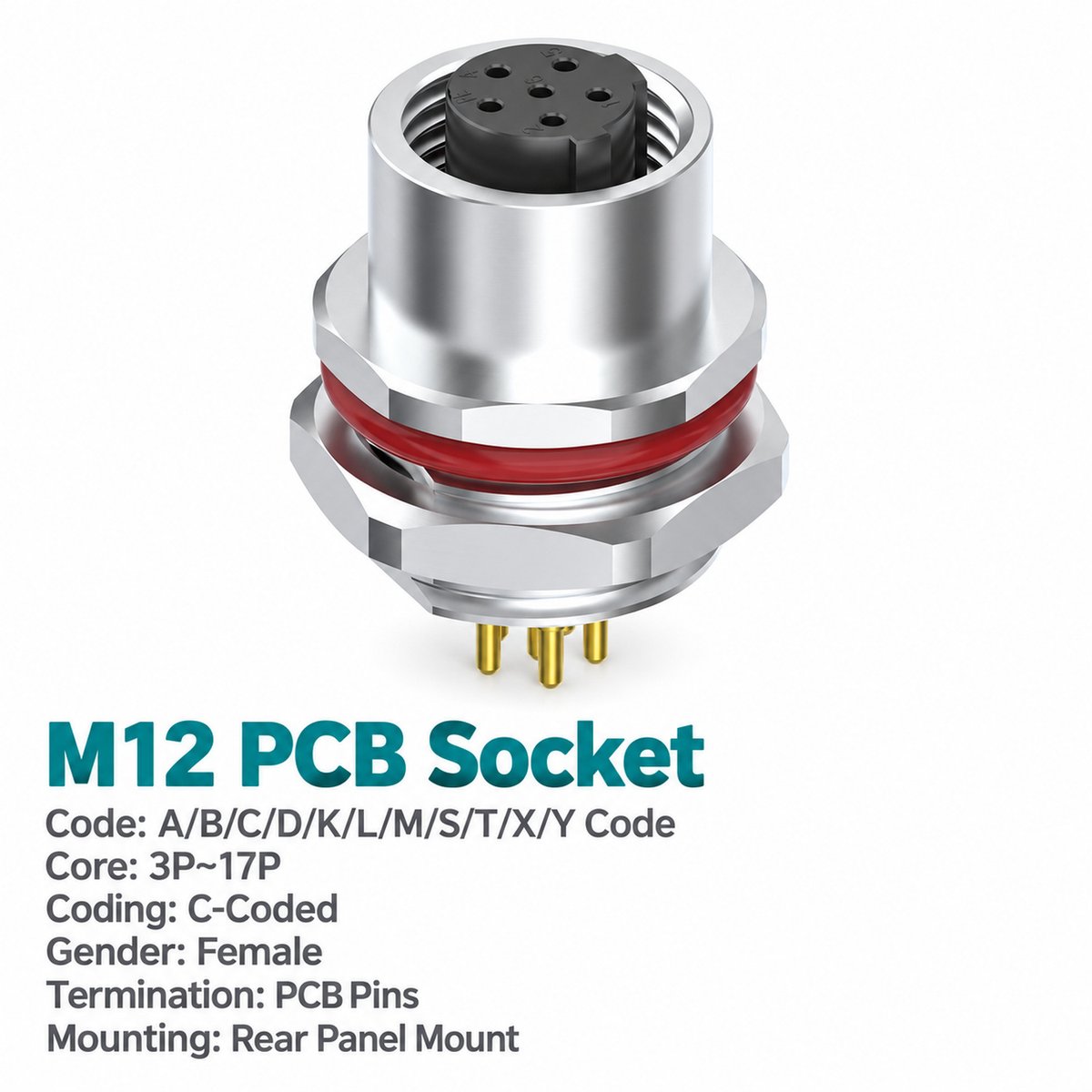

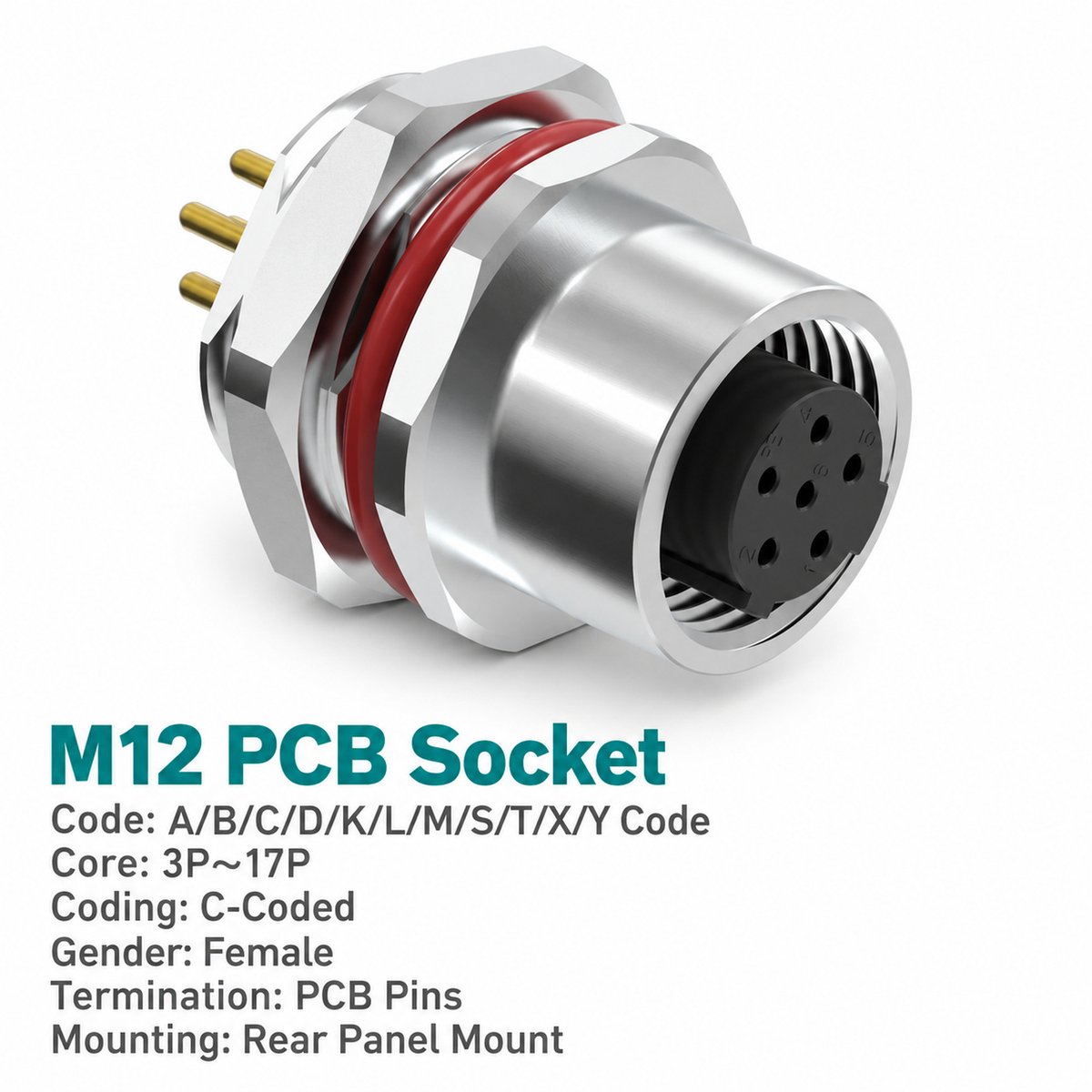

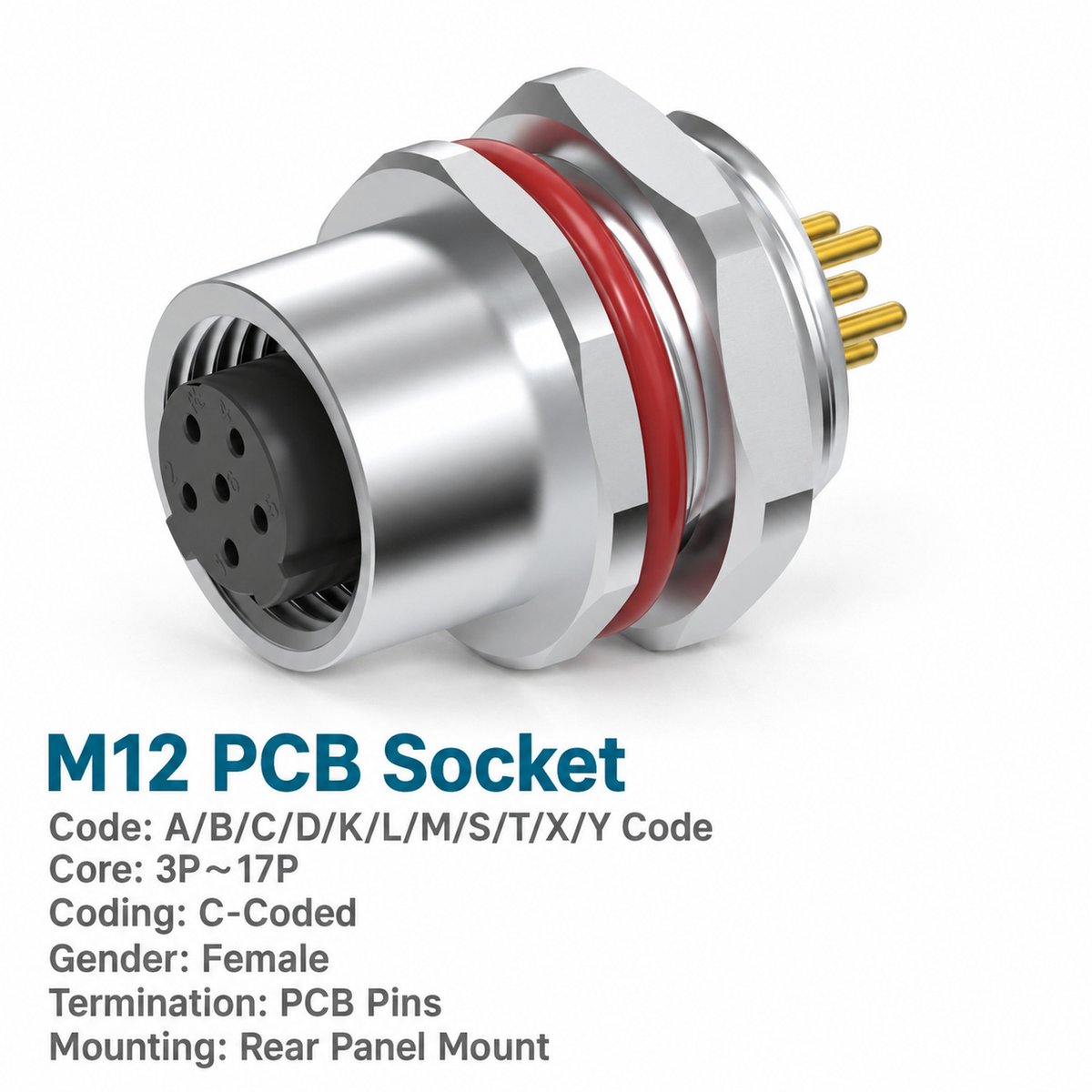

Xmost M12 C-coded female rear mount PCB socket provides a threaded AC power cable interface for industrial equipment. It accepts a compatible C-coded male connector and connects to the circuit board through straight rear PCB contacts.
Designed for rear fastened installation, this M12 panel mount power socket suits enclosures with a defined panel-to-board position. The rear mount outline should be used when checking mounting clearance and circuit-board placement.
Choose from four contact arrangements, each including PE. Electrical ratings vary by configuration, while shielded and unshielded versions support different equipment shielding requirements.
Key Features
- Rear fastened construction: For housings designed around a rear mount panel power socket.
- Female M12 C-coded interface: Accepts a matching male power cable connector.
- PE contact included: Available with two, three, four or five additional contacts.
- Direct PCB connection: Straight insertion contacts support dip soldering.
- PG9 or M16 × 1.5 mounting: Two panel thread options for enclosure integration.
- Shielding selection: Available in shielded and unshielded versions.
Product Dimensions
[Insert the female rear mount outline drawing and corresponding panel cut-out drawing from page 8.]

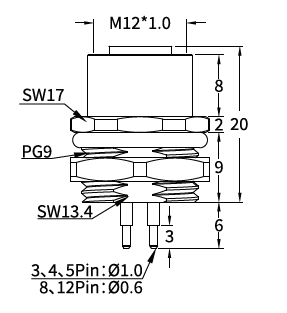

Illustrated PG9 Rear Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20 |
| Upper axial section | 8 |
| Flange section | 2 |
| Lower axial section | 9 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 3 / 4 / 5-pin versions | Ø1.0 |
The outline drawing does not separately specify the 6-pin PCB contact diameter.
Needle Arrangement (Front View)
[Insert the C-coded female contact arrangement diagrams for 3-pin (2+PE), 4-pin (3+PE), 5-pin (4+PE) and 6-pin (5+PE).]
The diagrams show the female connector from the mating face. Identify the numbered contacts and PE position using the selected arrangement, then follow the equipment schematic for circuit connections.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 C-coded female rear mount PCB power socket |
| Mounting | Rear fastened |
| Power application | AC power |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Shielding options | Shielded / unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Contact Arrangement
| Total Contacts | Arrangement | Rated Current | Rated Voltage |
|---|---|---|---|
| 3 pins | 2+PE | 4 A | 250 V |
| 4 pins | 3+PE | 4 A | 250 V |
| 5 pins | 4+PE | 2 A | 60 V |
| 6 pins | 5+PE | 2 A | 30 V |
Applications
- PCB-based power modules: Connects external AC power cables to internal board circuits.
- Machine control housings: Provides a rear fastened M12 power connection at the enclosure.
- Industrial automation equipment: Supports detachable power interfaces within the selected electrical ratings.
- Modular control assemblies: Combines multiple circuit contacts and PE in one C-coded panel socket.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | 2+PE / 3+PE / 4+PE / 5+PE |
| Contact gender | Female |
| Mounting style | Rear mount |
| Panel mounting thread | PG9 / M16 × 1.5 |
| Termination | PCB dip soldering |
| Shielding | Shielded / unshielded |
Example enquiry: M12 C-coded female rear mount PCB power socket, 3-pin (2+PE), M16 × 1.5 mounting, unshielded version.
