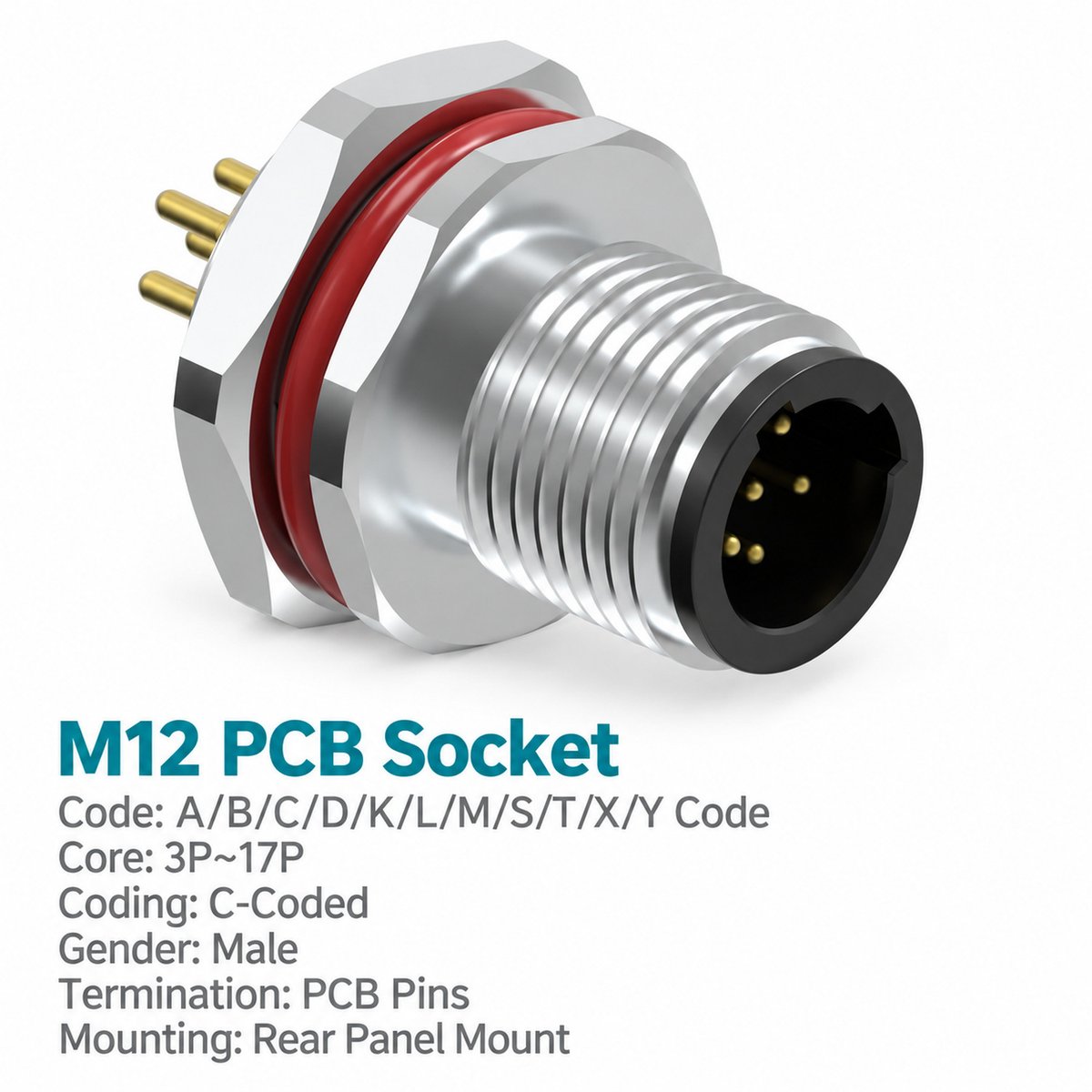

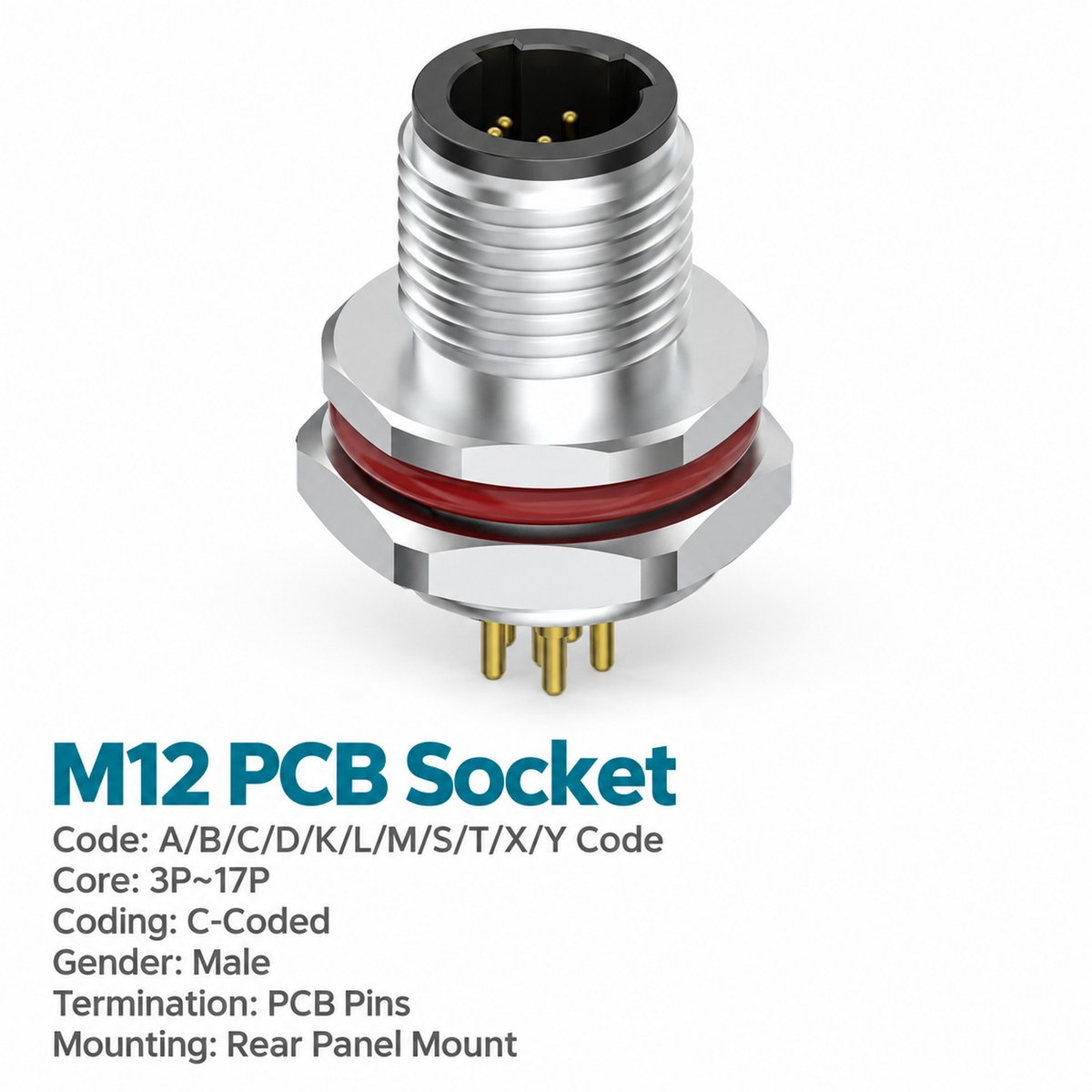

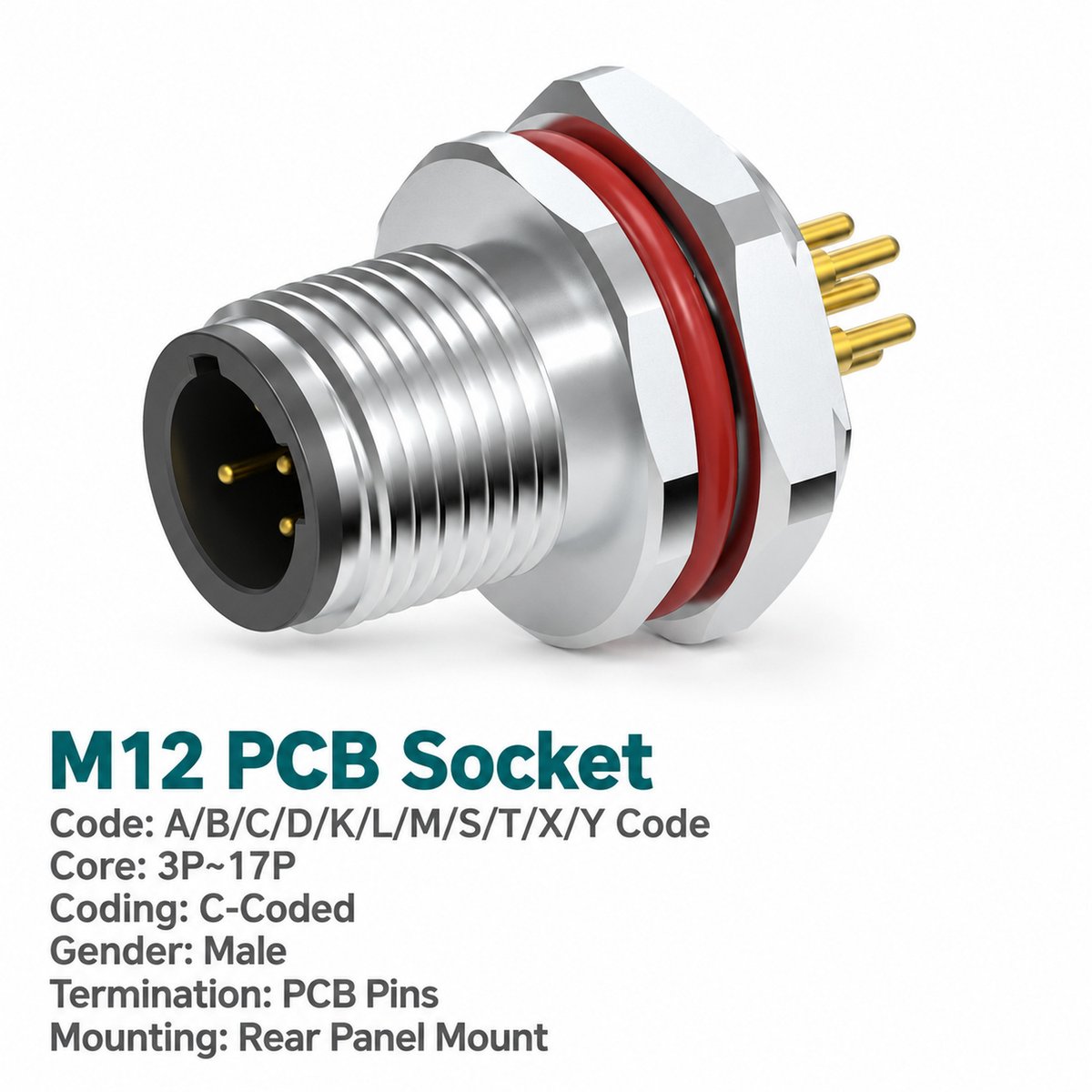

Xmost M12 C-coded male rear mount PCB connector connects an external AC power cable to the equipment’s internal circuit board. Its threaded male interface mates with a compatible C-coded female cable connector, while rear insertion contacts provide PCB dip-solder termination.
The rear fastened construction suits housings designed for a rear mount panel connector. Use the rear mount outline to check enclosure clearance and the position of the PCB relative to the panel.
Four contact arrangements include a PE contact: 2+PE, 3+PE, 4+PE and 5+PE. Choose the required arrangement and its corresponding electrical ratings, then specify shielded or unshielded construction.
Key Features
- Rear mount power connection: Rear fastened construction for compatible equipment enclosures.
- Male C-coded interface: Connects to matching M12 C-coded female power cable assemblies.
- PE contact included: Available with two to five additional contacts.
- Direct PCB termination: Straight contacts support board insertion and dip soldering.
- Shielded or unshielded versions: Select according to the equipment shielding requirements.
- Configuration-specific ratings: Current and voltage limits are listed for each contact arrangement.
Product Dimensions
[Insert the male rear mount outline drawing and corresponding panel cut-out drawing from page 7.]

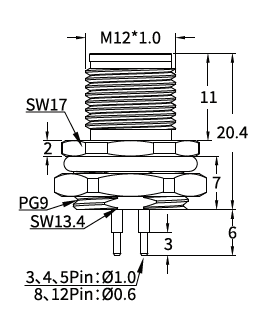

Illustrated PG9 Rear Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20.4 |
| Upper axial section | 11 |
| Flange section | 2 |
| Lower axial section | 7 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 3 / 4 / 5-pin versions | Ø1.0 |
The outline drawing does not separately specify the 6-pin PCB contact diameter.
Needle Arrangement (Front View)
[Insert the C-coded male contact arrangement diagrams for 3-pin (2+PE), 4-pin (3+PE), 5-pin (4+PE) and 6-pin (5+PE).]
The diagrams show the male mating-face view. Identify the numbered contacts and PE position using the selected arrangement, then follow the equipment schematic for circuit connections.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 C-coded male rear mount PCB power connector |
| Mounting | Rear fastened |
| Power application | AC power |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Shielding options | Shielded / unshielded |
| Mating thread | M12 × 1.0 |
| Confirmed panel thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Electrical Ratings by Contact Arrangement
| Total Contacts | Arrangement | Rated Current | Rated Voltage |
|---|---|---|---|
| 3 pins | 2+PE | 4 A | 250 V |
| 4 pins | 3+PE | 4 A | 250 V |
| 5 pins | 4+PE | 2 A | 60 V |
| 6 pins | 5+PE | 2 A | 30 V |
Applications
- PCB-based power modules: Connects an external power cable to internal board circuits.
- Machine control housings: Provides a rear fastened M12 panel power connection.
- Industrial automation devices: Supports detachable AC power interfaces within the selected ratings.
- Modular equipment assemblies: Combines multiple power contacts and PE in one C-coded connector.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | 2+PE / 3+PE / 4+PE / 5+PE |
| Mounting style | Rear mount |
| Termination | PCB dip soldering |
| Shielding | Shielded / unshielded |
| Panel mounting thread | PG9 / M16 × 1.5; additional catalogue option requires confirmation |
Example enquiry: M12 C-coded male rear mount PCB power connector, 3-pin (2+PE), M16 × 1.5 mounting, unshielded version.
