Xmost M12 L-coded male rear mount PCB connector links an external DC power cable to the circuit board inside industrial equipment. Its threaded male interface accepts a matching L-coded female connector, while straight rear contacts provide the internal board connection.
The rear fastened construction suits enclosures designed around a rear mount panel interface. Use the corresponding outline drawing to check housing clearance and the position of the PCB relative to the panel.
Choose 2+FE, 3-pin, 3+FE, 4-pin or 4+FE according to the circuit requirements. All configurations carry catalogue ratings of 16 A and 63 V, with functional earth included only in the designated FE versions.
Key Features
- Rear fastened installation: For housings requiring a rear mount M12 power connector.
- 16 A / 63 V DC interface: Listed ratings across the available configurations.
- Five contact arrangements: Three to five total contacts, with or without FE.
- Male L-coded connection: Mates with the matching female power cable configuration.
- Direct PCB termination: Straight insertion contacts support dip soldering.
- Two mounting threads: PG9 or M16 × 1.5 in unshielded construction.
Product Dimensions
[Insert the male rear mount outline drawing and corresponding panel cut-out drawing from page 18.]

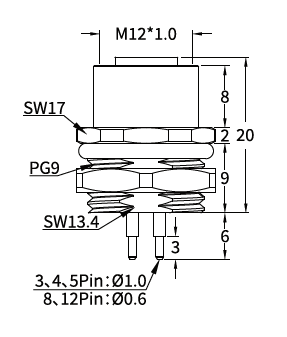

Illustrated PG9 Rear Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Body dimension shown, excluding PCB contacts | 20.4 |
| Upper axial section | 11 |
| Flange section | 2 |
| Lower axial section | 7 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 3 / 4 / 5-pin versions | Ø1.0 |
Needle Arrangement (Front View)
[Insert the five L-coded male needle arrangement diagrams from page 18.]
| Configuration | Circuit Contacts | FE Contacts | Total Contacts |
|---|---|---|---|
| 2+FE | 2 | 1 | 3 |
| 3-pin | 3 | 0 | 3 |
| 3+FE | 3 | 1 | 4 |
| 4-pin | 4 | 0 | 4 |
| 4+FE | 4 | 1 | 5 |
The diagrams show the male connector from the mating face. Identify the numbered contacts and any FE position, then follow the equipment schematic for power polarity and circuit functions.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 L-coded male rear mount PCB DC power connector |
| Mounting | Rear fastened |
| Contact configurations | 2+FE / 3-pin / 3+FE / 4-pin / 4+FE |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-111 |
| Rated current | 16 A |
| Rated voltage | 63 V |
| Shielding | Unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- PCB-based DC power equipment: Links external power cables to internal board circuits.
- Machine control enclosures: Provides a rear fastened power interface at the housing.
- Distributed automation modules: Integrates a detachable M12 L-coded cable connection.
- Modular electrical assemblies: Supports contact configurations with or without functional earth.
Selection and Ordering
| Contact Configuration | PG9 Mounting | M16 × 1.5 Mounting |
|---|---|---|
| 2+FE | 1M1208LM2EHP9P | 1M1208LM2EH16P |
| 3-pin | 1M1208LM03HP9P | 1M1208LM03H16P |
| 3+FE | 1M1208LM3EHP9P | 1M1208LM3EH16P |
| 4-pin | 1M1208LM04HP9P | 1M1208LM04H16P |
| 4+FE | 1M1208LM4EHP9P | 1M1208LM4EH16P |
Example enquiry: M12 L-coded male rear mount PCB power connector, 4-pin without FE, 16 A, 63 V DC, M16 × 1.5 mounting, part number 1M1208LM04H16P.
