M12 B-Coded Female Rear Mount Socket, Solder, Unwired or Pre-Wired

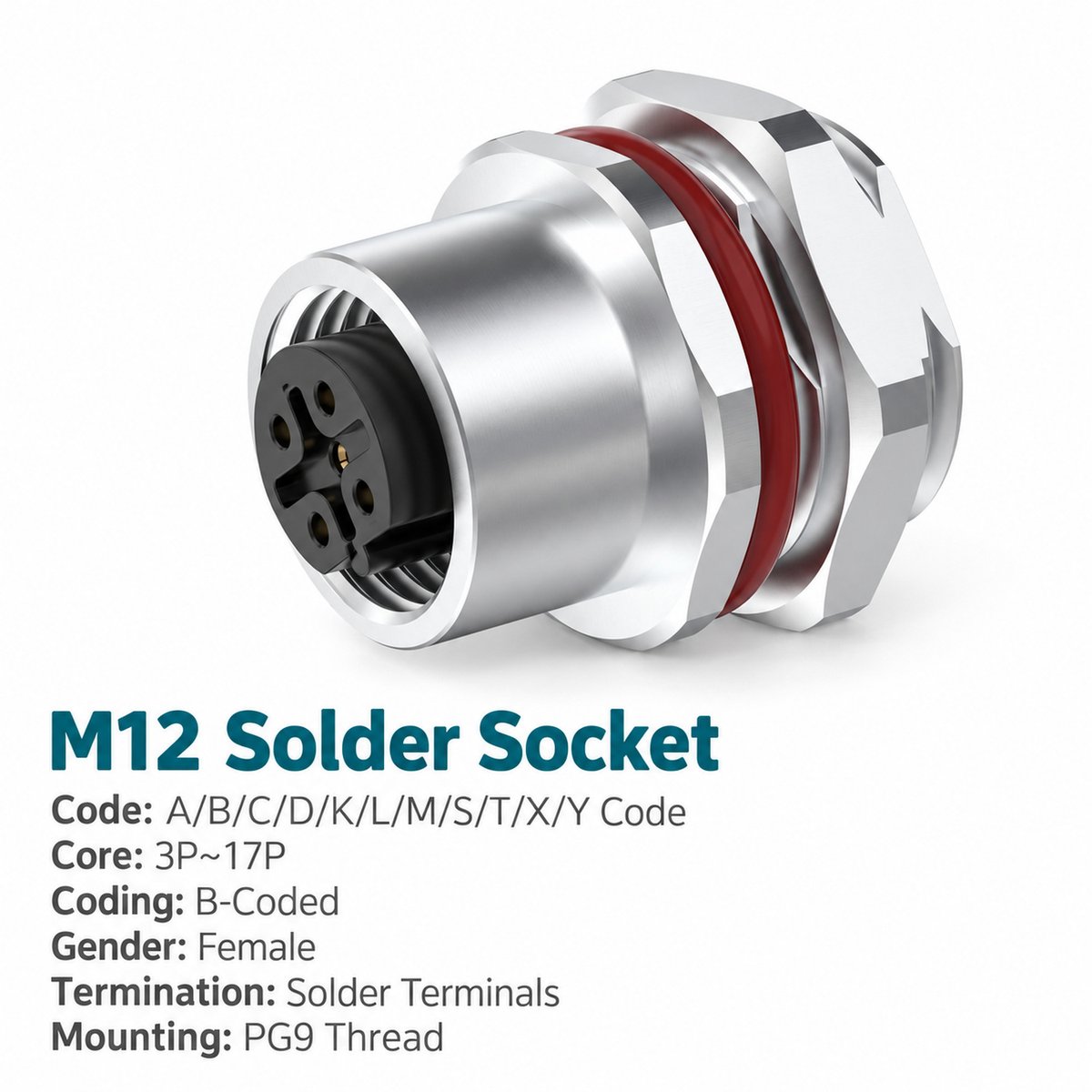

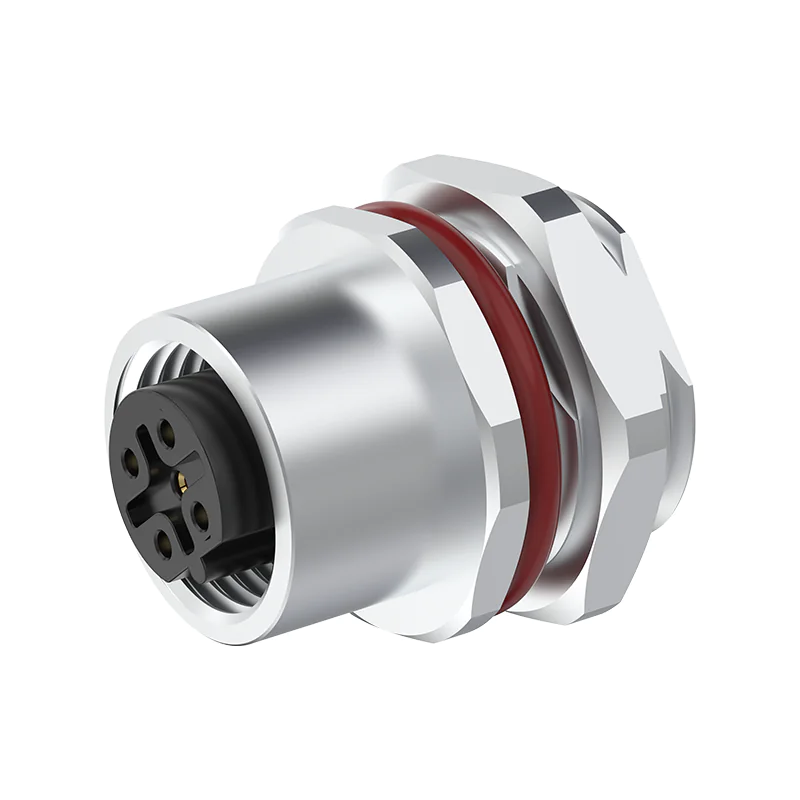

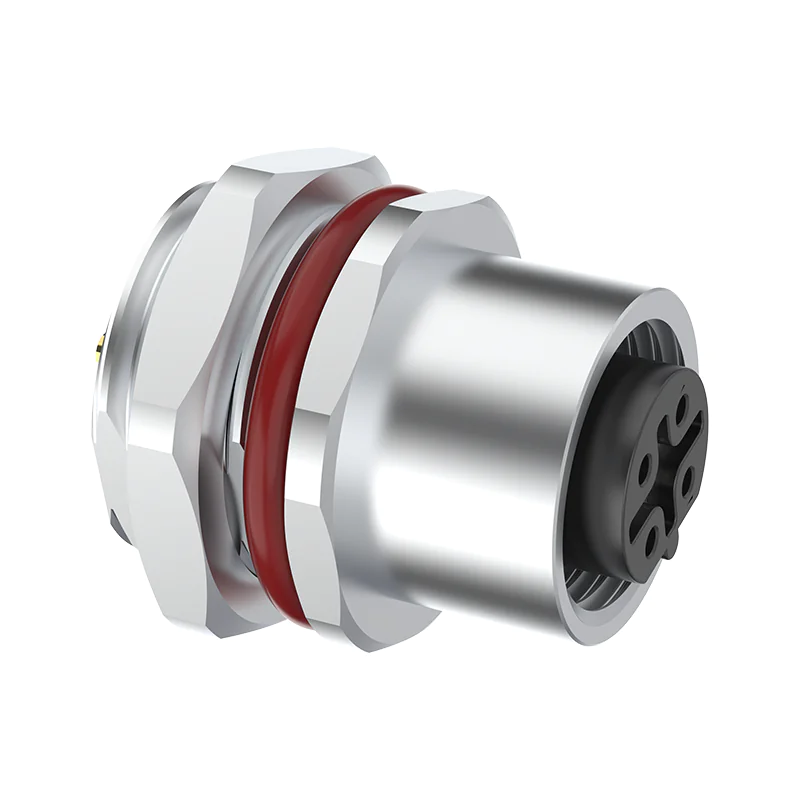

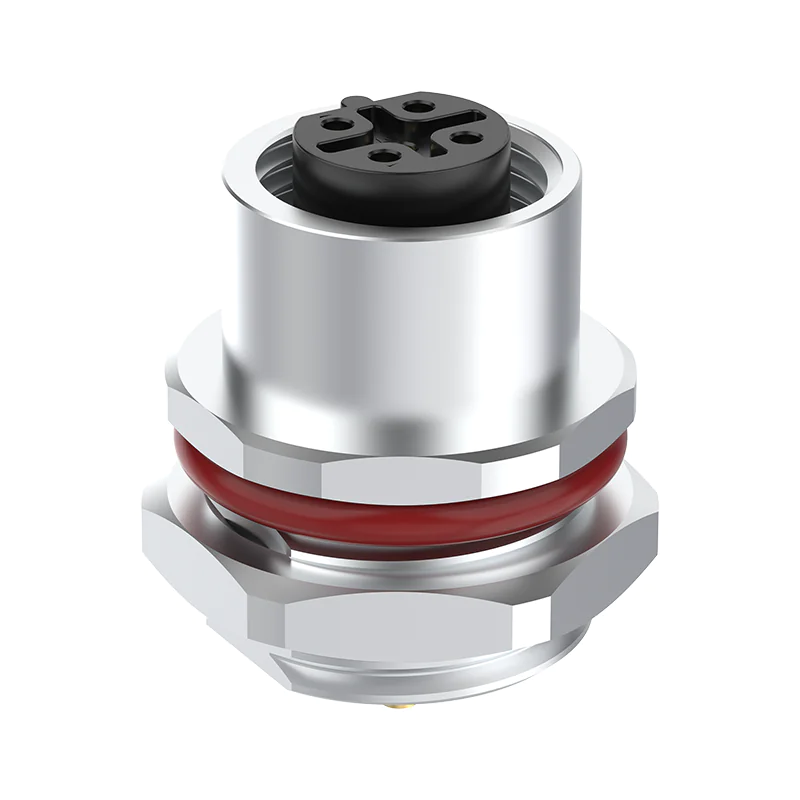

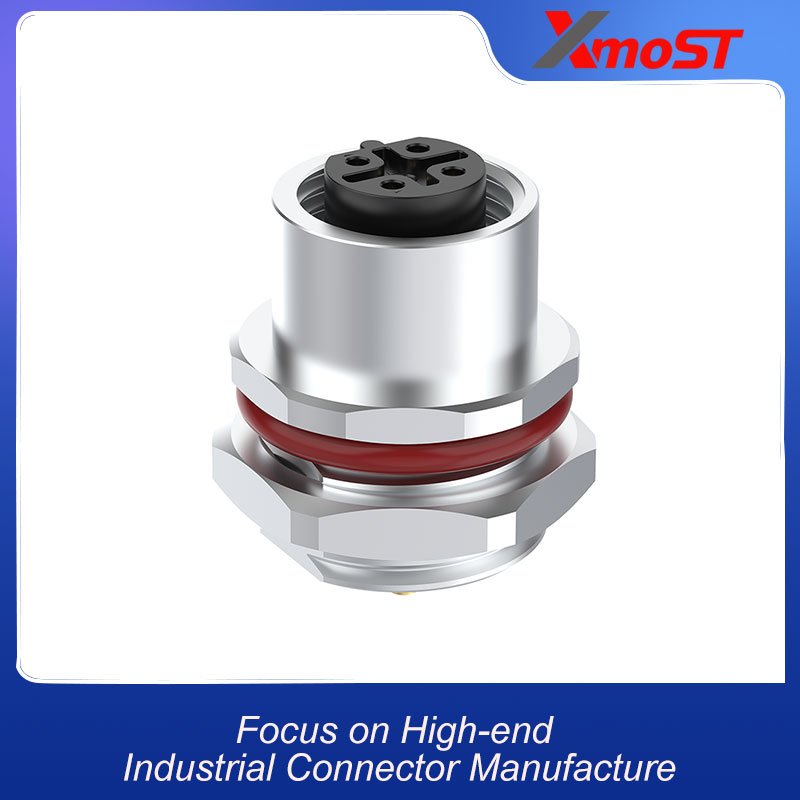

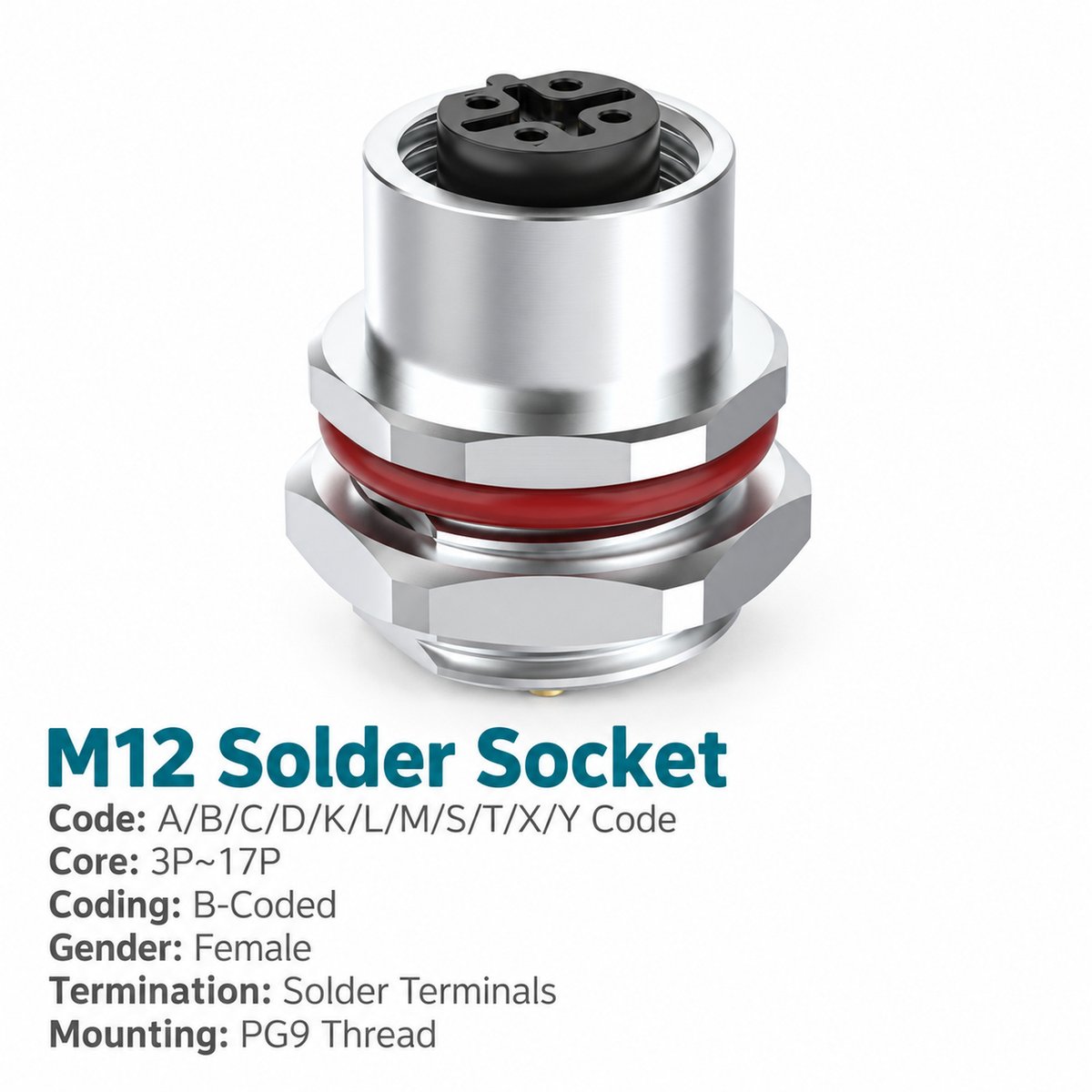

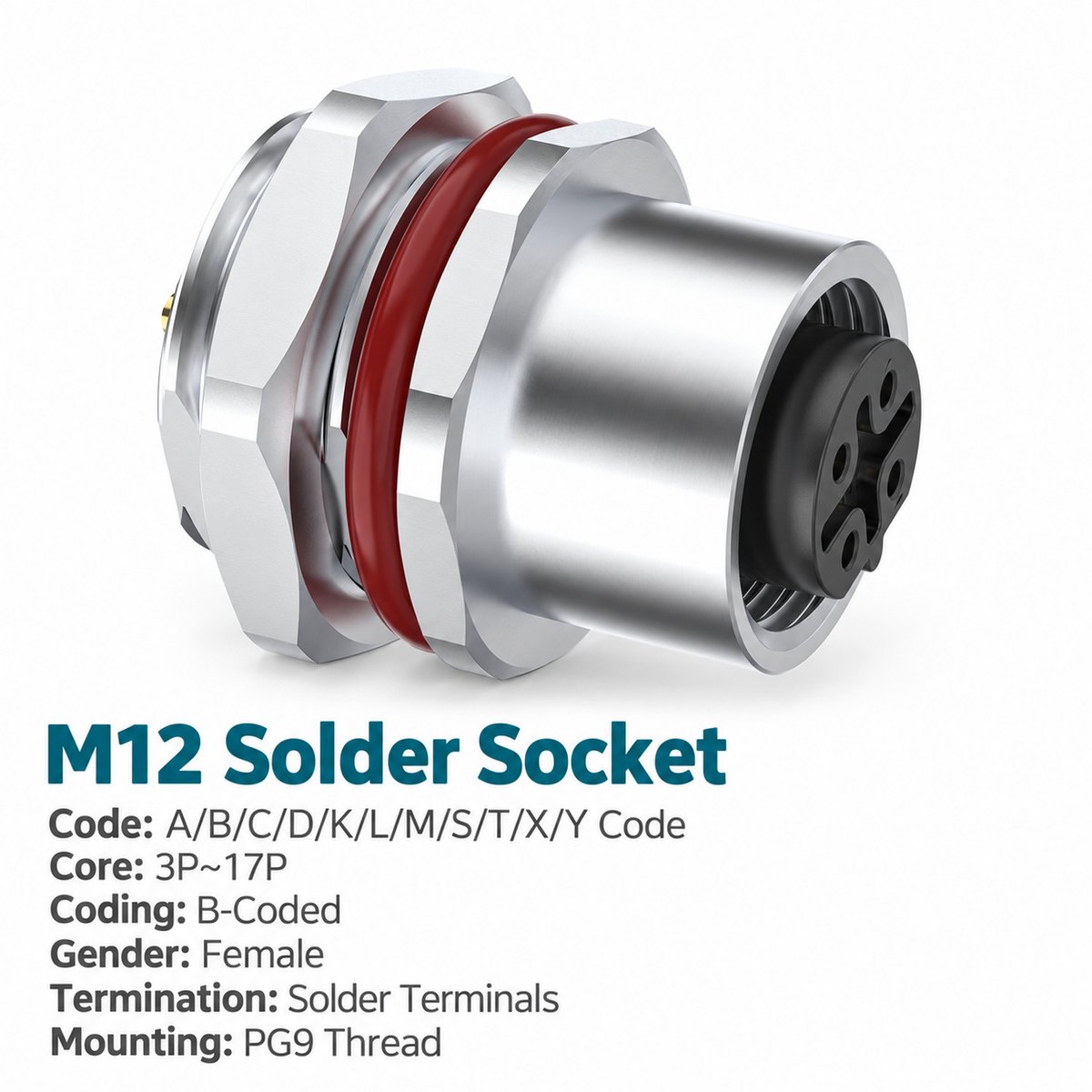

Xmost M12 B-coded female rear mount socket combines a 5-pin female interface with rear fastened panel installation. Available unwired or with pre-wired leads, this unshielded M12 solder socket connects a compatible external male cable to internal equipment wiring.

  • Brand: Xmost
  • Connector Size: M12
  • Coding: B-coded
  • Contact Gender: Female
  • Contact Count: 5 pins
  • Mounting Type: Rear mount / rear fastened
  • Termination: Solder
  • Wiring Options: Unwired / pre-wired leads
  • Shielding: Unshielded
  • Rated Current: 4 A
  • Rated Voltage: 60 V
  • Panel Mounting Threads: PG9 / M16 × 1.5
  • Standard Listed: IEC 61076-2-101
Category: Tag: Brand:

Xmost M12 B-coded female rear mount socket provides an external cable interface with wire connections inside the equipment housing. Its rear fastened construction suits panels designed to accommodate rear mounting hardware and internal harness access.

Choose the unwired M12 female solder socket for termination during assembly, or select pre-wired leads to suit the distance to the internal connection point. PG9 and M16 × 1.5 mounting versions accommodate different panel designs.

This B-coded panel mount connector is listed in the catalogue under PROFIBUS. Confirm that the unshielded construction and complete wiring assembly meet the intended equipment requirements.

Key Features

  • Rear fastened construction: For housings designed around a rear mount receptacle.
  • Female B-coded interface: Five contacts for a compatible M12 B-coded male connector.
  • Solder wiring connection: Supports termination to the internal equipment harness.
  • Lead length selection: Unwired, 0.1 m, 0.3 m and 0.5 m versions listed.
  • PG9 or M16 mounting: Two panel mounting thread options.
  • Threaded mating interface: M12 × 1.0 coupling.
  • Electrical ratings: Rated current of 4 A and rated voltage of 60 V.
  • Unshielded design: Matches the specification for this product version.

Product Dimensions

M12 B-Coded Female Rear Mount Socket, Solder, Unwired or Pre-Wired

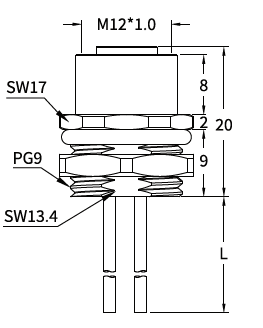

[Insert the rear mount female socket dimension drawing and corresponding panel cut-out here.]

Dimensions for the Illustrated PG9 Version

Drawing Item Dimension / Specification
Mating thread M12 × 1.0
Panel mounting thread PG9
Upper wrench size SW17
Lower wrench size SW13.4
Upper axial section shown 8
Flange thickness shown 2
Lower axial section shown 9
Overall body length shown, excluding leads 20
Lead length L, according to ordered version
Unit mm

Check clearance for the rear fastening hardware and wire routing. Prepare the panel opening using the drawing for the selected mounting thread.

Needle Arrangement (Front View)

M12 B-Coded Female Rear Mount Socket, Solder, Unwired or Pre-Wired 1

[Insert the B-coded 5-pin female needle arrangement screenshot from page 4 here.]

Contact positions are shown from the mating face. Use the female arrangement to identify terminals and verify the connection to the mating male cable.

Product Specifications

Parameter Specification
Brand Xmost
Product type M12 B-coded female rear mount socket
Contact count 5 pins
Mounting method Rear fastened
Termination Solder
Wiring options Unwired / pre-wired leads
Standard listed IEC 61076-2-101
Rated current 4 A
Rated voltage 60 V
Insulation resistance ≥100 MΩ
Contact resistance ≤5 mΩ
Shielding Unshielded
Coupling thread M12 × 1.0
Panel mounting thread options PG9 / M16 × 1.5
Recommended coupling torque 0.4 N·m
Maximum coupling torque 0.8 N·m
Wire size listed 0.34 mm² / AWG22
Temperature range, flexible use −25°C to +80°C
Temperature range, static use −40°C to +80°C
Protection ratings listed IP67 / IP68
Pollution degree 3
Insulator materials listed PA66+GF / TPU+GF

Applications

This M12 B-coded rear mount female socket can be considered for:

  • Equipment housings with rear mounting access: Accommodating fastening hardware and internal wiring.
  • Automation panel interfaces: Receiving compatible B-coded male cable connectors.
  • Internal harness assemblies: Connecting supplied leads or customer-soldered wires.
  • PROFIBUS-related equipment connections: Subject to the complete system’s wiring and shielding requirements.
  • Five-contact equipment interfaces: Where the specified current, voltage and contact arrangement match the circuit.

Wiring and Lead Options

[Insert the wire colour and pin assignment screenshot from page 4 here.]

Contact Wire Colour
Pin 1 Brown — BN
Pin 2 White — WH
Pin 3 Blue — BU
Pin 4 Black — BK
Pin 5 Grey — GY

Follow the equipment schematic when assigning circuit functions. Verify contact numbers against the female mating-face diagram before connecting the harness.

 Ordering Information

Wiring Option PG9 Mounting M16 × 1.5 Mounting
Unwired 1M1208BF05HP9W00 1M1208BF05H16W00
0.1 m leads 1M1208BF05HP9W10 1M1208BF05H16W10
0.3 m leads 1M1208BF05HP9W30 1M1208BF05H16W30
0.5 m leads 1M1208BF05HP9W50 1M1208BF05H16W50

Confirm the rear mount version, panel thread and required wiring option when ordering.
