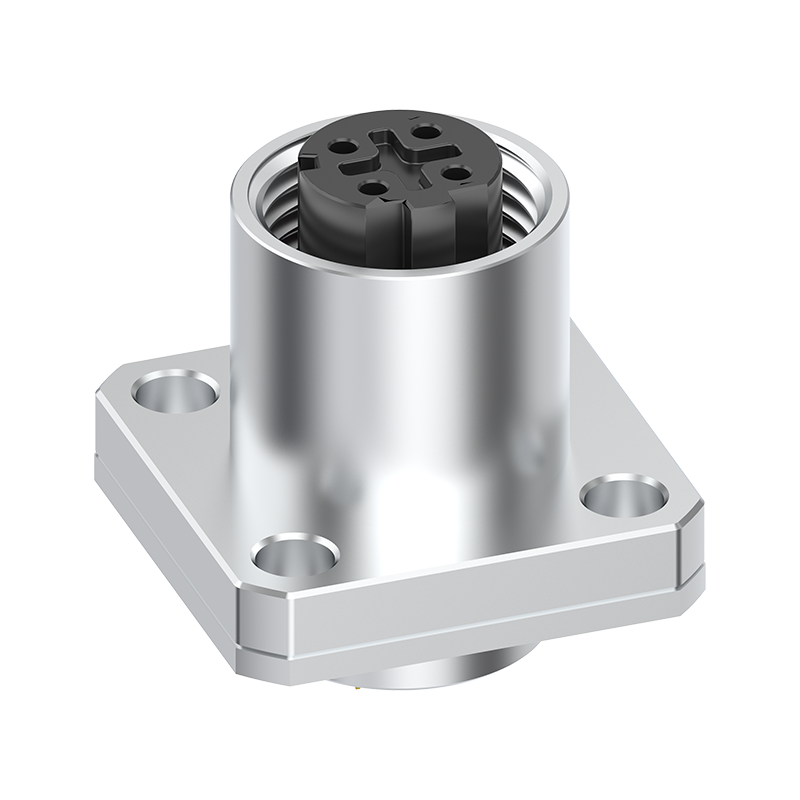

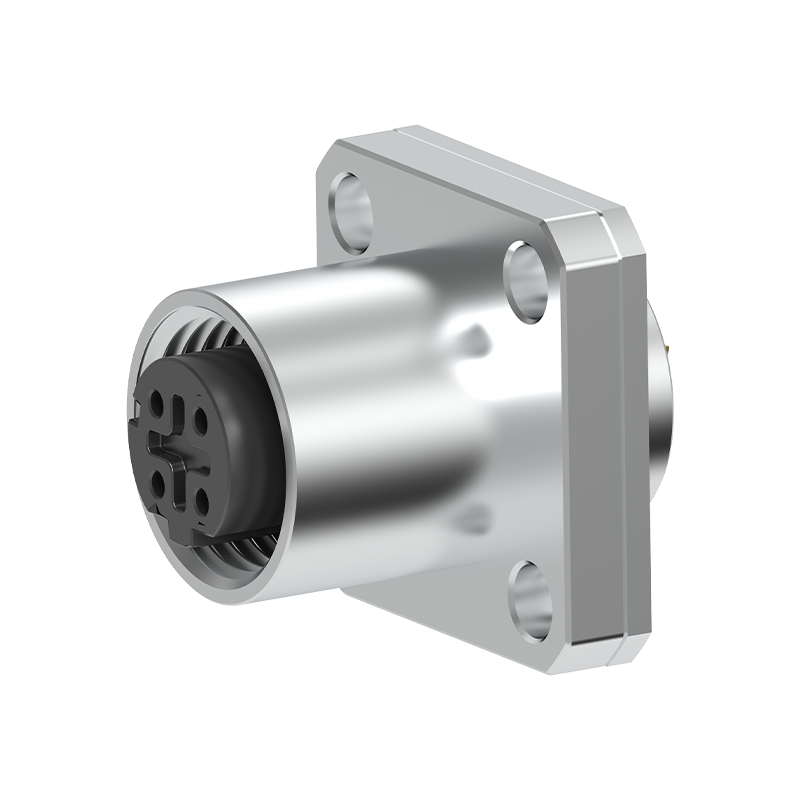

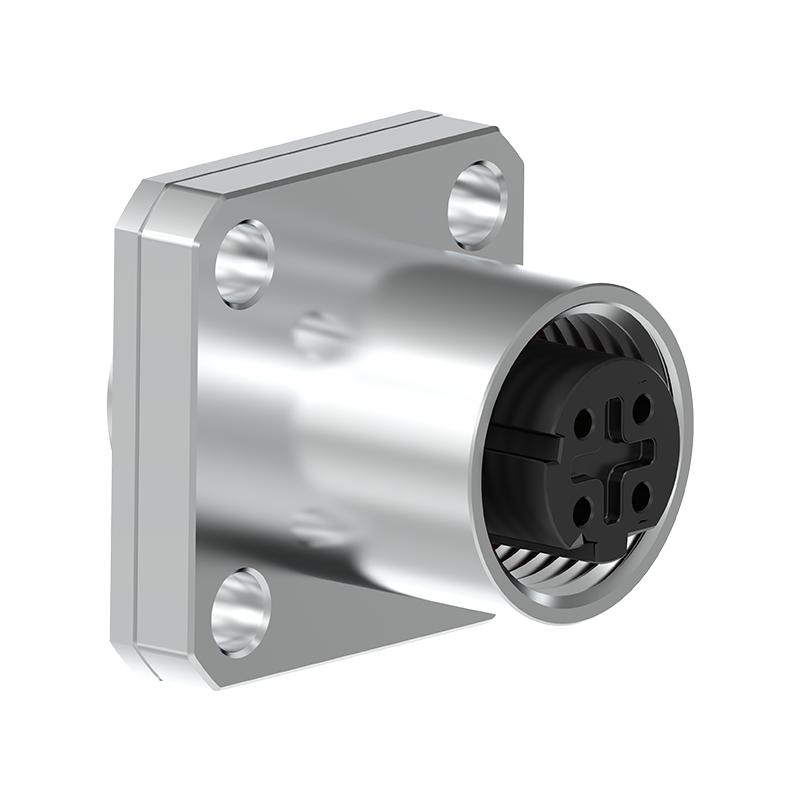

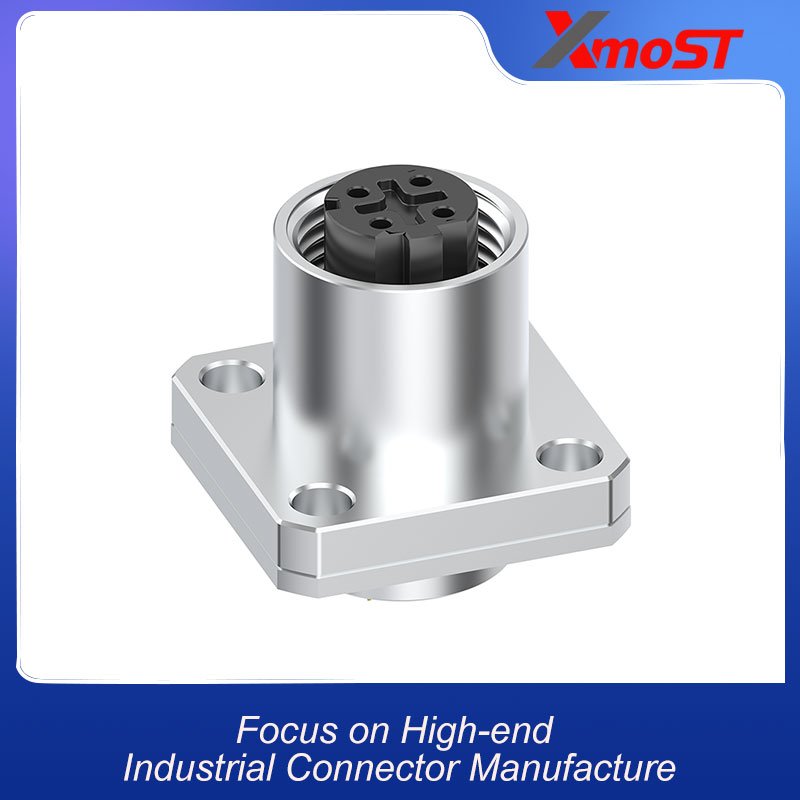

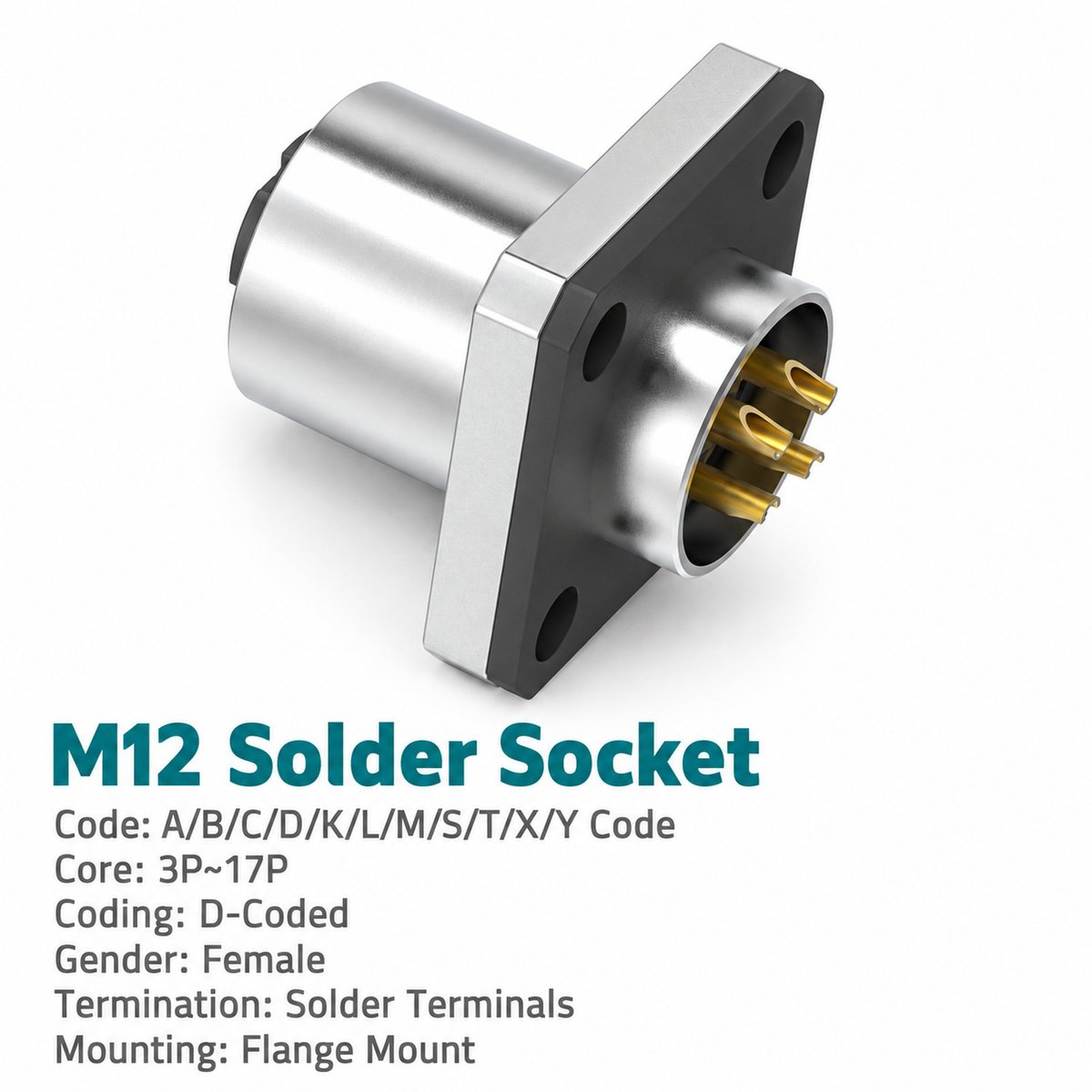

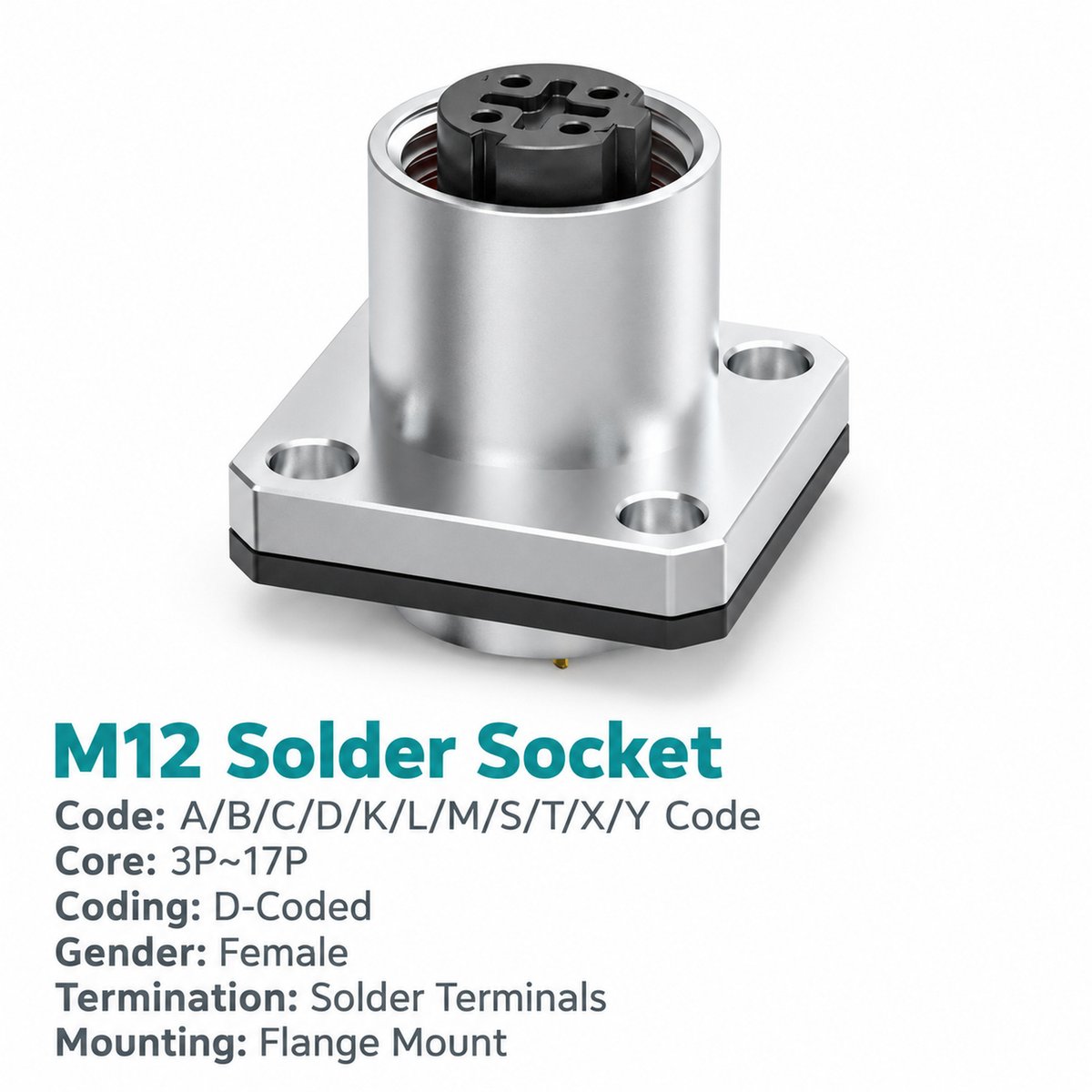

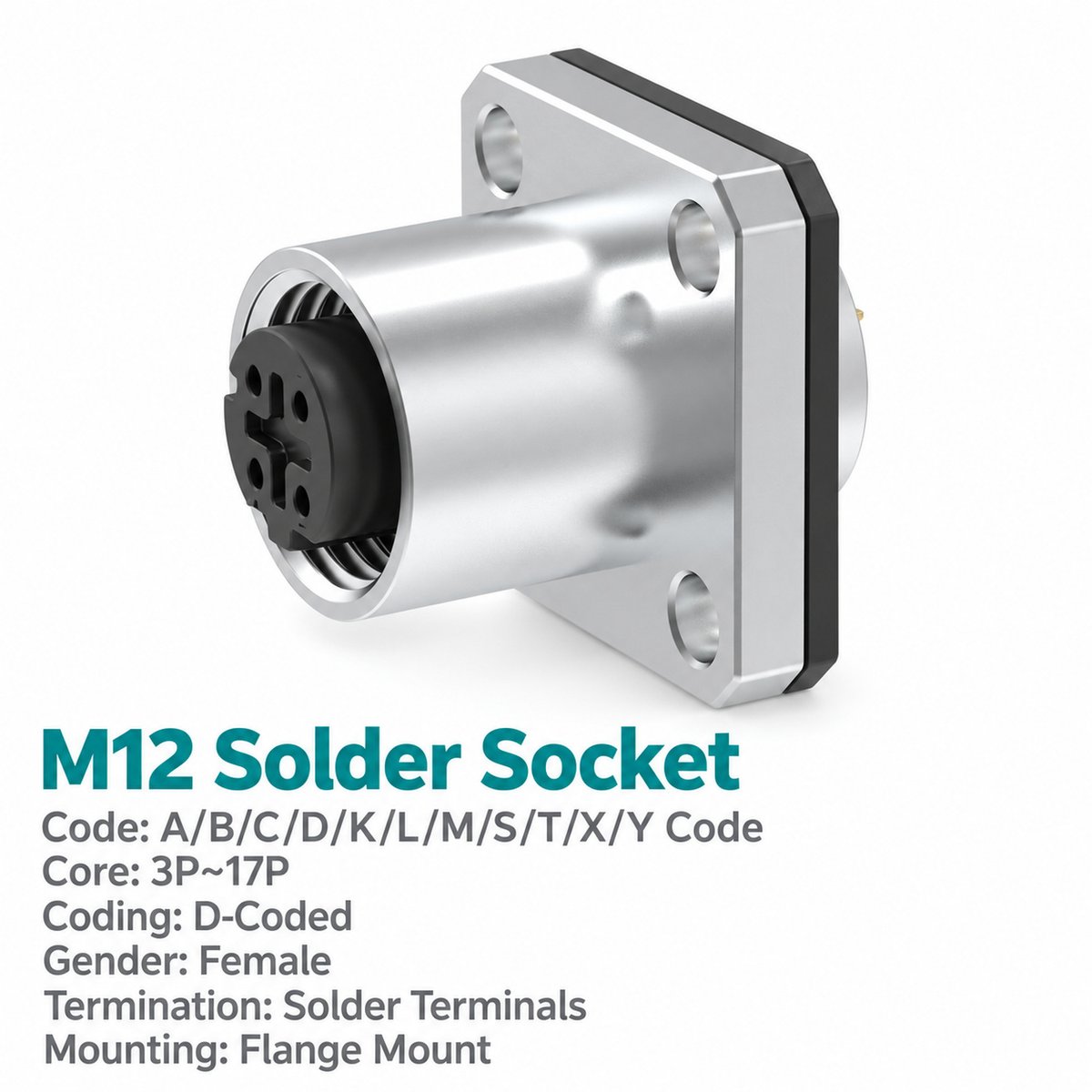

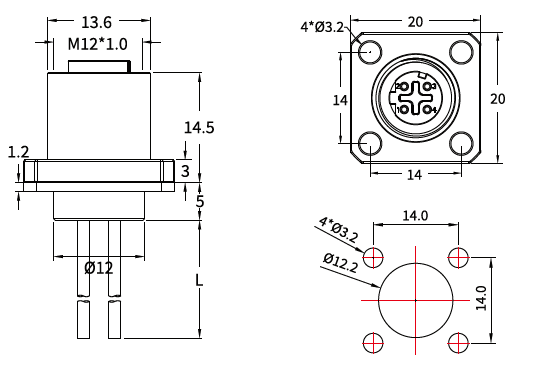

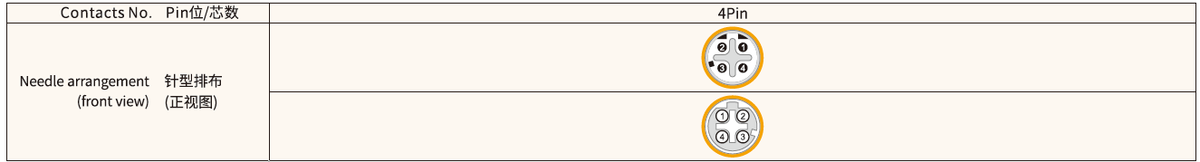

M12 D-Code 4Pin female flange socket with solder contacts, compliant with IEC 61076-2-101. Rated 250V / 4A. Wire range: 0.34mm² (AWG22). IP67/IP68 waterproof. Flange type panel mount for secure surface mounting. Non-shielded. M12x1.0mm screw locking (recommended torque 0.4Nm, max 0.8Nm), brass nickel-plated nut, phosphor bronze gold-plated pins. Insulation resistance ≥100MΩ, contact resistance ≤5mΩ. Operating temperature -25°C to +80°C (dynamic) / -40°C to +80°C (static). Ideal for industrial Ethernet, Profinet, EtherNet/IP, and factory automation networks requiring flange panel mounting.
