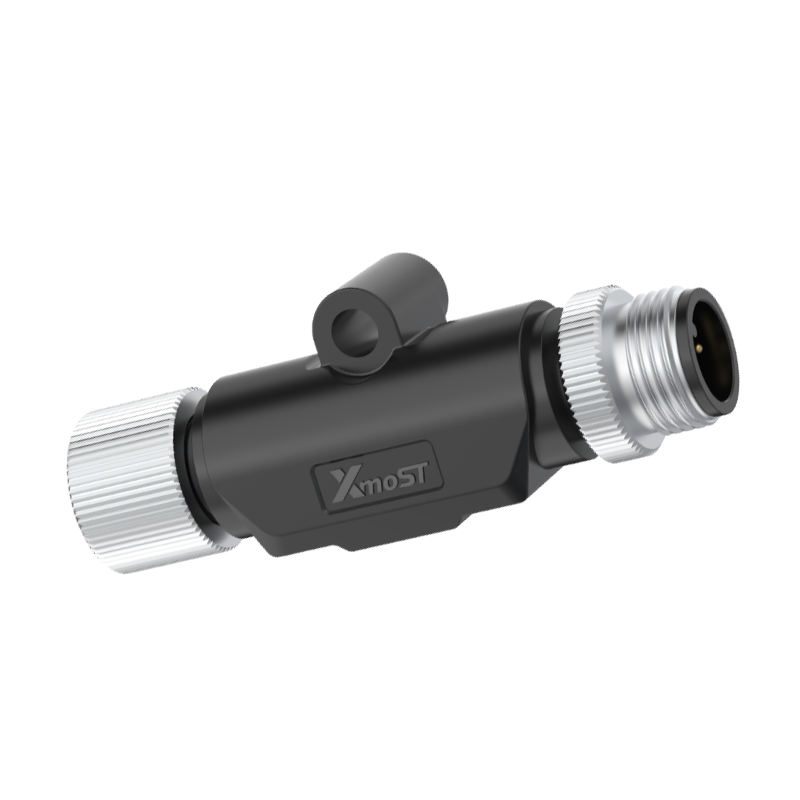

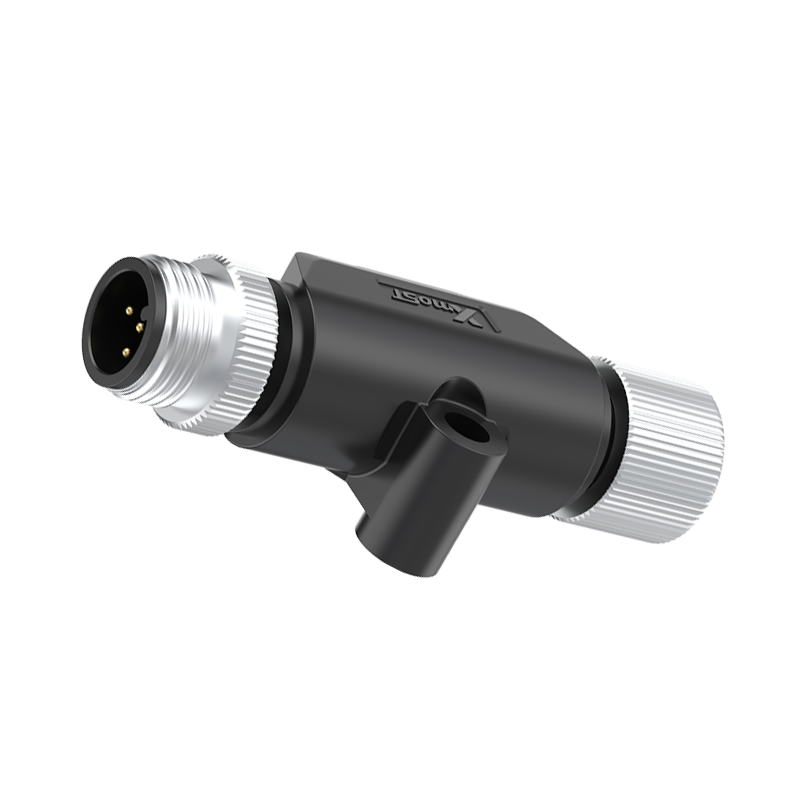

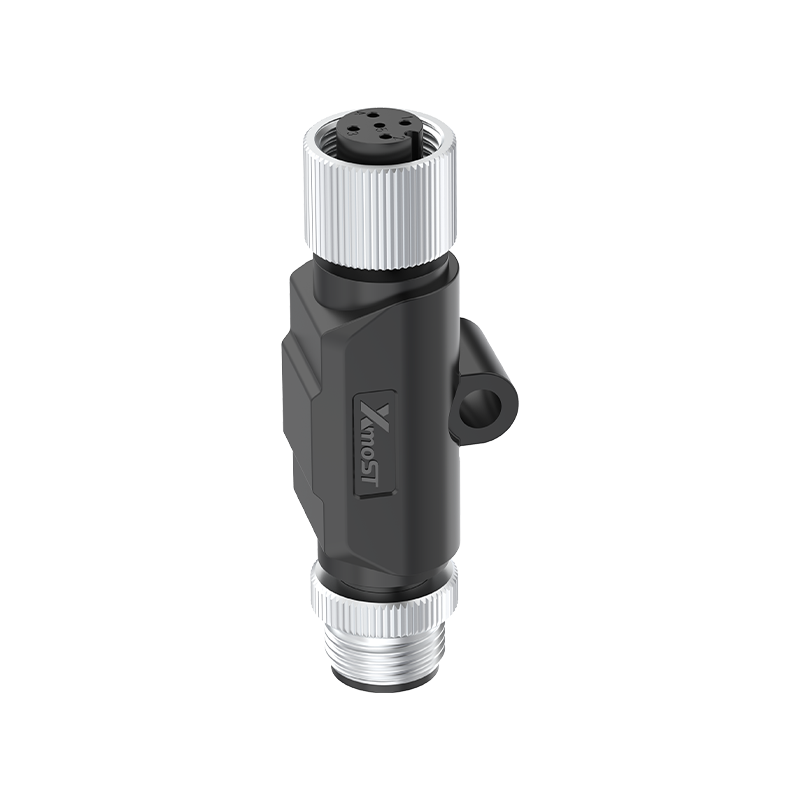

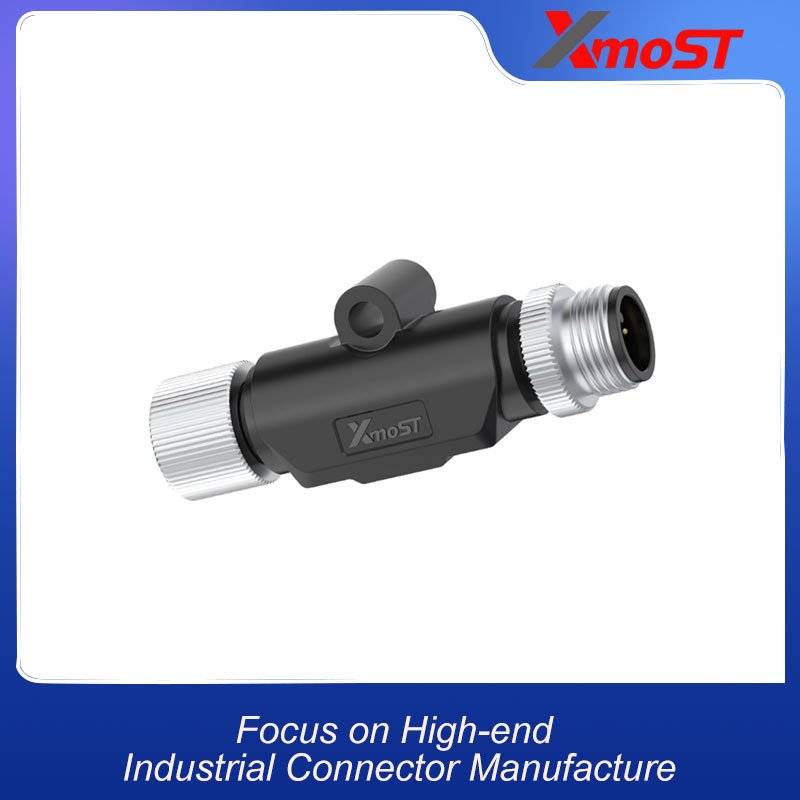

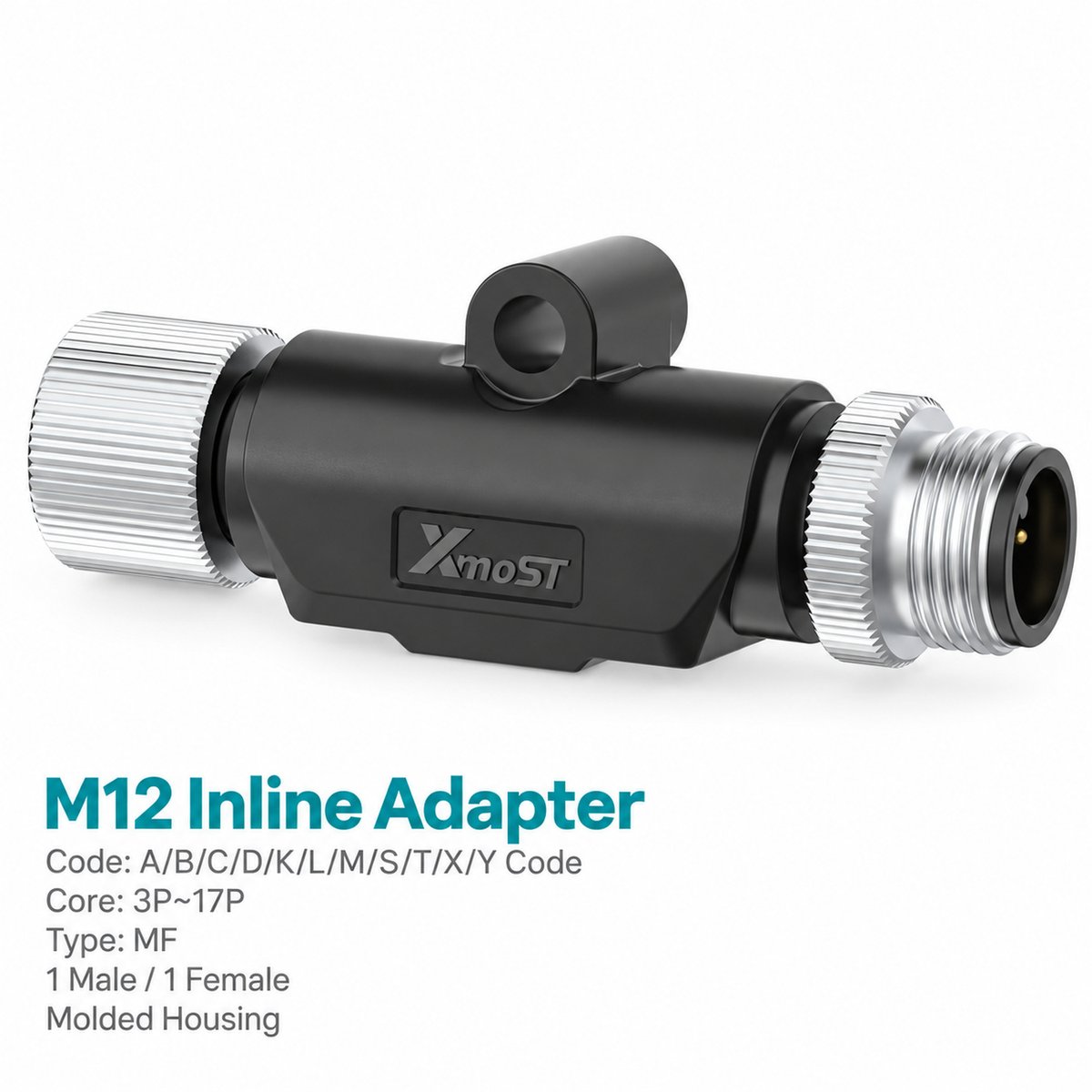

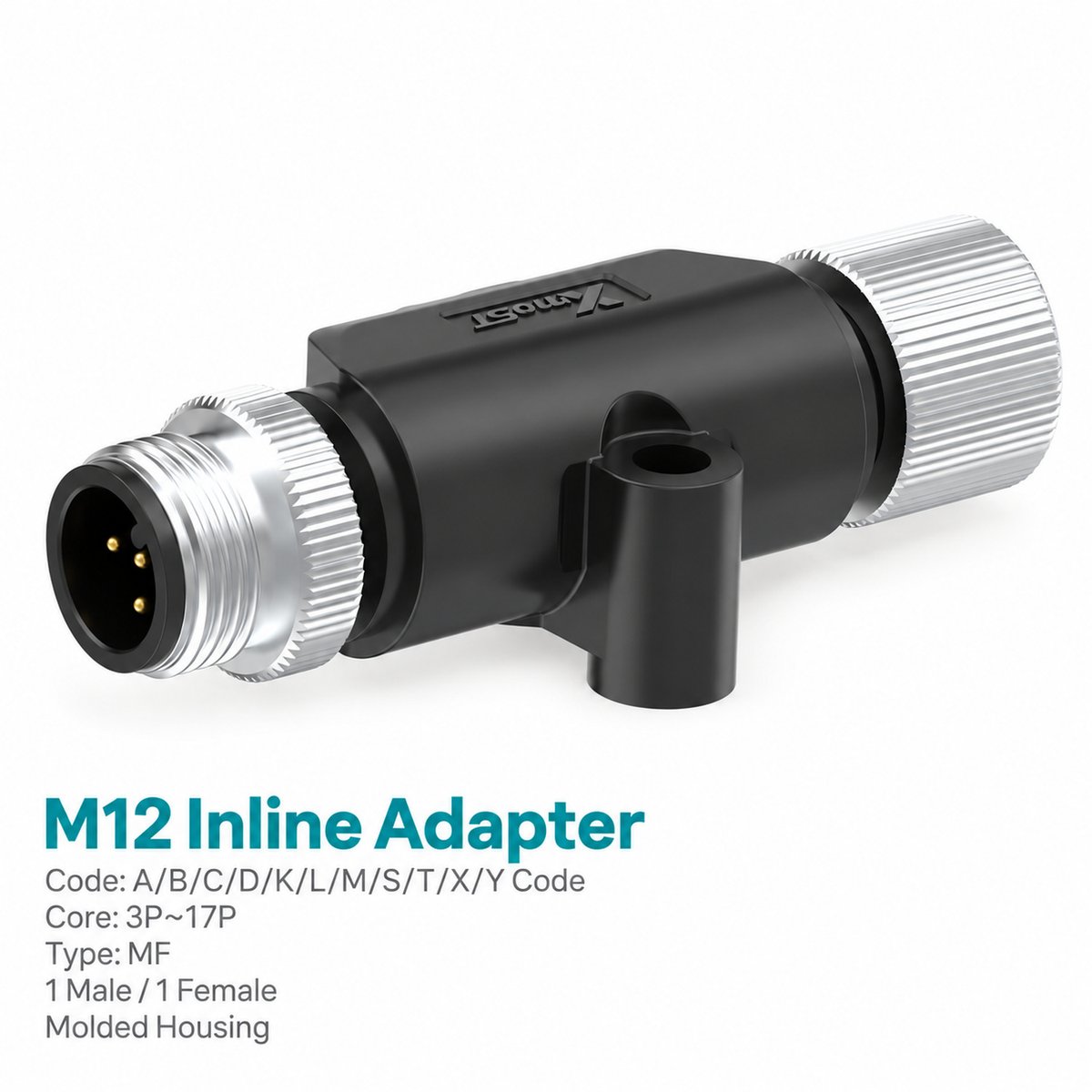

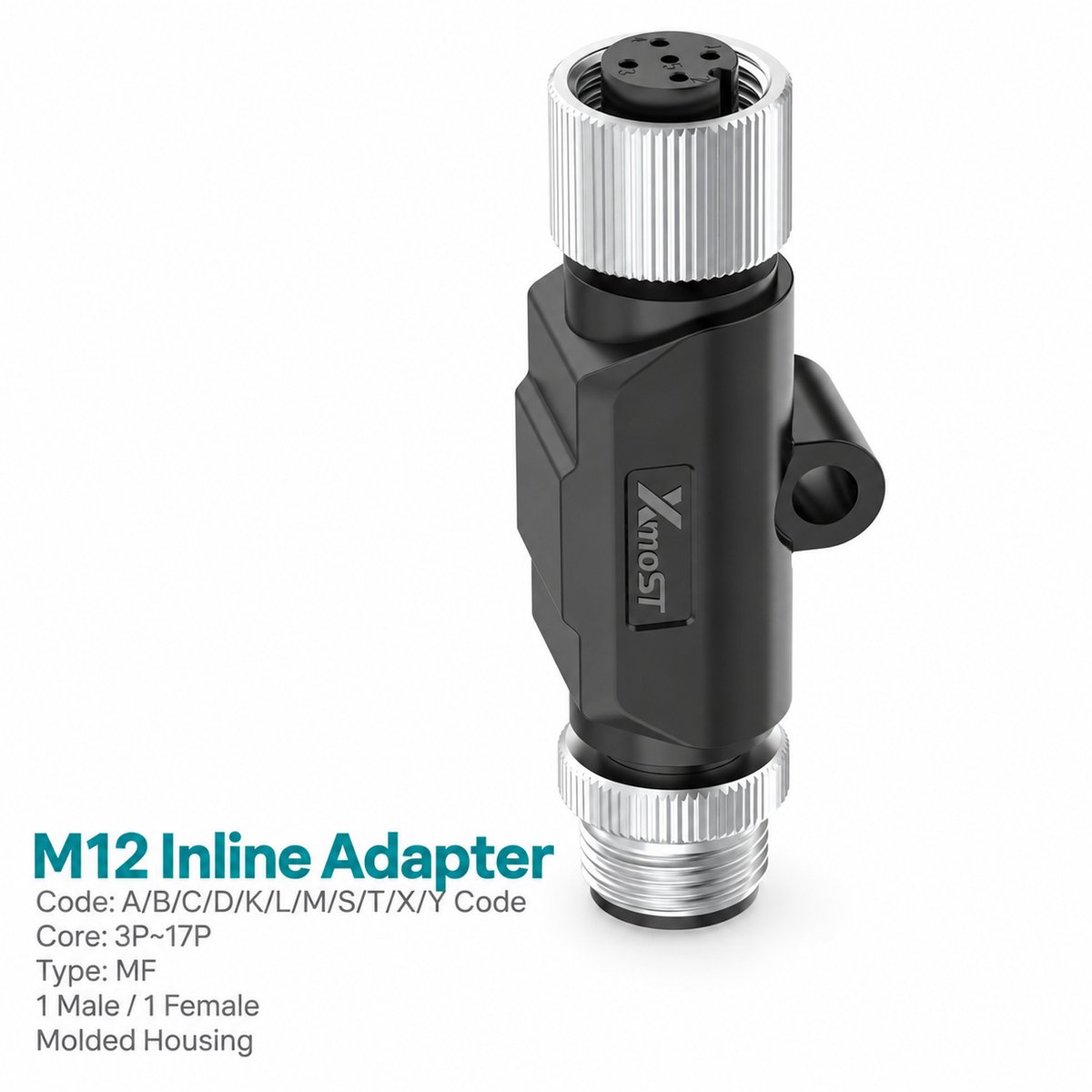

M12 I-Shape Male-to-Female Inline Connector Adapter

Xmost M12 I-shape male-to-female adapter provides an inline connection between compatible M12 interfaces. This compact connector adapter features screw-locking connections, an integrated mounting eye and pin-to-pin wiring. A-, B- and D-coded configurations are available, with electrical ratings depending on the selected version.

  • Brand: Xmost
  • Connector Size: M12
  • Product Type: I-shape inline adapter
  • Contact Gender: Male / Female
  • Connector Orientation: Straight inline
  • Coding Options: A-coded / B-coded / D-coded
  • Contact Configurations: 3-pin / 4-pin / 5-pin / 8-pin, depending on coding
  • Shielding: A/B-coded unshielded; D-coded shielded
  • Locking Method: M12 × 1.0 screw locking
  • Standard Listed: IEC 61076-2-101
Categories: , , Tag: Brand:

Xmost M12 I-shape male-to-female connector adapter provides a compact inline connection for compatible industrial equipment wiring. One male interface and one female interface are arranged along the same axis, with M12 × 1.0 screw locking at both ends.

The molded housing includes a mounting eye for securing the adapter. The catalog wiring diagrams show corresponding numbered contacts connected pin-to-pin between the male and female interfaces.

This M12 inline adapter is available in A-, B- and D-coded configurations. A- and B-coded versions are unshielded, while the D-coded version is shielded. Select the coding, pin count and electrical ratings to match the connected equipment.

Key Features

  • M12 male-to-female inline connection.
  • I-shaped connector adapter with a compact straight housing.
  • A-, B- and D-coded options.
  • 3-, 4-, 5- and 8-pin configurations, depending on coding.
  • Pin-to-pin wiring as shown in the catalog diagrams.
  • M12 × 1.0 screw-locking interfaces.
  • Integrated mounting eye with a Ø4.2 mm hole.
  • Shielded D-coded version and unshielded A-/B-coded versions.

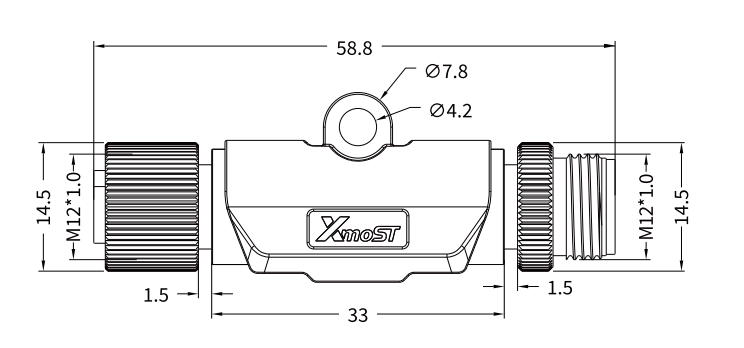

Product Dimensions

M12 I-Shape Male-to-Female Inline Connector Adapter

Dimensions (mm)

Dimension Value
Overall axial length 58.8
Central body span shown 33
Coupling diameter Ø14.5
Mounting hole diameter Ø4.2
Mounting eye outside diameter Ø7.8
End spacing marked, each side 1.5
Mating thread M12 × 1.0

Dimensions correspond to the marked spans in the catalog drawing.

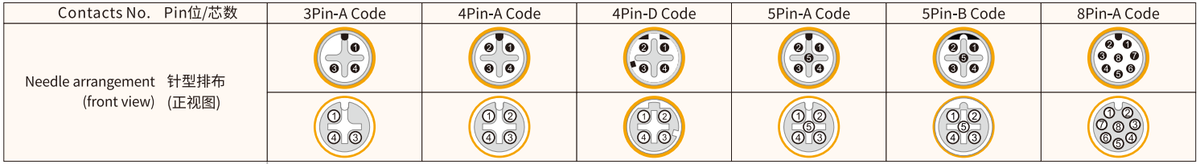

Needle Arrangement (Front View)

M12 I-Shape Male-to-Female Inline Connector Adapter 1

The pin arrangement diagrams show the male and female mating faces viewed from the front. Select the diagram that matches the connector coding and contact count.

Coding Contact Count
A-coded 3-pin
A-coded 4-pin
D-coded 4-pin
A-coded 5-pin
B-coded 5-pin
A-coded 8-pin

Male and female front-view diagrams must be read in their respective orientations. Use the numbered contacts to identify the matching connections.

Product Specifications

Electrical Ratings by Configuration

Coding Contact Count Rated Current Rated Voltage Shielding
A-coded 3-pin 4 A 250 V Unshielded
A-coded 4-pin 4 A 250 V Unshielded
D-coded 4-pin 4 A 250 V Shielded
A-coded 5-pin 4 A 60 V Unshielded
B-coded 5-pin 4 A 60 V Unshielded
A-coded 8-pin 2 A 30 V Unshielded

General Specifications

Parameter Specification
Brand Xmost
Connector Size M12
Product Type I-shape inline adapter
Contact Gender Male / Female
Standard Listed IEC 61076-2-101
Locking Method M12 × 1.0 screw locking
Internal Contact Connection Soldering
Wiring Arrangement Corresponding contacts connected pin-to-pin
Insulation Resistance ≥ 100 MΩ
Contact Resistance ≤ 5 mΩ
Recommended Tightening Torque 0.4 N·m
Maximum Tightening Torque 0.8 N·m
Dynamic Operating Temperature −25 °C to +80 °C
Static Operating Temperature −40 °C to +80 °C
Protection Ratings Listed IP67 / IP68
Pollution Degree 3
Insulator Material Options PA66 + GF / TPU + GF

Applications

Suggested applications for this M12 male-to-female inline adapter include:

  • Sensor and actuator wiring: Inline connections using compatible A-coded interfaces.
  • Fieldbus equipment: Connections using the matching B-coded interface and pin assignment.
  • Industrial Ethernet equipment: Connections using compatible D-coded interfaces.
  • Machine wiring junctions: Compact connection points between matching M12 cable interfaces.
  • Secured equipment installations: Connections where the mounting eye can hold the adapter in position.

Match the coding, electrical ratings and pin assignment to the equipment and connected cables.

Wiring Diagram

The catalog diagrams show corresponding numbered contacts connected between the male and female interfaces:

  • Male Pin 1 → Female Pin 1
  • Male Pin 2 → Female Pin 2
  • Continue the same numbered connection through the remaining contacts of the selected version.

Use the wiring diagram corresponding to the 3-, 4-, 5- or 8-pin adapter.

Selection and Ordering

Coding Contact Count Catalog Part Number
A-coded 3-pin 1M1234AH03MF
A-coded 4-pin 1M1234AH04MF
D-coded 4-pin 1M1234DH04MFS
A-coded 5-pin 1M1234AH05MF
B-coded 5-pin 1M1234BH05MF
A-coded 8-pin 1M1234AH08MF

Select the adapter according to coding, contact count, shielding and electrical requirements. Check the mating interfaces and pin assignment before installation.
