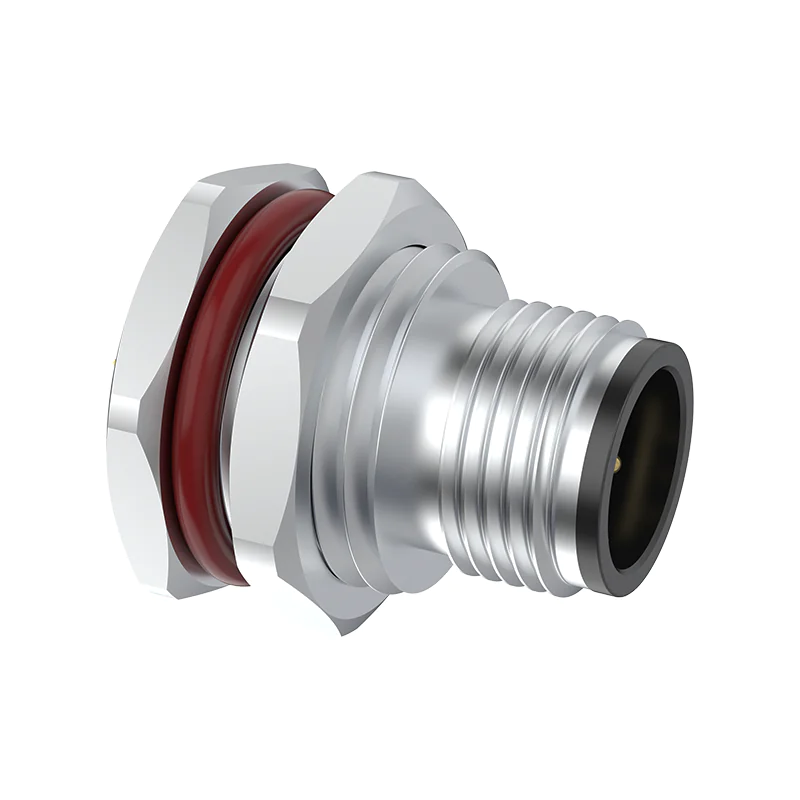

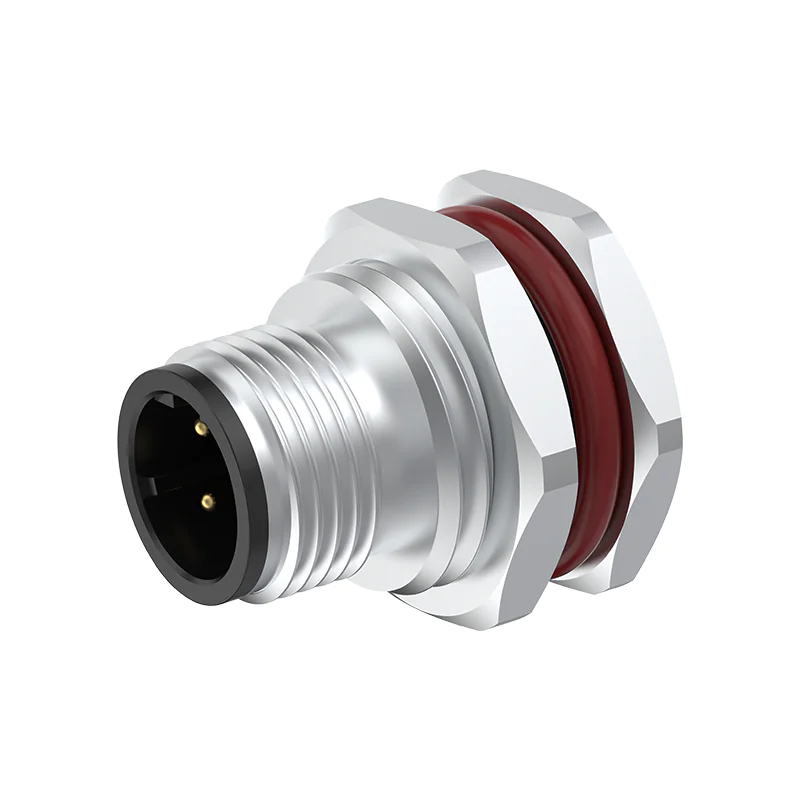

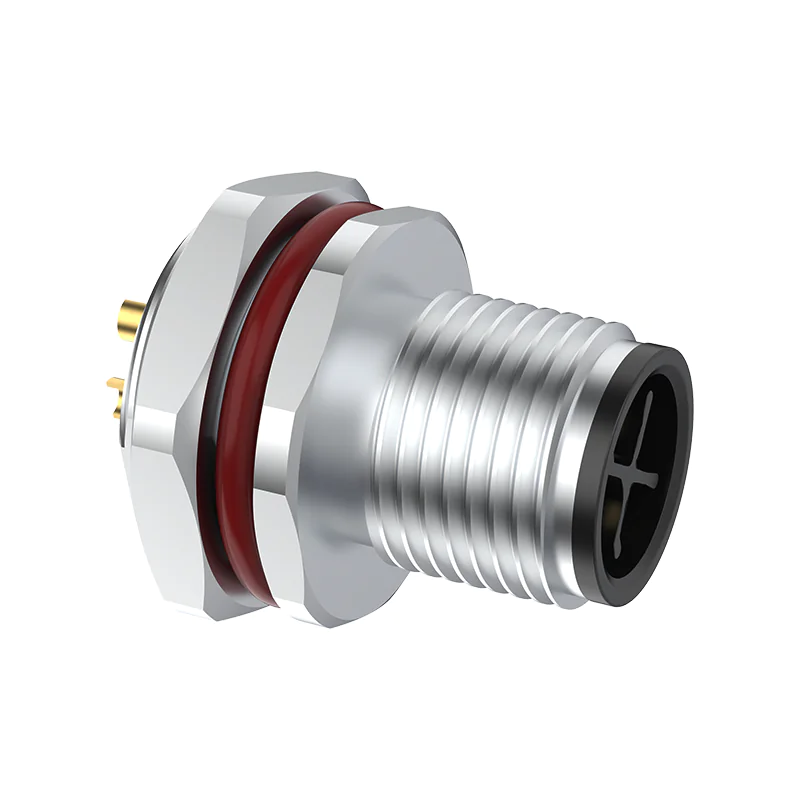

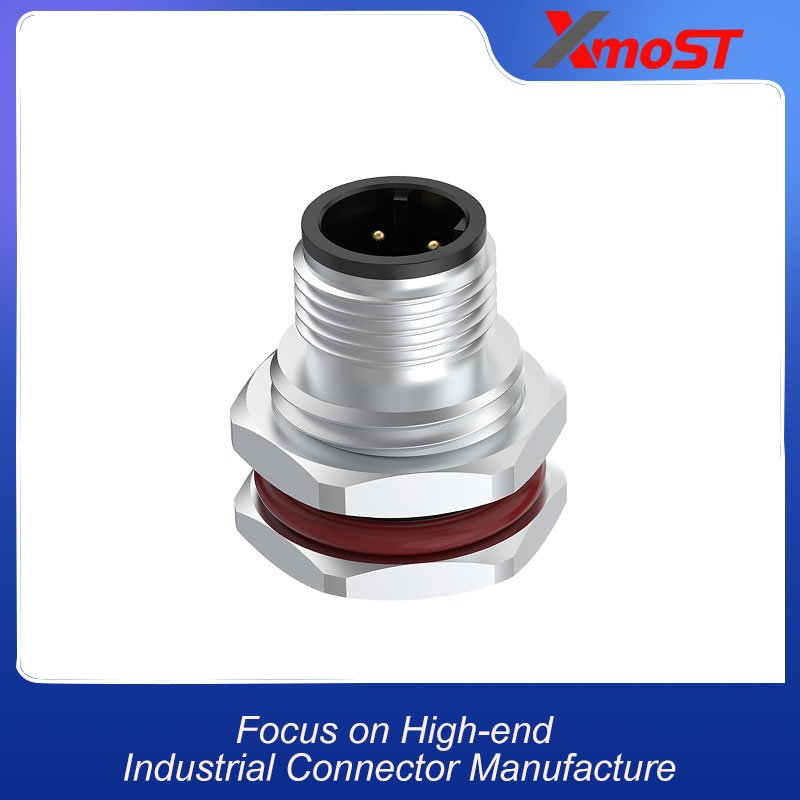

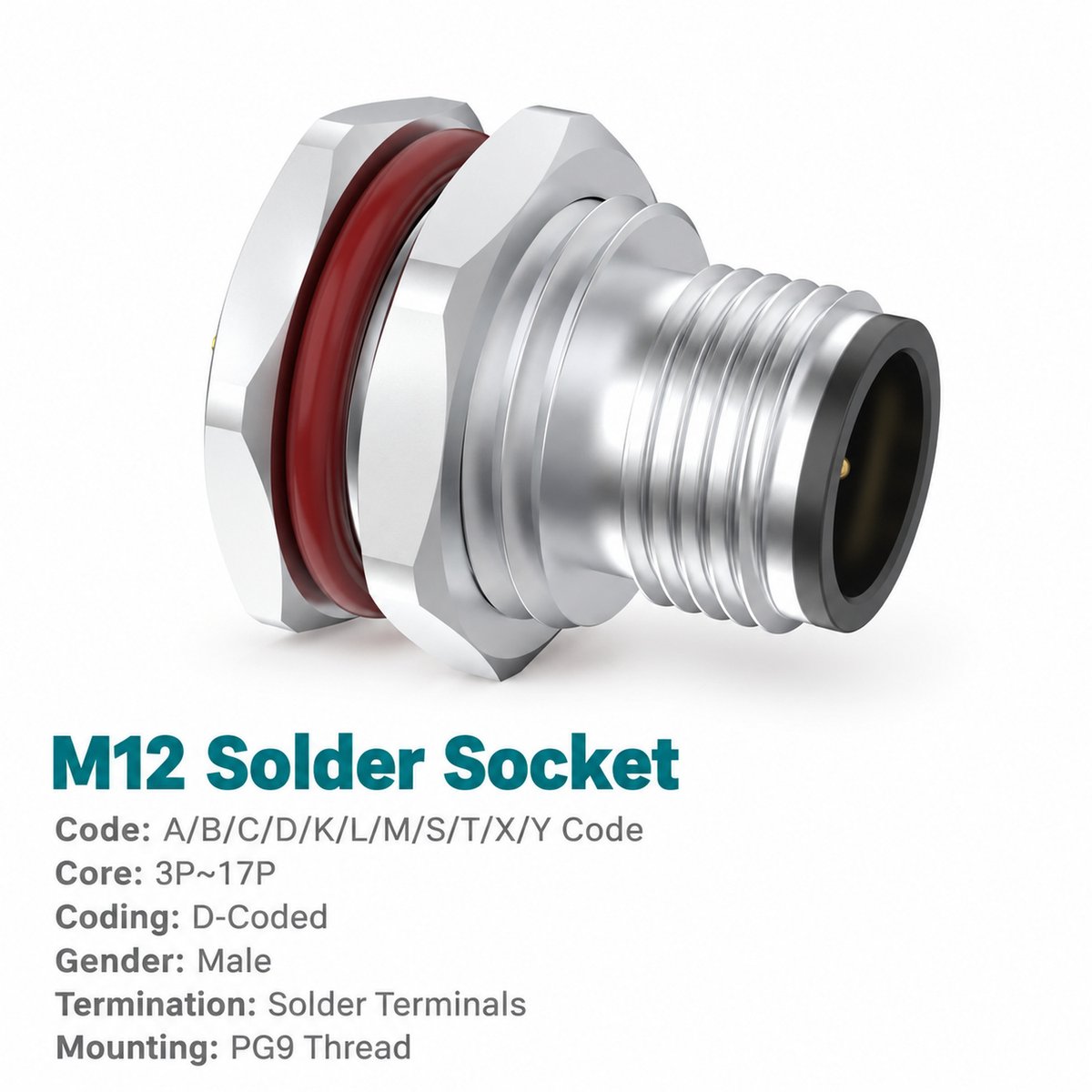

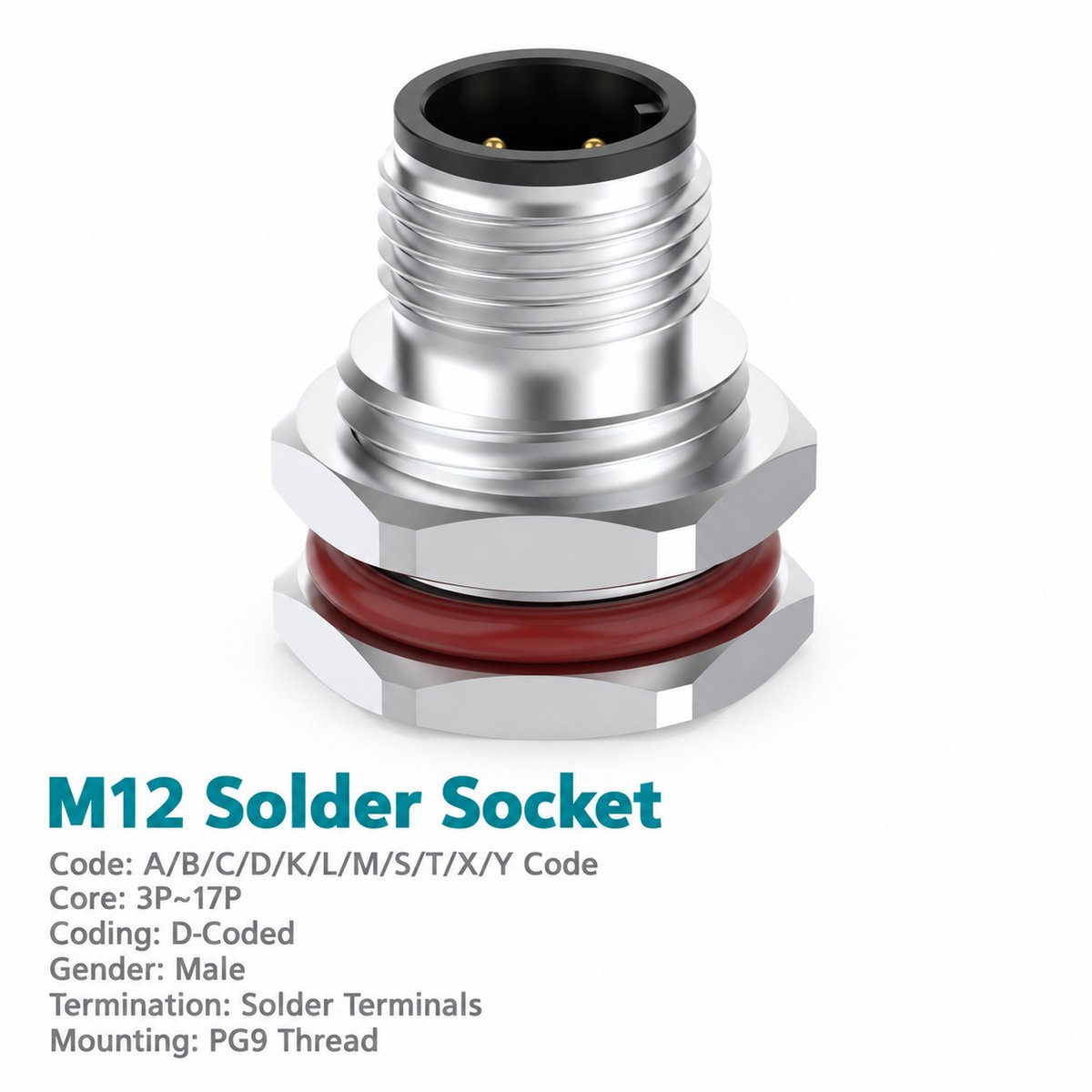

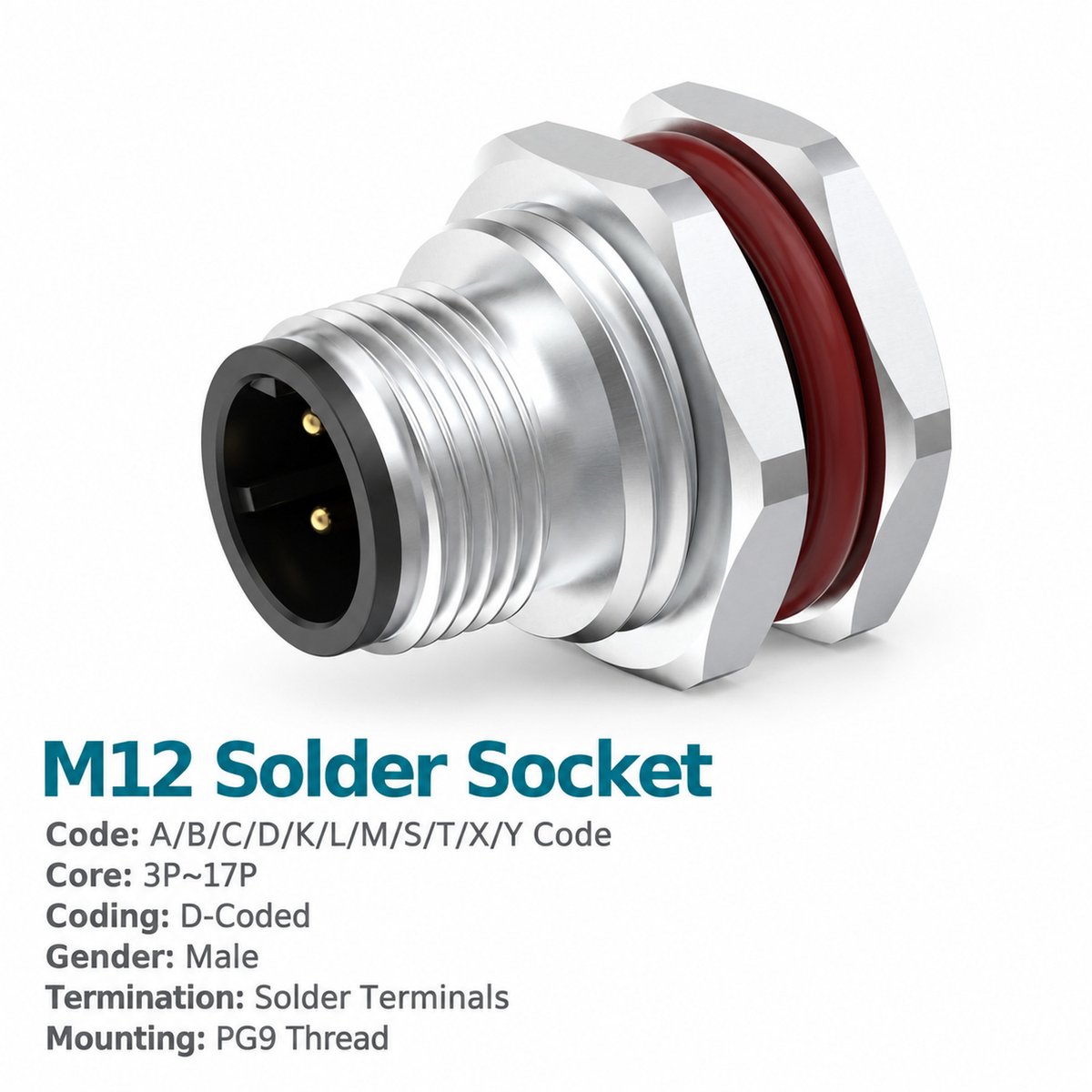

Xmost M12 D-coded male front mount socket connects an external female cable connector to wiring inside an equipment enclosure. Its front fastened construction provides a panel interface with solder termination behind the mounting surface.
This 4-pin M12 male panel mount connector is offered without wires or with pre-wired leads in several lengths. The catalogue identifies the D-coded series for industrial Ethernet and PROFINET applications. Suitability for a particular network depends on the complete wiring assembly and installation requirements.
Key Features
- 4-pin D-coded male interface: For mating with a compatible M12 D-coded female connector.
- Front fastened mounting: For panels designed to use a front mount receptacle.
- Solder termination: Supports wire connection during equipment assembly.
- Unwired or pre-wired: Listed lead lengths of 0.1 m, 0.3 m and 0.5 m.
- M12 threaded coupling: M12 × 1.0 mating interface.
- Unshielded construction: As specified for this catalogue version.
- Rated 4 A / 250 V: Electrical ratings listed on the product specification page.
Product Dimensions
[Insert the front mount male socket dimension drawing and panel cut-out drawing here.]

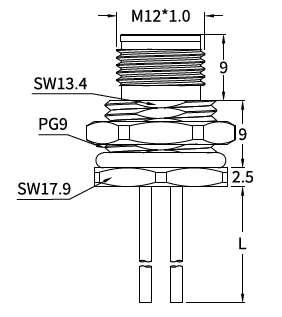

Illustrated PG9 Version
| Drawing Item | Dimension / Specification |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Upper axial section shown | 9 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Lead length | L, according to ordered version |
| Unit | mm |
Use the panel cut-out matching the ordered mounting thread. Dimensions for other mounting versions must follow their corresponding drawings.
Needle Arrangement (Front View)
[Insert the D-coded 4-pin male needle arrangement screenshot from page 7 here.]
The diagram shows the connector from the mating face. Follow the numbered contacts when preparing solder connections and checking the internal wiring.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Product type | M12 D-coded male front mount socket |
| Contact count | 4 pins |
| Mounting | Front fastened |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-101 |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Wire size listed | 0.34 mm² / AWG22 |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
This M12 D-coded front mount solder socket can be selected for:
- Industrial Ethernet equipment panels.
- Automation enclosures receiving compatible D-coded female cables.
- Internal harness assemblies requiring a soldered panel connection.
- PROFINET-related equipment, subject to complete network requirements.
- Machinery housings designed for front fastened receptacles.
Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot from page 7 here.]
The catalogue shows two wire colour arrangements:
| Pin | Colour Arrangement 1 | Colour Arrangement 2 |
|---|---|---|
| 1 | Yellow — YE | White/orange — WH/OR |
| 2 | White — WH | White/green — WH/GN |
| 3 | Orange — OR | Orange — OR |
| 4 | Blue — BU | Green — GN |
Confirm the supplied wire colour arrangement when ordering. Use the contact numbers and the confirmed wiring assignment during assembly.
Selection and Ordering
Specify the front mount male version, panel mounting thread and wiring option. Available listed lead lengths are 0.1 m, 0.3 m and 0.5 m.
PG9 Ordering References
| Wiring Option | Part Number |
|---|---|
| Unwired | 1M1207DM04HP9W00 |
| 0.1 m leads | 1M1207DM04HP9W10 |
| 0.3 m leads | 1M1207DM04HP9W30 |
| 0.5 m leads | 1M1207DM04HP9W50 |
Other mounting versions, lead lengths or cable types can be specified for enquiry.
