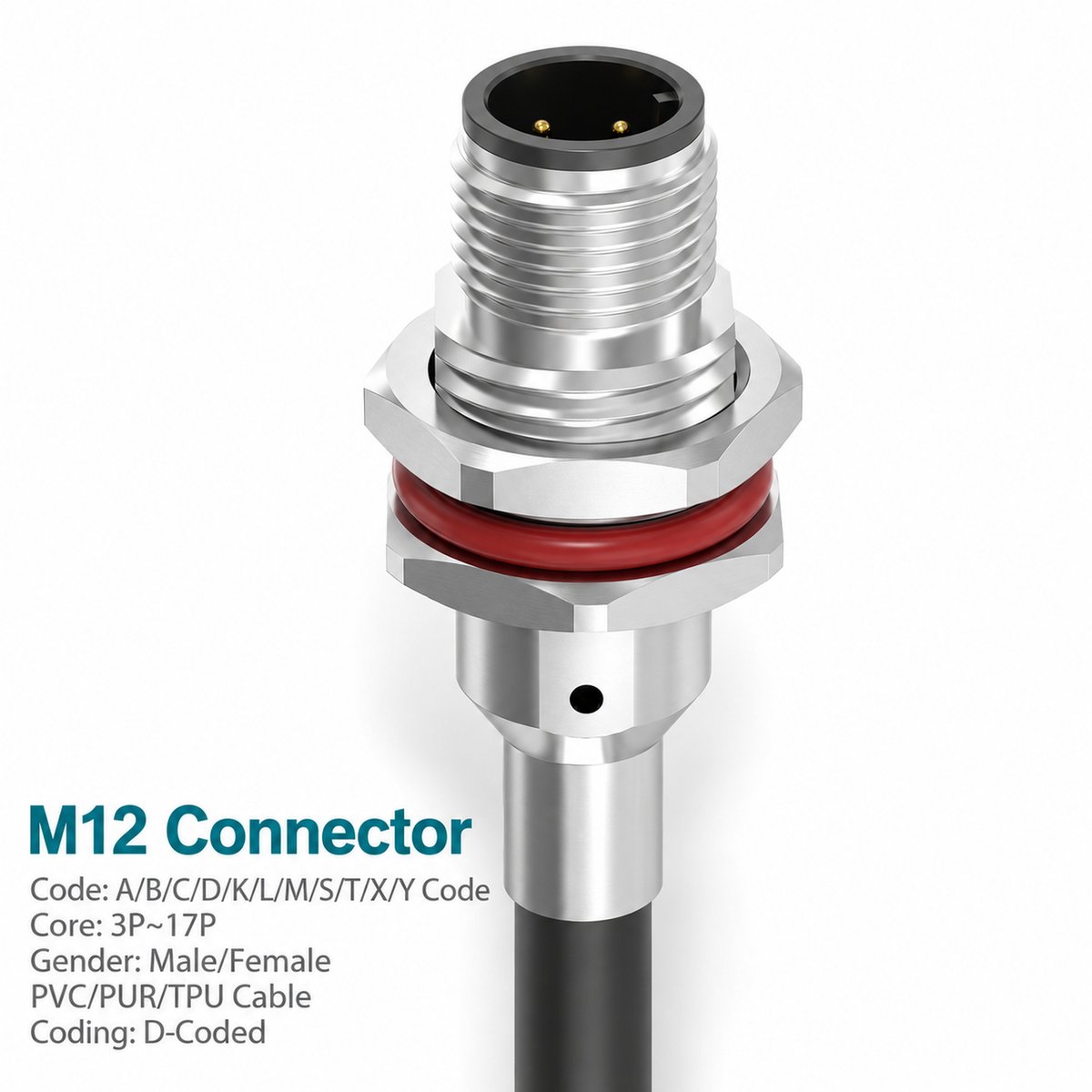

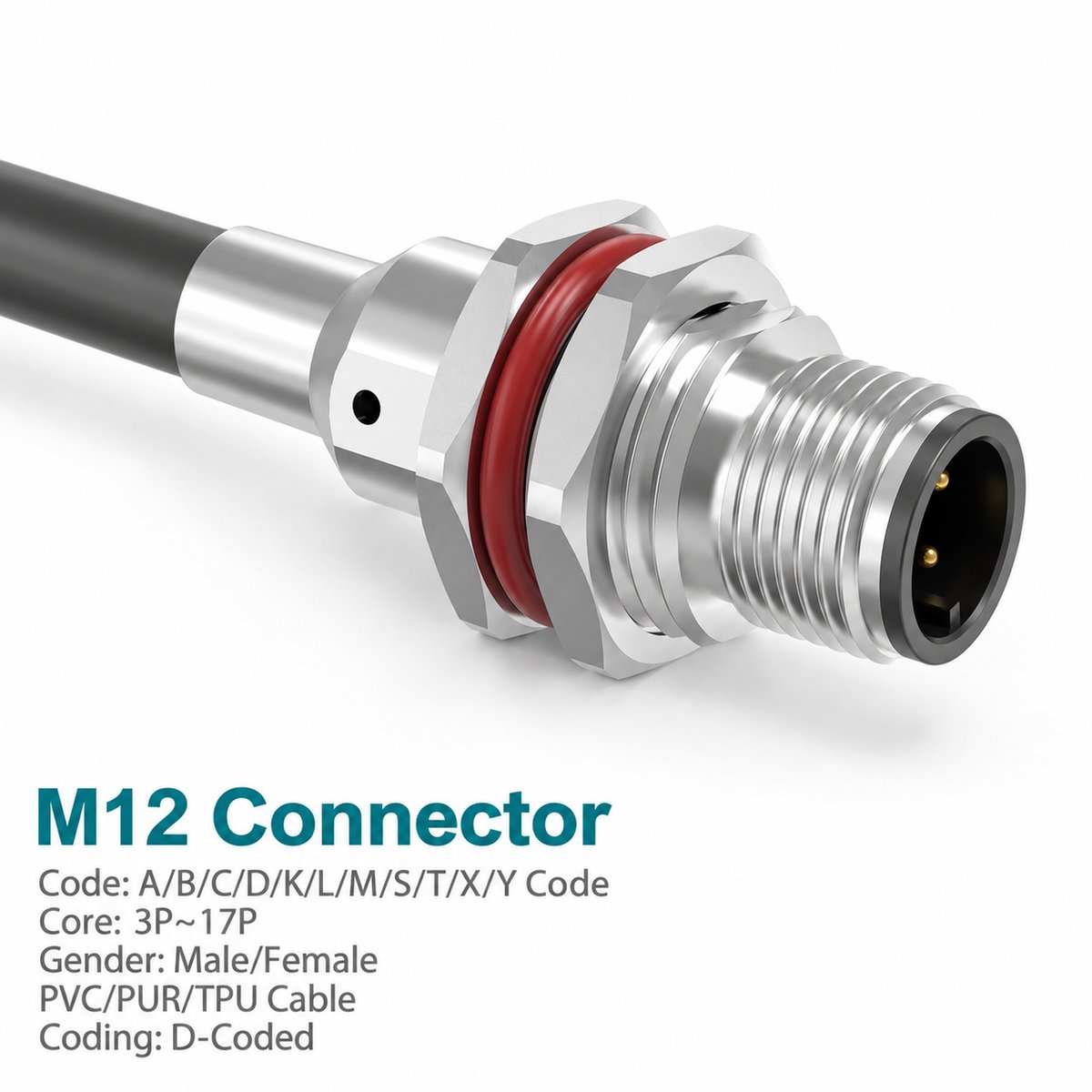

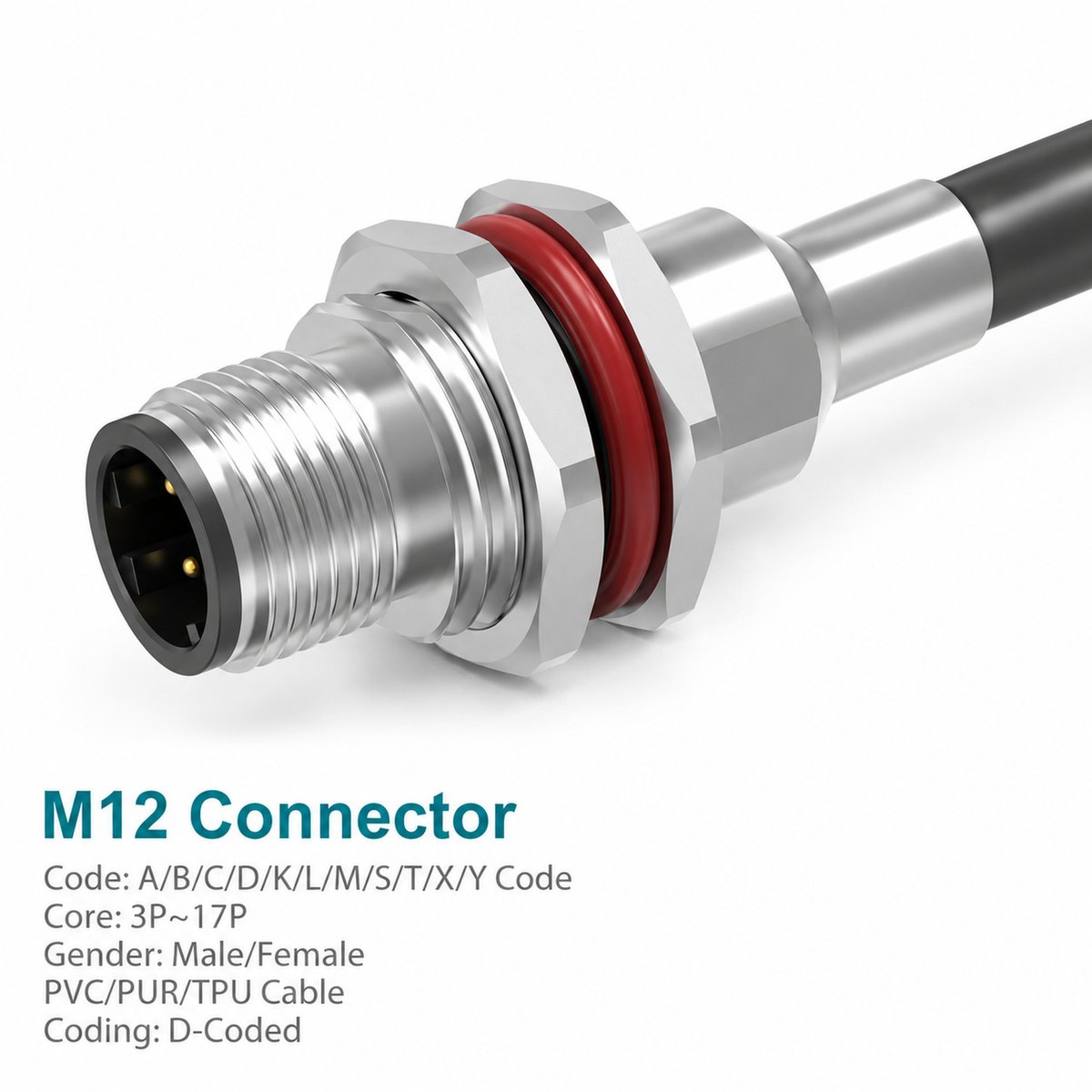

Xmost M12 D-coded male metal panel-mount receptacle provides a shielded network cable interface through an equipment panel. Its single-ended construction combines a 4-pin male connector with an attached cable.
The metal connector body includes mounting hardware and a sealing ring. The male interface mates with a compatible D-coded female connector using M12 × 1.0 screw locking.
This M12 PROFINET cable receptacle is listed with PG9 or M16 × 1.5 mounting options and PVC or PUR cable. Select the mounting version and cable assembly to match the equipment installation.
Key Features
- 4-pin M12 D-coded male interface.
- Shielded CAT5e cable connection for compatible PROFINET and industrial Ethernet equipment.
- Straight metal panel-mount construction.
- Single-ended cable receptacle.
- PG9 or M16 × 1.5 mounting options.
- M12 × 1.0 screw-locking interface.
- 4 A rated current and 250 V rated voltage, as listed in the catalog.
- PVC or PUR cable options.
Product Dimensions

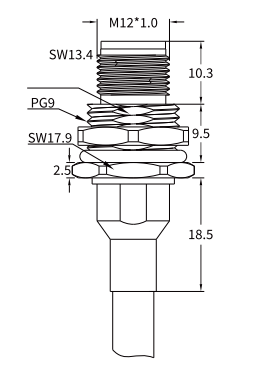

Dimensions (mm) — Illustrated PG9 Version
| Dimension | Value |
|---|---|
| Front axial span shown | 10.3 |
| Middle axial span shown | 9.5 |
| Rear axial span shown | 18.5 |
| Lower mounting thickness marked | 2.5 |
| Front hex size | SW13.4 |
| Mounting hex size | SW17.9 |
| Panel mounting thread | PG9 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the male receptacle drawing. Use the corresponding drawing for the M16 × 1.5 mounting version. Cable length is specified separately.
Needle Arrangement (Front View)
The pin arrangement diagram shows the 4-pin D-coded male mating face viewed from the front.
Use the contact numbers and coding key position to identify the interface. Read the male diagram in its illustrated orientation when matching it to the female connector.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | D-coded |
| Contact Gender | Male |
| Contact Count | 4-pin |
| Connector Orientation | Straight |
| Mounting Type | Panel mount |
| Mounting Thread Options | PG9 / M16 × 1.5 |
| Assembly Type | Single-ended cable receptacle |
| Cable Category | CAT5e |
| Application Listed | PROFINET / Industrial Ethernet |
| Shielding | Shielded |
| Standard Listed | IEC 61076-2-101 |
| Rated Current | 4 A |
| Rated Voltage | 250 V |
| Wire Size | 0.34 mm² / AWG22 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
Applications
Suggested applications for this M12 D-coded male panel-mount Ethernet receptacle include:
- PROFINET equipment panels: Connections to compatible D-coded female cable interfaces.
- Industrial Ethernet devices: Panel-mounted network connections using the matching 4-pin arrangement.
- Automation enclosures: Connections between internal cabling and external network cables.
- Machine communication modules: Detachable network interfaces mounted through equipment panels.
Match the connector pin assignment and cable requirements to the network equipment.
Wiring and Shield Connection
The catalog lists two wire-color assignments. Confirm which applies to the selected cable assembly.
| Contact | Wiring Option 1 | Wiring Option 2 |
|---|---|---|
| Pin 1 | Yellow — YE | White/Orange — WH/OR |
| Pin 2 | White — WH | White/Green — WH/GN |
| Pin 3 | Orange — OR | Orange — OR |
| Pin 4 | Blue — BU | Green — GN |
| Shell | Cable braid | Cable braid |
Follow the male front-view pin diagram and maintain the specified shield connection during installation.
Selection and Ordering
Specify the male interface, panel mounting thread, cable jacket and required cable length.
Example Part Numbers — 1 m Cable
| Mounting Thread | PVC Cable | PUR Cable |
|---|---|---|
| PG9 | 1M1216DM04HP9S1100 | 1M1216DM04HP9S2100 |
| M16 × 1.5 | 1M1216DM04H16S1100 | 1M1216DM04H16S2100 |
Select other cable lengths from the corresponding catalog row. Confirm the mounting dimensions and mating interface before ordering.
