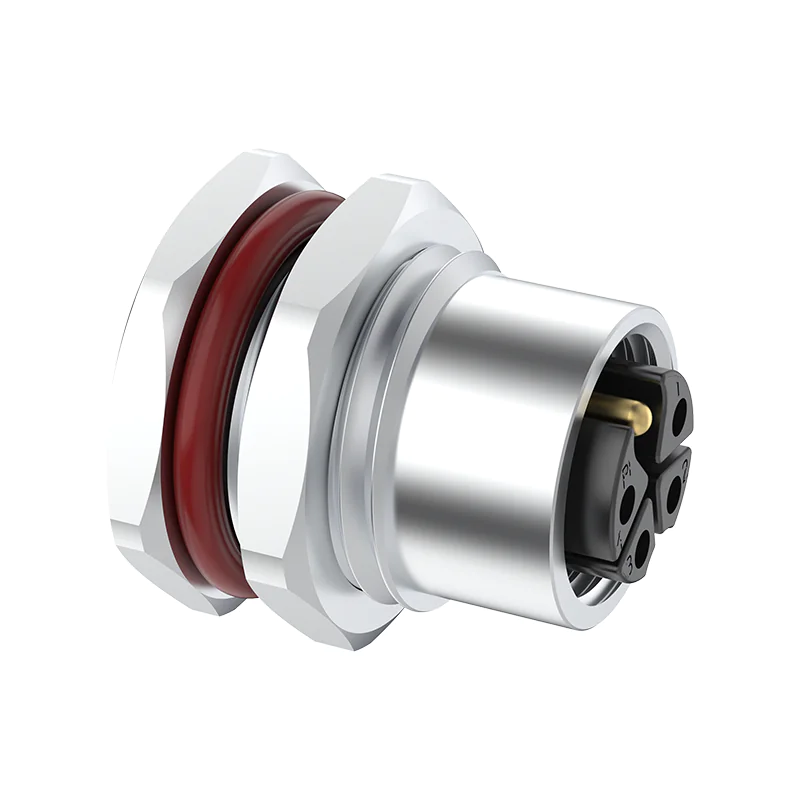

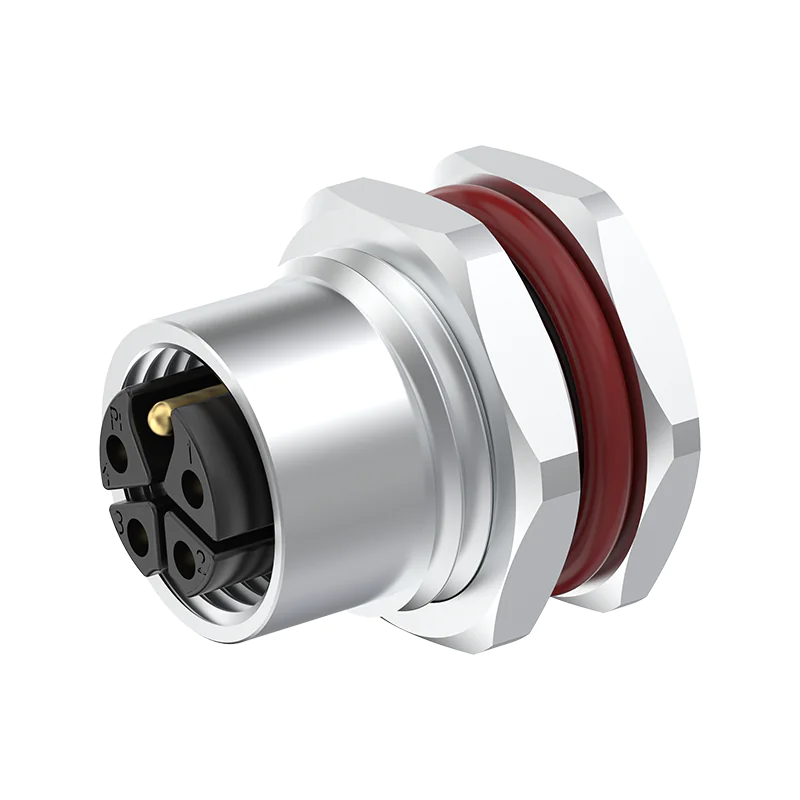

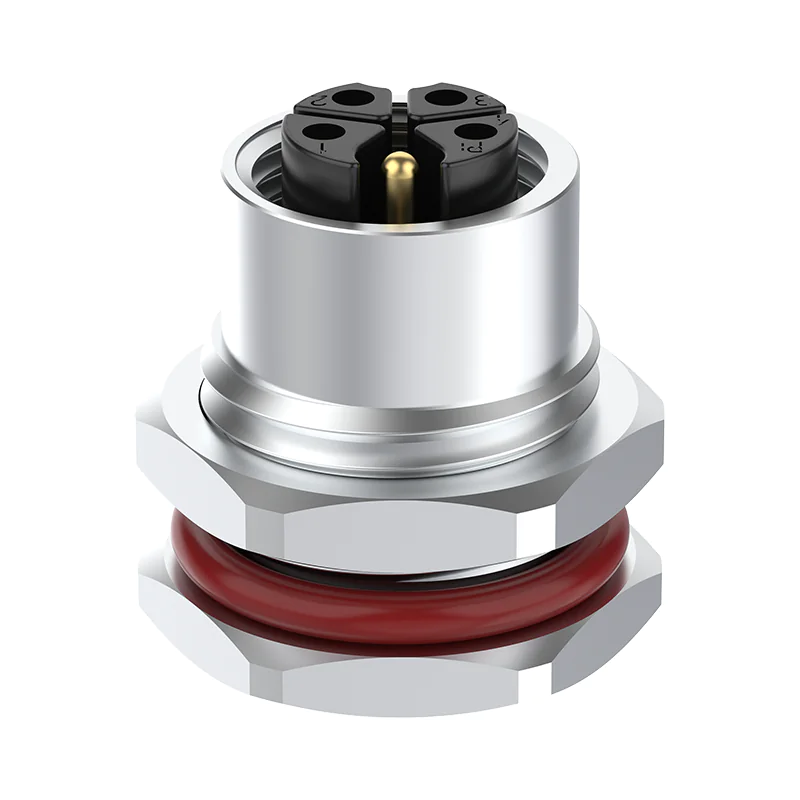

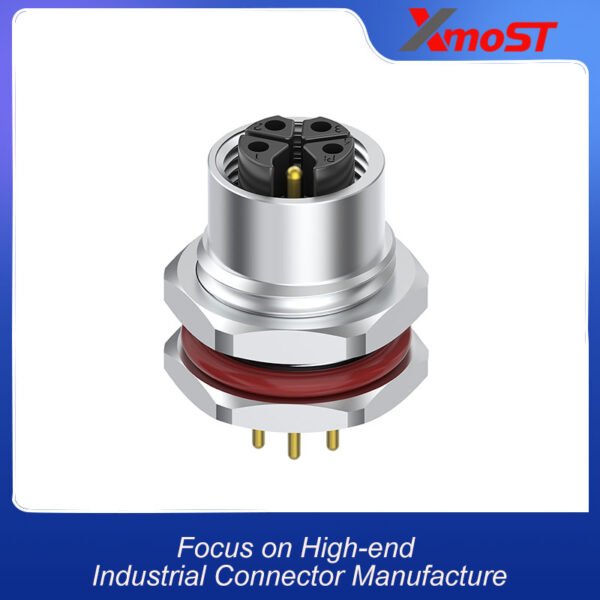

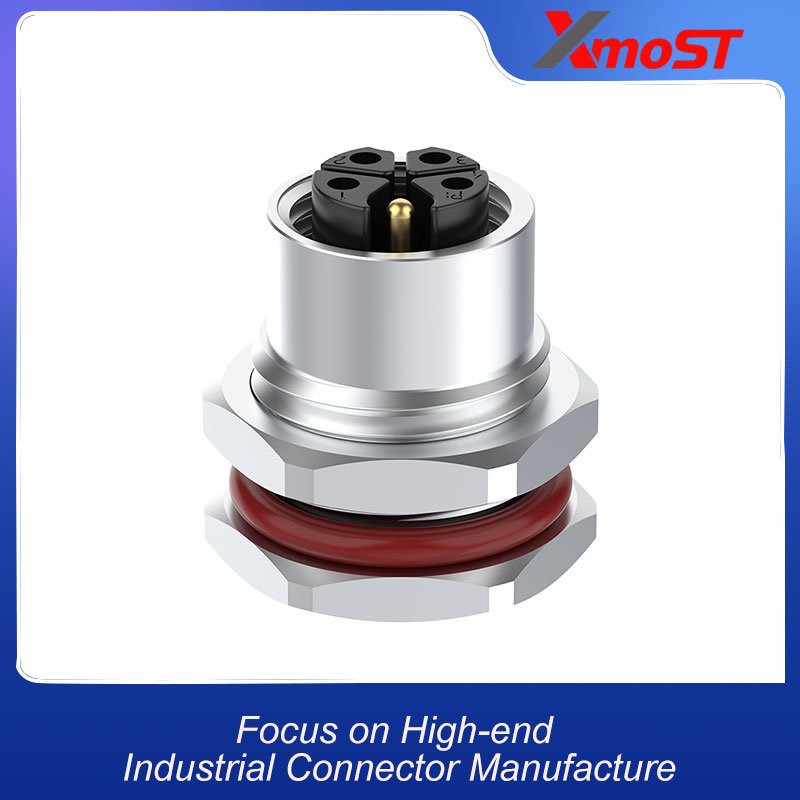

M12 K-Code 5Pin female front panel socket compliant with IEC 61076-2-111. Rated up to 630V / 16A AC for power transmission. IP69K waterproof withstands high-pressure high-temperature washing. PE (Protective Earth) contact for electrical safety. Solder or crimp termination. Brass nickel-plated nut, gold-plated contacts. Operating temperature -40°C to +85°C. Ideal for industrial AC power distribution, motor drives, and harsh environment equipment requiring washdown capability.
| Pin count | 3Pin(2+E) | 4Pin(3+E) | 5Pin(4+E) |
| Operating standard | IEC 61076-2-111 | ||
| Rated current | 16A | ||
| Rated voltage | 630V | ||
| Insulation resistance | ≥100MΩ | ||
| Contact resistance | ≤5mΩ | ||
| Shielding performance | Non-Shielded | ||
| Locking method | M12x1.0mm screw | ||
| Screw torque | Recommend：0.4Nm；Max：0.8Nm | ||
| Wiring method | Soldering；Crimping | ||
| Operating temperature | -25℃ ~ +80℃ Dynamic -40℃ ~ +80℃ Static | ||
| Wire gauge range | 2.5mm²(AWG14) | ||
| Ip rating | IP67/IP68/IP69K | ||
| Pollution degree | 3 | ||
| Insulator material | PA66+GF/TPU+GF | ||
| Screw/nut material | Brass Ni/Zinc Alloy Ni | ||
| Pin material | Phosphor Bronze Au/Brass Au | ||
| Sealing material | FKM/Silicon/epoxy | ||
