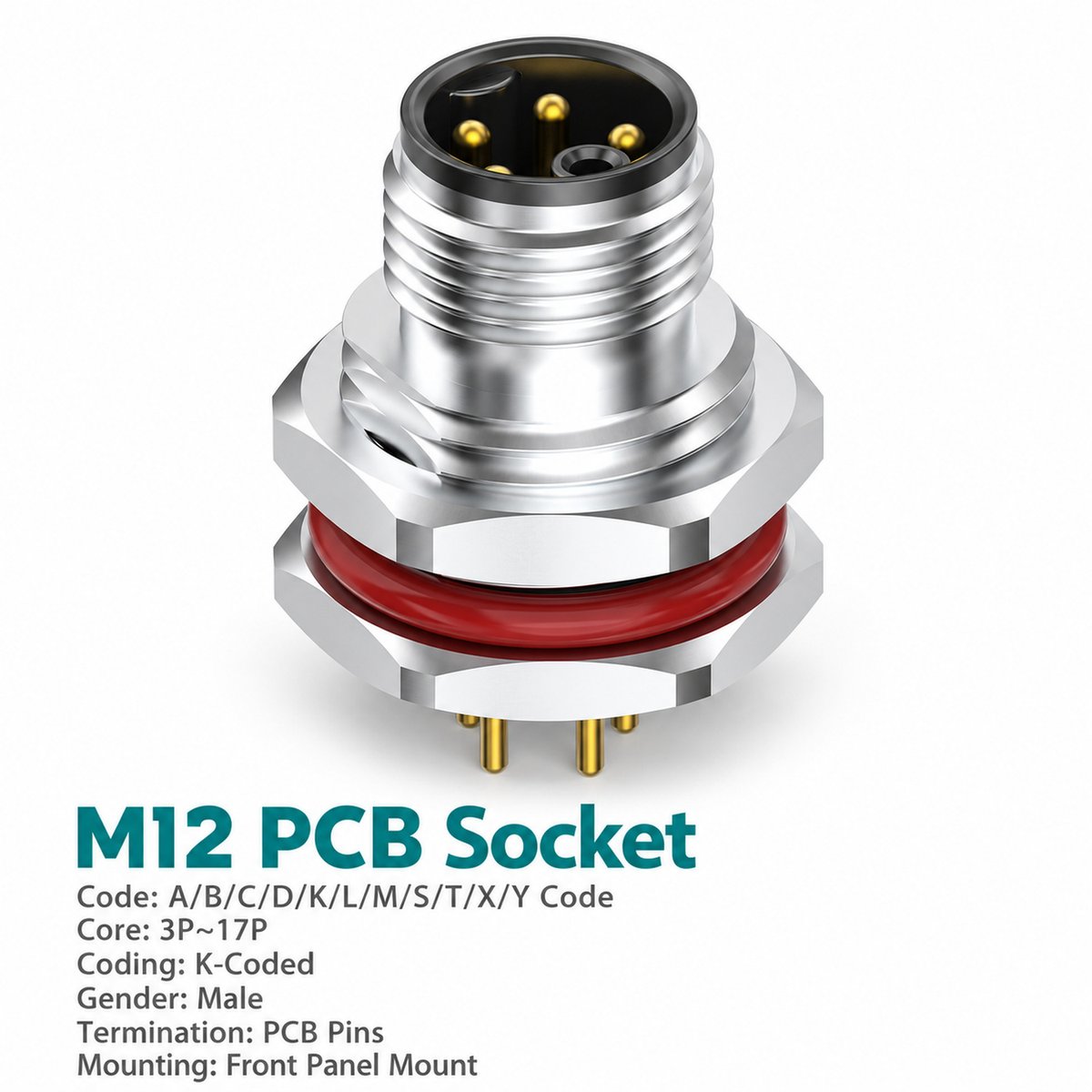

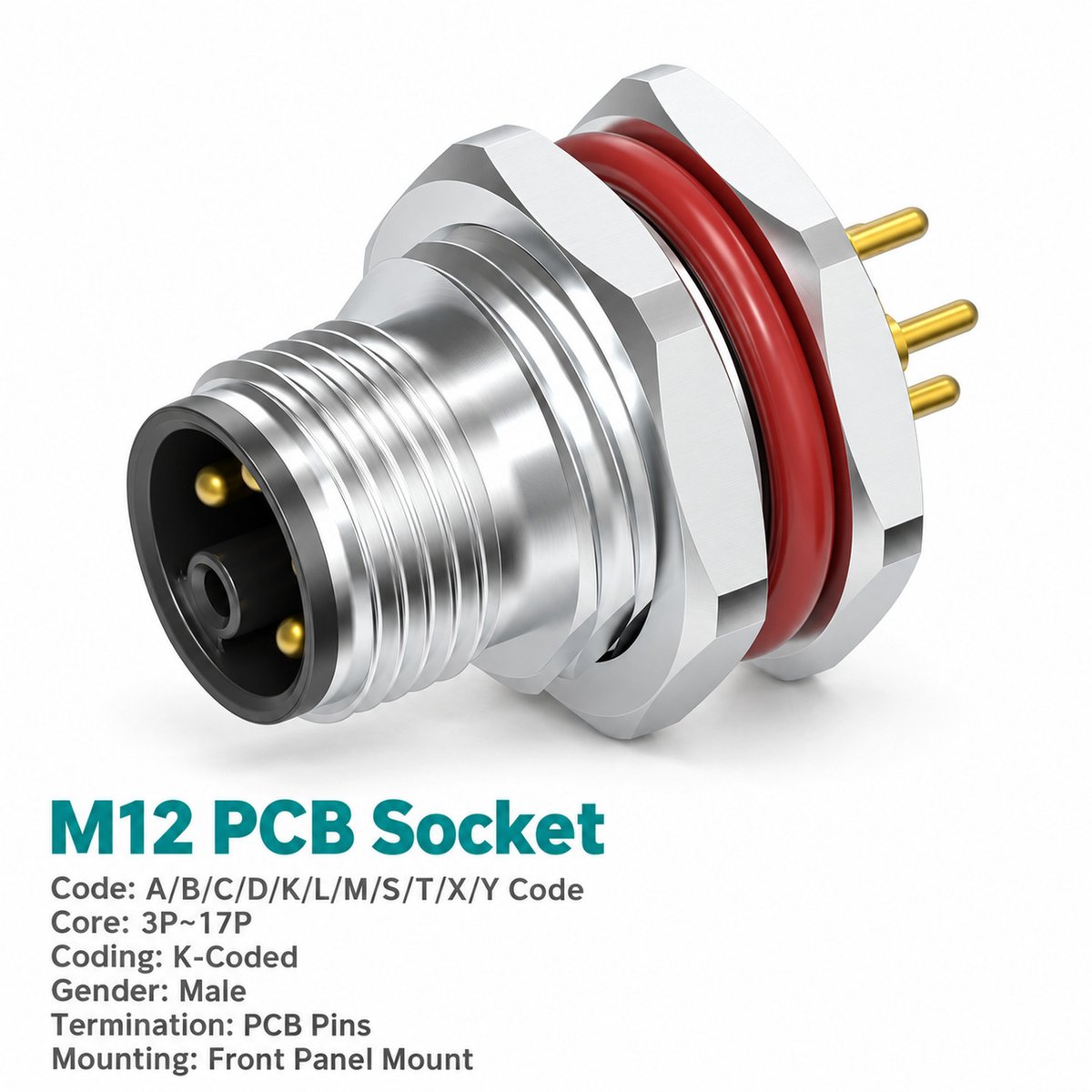

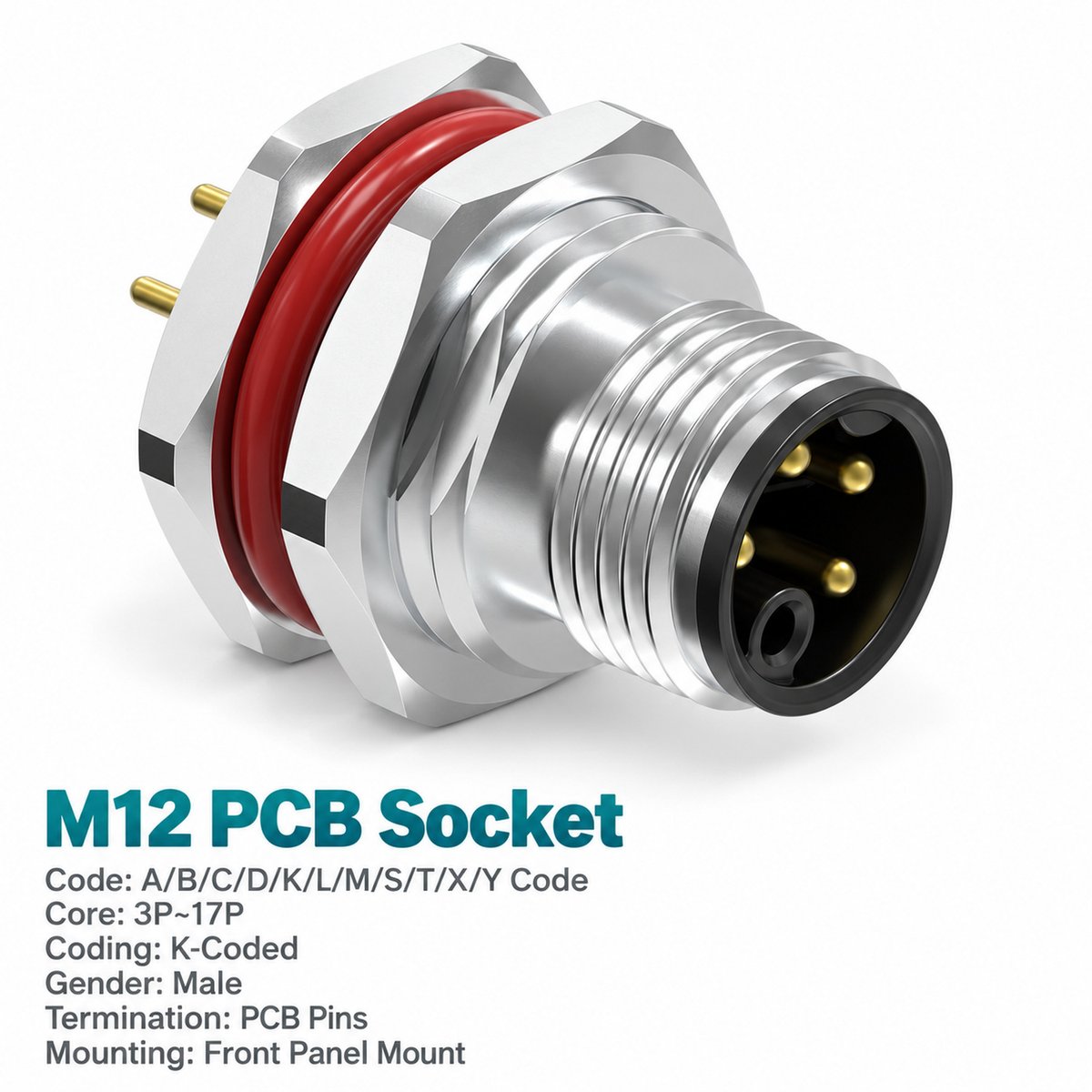

Xmost M12 K-coded male front mount PCB connector provides a detachable AC power interface between an external female cable connector and the equipment’s internal circuit board. Straight rear contacts support PCB insertion and dip soldering, combining a panel-mounted power connection with direct board termination.
This M12 K-coded power connector is available with two, three or four circuit contacts plus protective earth. All three configurations carry catalogue ratings of 16 A and 630 V.
The front fastened construction is offered with PG9 or M16 × 1.5 mounting threads. Select the contact arrangement to match the power circuit and compatible K-coded female cable connector, then use the front mount drawing to check the panel-to-board position.
Key Features
- 16 A / 630 V AC power interface: Listed ratings for all three contact configurations.
- Three arrangements with PE: Choose 2+PE, 3+PE or 4+PE.
- Male K-coded connection: Mates with a compatible M12 K-coded female power cable connector.
- Front fastened panel mounting: PG9 or M16 × 1.5 installation options.
- PCB dip-solder contacts: Straight insertion contacts connect to the internal circuit board.
- Unshielded construction: As specified for this catalogue product.
Product Dimensions
[Insert the male front mount outline drawing and corresponding panel cut-out drawing from page 16.]

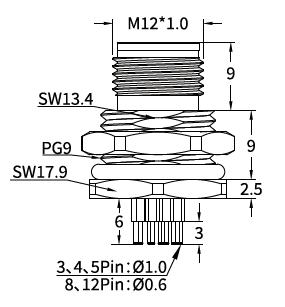

Illustrated PG9 Front Mount Version — Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread shown | PG9 |
| Upper axial section | 9 |
| Middle axial section | 9 |
| Lower axial section | 2.5 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Rear contact section | 6 |
| Contact tip section | 3 |
| PCB contact diameter indicated for 3 / 4 / 5-pin versions | Ø1.0 |
Needle Arrangement (Front View)
[Insert the K-coded male needle arrangement diagrams for 3-pin (2+PE), 4-pin (3+PE) and 5-pin (4+PE) from page 16.]
The diagrams show the male mating-face view. Match the numbered contacts and PE position to the selected female cable connector and equipment power schematic.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 K-coded male front mount PCB AC power connector |
| Mounting | Front fastened |
| Contact arrangements | 2+PE / 3+PE / 4+PE |
| PCB contact style | Straight |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-111 |
| Rated current | 16 A |
| Rated voltage | 630 V |
| Shielding | Unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting threads | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- Industrial AC power modules: Connects external power cables to internal PCB power circuits.
- Automation equipment: Provides a panel power interface with protective earth.
- Machine control housings: Integrates a front mount M12 K-coded cable connection into the enclosure.
- Modular electrical assemblies: Combines detachable power connection and PCB termination.
Selection and Ordering
| Contact Arrangement | PG9 Mounting | M16 × 1.5 Mounting |
|---|---|---|
| 3-pin — 2+PE | 1M1207KM2EHP9P | 1M1207KM2EH16P |
| 4-pin — 3+PE | 1M1207KM3EHP9P | 1M1207KM3EH16P |
| 5-pin — 4+PE | 1M1207KM4EHP9P | 1M1207KM4EH16P |
Example enquiry: M12 K-coded male front mount PCB power connector, 5-pin (4+PE), 16 A, 630 V AC, PG9 mounting, part number 1M1207KM4EHP9P.
